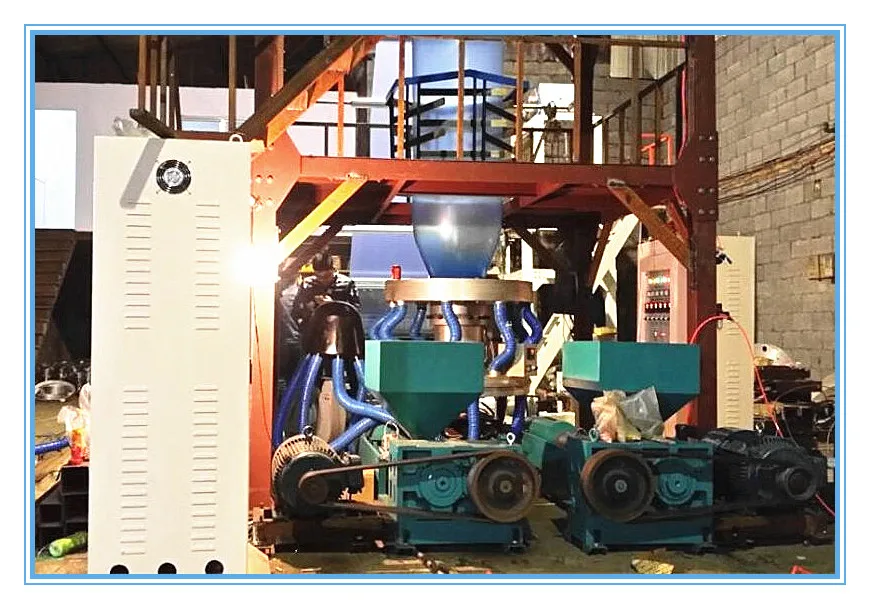

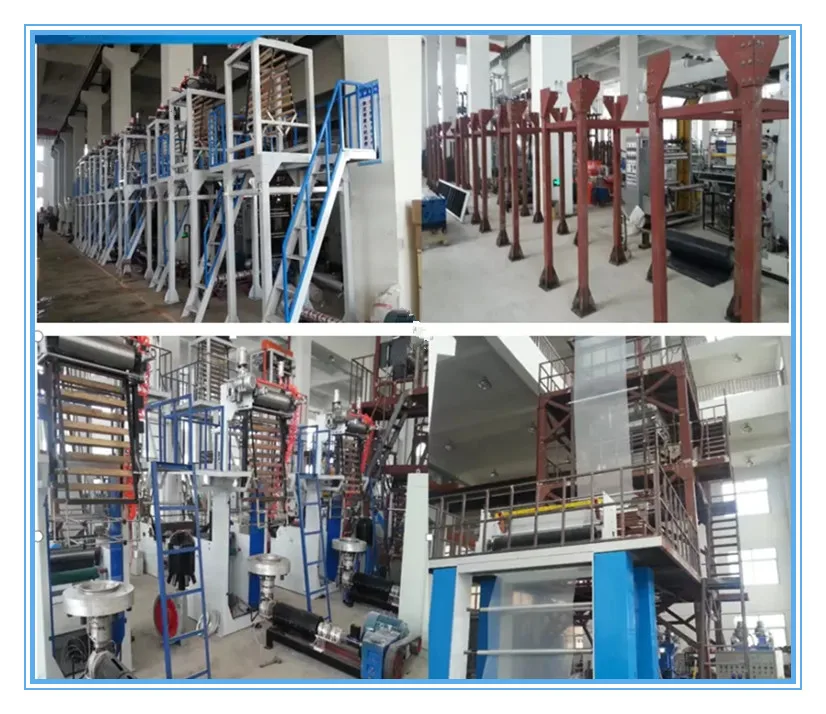

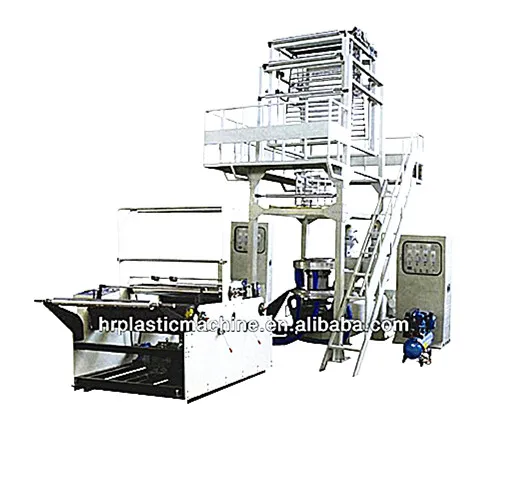

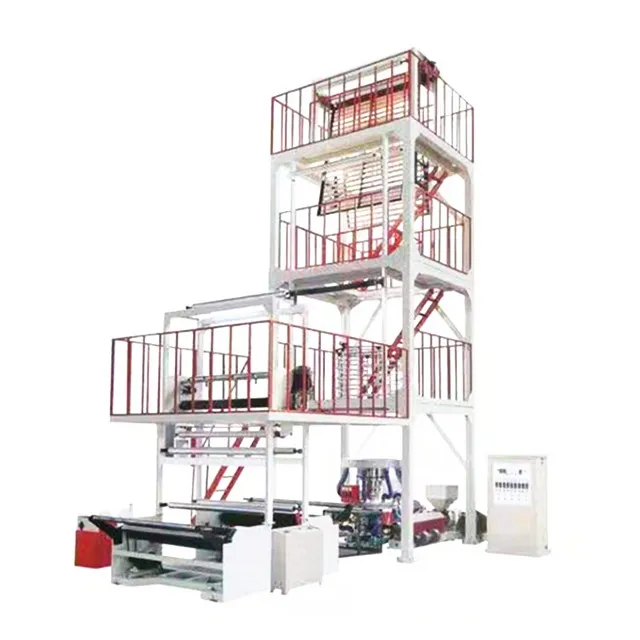

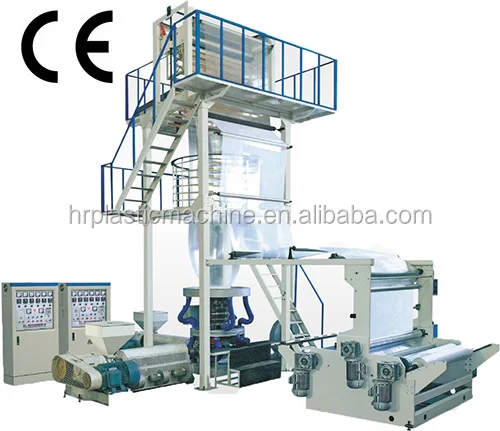

2 layers co extrusion blown PE film extruder with itrile rubber rewinding machine and 38CrMoAl nitride screw

Product Overview

Description

2 layers co-extrusion blown PE film extruder

with nitrile rubber rewinding machine outline

 H.S. No. : 8477301000



     2 layers blown film extruder referred to as the tubular double layers blown film extrusion, particularly for the products packaging industry. After solidification at the frost line, the film relocates right into a collection of nip rollers which break down the bubble and also squash it right into 2 standard film levels.

      The film passes with idler rolls throughout this procedure to make certain that there is consistent press in the film. Throughout this phase, the film could be slit to develop 1 or 2 films, or surface area coron finished. The tubular double layers blown film co-extrusion that is the higher efficiency method of blown film extrusion process of extruding two or more materials simultaneously through a single die unit.

       The tubular type 2 layers blown film co-extrusion is the least expensive means of producing layered films and saves time because it extrudes two or more layers at the same time that provides a method with fewer steps to produce multilayer films.

       The output for a coextruded multilayer film of 2 layers is approximately 130m/min, and also the output for a single layer of blown film is 65m/min. The film manufacture from the single layer procedure would certainly need an additional step to adhesive the layers with each other utilizing some kind of adhesive material.





            2 layers co-extrusion blown PE film extruder with itrile rubber rewinding machine solution



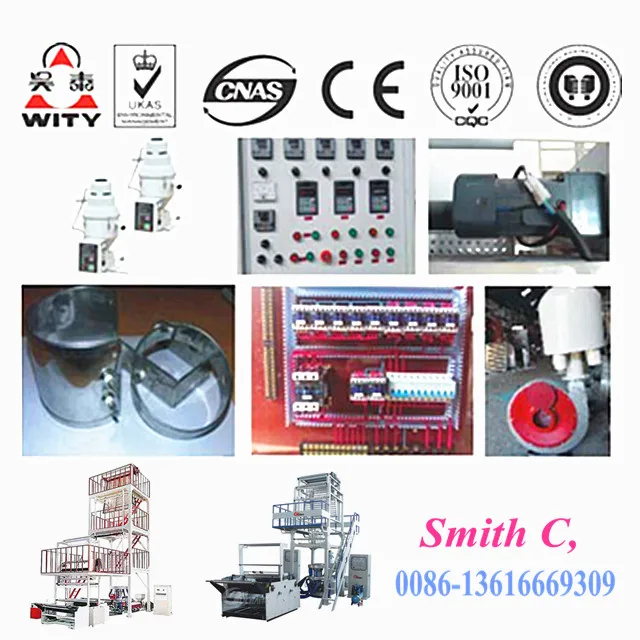

Configuraton list



Parts name	Model or brand
Hardened face gearbox	Hangzhou
Hardened face gearbox	Hangzhou
L/D ratio	28:1
Screw	Zhoushan
Die head	Rotation type
Inverter	Kewo
Screw cooling fan	1.5-2.5kw
Stainless steel heater	Cr20Ni80 mica heater
Main motor/380V/50HZ	Lipu
Main motor/380V/50HZ	Lipu
Main motor	Integral type
Loading method	Auto loader
Temperature control	K type thermocouple
Painted color	Green/white
Traction system	Nitrile rubber roller
Traction structure	Fixed type
Rewinding roller length	3200mm
Traction motor	4.5Kw inverter
Traction speed(m/min)	0~100
Clip board or nip bar	Paling type
Film shaping guide roller module	Ventilation controller
Roller guide roller diameter	450mm
Rewinding structure	Double rewinding
Rewinding way	Friction torque rewind
Die head	Rotation type 2 layers
Air ring	Rotating double tuyere
Blower	5.5kw
Barrel cooling way	Recycle water cooling
Electrical components	Chint or DELIXI
Switch box	Independent distributor
Forming ring	Adjustable
Hex socket wrench	All kind of size
Tool kit	Package kit
Filtering screen	1000 mesh
Plastic soft pipe	12 piece
Oiler	General
Open wrench	Varies size



Part 1. Gearbox of  2 layers co-extrusion blown PE film extruder with itrile rubber rewinding machine



Overview of gearbox:



2 layers co-extrusion blown PE film extruder with itrile rubber rewinding machine's gearbox series is designed for screw extrusion equipment of high precision, hard tooth face with thrust transmission device.Product design USES various technical specifications provided by JB/T9050.1-1999.



Gearbox main features:

1, the gear reducer for high strength steel alloy & carburizing steel, gear grinding after carburizing and quenching heat treatment processing, 6 levels of precision, high precision gear, gear hardness HRC54-62, low transmission noise.
2, equipped with high bearing capacity of thrust, reliable performance and can bear big axial thrust.
3, in addition to the individual small specifications products, all configuration has forced lubrication and water cooling system.
4, series gear box body are processed in the six sides.
5, the gearbox transmission efficiency, low noise, can run for a long time.
6, bearing adopt chinese famous Wafangdian brand almost 100 years brand.



Part 2. Screw and barrel of  2 layers co-extrusion blown PE film extruder with itrile rubber rewinding machine

Overview of screw and barrel:



Production of all kinds of screw, barrel, strict selection of high quality alloy steel as raw material, using the latest technology and elaborate processing and testing equipment, to ensure the production of precision and quality, and has long service life and good abrasion resistance, corrosion resistance.The barrel is equipped with water cooling system.



Screw and barrel main features:

The screw material: 38CrMoAl Nitride / 42CrMo intermediate frequency quenching + electroplating
42CrMo bimetallic PTA + electroplating.
Barrel material: 38CrMoAl Nitride / 42CrMo bimetallic alloy PTA inner hole casting.
Surface roughness:Ra0.4 um
Nitriding hardness: HV ≥900 , alloy layer thickness≥ 2 mm
Hardness: HRC58, Nitriding depth: 0.5-0.8 mm
Nitride brittleness≤2 level, Chrome plating layer thickness: 0.03-0.05 mm



Part 3. Heater of 2 layers co-extrusion blown PE film extruder with itrile rubber rewinding machine



1. Cast aluminum heater features:



Conditions: the environment temperature 20 ℃ ~ + 60 ℃; relative humidity< 80%

Electric strength: passed by 1500V50HZ sinusoidal AC voltage withstand voltage test, when the pressure reach to 1M1N, no breakdown phenomenon.

Leakage current: < 0.5 MA

Insulation resistance: 2MΩ

Grounding resistance: < 0.1 Ω

Power deviation: + 5% ~ -10%

Heat resistance: installed on the machine surface temperature almost up to 400 ℃.





2. Stainless steel heater features:



1. Cr20Ni80 mica heater or thermal system is the heating element, adopt natural mica powder or synthetic mica plate for insulation, outer metal is stainless steel.
2. It is portable mica heater but warming faster.
3. Mica heater shell is made of 0.3 ~ 0.5 mm stainless steel plate, and the middle core the is made of high insulation resistance and anti-high-temperature mica plate, in which evenly around a variety of standard specifications of nickel-chromium alloy resistance wire as a heating element, be processed into various shape by the molding machine.

4.According to the connection mode of user demand, voltage from 110 v, 180 v, 220 v, 380 v, the highest power load reach to 3.5 W per square cent meter.

5. The sintering infrared radiating surface save electricity 35%. Mica stainless steel heater Is ring type.
6. It is simple, reliable and easy to use, feature fast temperature rise, high thermal efficiency, small power consumption and long service life etc.



3. Cooling fans with heater



2^ndand the 3^rd zones of the screw and barrel are equipped with cooling fans as below picture.



Part 4. Rotating die head of  2 layers co-extrusion blown PE film extruder with itrile rubber rewinding machine



Rotating die head features



1.Temperature control sensor: 2 points
2. Material: it is made of medium carbon steel S45
3. Adopt strict and tempering heat treatment process and the CNC lathe precision machining, to ensure that each part of die head processing precision is high.
4. Electroplating: the whole die head with environmentally friendly alloy electroplating, plating is more uniform, ensure that the die no dead Angle, die flow easier to clean up, die head is more durable, and the production of thin film surface brighter and higher quality (or according to customer requirements, the hard chromium electroplating).



Rotating die head process



Blown film die head is made up of die bodies (die core, die barrel and die ring) and heater (heating coil).
1. select right material, it is to choose the corresponding materials, for example middle carbon steel S45 or 38CrMoAl alloy steel nitride finished etc .
2. forging, forging the ingredients into a mold of coarse embryos, as part of the more compact the molecular structure of the forging parts of the embryo.
3. The lathe processing, according to the die design drawings of the die head, a lathe processing, as far as possible with high precision lathe, and master skilled lathe technicians.
4. polished the flow way part of the mould after machining by lathe, the better smooth of surface of flow way, the better blown film quality, and the less the defect lines of film.
5. hard chrome electroplating in flow way after polishing, which increase the wear resistance and corrosion resistance, and make the mould is not easy to damage and not easily get stranded.

6. finally, install the die head, combined with heating coil parts.
Blown film co-extruder die head contrast test many times to choose optimal shapes, feature large inner pressure, uniform extrusion stability, better performance of strength of film, no slot with extruder etc. And changes of the proportion of mixture and the recycle material, blown film extruder do not need to replace the die head.





How to adjust the die head of blown film extruder



1. If the die head is covered from top to bottom, loose or release the screw on the thick edge, and tight the screw on the thin side.

2. If the die head open under bigly, and put the die head in above, loose the screw on the thin side, and tight the screw on the thick edge.

3. Die head with four or six adjustment bolt which generally is hex socket, adjust on the edge of upper part of the die head.



How to clean the die head of blown film extruder



Step No. 1. Paint the die head with available paraffin or methyl silicone oil.

Step No. 2. Wipe the paste waste material gently with 1000 mesh sand paper until clean.

Step No. 3. According to the material property, adjust temperature while changing different material because of heating temperature difference of virgin and recycle material, increasing extrusion amount to extrude paste material after replacement of the filtering screen.

Step No. 4. The key is to add methyl silicone oil into the hopper in the process of production within a week, which lubricates the screw, barrel and die head, also clear die head meanwhile.



Part 5. Rotating air ring of  2 layers co-extrusion blown PE film extruder with itrile rubber rewinding machine

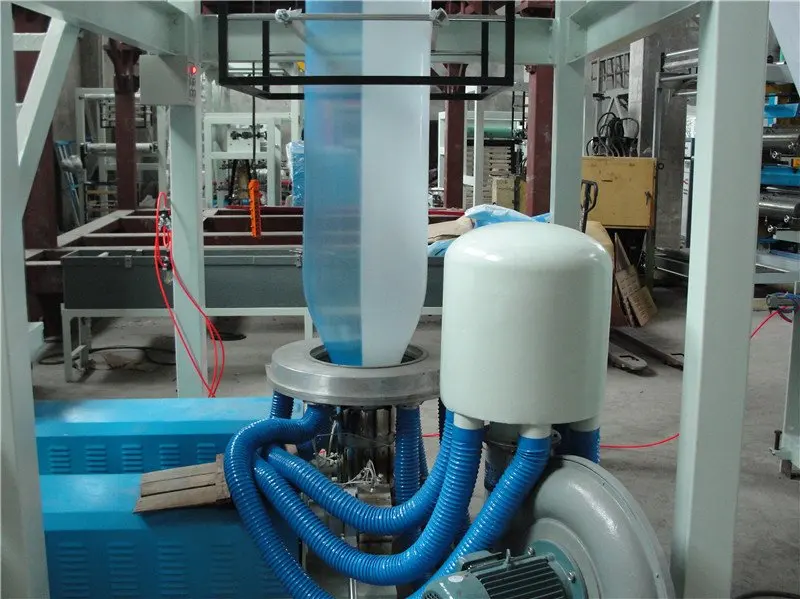

The rotating die head and air ring as below pictures:

Rotating die head with double tuyere air ring, wind pressure is very strong, the wind ring is cooling fast, so you can speed up the main motor and increase production, also has benefit of thickness deviation.

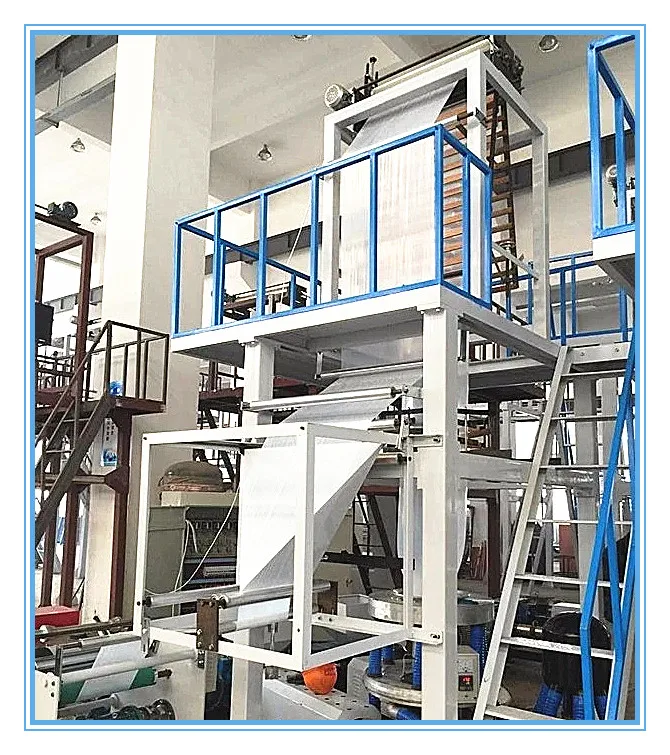

Part 6. Film shaping guide roller of  2 layers co-extrusion blown PE film extruder with itrile rubber rewinding machine



Film shaping guide roller of 2 layers co-extrusion blown PE film extruder with itrile rubber rewinding machine  is made up of shaping ring and shaping bar. And shaping bar of shaping guide roller is adjustable , and stabilizing bubble frame structure has big adjusting range. It is convenient to operate and adjust, with stable bubble tubular film, create conditions for winding roller.

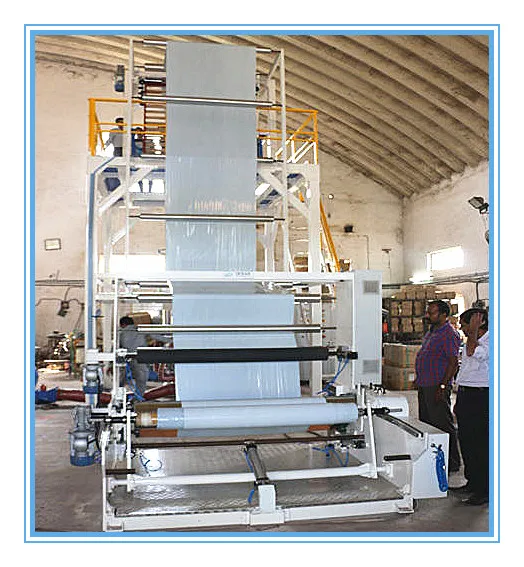

Part 7. Film winding system of  2 layers co-extrusion blown PE film extruder with itrile rubber rewinding machine



Overview:



Film thickness is controlled by changing the proportion of the speed of the motor, inverter steady speed is precision, leading to speed stability, and uniform film thickness. Two clip roller and winding roller adopt tension control, the tension of different materials requirements is different, the tension of the rollers should be adjusted independently. Rewinding axis is leaning on the winding roller, relying on the winding roller’s friction to drive the rewinding axis rotation, thus the material tension has nothing to do with the coil diameter



Benefit:



The tension is produced by differential speed and frequency converter work under the mode of open loop vector control speed, fast dynamic response, overcome the smaller torque motor speed tension and larger deceleration tension.

The motor constant torque output as speed control. While the linear velocity and tension is constant, the winding roller speed keep constant too, will not be changed by the changing of coil diameter and load line, so overcome faults of constantly adjusting the motor output torque from empty to full volume process, in order to maintain a constant tension.

System is easy to manipulate.



Part 8. Main motor of  2 layers co-extrusion blown PE film extruder with itrile rubber rewinding machine



If your motor overheat phenomenon occur, I think that it might be caused by 2 reasons:

1.The motor is overload, power is not enough.

2. The motor fan wiring is wrong, the fan motor correct wiring is separated from the main motor wiring, whenever the main motor speed is low or high, the fan power is strong power enough, otherwise, if the fan motor wiring is from the same connection of power supply, fan motor speed and main motor speed work synchronously, the main motor certainly overheat.

All of our fan motor wiring is separated from the main motor.



Part 9. Clip board or nip bar of  2 layers co-extrusion blown PE film extruder with itrile rubber rewinding machine



Tractors of extruder is made up of towing, clip board or nip bar, traction roller and traction motor, the unit of traction adopts electromagnetic slip type mechanism, driven two pairs of drawing roller through gear parts, and the rewinding roller meanwhile. Clip board or nip bar is fixed on the shelf, the adjustment of inclined angle of clip board or nip bar can be adjusted freely according to the blown film thickness.



Part 10. Rubbe roller of  2 layers co-extrusion blown PE film extruder with itrile rubber rewinding machine



In the diagram of a roller which will have deep lines so that it opens LDPE film during work. It is equipped with a few such rollers on my machine. If the film is very thin and it can not get together during work.

Our winding roller show as follow pictures as the diagram and meet the thin film rewinding requirement.

    Two pairs of traction roller consists of rubber roller and alloy steel roller, can effectively prevent the air to escape and ensure the smooth progress of the coil rewinding. Traction frame adopts assembly structure, outfit is convenient to tear open, which is advantageous to the transportation loading and unloading. Take-up device adopts the center winding of the effective mechanism, and keeping the constant tension, friction piece is driven by sprocket, and the big gear is driven by friction piece, to drive the winding shaft, so as to ensure the re-winder works smoothly while the winding diameter changes from small to big, the friction force can be controlled by adjusting the spring-loaded of edge.

We adopt nitrile rubber roller, also you can choice the Polyurethane and Silicone rubber roller, but we recommend nitrile rubber, because it is of high quality and inexpensive.

The motors have separate cooling fans with 380V. These are more powerful motors of fans. They are of high quality.

Our fan motor wiring is separated from main motor.



Part 11. Inverter of  2 layers co-extrusion blown PE film extruder with itrile rubber rewinding machine



Inverter feature:
1. Inverter can smooth speed regulation in a certain range, by adjusting the rotational speed of main motor, traction motor to produce different film products;
2. Smooth start and stop, because the plastic extruder is the constant torque load, smooth start and stop is to avoid too much of a mechanical shock, on the other hand also can reduce the start-up process of unqualified products;
3. Run a single direction of motor;
4. Stable performance, reliable work.



Part 12. Electrical components of  2 layers co-extrusion blown PE film extruder with itrile rubber rewinding machine



K type thermocouple refer to nickel chrome - nickel silicon thermocouple, which is a type of inexpensive thermocouple to measure high temperature.Because of this alloy has good high temperature oxidation resistance, can be applied to oxidizing or neutral medium.It can measure the high temperature of 1000 degrees for a long time, short-term measurable to 1200 degrees.

It cannot be used for reducing property medium, otherwise, it will be corroded soon, in this case can only be used under 500 degree measurement.

It is much cheaper than other thermocouple, its repeatability is very good, the thermoelectric potential is large, thus the sensitivity is high, and it has a good linear property. Although the measuring accuracy is slightly low, but can satisfy completely the requirements of industrial temperature measurement, so it is the most commonly used on industrial thermocouple.



Solid state relay(SSR)



Our switch adopt Chint and Delixi.



Solid state relay (SSR)with isolation function that is non-contact electronic switch, no mechanical contact parts in the process of switch, so solid state relay is also compatible with logic circuit besides has the same function as electromagnetic relay, resistance to vibration and mechanical shock, install location is unrestricted, has the good performance of moisture-proof, mildew corrosion resistance, the performance in terms of explosion-proof and prevent ozone pollution is also good, small input power, high sensitivity, small control power, good electromagnetic compatibility, low noise and high working frequency etc.

Advantages of solid state relay

(1) Solid state relay feature high life and high reliability. There are not mechanical parts or mobile parts in solid-state relay contact, so they can work stably in high shock, vibration environment, due to the inherent characteristics of composition of the solid state relay components, determines that they are long life and high reliability of the solid state relay.

(2) The solid state relay feature high sensitivity, small control power and good electromagnetic compatibility. Since solid state relay has featured wide input voltage range, low driving power, solid state relay can be compatible with most of the logic integrated circuit which does not need to add buffer or drive.

(3) Rapid transformation: solid state relay switching speed can be from a few milliseconds to a few microseconds because of using solid state relay.

(4) The electromagnetic interference is small.

3. DC motor regulator and DC motor. We can offer the high quality DC motor and DC motor regular.



Part 13. Air ventilation of  2 layers co-extrusion blown PE film extruder with itrile rubber rewinding machine



Air ventilation Micro mobile parts of air ventilation controller is fixed on the bubble shelf which is equipped a lot of film shaping guide roller, air ventilation controller is connected with main motor of wind ring. Micro sensor is fixed on the top of the blown film. Micro mobile parts of air ventilation controller need to get a fixed pole.

Film air bubble size is related with internal inflatable pressure of tubular film, and has nothing to do with external cooling.

Cooling air volume is related with the position of blown film air bubble which located up and down. The bigger of cooling air volume, the blown film air bubble down the farther. The smaller of cooling air volume, the blown film air bubble up the farther.



Part 14. Optional device of  2 layers co-extrusion blown PE film extruder with itrile rubber rewinding machine



Auto loader of  2 layers co-extrusion blown PE film extruder with itrile rubber rewinding machineAuto material feeder loader, that is used for mixing HDPE, LLDPE, Pigment well and will load.





For more info, feel free to contact us, my contact:

Whatsapp+8615857780168

Skype:jim.cole.woo

Wechat:jimcolewoo





Usage of  2 layers co-extrusion blown PE film extruder with itrile rubber rewinding machine



2 layers co-extrusion blown PE film extruder with itrile rubber rewinding machine is used for blowing the various two layers films of low density polyethylene (LDPE), high density polyethylene (HDPE) and linear low density polyethylene (LLDPE), etc, which are widely used for packing liquid, industrial products, garments and textile, Etc. And print lamination.



2 layers co-extrusion blown PE film extruder with itrile rubber rewinding machine can be used for the manufacture of co-extruded, double layer films for high barrier applications such as express delivery or fast mail packaging that are applied to the demands of shopping in internet.

Double layers blown film can be used for the manufacture of co-extruded, double layer films for inflatable buffer air column packaging bags with PA layer. Double layers blown film can be used either in tube form plastic bags and sacks or the tube can be slit to form a sheet or film.





Advantages of  2 layers co-extrusion blown PE film extruder with itrile rubber rewinding machine
2 layers co-extrusion blown PE film extruder with itrile rubber rewinding machine  is one of our featured machinery according to the demand of markets. Adopt the method continuously of squeezing horizontally and blowing upward, film folding width reach up to 800/1500 mm with thickness of 0.08 mm, suitable for LDPE, HDPE, LLDPE, MLLDPE, PA packaging film.

Since its good barrier property, moisture preservation, moisture proof, rain water proof, wind proof, frost proof, oxygen insulation, oil resistant etc, thus can be widely used in packaging material.

Double layers blown film extrusion dies are accuracy made and also therefore are pricey however their life span is considerable. Each die head will have a working range of die inserts at different diameters to fit the needed application.



Different die gaps can also be specified relying on the material being extruded. The tubular type double layers blown film extruder’s barrel and screw rods are all made of quality alloy steel that have been nitrided finished and processed by precision machining equipment. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality In plasticizing, which helps increase the production capacity.

1. With over twenty years experience in plastic machinery manufacture, our machines are maturest and stable
2. 4 Person engineers group, to improve the machines' design better and better everyday.
3. 6 Person quality group, to ensure every machine in the best situation before it leaves our workshop.
4. Every machine will be testing untill it works stably, then pack in case.
In customer
1. Supply technical supports in the whole process in using machines.
2. Can dispatch technician to customer factory support the installation and train workers.
3. Supply machinery guarantee, and all life after-sales service.
