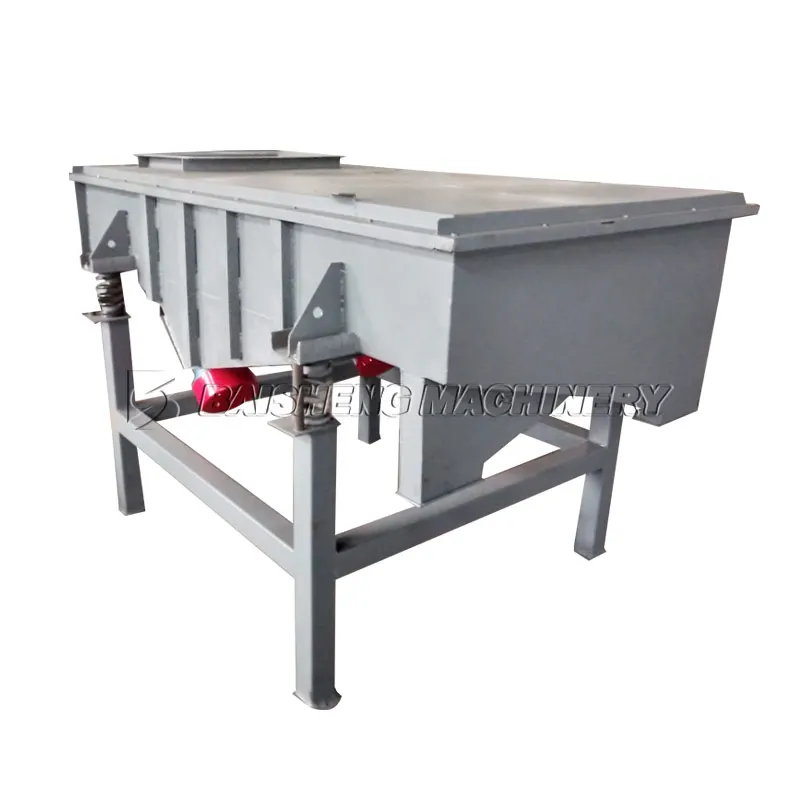

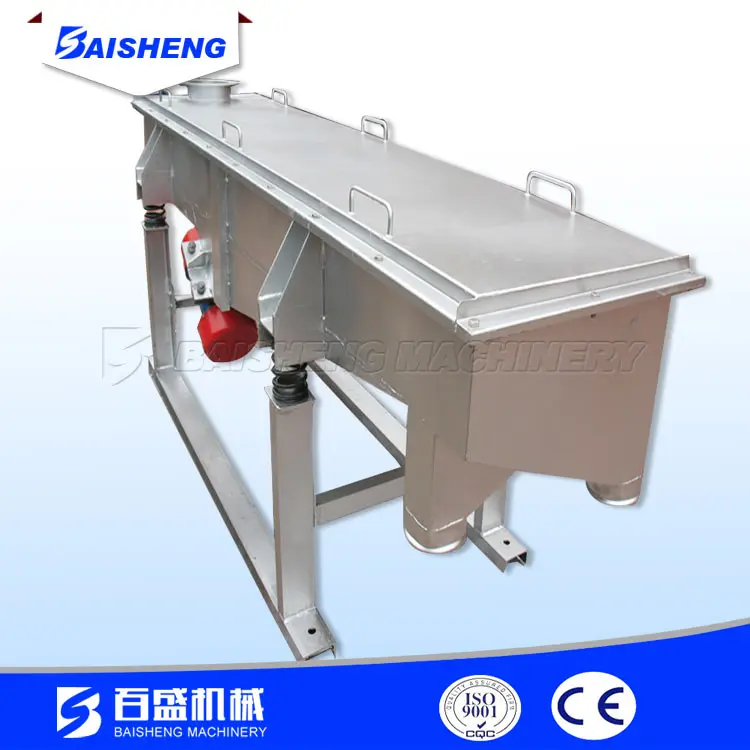

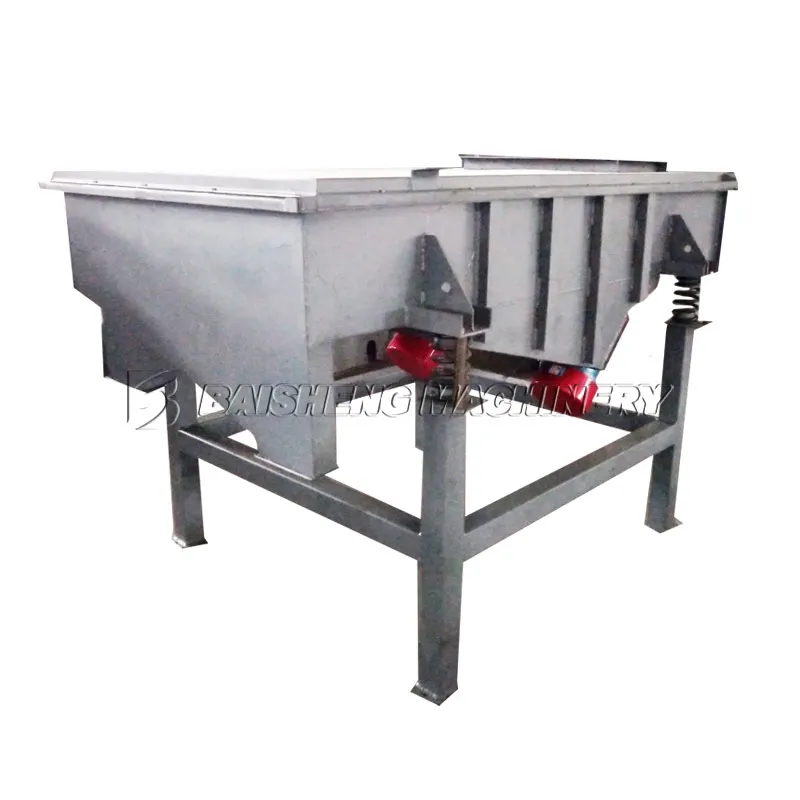

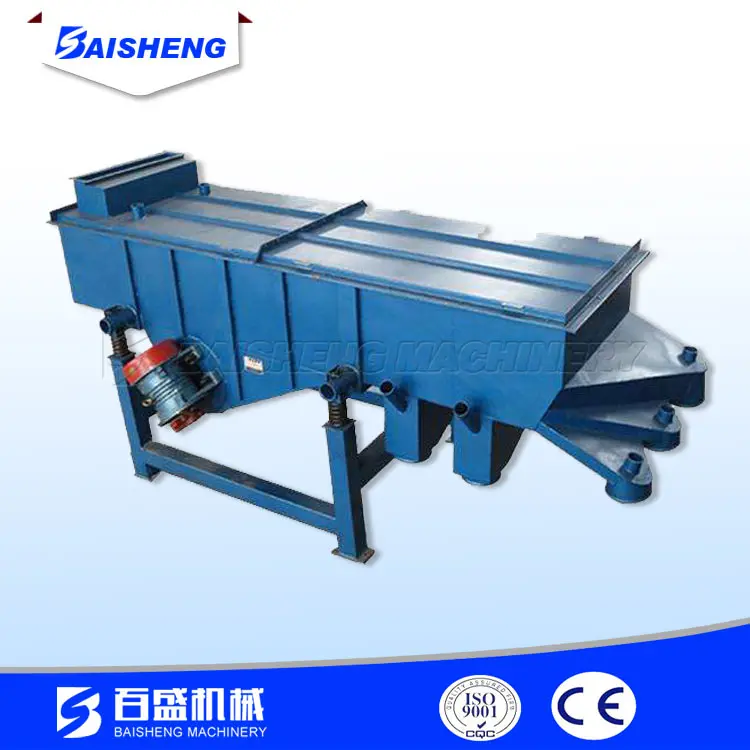

Large capacity concrete vibration screening separator machine
Product Description
Linear Vibrating Screen use excellent vibrating motor as power source,that the materials can be thrown up on the sieve and forward to make a straight movement. It can be equipped with single or multi-screen to achieve the grading, removing impurity, removing dust, testing, washing selecting, dehydration etc.
Product Characteristic
Easy to operate and maintain.
Low consumption with high yield and low cost.
Fully enclosed structure, automatic layout, more suitable for pipeline operations.
Good sealing without dust flying.
Can be used for single or multi layer.
Material auto discharge, be able to continuous operation.

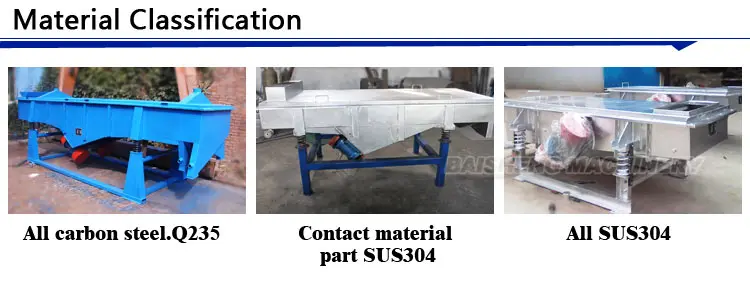

Every part of the screen box used copper plate and section welded together.

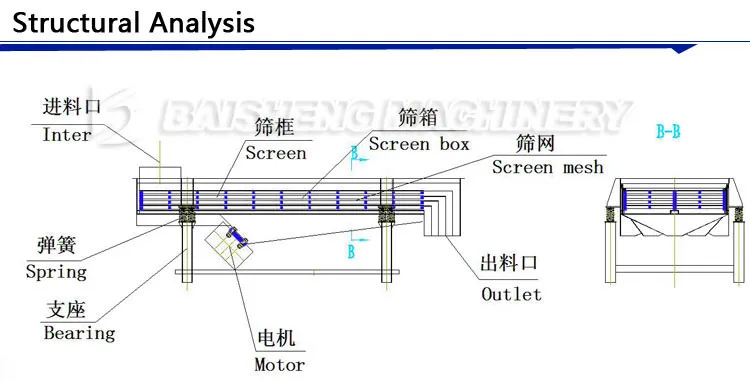

Working principles
Linear vibrator filter sieve machine use excellent vibrant motor as power source, so that the materials can be thrown up on the sieve and forward to make a straight movement.It can be equipped with single or multi-screen to achieve the grading, removing impurity, removing dust, testing, washing selecting, dehydration etc.
Technical parameter
Model
Sieve size
mm
Screen surface layers
Mesh size
Capacity
t/h
Vibration times
r.p.m
Double amplitude
mm
Motor Power
kw
Vibration direction angle
Dimensions
(L × W × H)
mm
DZSF520
1-6
2-200
0.05-5
960
6-7
2×0.4
45-60
2140×808×848
2DZSF520
500×2000
0.05-5
960
6-7
2×0.4
45-60
2199×808×878
3DZSF520
500×2500
0.03-5
1450
4-6
2×0.4
45
2256×808×938
DZSF525
0.06-8
960
5-7
2×0.4
45-60
2642×808×848
2DZSF525
0.06-8
1450
4-6
2×0.4
45
2699×808×878
3DZSF525
0.06-8
960
6-8
2×0.75
45-60
2750×808×938
4DZSF525
0.1-15
1450
5-7
2×0.4
45
2813×808×1000
5DZSF525
0.08-15
1450
5-7
2×0.4
45
2883×808×1060
6DZSF525
0.07-15
960
6-8
2×0.75
45-60
2953×808×1120
DZSF1020
1000×2000
1
0.12-20
960
6-8
2×0.75
45-60
2152×1320×900
2DZSF1020
2
0.11-20
960
5-7
2×0.75
45-60
2219×1320×960
3DZSF1020
1000×2000
3
2-200
0.10-2
960
5-7
2×0.75
45-60
2286×1320×1030
4DZSF1020
4
0.07-15
960
4-8
2×0.75
45-60
2353×1320×1100
5DZSF1020
5
0.07-15
960
4-8
2×1.5
45-60
2420×1320×1160
6DZSF1020
6
0.07-15
960
4-8
2×1.5
45-60
2487×1320×1220
DZSF1025
1000×2500
1
0.1-15
1450
5-7
2×0.4
45
2203×1320×900
2DZSF1025
2
0.08-15
1450
5-7
2×0.4
45
2269×1320×960
3DZSF1025
3
0.07-15
960
6-8
2×0.75
45-60
2336×1320×1030
DZSF830 2DZSF830 3DZSF830
800×3000
1 2 3
0.1-20
960
6-8
2×0.75
45-60
3080×1098×1120
0.1-20
960
6-8
2×0.75
45-60
3140×1098×1180
0.1-20
960
6-8
2×1.5
45-60
3200×1098×1240
DZSF1030
1000×3000
1
0.1-20
960
6-8
2×0.75
45-60
3152×1340×1120
2DZSF1030
2
0.1-20
960
6-8
2×1.5
45-60
3219×1340×1120
3DZSF1030
3
0.1-20
960
6-8
2×1.5
45-60
3286×1340×1120
DZSF1224
1200×2400
1
0.1-23
960
6-8
2×0.75
45-60
2480×1520×1100
2DZSF1224
2
0.1-23
960
6-8
2×0.75
45-60
2540×1520×1160
3DZSF1224
3
0.1-23
960
6-8
2×1.5
45-60
2600×1520×1220

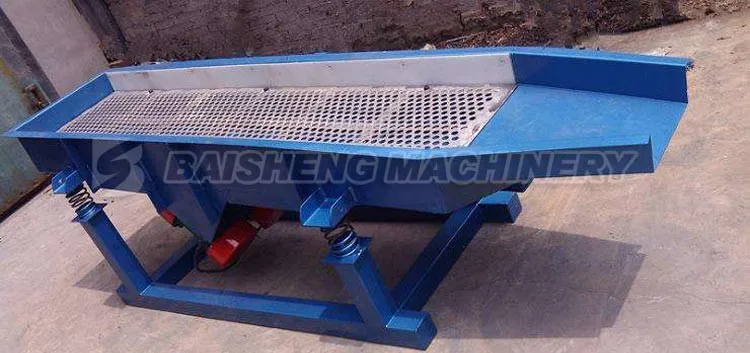

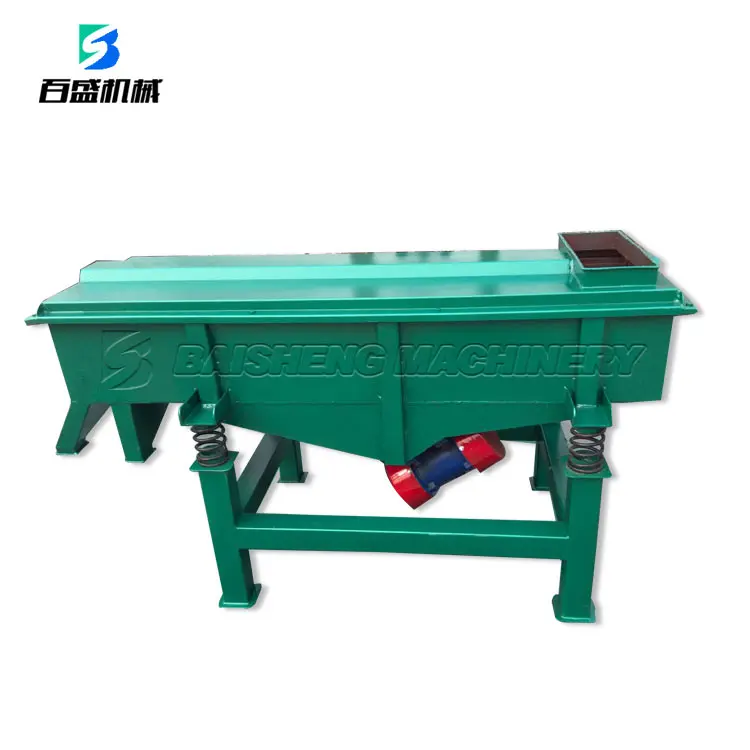

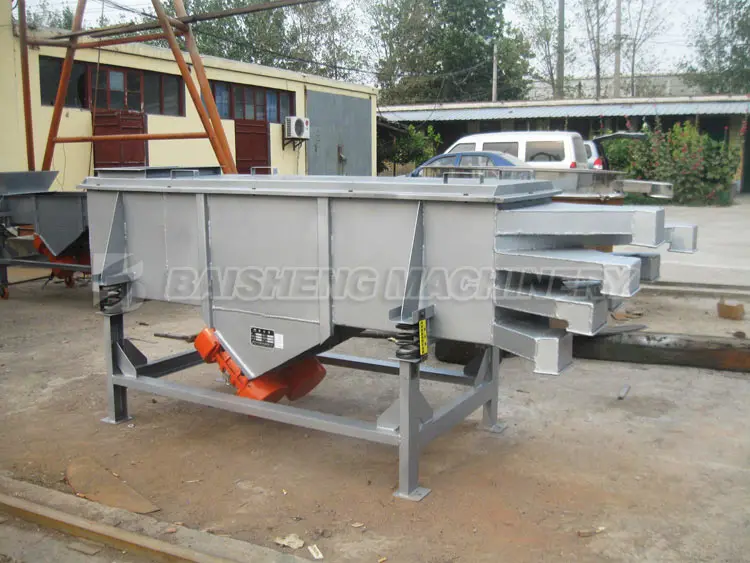

Product show
Packing Details: 1,Outer packing is plywood case, which is up to the international standards. 2,Inner packing is Moisture-proof and water-proof membrane. 3,All of package are wrapped by 0.5mm steel belt to further strengthen. DeliveryDetail: 7-10 working days after receiving deposits.
Company Information
FAQ:
The payment Usually we company accept TT,L/C,Western Union for new customer.
The delivery time Normal delivery time within 7 to 15 working days, complete production line or larger equipment may take longer. Exact delivery shall be confirmed when place the order.
Shipping lines Priority rule based on clients' request, and freight cost, service, shipping date, date of arrival shall be considered.
Equipment warranty Equipment with 12 months warranty, can be extended to 24 months as request.
