300ton rubber injection molding machine for making 35kv 66kv HTV silicone insulator horizontal silicone rubber injection machine

Product Overview

Description

300ton rubber injection molding machine making 35kv-66kv

Machine Features

Angel design structure super-large injection volume, equipped with stuffing device. It is suitable for making solid silicone rubber products,

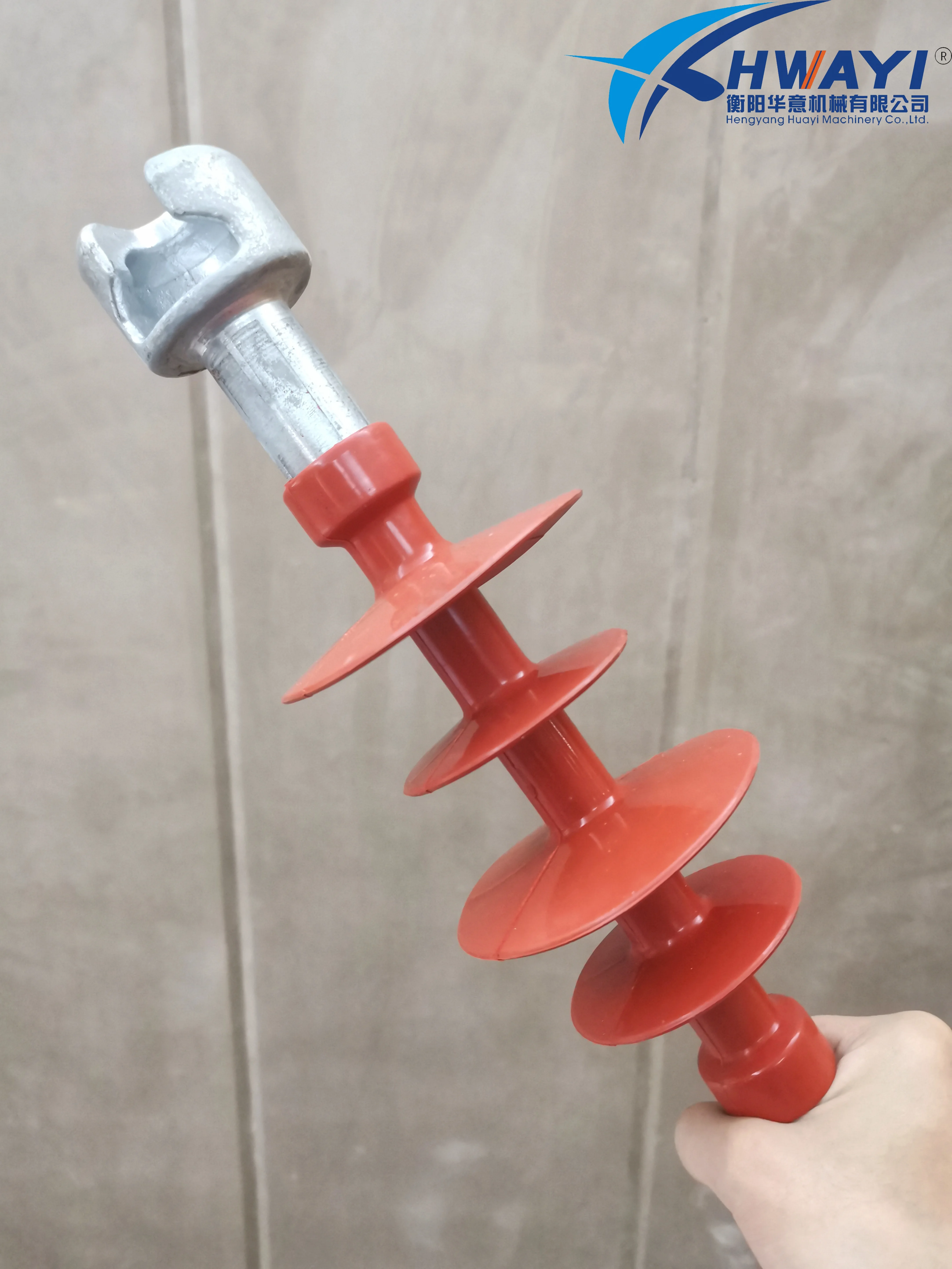

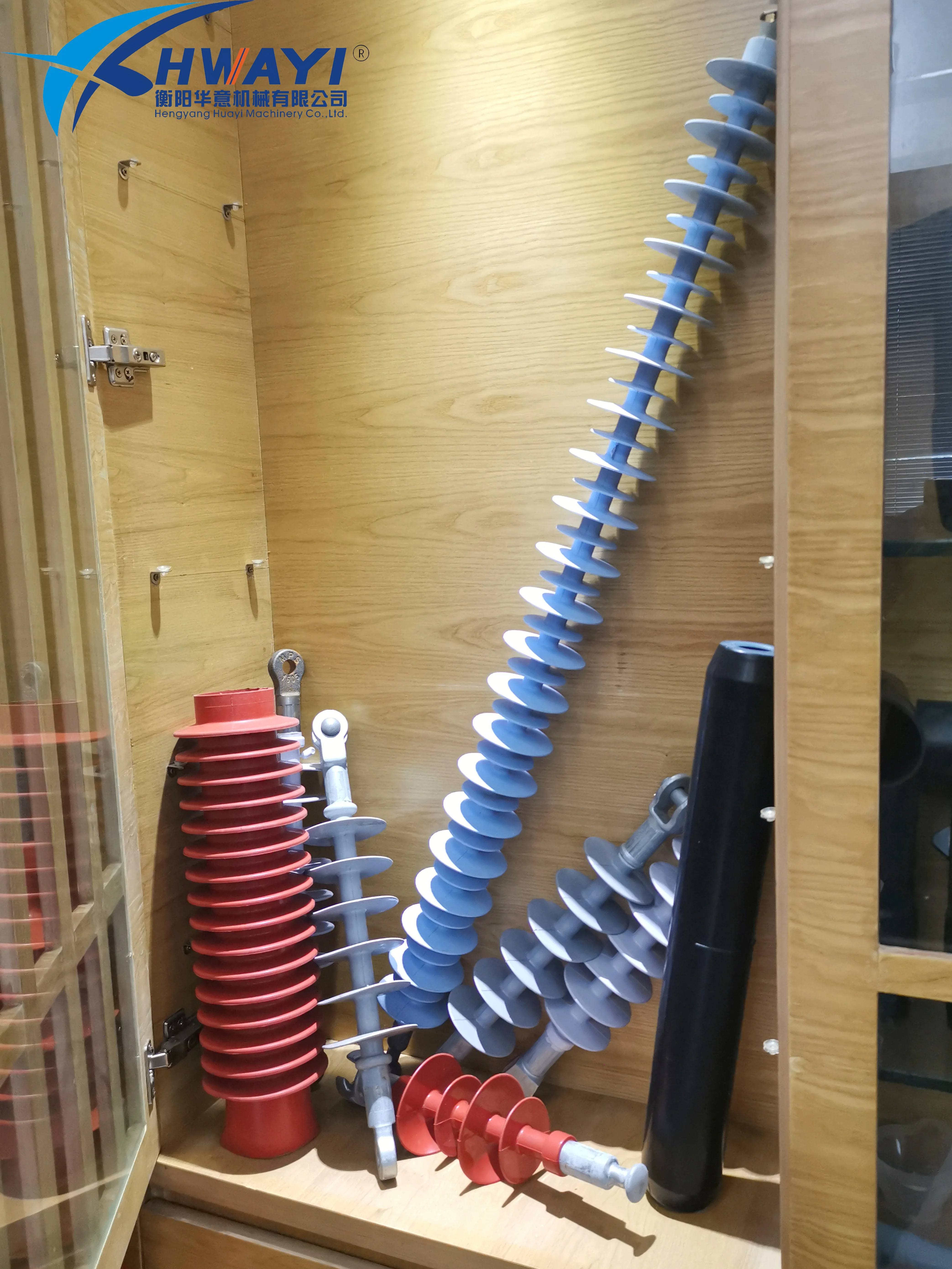

such as insulators, arrester and bushings.





Main Technical Parameters

Parameters/models	HYZ-300B	HYZ-500B	HYZ-1200B	HYZ-2400B
Max. injection volume(cm3)	4000	10000	30800	80000
Max. clamping force(KN)	3000	5000	12000	24000
Platen size(mm)	550X1300	630X1500	850X3500	850X3500
Clamping stroke(mm)	600	700	650	650
Min. mould thickness(mm)	190	250	210	360
Total power(kw)	50	85	110	280
Dimension Btwn tiebar(mm)	680×500	780×560
Space of platens(mm)	780	940	850	1000
Machine size(mm)	4500×1600×3200	5300×2500×3500	7100×5500×3800	9000×5500×4500
Reference weight(ton)	15	21	65	120

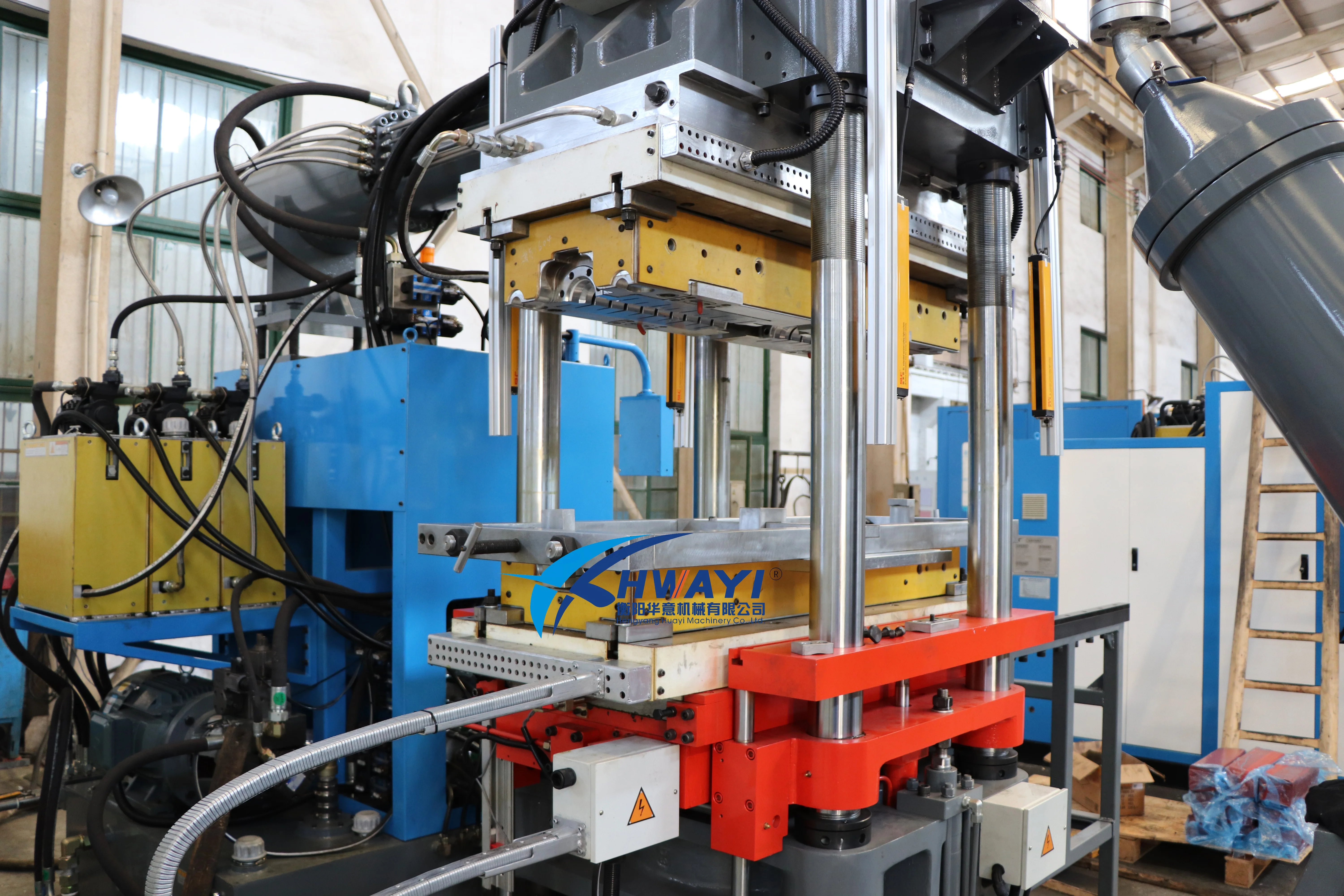

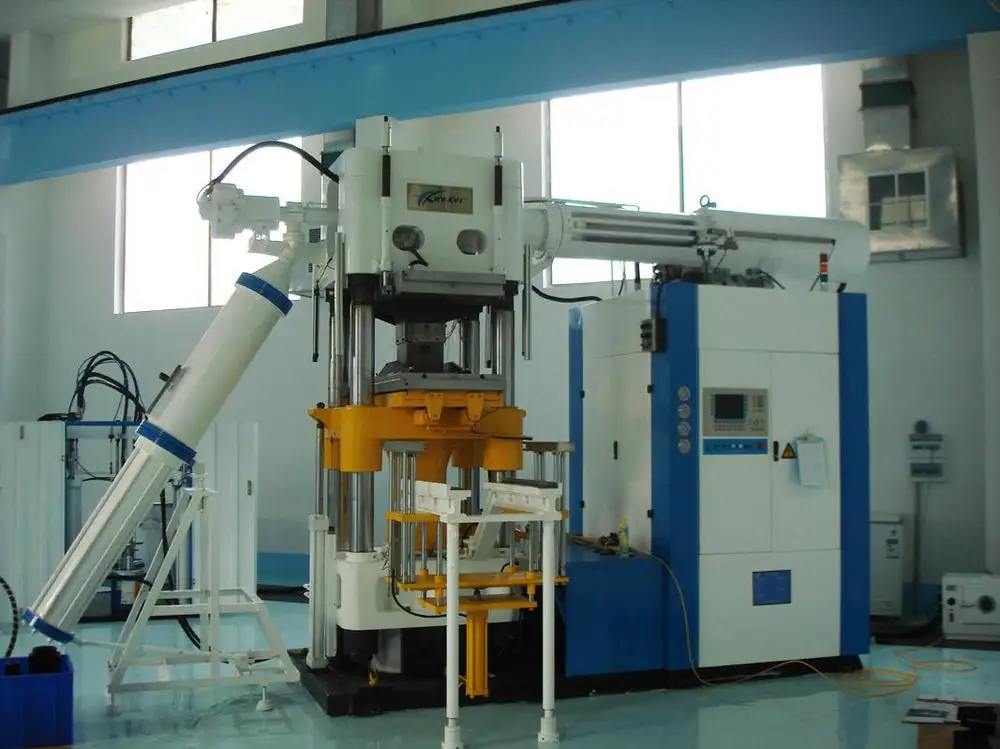

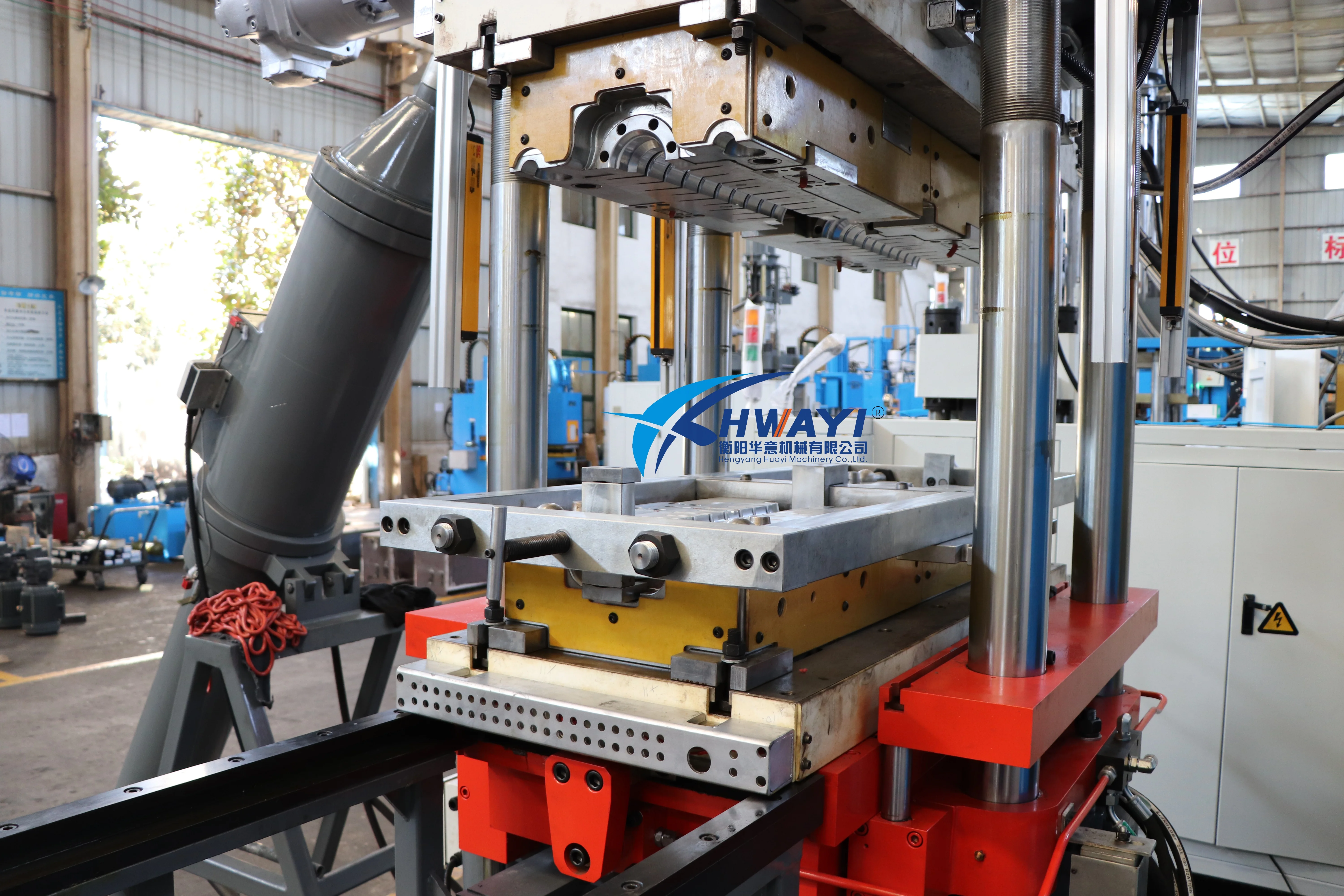

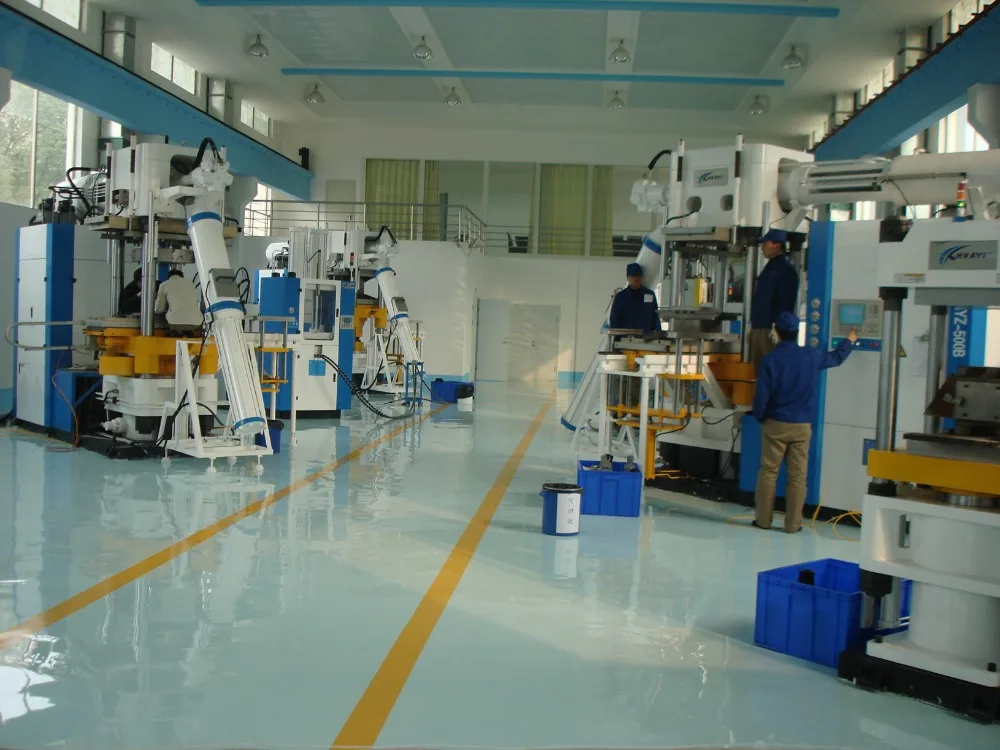

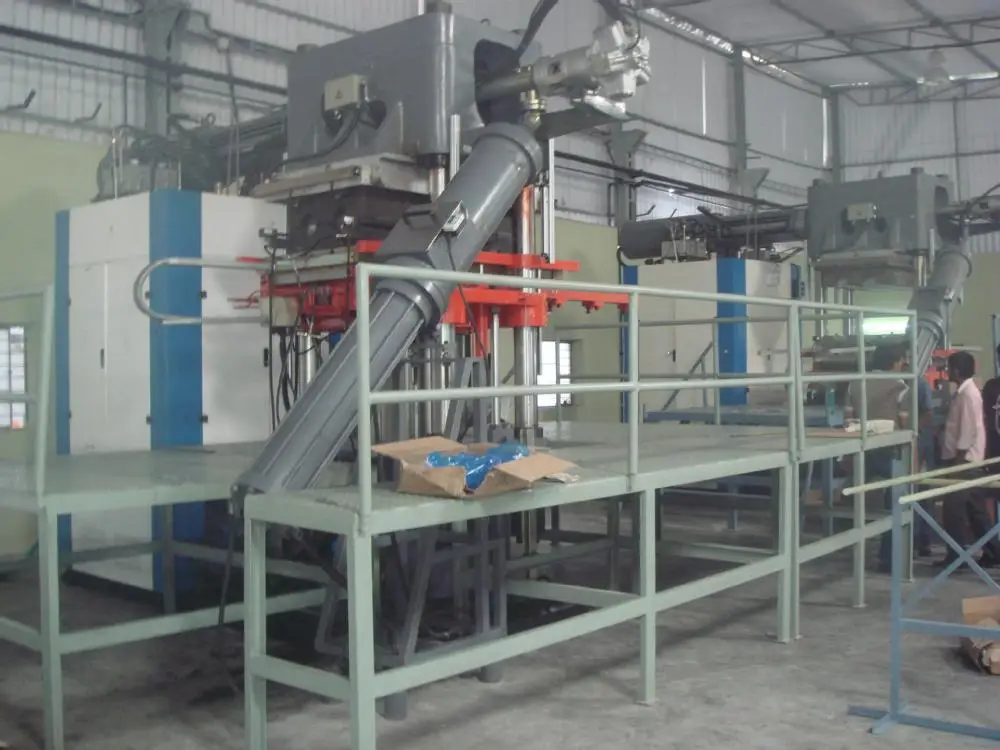

Machines in Customer's Factory





Our main products are as below:

1. Rubber injection molding machine (Silicone rubber injection molding machine, TPE injection molding machine).

2. Rubber transfer press (rubber transfer molding machine).

3. Rubber vacuum vulcanizing press (rubber compression molding machine)

4. LSR clamping machine & Pump machine, rubber jointing machine and electrical insulator molds.

...

Waiting for your nice inquiryt
