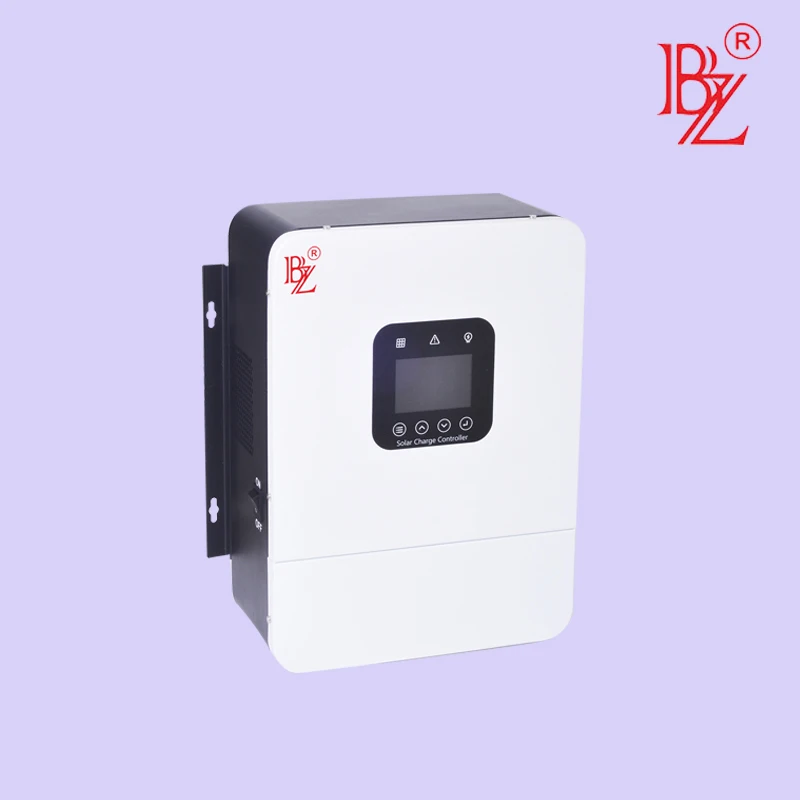

96V/144/192/384V 50A,80A,100A off grid lithium battery storage system PV battery charger

Model

BZC96V-30A

BZC96V-50A

BZC96V-100A

BZC96V-200A

Battery group rated voltage

96Vdc

96Vdc

96Vdc

96Vdc

Max. PV open circuit voltage

176V

176V

176V

176V

PV Rated current

30A

50A

100A

200A

Maximum power of solar panels

2880Wp

4800Wp

9600Wp

19200Wp

Input PV module array number

1

1

1/2

1/2

Function

Auto stop charge, auto recharge voltage; Protection: connecting contrary, over current, short circuit, over heat etc.

Display mode

LCD

Display content

solar panel voltage, solar panel current, solar panel power, battery voltage, charge current

Floating Charge Voltage (adjustable)

110Vdc

110Vdc

110Vdc

110Vdc

Stop charge voltage

116Vdc

116Vdc

116Vdc

116Vdc

Recharge voltage

108V

108V

108V

108V

Voltage drop between PV and battery

1.5V

Max itself power consumption

100mA-150mA

Work environment temperature

-30-60°C

Relative humidity

<90% No condensation

Applicable altitude

The rated power should be reduced when it is higher than 2000m

Noise (1m)

<40dB

Degree of protection

IP20(Indoor)

Cooling method

Forced air cooling

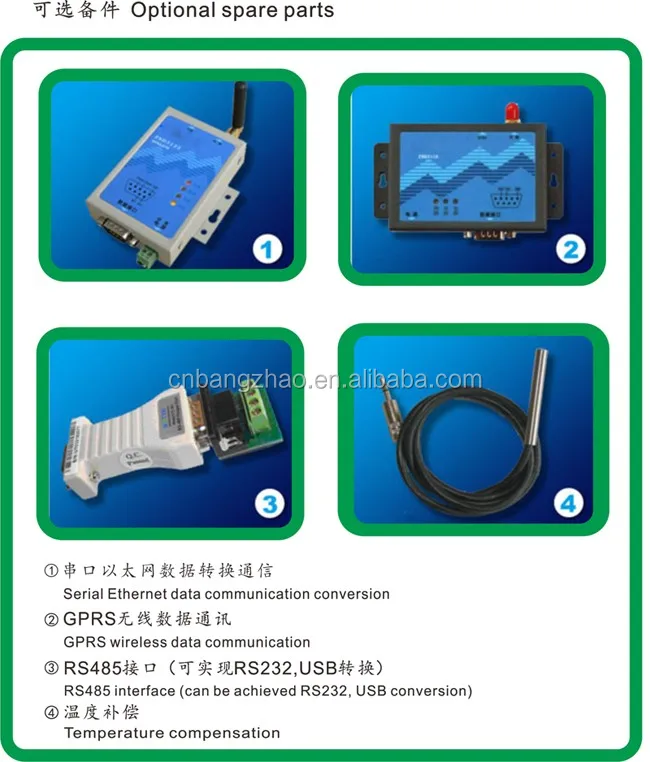

Communication interface (optional)

RS485/USB/GPRS/Ethernet

Temperature compensation(optional)

-4mv/°C/2V,-35°C~+80°C,Accuracy:±1°C

Product size (mm)

520*430*200mm

760*600*180mm

585*585*980mm

Weight

10Kg

26Kg

55Kg
