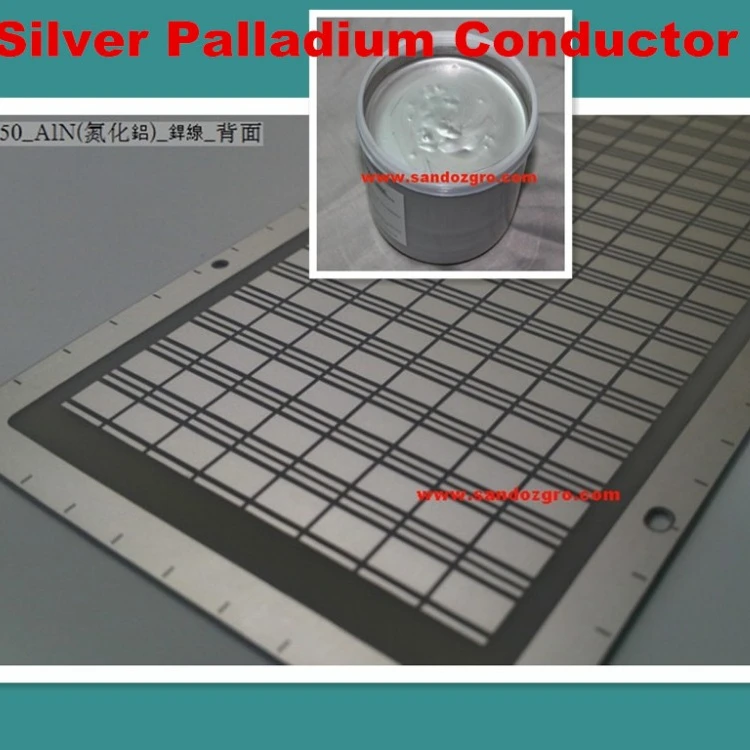

AlN Ceramic PdAg silver conductive paste

Product Overview

Description

MGD offers a wide variety of conductive inks for printed electronics applications.  Our products are formulated to meet the performance demands of many different applications, including sensors, antennas, biosensors, touch screens, touch switches, and printed heaters.



Palladium Content(%)	1	3	5	10	15	20	35
Viscosity	70±25 Pa•s( 10 rpm, 25°C±0.5°C)
Fineness	<10μm
Solid Content	82±2%
Screen Mesh	250~300 stainless steel screen
Leveling Time	at room temperature,2~3min
Drying	120~150 /( >15 min)
Firing	850°C/>10min
Film Thickness (μm)	14±2 μm
Spreading rate	~100cm2/g (fried thickness :14μm)
Conductivity (mΩ/sq)	≤3	≤4	≤5	≤5	≤8	≤10	≤10
Solderability	Excellent	Excellent	Excellent	Excellent	Excellent	Excellent	Excellent
Weldability(235°C,10s)	≥3Times	≥4Times	≥5Times	≥8Times	≥8Times	≥8Times	≥10Times
Adhesion(N/2×2mm2)	≥60	≥60	≥60	≥60	≥60	≥60	≥60



Silver/Palladium/Platinum Conductor Paste is a solderable, screen printable paste with excellent adhesion to aluminum nitride and bonds easily with aluminum wires and gold wires. Silver/Palladium/Platinum paste is generally immediately available in most volumes, including bulk orders. SANDOZ can produce materials to custom specifications by request, in addition to custom compositions for commercial and research applications and new proprietary technologies. SANDOZ also casts any of the rare earth metals and most other advanced materials into rod, bar or plate form, as well as numerous other machined shapes and in the form of solutions andorganometallic compounds. Ultra high purity and high purity forms also include metal powder, submicron powder and nanomaterials, targets for thin film deposition, and pellets for chemical vapor deposition (CVD) and physical vapor deposition (PVD) applications. SANDOZ produces to many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicableASTM testing standards. Typical and custom packaging is available, as is additional research, technical and safety (MSDS) data. Please contact us for information on lead time and pricing above.
