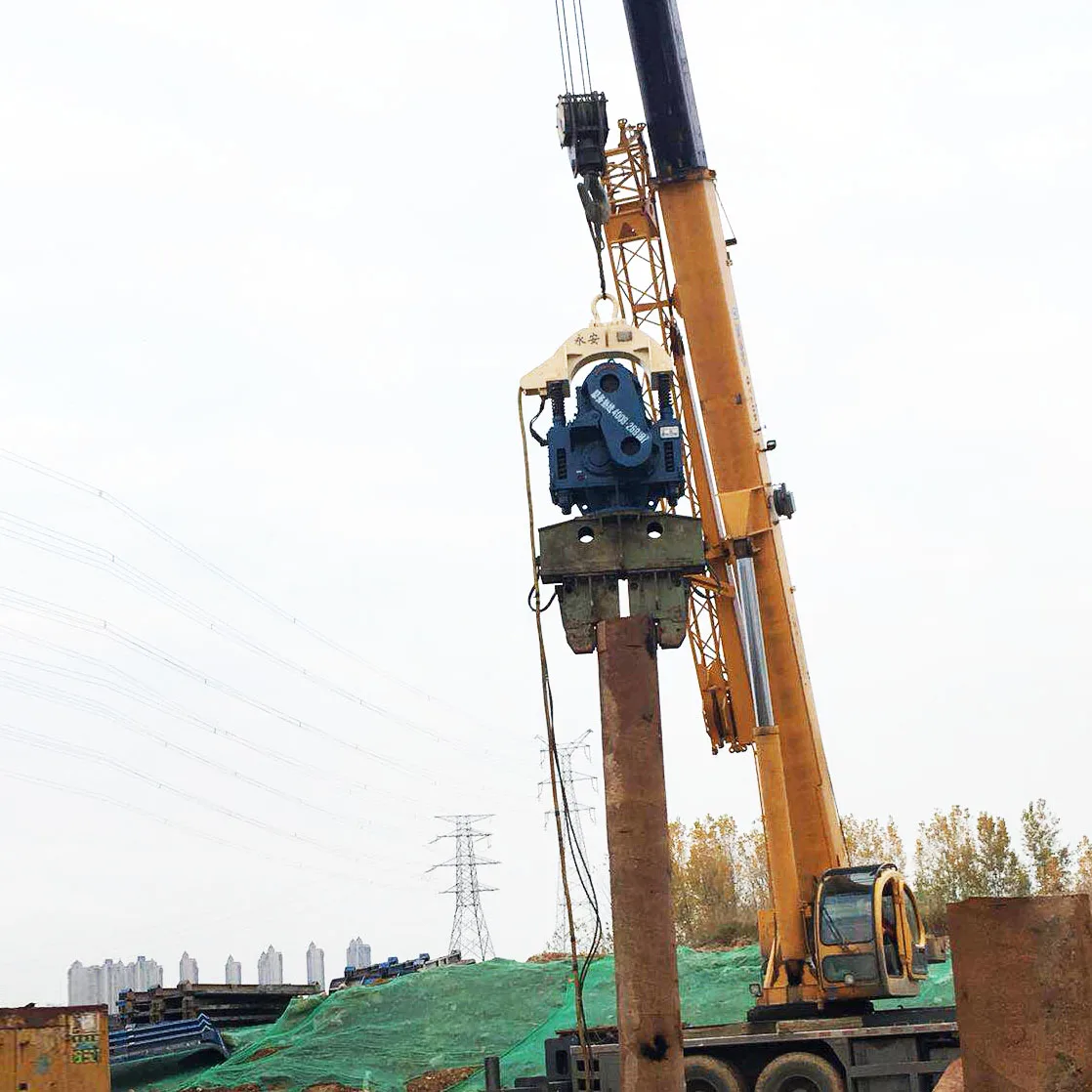

Electric vibro hammer DZJ135 for stone columns and sand columns
- Category: >>>
- Supplier: Shanghai Yongan Machinery Co. Ltd.
Share on (60426859441):
Product Overview
Description
Product Description

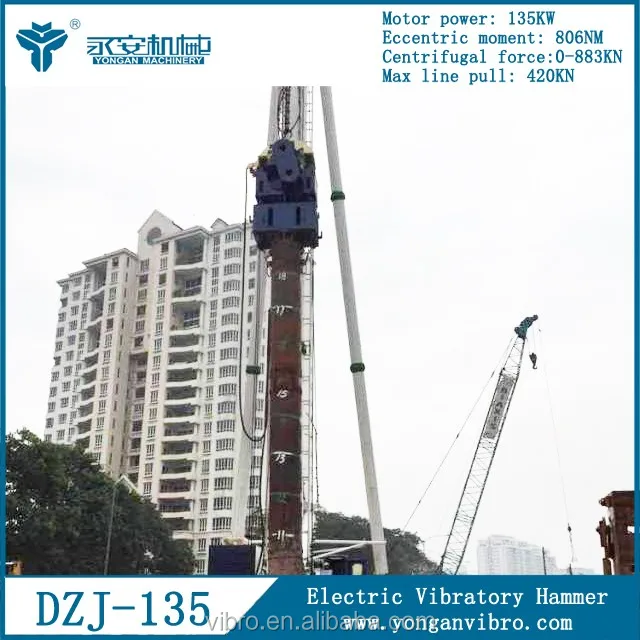

DZJ-135 is one of the most popular middle size Vibro Hammer we had in our product line.
Specification:
| Moter power(Kw) : | 135 |
| Eccentric Moment(Nm) : | 806 |
| Driving force(Kn) : | 0-883 |
| Speed(r/min) : | 0-1000 |
| Amplitude(Mm) : | 0-8.2 |
| Maximum Line Pull(Kn) : | 420 |
| Length(m) : | 2.1 |
| Width(m) : | 1.45 |
| Height(m) : | 3.0 |
| Weight(kg): | 7200 |
Jiangdong bridge :
Ch’ien river ninth bridge( Jiangdong bridge) is located between Xiasha-Hangzhou economic and technology development district and Hezhuang town of Xiaoshan district.
This bridge was open to traffic at the end of 2008. The bridge width is 47M. The whole lenth is 4332m.
According to city main road construction standard , the bridge is designed 8 lanes and double direction. The designed drive seeed is 80km/h. Until now, it still is the widest of Hangzhou crossing river bridges.
Geology situation: deep stratum clay.
Construction situation: the diameter of steel pipe sheet is 1200mm,2300mm and 2300mm. The driving depth is 25m-28m.

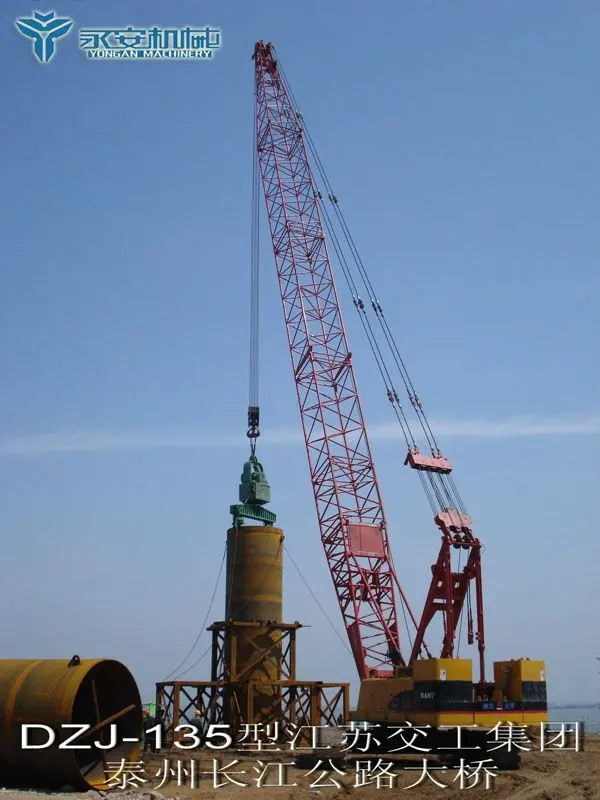

Taizhou Yangtz highway :
