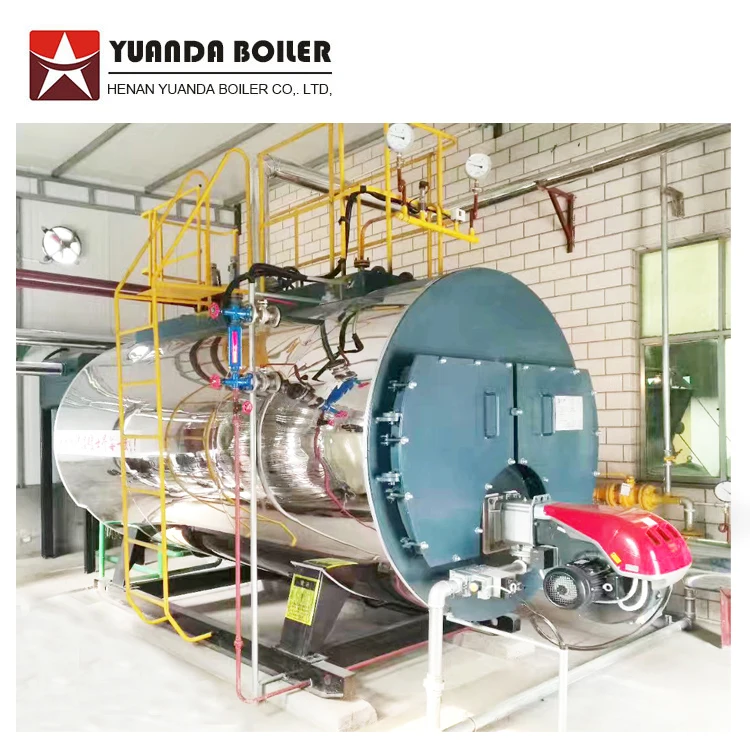

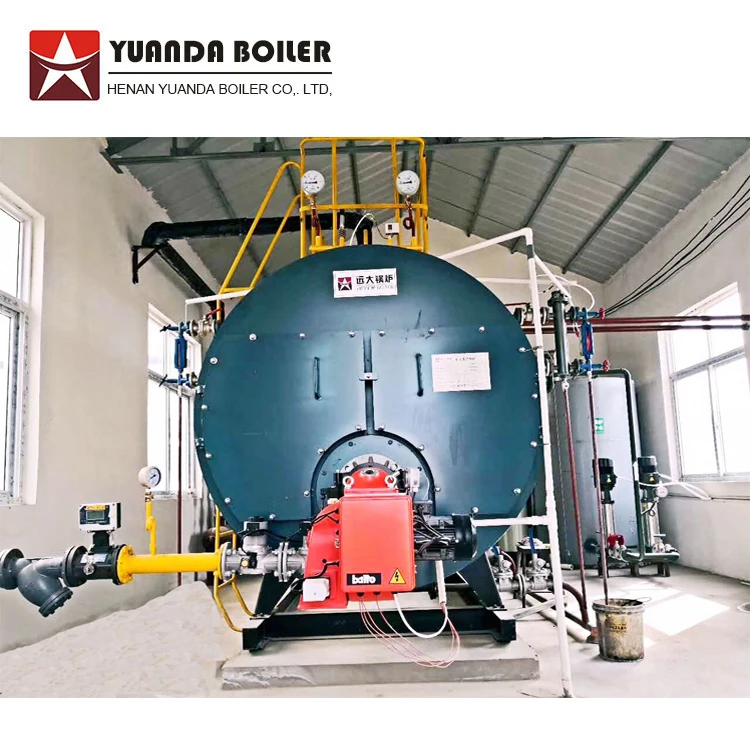

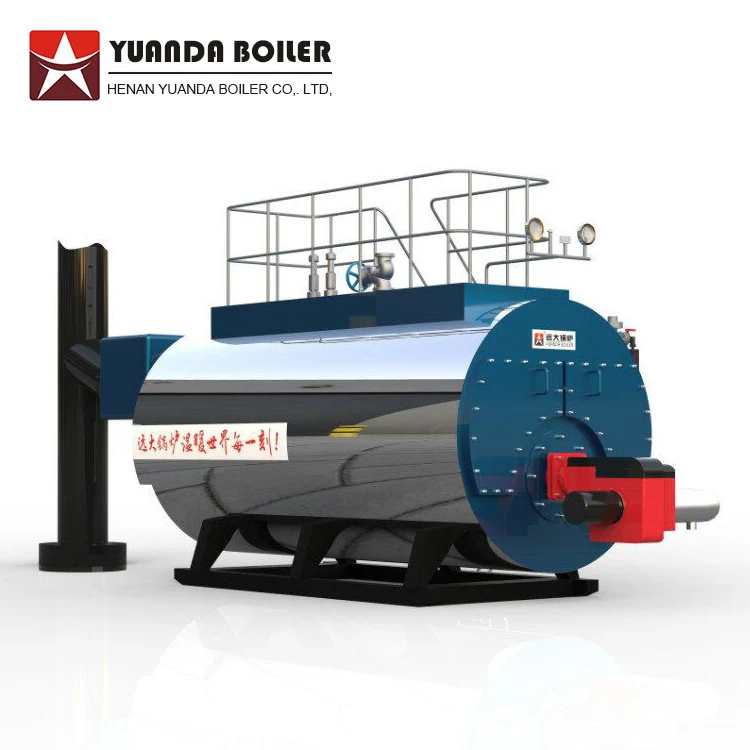

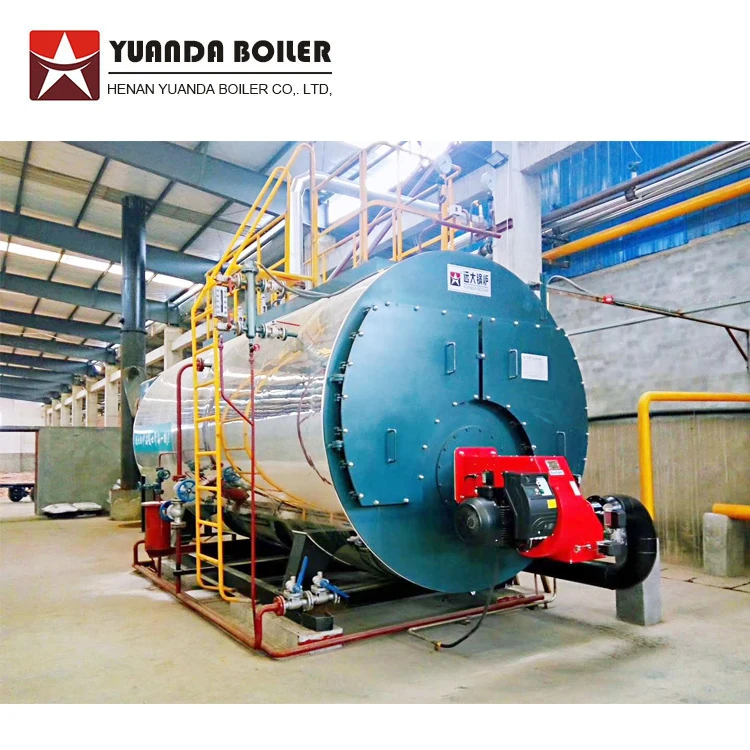

Industrial automatic fire tube gas oil steam boiler for textile factory

Product Overview

Description

Industrial automatic fire tube gas oil steam boiler for textile factory

Model:WNS

Capacity:0.5-20 ton/h

Design pressure:0.7/1.0/1.25/1.6/2.5Mpa(7/10/12.5/16/25bar)

4.Stem temperature:184/194/205/226℃

5.Design fuel:natural gas, lpg,lng,cng,city gas,biogas, diesel oil,heavy oil,etc

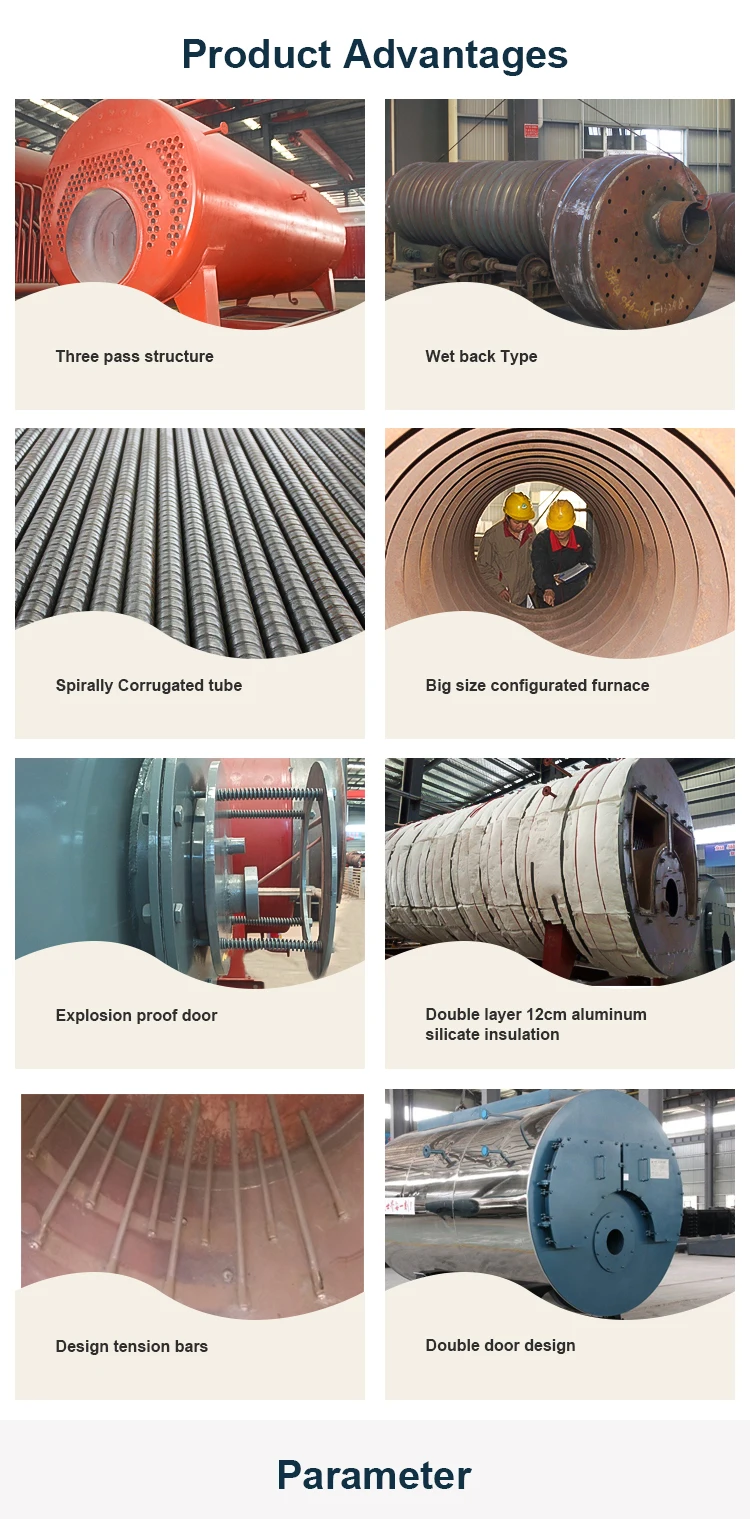

6.Structure: three pass fire tube wet back

Core technology:
1. Low Nitrogen oxide emissions
2. PLC control system;
3. The 5th stage water level protection;
4. Flame-out, power failure self-locking protection function;
5. Automatic fault identification function;
6. Data collection, analysis function;
7. Internet of Things remote monitoring.





Boiler model	Rated capacity	Rated pressure	Rated steam tempe rature	Fuel consumption				Thermal effiency	Weight	Diemension
				natural gas	Diesel oil	heavy fuel oil	lpg
	ton/h	Mpa(bar)	℃	m3/h	kg/h	kg/h	m3/h	%	ton	mm
WNS0.5-1.0-Y(Q)	0.5	1(10)	184	43	33	34	14	92	3	3000*1500*1800
WNS1-1.0-Y(Q)	1	1 (10)	184	84.2	65.5	67.3	29	92	4.3	3561*1690*1910
WNS1.5-1.0-Y(Q)	1.5	1.25(13)	194	120	90	98.5	43.5	92	5.6	3681*1870*1980
WNS2-1.25-Y(Q)	2	1.25(13)	194	165	129.6	132.2	57.3	92	7.2	4111*1950*2199
WNS3-1.25-Y(Q)	3	1.25(13)	194	250	192	195	82	92.5	8	4330*2248*2564
WNS4-1.25-Y(Q)	4	1.25(13)	194	323.6	256	261.9	109	93	9.6	4732*2150*2448
WNS5-1.0-Y(Q)	5	1.25(13)	194	386	318	322	140	93	12.5	5970*2360*2796
WNS6-1.25-Y(Q)	6	1.25(13)	194	450	380	390.6	164	93.5	16.5	5500*2600*2990
WNS8-1.25-Y(Q)	8	1.25(13)	194	642	503	517	209	93.5	24.8	6450*2800*3200
WNS10-1.25-Y(Q)	10	1.25(13)	194	805	628	643	264	94	26.8	6800*2900*3394
WNS12-1.25-Y(Q)	12	1.25(13)	194	970	758	775	321	94	32	7050*3100*3450
WNS15-1.25-Y(Q)	15	1.25(13)	194	1185	940	965	400	94.5	38	7150*3200*3540
WNS20-1.25-Y(Q)	20	1.25(13)	194	1597	1250	1301	520	94.5	55	8200*3400*3826





If what you need is other types steam boiler, please click the following pictures.





Our main products are:

(1)WNS Gas oil fired boiler

(2) DZL / DZH Coal / wood fired boiler

(3) SZL coal biomass fired boiler

(4).YY(Q)W Gas oil fired thermal oil boiler

(5).YLW Coal biomass fired thermal oil boiler

(6).LHS vertical gas oil fired boiler

(7). LSG vertical coal biomass fired boiler



Yuanda Boiler has been committed to improving efficiency and safety of boilers to provide safe, energy saving and environmental friendly products. We look forward to making a brilliant future with you.
