Cheap Hot selling plastic pipe cutting machine

Cheap Hot selling plastic pipe cutting machine

---------------------------------------------------------------------------------------------------------------------------------

Application

The cutting machine is suitable for cutting tube, ribbon/webbing/belt, cable/wire, sheet, film etc.

 Tube:  PVC tube, heat shrink tube, PVC heat shrinking tube, fiberglass tube, Teflon tube, corrugated tube, etc.

Cable: Flat cable, copper wire, etc

Tape: nickel strap,cotton tape, elastic band, plastic tape, zipper, conductive tape,foam, etc

 Sheet: battory separator, Nickel sheet, diffusersheet, plastic/rubber sheet, pvc sheet,etc

 Film: plastic film, reflecting film, double-sided tape, Malar film, insulation paper, PE, Copper/Aluminum foil, release paper,etc

 ---------------------------------------------------------------------------------------------------------------------------------------

Features

1.High speed: It can cut 100~120 cut per minute. (50mm long)

2.Accuracy: Cut-length is accurate, cut length can be set between 0.1-9999.9mm.

3.Cutting type: For cold cut and Optional hot cut. Hot cut suitable for materials that needs hot sealing, such as Nylon webbing, polyester webbing, etc.

4.Automatic operation: It works automatically only by setting length and quantity. Save labor, high efficiency.

5.Automatic stopper: It stops automatically if materials run out during operation

6.Memory: Set-length, set-q'ty & set-speed are not erased even if power off & on

7.Application:The cutting machine is suitable for cutting tubes, cable, webbing/ribbon/belt, small wire, sheet and film, etc.

8.High speed, high accuracy, designed for cutting non-adhesive materials.

 ------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Specification

Model: YS-100

1. Voltage: AC220V/50Hz & AC110V/60Hz

2. Power : 250W

3. Cut Length : 0.1-9999.9mm

4. Cut Width : 0-100mm

5. Cutting Thickness : 0-12mm

6. Dimension : L360*W300*H350MM

7. Net Weight : 28kg

Also we have YS-120, YS-160, YS-250W, YS-300W automatic cutting machine. According to the width of the cutting materials, choose a suitable cutting machine.

Blade length of different models:

YS-100: 100mm.   Power:250W

YS-120:120mm

YS-160:160mm

YS-250W: 250mm. Power: 500W

YS-300W: 300mm   Power:500W

 ------------------------------------------------------------------------------------------------------------------

For cutting tubes, according to the diameter of the tubes, choose suitable machine.

YS-100: Cut tubes with diameter less than 13mm

YS-120WH: Cut tube with diameter less than 22mm

--------------------------------------------------------------------------------------------------

Typical specifications:

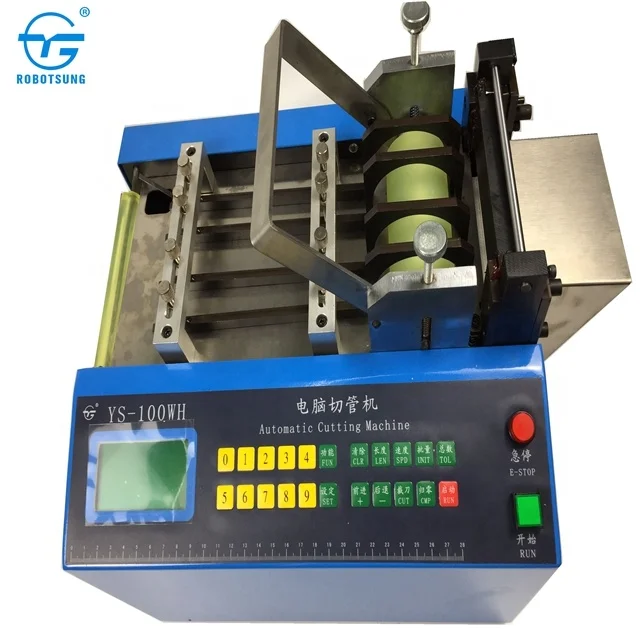

Machine pictures::
