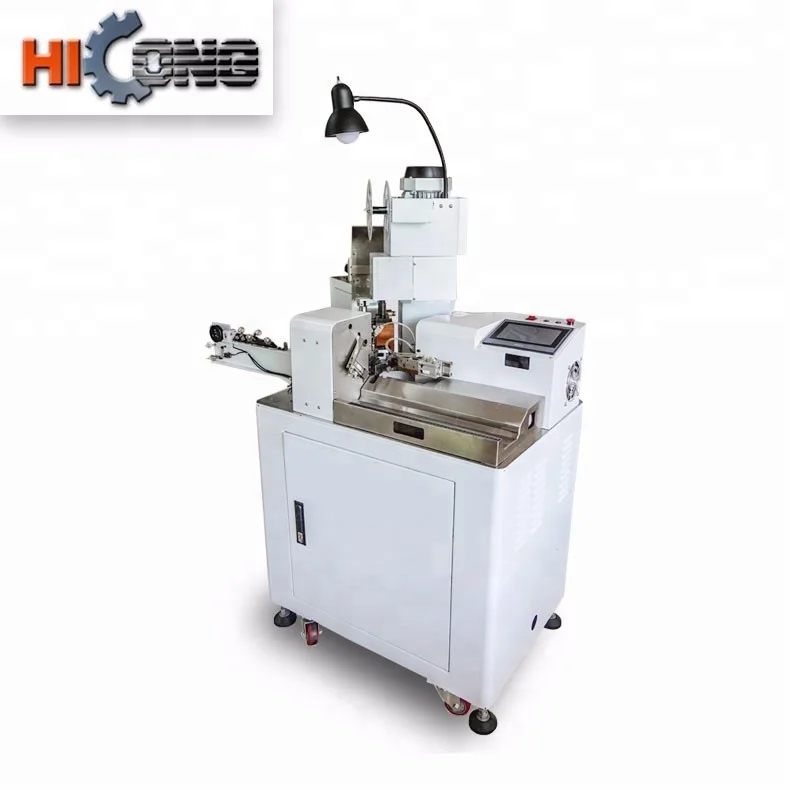

Wire Stripping Cutting and Crimping Machine (HL-02)
Product Name : Wire Stripping Cutting and Crimping Machine
Product Model: HL-02
Payment Terms : 100% In Advance
Date of Shipment: 1-5 days
Warranty Terms: One Year Free Warranty
Features:
This machine will cut and strip your wire firstly and then crimp a terminal on two wire head automatically. You can also close the crimping function, then it becomes to an automatic wire stripping and cutting machine.
Specifications:
Available Wire Size: 0.4 ~ 3.5mm ( AWG18 ~ AWG30)
Cutting Length: 20 ~ 900mm
Stripping Length: 0.5 ~ 10mm
Tolerance: ±(0.1 + 0.005×L) L = Total Length
Crimping Force: 2.0T
Speed: 5000pcs/hour
Air Pressure: more than 6.0Kg/cm2
Power Supply: 500W / 220V / 50Hz ~ 60Hz
Gross Weight: 315Kg
Dimension: 80 ×83× 153cm
Remarks: This machine can crimp various terminals, we can design the crimping die according to your samples. If you want to use one machine to crimp different terminals, you only need to change applicator!
Good quality also good price!!! welcome contact with us!
Our Services
----Purchase Guidance
If not sure which one is your best choice within the budget, please provide the details or samples to us. We will provide the best solutions and machines.
----After Sale Services
Dongguan Hilong Machinery Equipment Co., ltd provides life long support after sale including operation guidance, parts repalcement and maintainance support. Just feel free to contact us.
----Technology counsultion
Any question about wires, cables, machinery, even the production line please feel free to contact us. We can provide reasonable budget and suggestions.
----OEM Services
We provide OEM services, customary packing, and specified packing.
FAQ
Quetion 1: What's your MOV or MOQ order?
Answer: No MOV. Our MOQ 1 SET.
Question 2: What kind of payment is acceptable?
Answer: T/T, L/C, Westunion, etc.
Question 3: Are you a manufacturer or a trading company?
Answer: We are one of leading manufacturers in China.
