7000 ANSI Lumens High Contrast 1080P 3LCD Commercial theater Projector

Product Overview

Description

7000 ANSI Lumens High Contrast 1080P 3LCD Commercial theater Projector  PLW5100F



Multiple User-friendly Operations     Customized Splash Screens

• Up to 17 OSD languages


• Scale ratio 4:3/16:9/16:10


• Customized splash screens


• Adjustable menu position


• Boot authorization
  (To setup PIN code from keypads or remote control)


• Service messenger alert


• Rear-projection mode


• Built-in 2x3W stereo speaker.

Network Control



By wired connection to RJ45, the user can control or monitor all projectors in LAN by on/off, configuration, viewing lamp time and operating status



FLYIN High Brightness & Contrast Projector PLW5100F

The LCD Multi-Media Projector, featuring 7,000 lumens of brightness WXGA resolution, is ideal for houses of worship, rental and staging and end-users seeking high brightness large venue projection. offers various features that ensure outstanding performance in large halls. The projector is equipped with with 280W NSH single bulb ensures operation and is encased in a ruggedized chassis for high reliability and durability. A Pure Color Control device which independently controls yellow brightness to improve color reproduction, attains this superb brightness with optimal coloring. System expansion functions include horizontal/vertical lens shift and a Multi-Screen Support System. These and other features enable flexible installation for a wide variety of applications.



Application ,

* large-screen Multimedia projection joining together
* Multimedia classrooms, multi-functional conference room systems integration
* Outdoor advertising display
* Bars, KTV night clubs, concerts ,Museum and churches
* Large Home cinema
* Large auditorium or conference & showrooms
* Multimedia Command System





 Specification ,



Model	PLW5100F
Display Technology	Liquid Crystal Display
Display Panel Type	3LCD
Display Panel	3x0.63”
Brightness	7000 Ansl Lumens
Native Resolution	WXGA (1280 x 800 pixels) Support Full HD
Contrast Ratio	10000: 1
Projection Lens	F= 1.6 - 2.08, f= 1.65X
Uniformity	95%
Throw Ratio	70"@2.23m
Throw Distance	0.768M~12.989M(30"~300")
Aspect Ratio	4:3(Standard) /16:9(Compatible)
Keystone	Keystone:  ±30° vertical

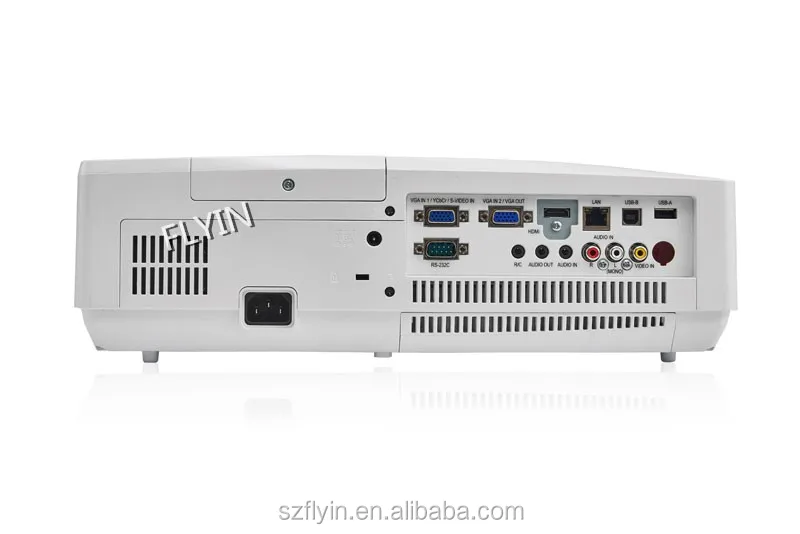

Input	VGA*2; YCbCr; Video(Share with YCbCr); S-Video; Audio in,HDMI 3.5mini jack;RCA*2 (Read+Wifi dongle) /Wifi dongle Optional/Microsoft Office/Adobe Reader;
Output	VGA(INPUT2)
Control	RS232,RJ45
PC Compatibility	VGA  SVGA  XGA  SXGA  WXGA  UXGA  Mac
Video Compatibility	PAL, SECAM, NTSC 4.43, PAL-M, PAL-N, 480i, 480p, 576i, 576p, 720p, 1035i, and 1080i
Lens Shift H	±10% (Manual)
Lens Shift V	±40% (Manual)
Lamp	280W USHIO
Lamp Life	4000 Hrs(Norm)/5000 Hrs(Eco)
H~Synch Range	15~100 KHz
V~Synch Range	48~85Hz
Standby Power	Less than 0.3 W
Power Consumption	280W
Power Supply	100V – 240V @ 50-60 HZ
Operating Temp.	5℃~35℃
Storage Temp.	-10℃~~60℃
OSD Languages	19 languages: Chinese (GB), English, French, Spanish, Portuguese, German, Italian, Japanese, Korean, Russian, Finnish, Dutch, Thai, Vietnamese, Turkish, Africaans, Indonesian, Farsi, Arabian
Speaker	Stereo 2x3W
Dimension	385mm x 308mm x 110 mm
Weight	4.6 kg
Standard Accessories	User Manual (CD), Power Cord, Remote Control & battery, VGA Cable, Warranty Card, Drying agent
Other Features	1. Customised startup logo. 2. One-key Blank Screen. 3. Image zoom out/in. 4. Anti-theft Bar &l ock/Triple Password Protection 5. Image Freezing, Zomm & Panning 6. Auto Power-Off on Singal Soucring Failure 7. Auto Detection of Input Source 8. Auto Synch. 9. Lamp & Filter countdown 10. High-speed Power off
