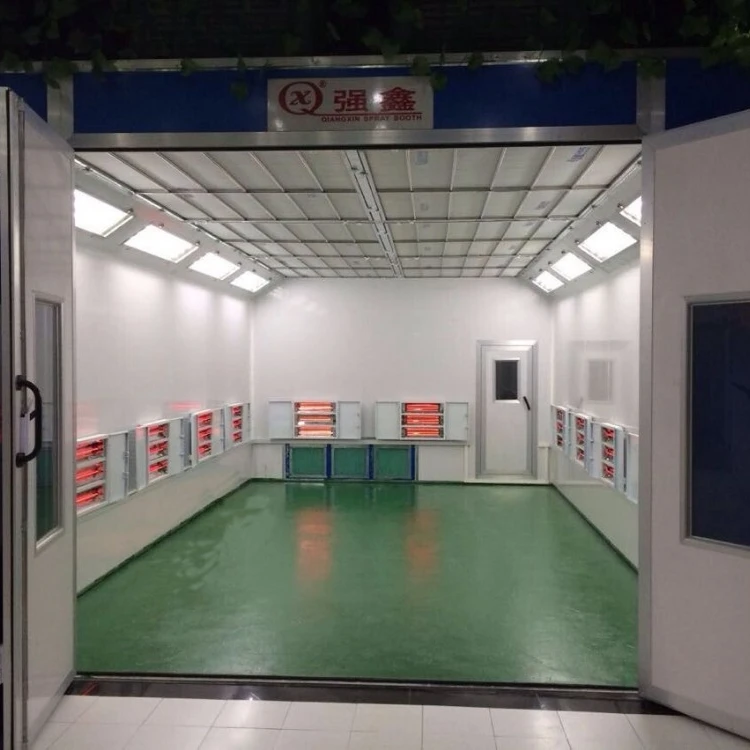

CE Approved Customized Used Car Painting Oven
- Category: Spray Booths >>>
- Supplier: Guangzhou Qiangxin Environmental Protection Electromechanical Equipment Co. Ltd.
Share on (60427189971):
Product Overview
Description
GZ QIANGXIN EP ELECTROMECHANICAL EQUIPMENT CO.,LTD
Specialized in manufacturing environmental spray booth and baking oven
Products Description
Product Paramenters
Inside dimension | 6900*3900*2650(mm)(L*W*H) |
Outside dimension | 8200*4000*4000(mm)(L*W*H) |
Entrance door | Aluminum alloy binding framework(thickness:1.8mm),1 set folding door size:2830*2600(mm)(W*H) |
Personal door | |
Wallboard | 50mm EPS(epispastics polystyrene)insulation material with S=0.476 two side steel panel. |
Lighting system | Lamp boxes are 45°fixed on upper two side ,with 8 groups *4pcs =32pcs 18w energy saving LED lamps |

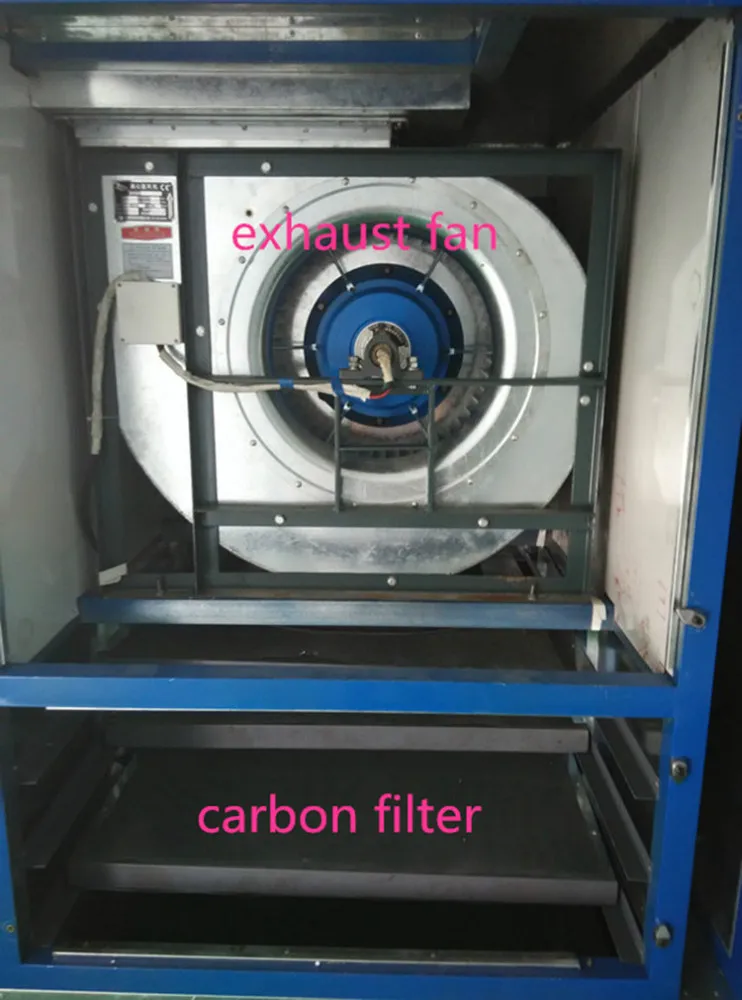

Air intake and exhaust system | With 2pcs intake air fans.single parameter:RRX-180.1.5kw.125000m³/h With 1pc exhaust air fan,single parameter:YDW5.0A.5.5KW.15000m³/h |
Cabinet setting | Intake air from upside,downside exhaust wind. Frame is made of tube:50*50mm,body plate is made of galvanized plate(thickness:0.8mm) (face the booth,the air cabinet is on the back side) |

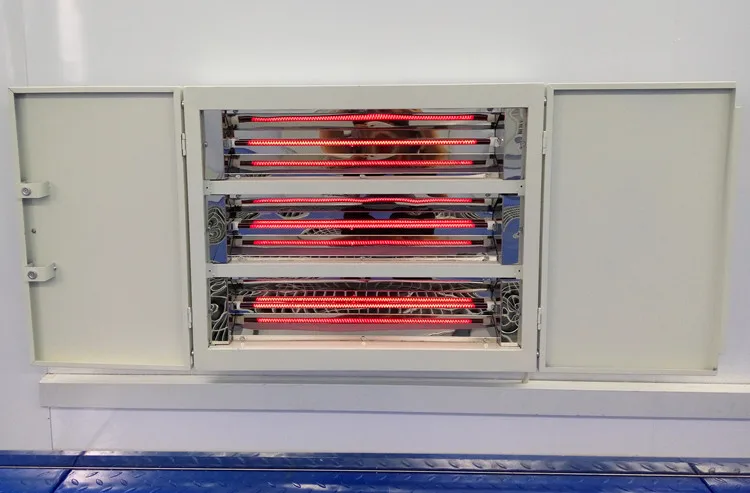

Heating system | 30PCS infrared carbon fiber heating lamps,1000W/piece.The operating temperature:40℃~60℃.Max temperature:80 ℃ |
Air duct | Made of galvanized plate,700*700*900.2pcs straight,1pc elbow |
Filtration system | 4 filters: 1.Air inlet with prefilter 2.ceiling equipped with CC-G650 type high-efficiency filter,which can effectively filter the 5PM dust particles. 3. with 3 layers of activated carbon in exhaust cabinet 4. Outlet with filter cotton |
Roof | 50mm EPS(epispastics polystyrene )insulation material with S=0.476mm two side steel panel |

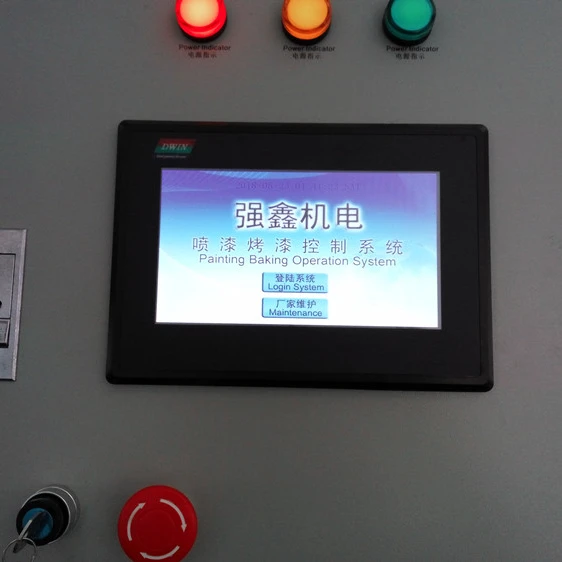

Control system | Microcomputer type painting, baking, light switch, breakdown indicator, power switch, emergency stop switch |
Voltage frequency | 380V 50HZ 3 phase |
Light intensity | ≥1000luxes |
Air flow speed | ≥0.25m/s |
Total power | 39kw |
Company Profile
GZ QIANGXIN EP ELECTROMECHANICAL EQUIPMENT CO.,LTD.
Our company located in Baiyun district, in Guangzhou city of China. Our company was established in 2009, specialized in manufacturing in car spray booth, bus spray booth, furniture water curtain paint booth, industrial spray booth, prep station spray booth, high temperature baking oven, powder coating spray booth ,polish booth etc... and sales of automobile repair and maintenance equipment which are widely used in automobile maintenance and repair, machinery manufacturing, furniture manufacturing and other fields.
Focus on quality and safety in production, Qiangxin spray booths are produced strictly according to international standards. We have certificate of CE, ISO and RCM certificate. We go through TUV inspection. Be equipped with the world's leading production equipment, has a group of professional production staff, installation and sales staffs. Our spray booths had exported successfully to some area with more than 80 countries, European market, Middle east market, Africa market etc…
Company Culture: Integrity to win customers, quality to survive, innovation to lead the future, professional to create value.
Product packaging
