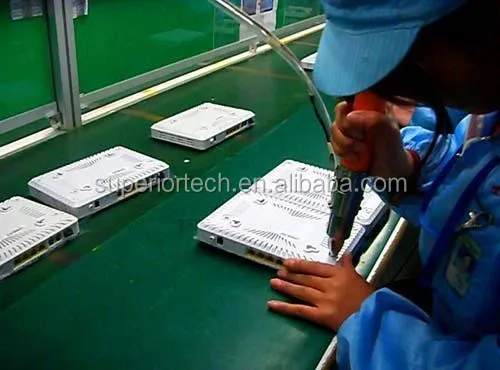

Trade assurance supplier wholesale Screw Capping Machine is widely used in various industries, such as mobile phones, hard drives, keyboards, toys, LCD / LED modules, communications equipment, electrical appliances, auto parts and other electronic processing assembly.

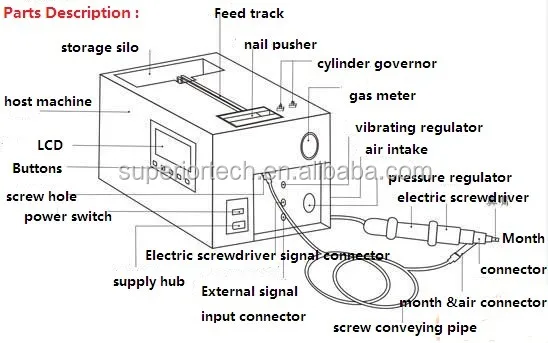

Product structure :
Screw locking machine consists of 3 main parts: 1.Screw feeding system. 2. Screw sorting system. 3. Screw locking system.
These 3 systems are controlled by the machine's program.
Products working principle :
Hand-held automatic locking screw machine feeds screws in a turbine way and order screws on a vibration guide rail, and transport screws to Screw Sorting System through magnetic resonance, then sort one screw per time and send it to screwdriver nozzle, finally electric or pneumatic screwdriver will lock the screw into products.
Parameters :
Voltage
220v/50hz,110v/60hz
Power
30W
Net weight
9kg
Machine size
L370*W250*H190MM
Locking speed
50-70pcs/mins (depend on the length of the screws)
Screw pocket volume
M2X6 5000PCS
Noise
less than 65 decibels
Pneumatic
2-3 KGF/C
Conveying distance
1-4M
Screw come put speed
0.5s/pcs
Features :
1.Automatic screw feeding, sorting and locking for various shapes screws.One-hand operation.
2.Torsion precision and convenient adjustment, ensure the quality of screw locking
3.Turbine feeding, low volume and noise, convenient maintenance. Light weight and small, mobility and save space.
4. Warning function when lack of screws.(Acousto-optic alarm)
5. High efficiency. No need to pick up screws, move screws and put screws. Just need to lock the screws aimed at the screw hole.
