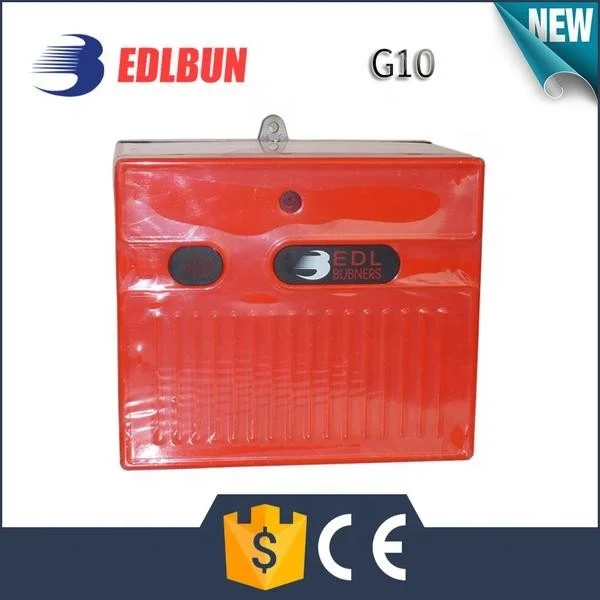

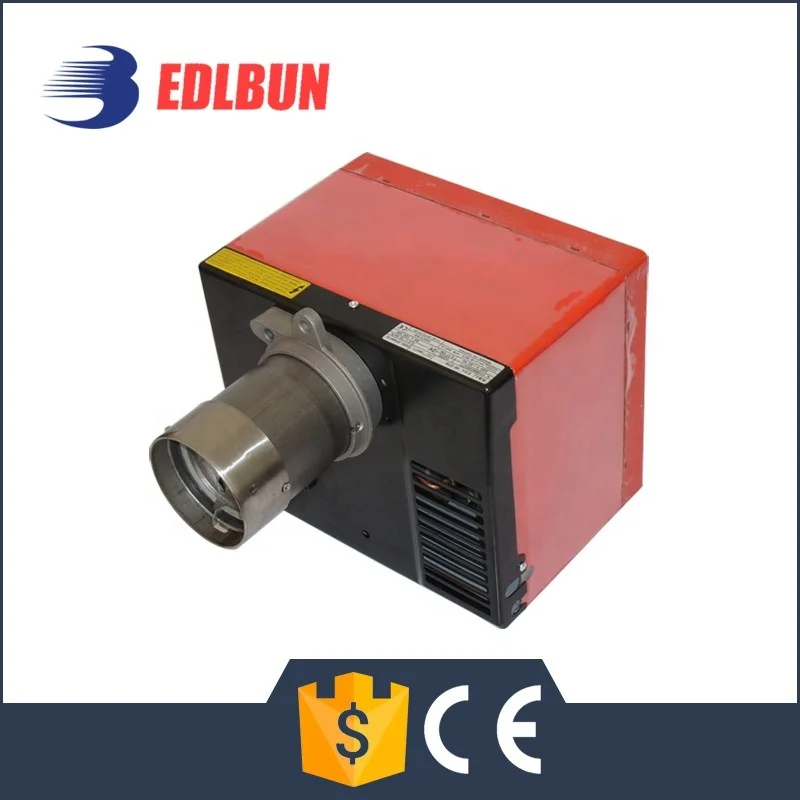

EDL 40 G10 Light Oil Burner industrial diesel for industry brander pizza oven competitive

Share on (60427405227):


Price:$170.00 - $180.00

Quantity:


Product Overview

Description





Product Description


 40G series are mainly used for the family heating, while RL series are suitable for industrial use, such as low temperature and medium temperature hot boiler, hot wind or steam boiler, oil guiding heating boiler, etc.








Power Table


































Series






Model



Heating value(KW)



Control Means






Max. viscosity of the oil






Power source






Power


(W)



Min



Max



EDLBUN 40



G10



54



120



On/Off control






1.5



1ph*220v*50hz



170

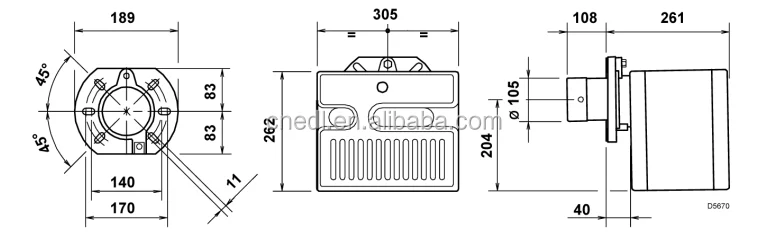

G10

g226000619810936832

TECHNICAL DATA





































thermal power - output 54-120 kw   -    4.5 - 10 kg/h
fuellight oil , max.Viscosity at 20'C : 6 mm2/s
electrical supplysingle phase , 230v+- 10% ~ 50 Hz
motorrun current 0.8A - 2850 rpm  -  298 rad/s
capacitor4 uf
ignition transformersecondary 8 kv - 16 mA
pumppressure 7 - 15 bar
absorbed electrical power0.170 kw

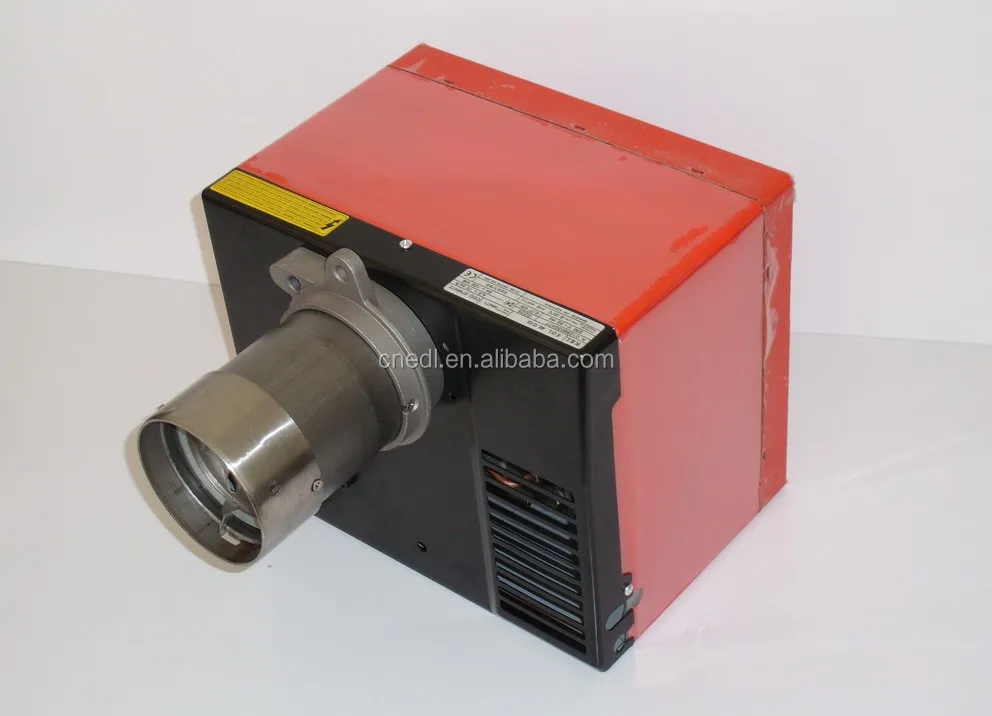

G10

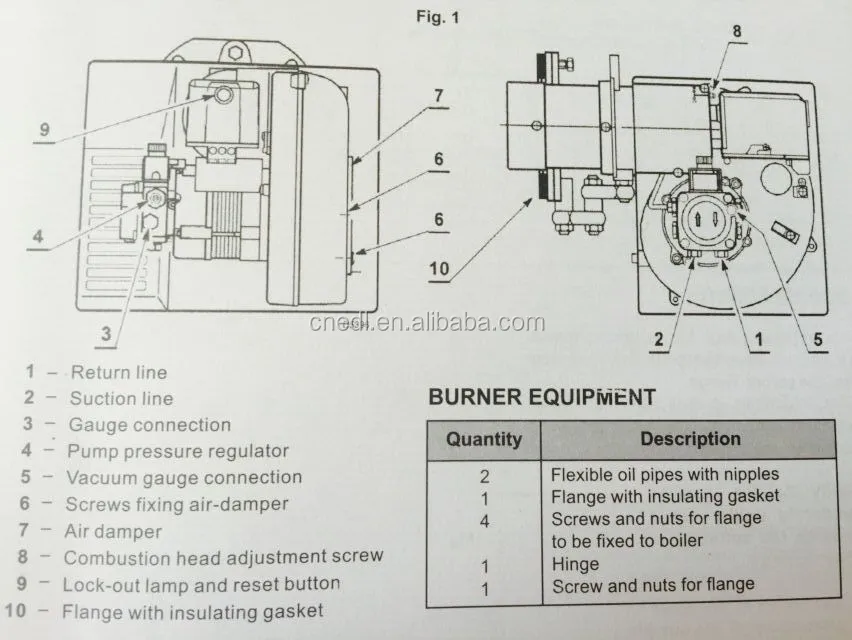

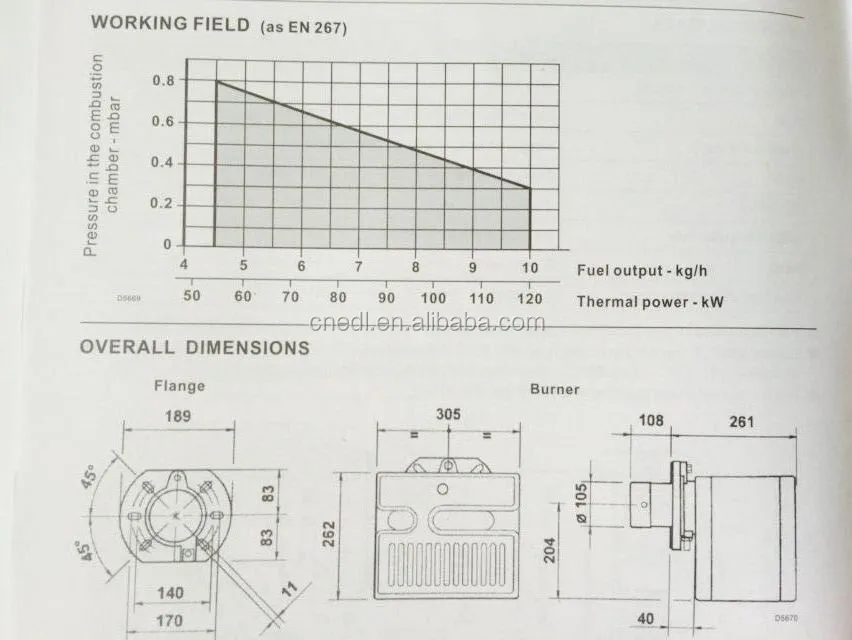

g10-2g10-1


Performance





Unibody design with aluminum shell

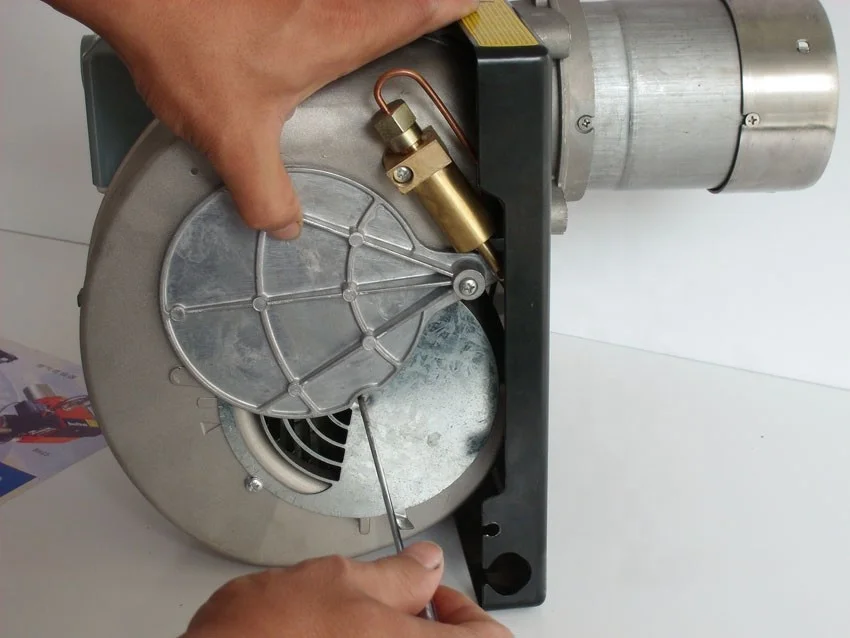

Sliding flange can locate the nozzle according the status in boiler furnace


Superior design of the nozzle make sure the best consumption when the burner working


Electrical devices to control the procedure and the safe protection


Delivering in assemble, out of the box







Features





Easy operation;
Convenient assembly for all parts;
Efficient maintenance, cleaning and inspection;
Critical spare parts adopt renowned brand;








Certifications


 CE752





Packaging & Shipping





The compact size and light-weighted is very easy for the installation and adjustment, and long distance Express shipment.
Board case or wooden case package, around 22kgs per case, easy for DHL express shipment or LCL sea shipment






Delivery & Payment





For sample orders, 7 days after receiving payment; for bulk order larger than 10 pieces, 7-15days after receiving initial payment, based on different item size.
Western Union payment or T/T in advance for sample orders;
For bulk orders, 30% T/T down to start production, while 70% balance before shipment.
