Фабрика подбирается по заказу 90 градусов светоотражающие Стеклянные N BK7/УФ плавленый силикон призмы Penta
- Category: >>>
- Supplier: Qinhuangdao Intrinsic Crystal Technology Co. Ltd.
Share on (60427429503):
Product Overview
Description

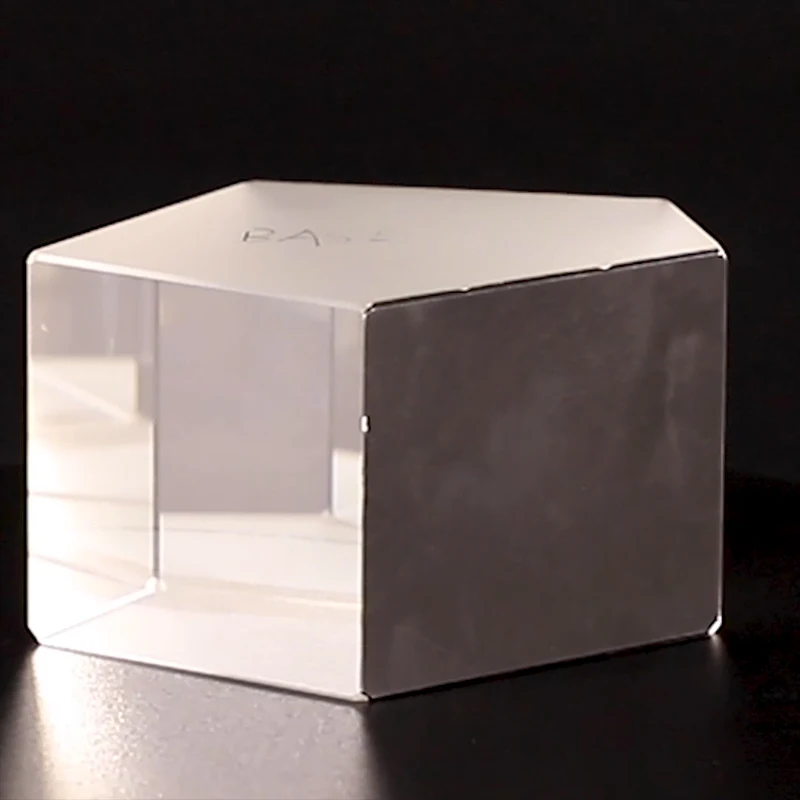

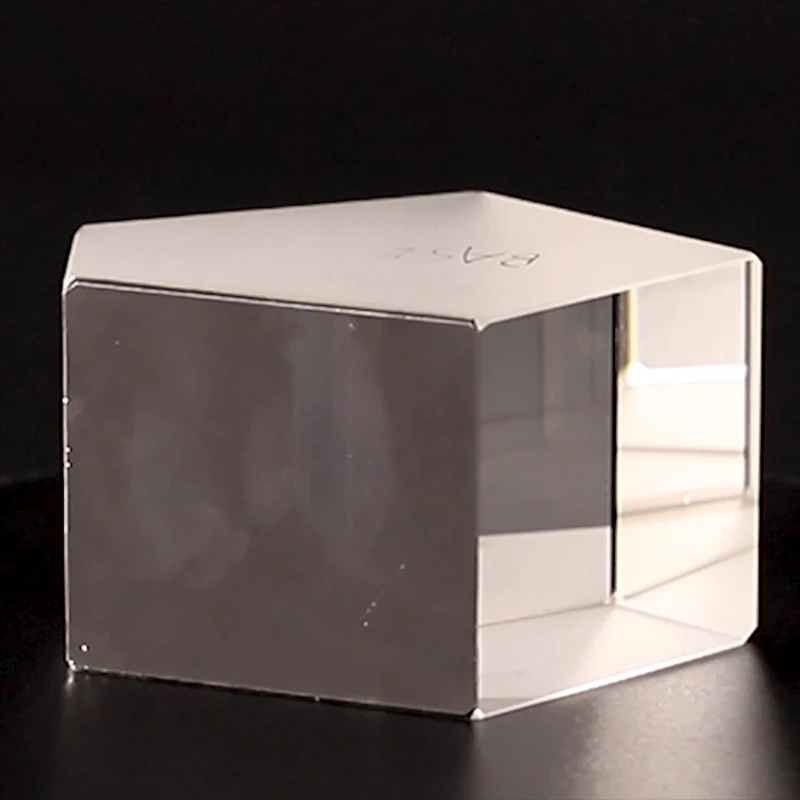

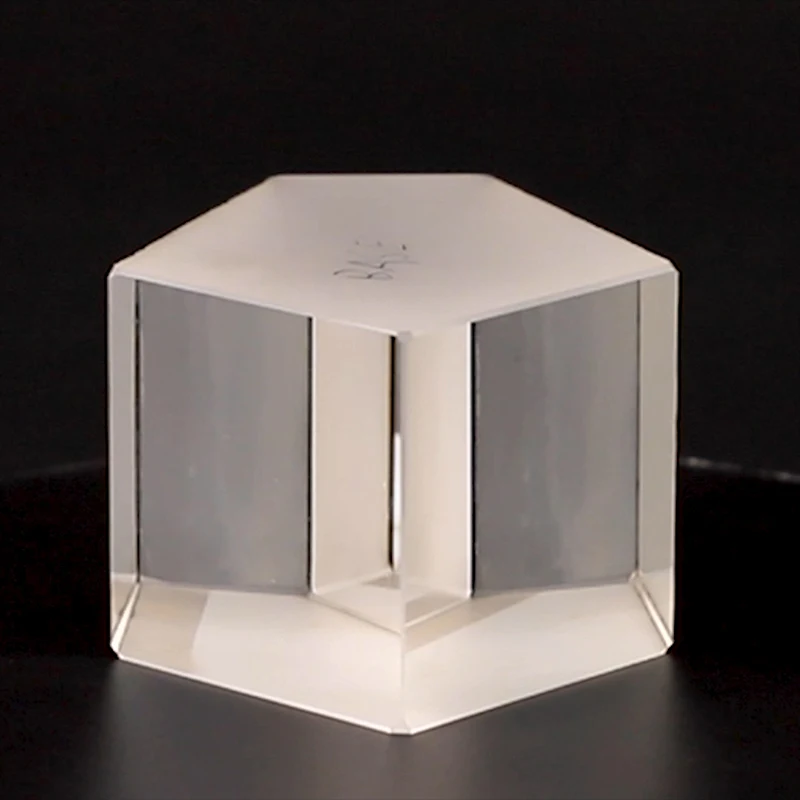

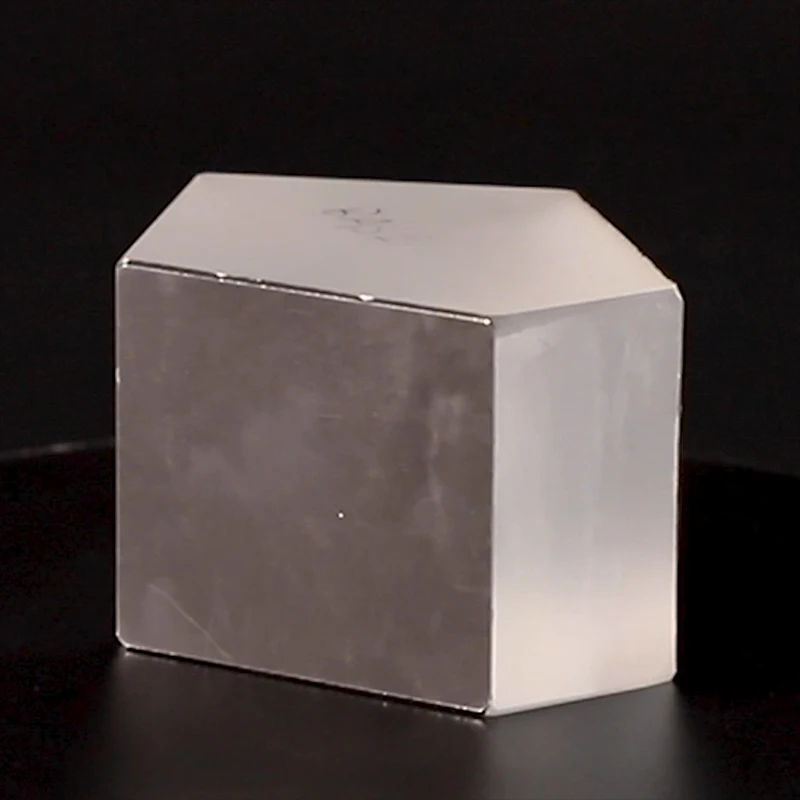

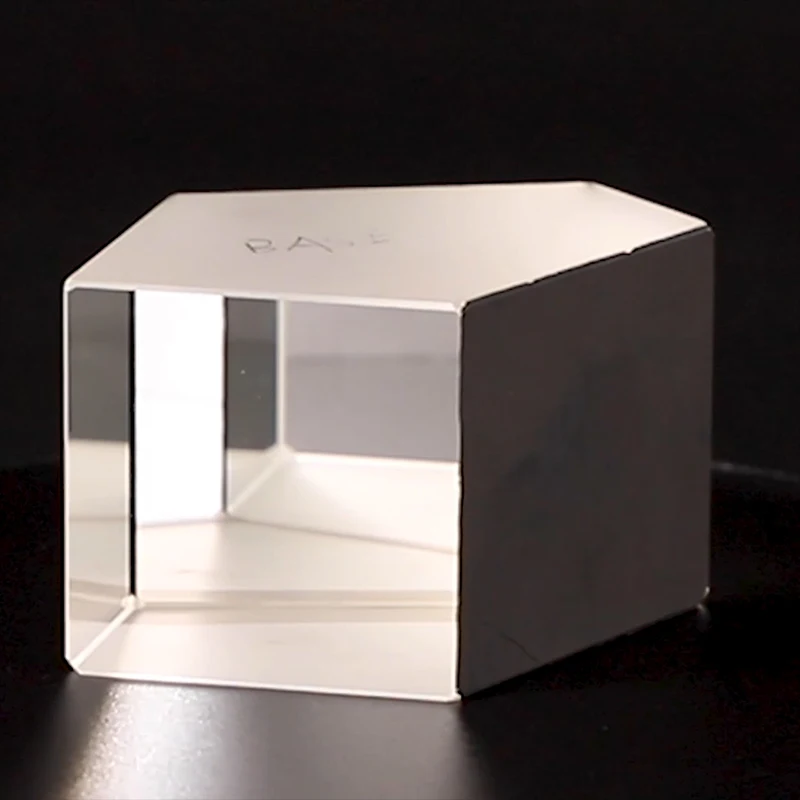

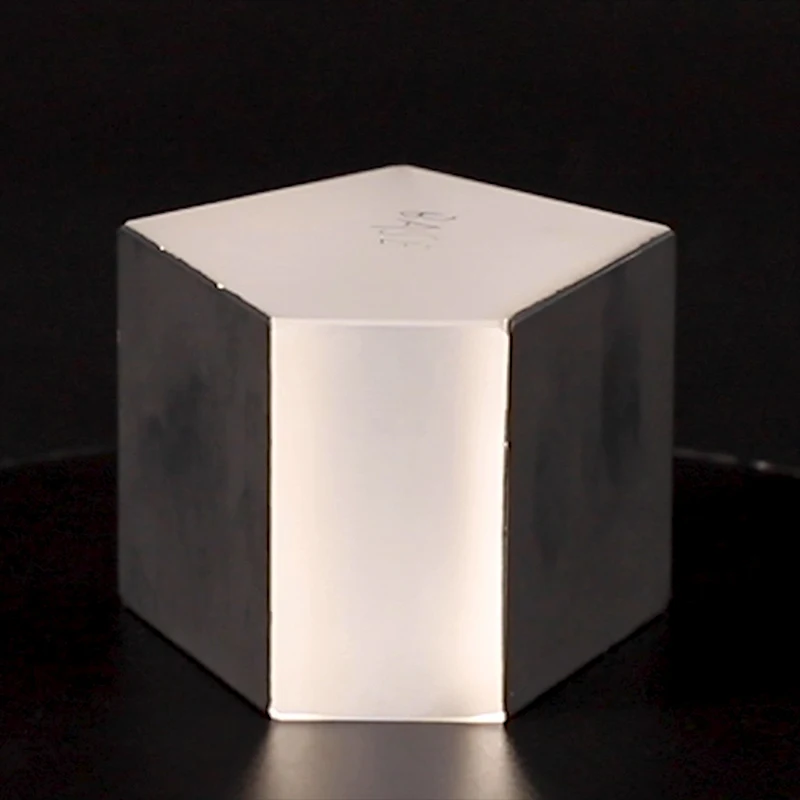

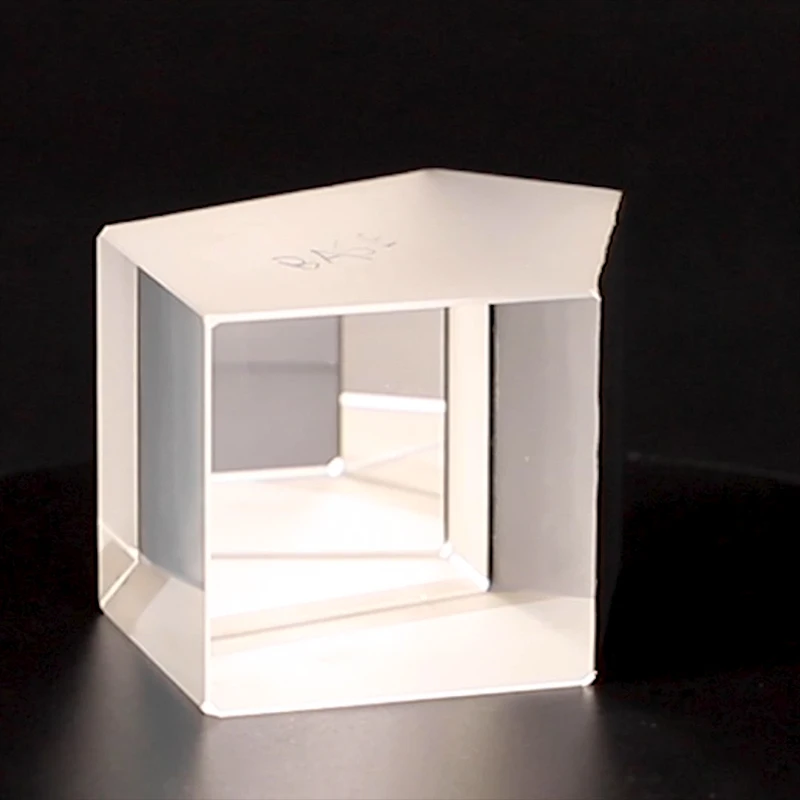

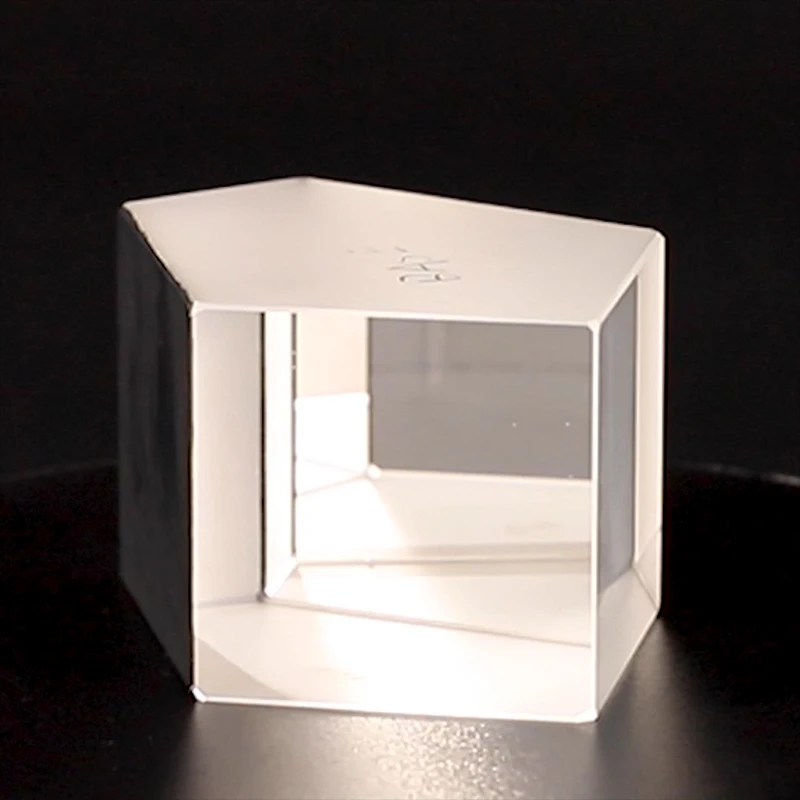

Products Show
Product Paramenter
Length of Legs (mm): | 0.5/1/5/10/15/20/25/30/35/40/45/50 |
Bevel: | Protective bevel as needed |
Coating: | VIS 0° & MgF2 & Aluminized |
Coating Specification: | Entrance/Exit Faces: Ravg ≤0.4% @ 425 - 675nm Reflecting Surfaces: Ravg >85% @ 400 - 700nm w/Black Overpaint |
Dimensional Tolerance (mm): | ±0.10 |
Image Orientation: | Right-Handed |
Ray Deviation (°): | 90.00 |
Substrate: | N-BK7/UVFS |
Surface Flatness: | λ/8 |
Surface Quality: | 60-40 |
Type: | Penta Prism |
Typical Energy Density Limit: | Entrance & Exit Faces: 5 J/cm2 @ 532nm, 10nsReflecting Surfaces: 0.3 J/cm2 @ 532 & 1064nm, 10ns |
Wavelength Range (nm): | 425 - 675 |
Beam Deviation Tolerance (arcmin): | ±5 |
Company Profile
Exhibition Display
Certificate Display
Shipping Methods
FAQ
1. Product choosing
Our company have the large quantity of standard products in our stocks. Customer can choose the products according to the
acquirement, such as size, technical data and Coating characteristics. Also, we can produce the special optical products according
customers’ demand.
2. Product preserving
Optical components should be protected with dry situation and suitable temperature without being used. Please clean it with gauze
and cotton dipped in special cleaner (20% anhydrous alcohol + 80% ether mixture)
3. Quality assurance
Please check out the products when you received with the courier being attendance. Within 30 days after receiving the products,
you can contact me freely and provide your testing report if there is something unartificial damage and disqualification technical
data. We will be responsible for free charge repairmen, change and return.
4. Payment terms
The payment terms can be flexible and can be cash, T/T and Paypal.
5. Delivery terms
We can deliver stock products within 7 work days, and within promissory delivery time for customized products.
Our company have the large quantity of standard products in our stocks. Customer can choose the products according to the
acquirement, such as size, technical data and Coating characteristics. Also, we can produce the special optical products according
customers’ demand.
2. Product preserving
Optical components should be protected with dry situation and suitable temperature without being used. Please clean it with gauze
and cotton dipped in special cleaner (20% anhydrous alcohol + 80% ether mixture)
3. Quality assurance
Please check out the products when you received with the courier being attendance. Within 30 days after receiving the products,
you can contact me freely and provide your testing report if there is something unartificial damage and disqualification technical
data. We will be responsible for free charge repairmen, change and return.
4. Payment terms
The payment terms can be flexible and can be cash, T/T and Paypal.
5. Delivery terms
We can deliver stock products within 7 work days, and within promissory delivery time for customized products.
