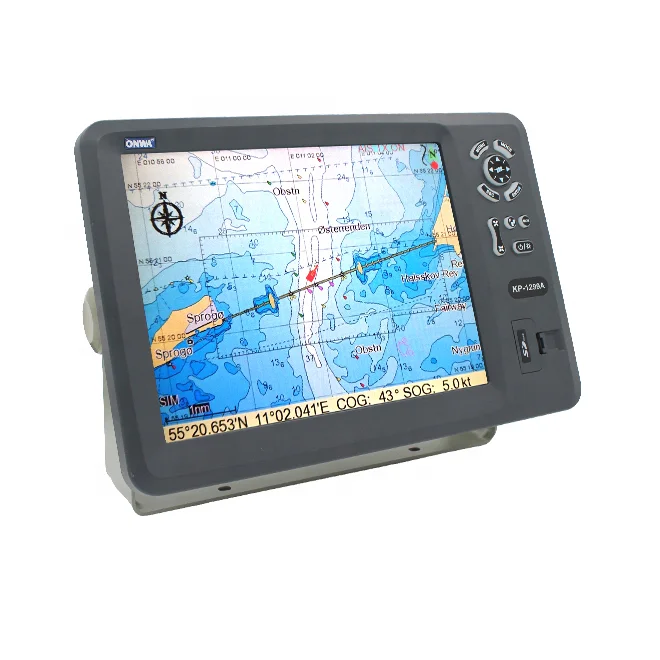

HP 1228A 12 дюймовый Matsutec морские GPS навигатор AIS класса B ретранслятора/ONWA KP 1299A GPS AIS Картплоттер

Product Overview

Description

marine GPS Chart Plotter with AIS transponder,  high quality AIS transponder, GPS/AIS Chart Plotter, marine GPS/AIS, AIS Chart Plotter, marine GPS chartplotter, Gps pltoter, chart plotter







Matsutec

12" Color LCD Marine AIS GPS chart plotter

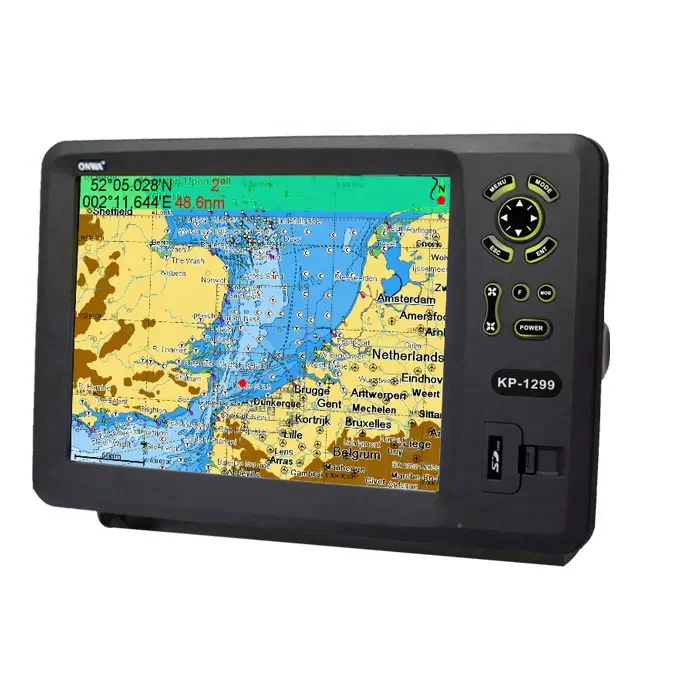

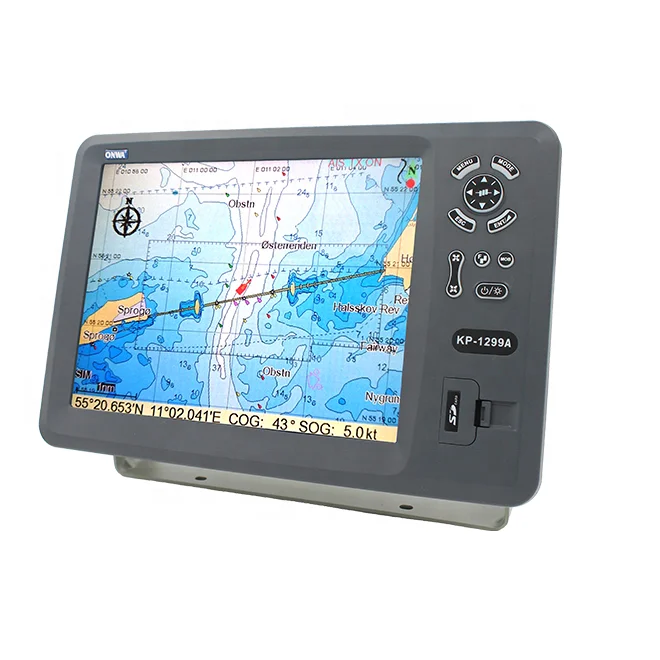

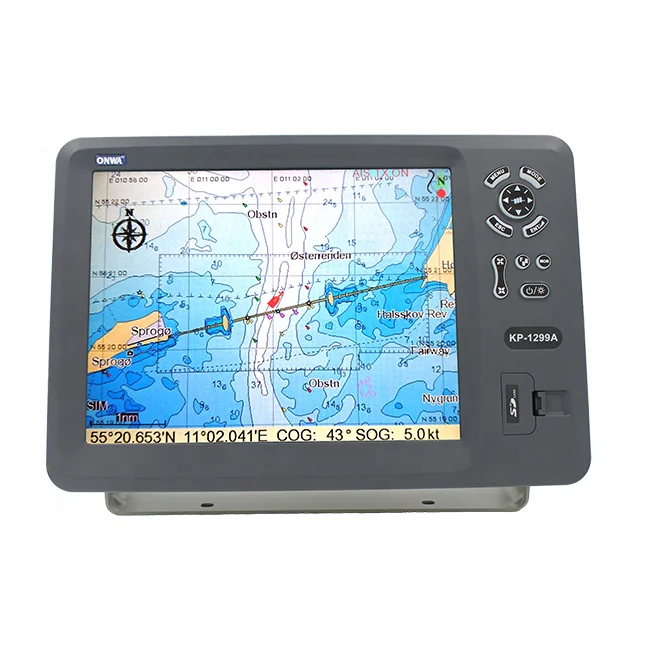

Model: HP-1228A  / KP-1299A





FEATURE:



1.   High resolution TFT day-view LCD display

2.   SD-cards slot for C-map Max and user data

3.   C-map Max and K-chart Selectable

4.   Tide table

5.   Versatile display modes including:

     -   Plotter Screen

     -   Nav Data

     -   Satellite Information

     -   AIS Display

     -   Compass Screen

6.   GOTO Track Navigation

7.  Map Orientation Select

8.   Proximity waypoint alarms

9.   Perspective View

10. Palette

     -    Normal

      -  Daylight - Exposed to Sunlight

      -  Night - In Dark Environment

      -  NOAA - Paper Chart Colors

      -  Celestial



SPECIFICATIONS



Plotter Characteristics

1.   Waypoints/Icons: 14,000 waypoints with name, symbol, 10 proximity waypoint.

2.   Route Memory:  waypoint up to 169 points each, plus MOB and Track Navigator or Goto track modes

3.   Tracks: 21,000 point automatic track log; 10 saved track (up to 2100 track points each) let you retrace your path in both derections

4.   Alarm: XTE, Anchor Drag, Arrival, Speed, Voltage, Proximity, Waypoint and Time, AIS alarm.

5. PALLETE

- Normal

- Daylight: Exposed to sunlight

- Night: In dark environment

- NOAA: Paper chart color

6. Tides: Tide Data

7.  Projection: Mercator projection

8. Position format: Lat/Lon

9. Base Map: Built-in ONWA K-Chart

10. External Map: SD cards slot for user settings

11. User data storage: Internal backup of user settings, or external SD-card

12. Plot Interval: 1s to 99h or 0.01nm to 9.99nm

13. 0.01nm to 1,000nm

14. Nav Data Input/Output:

- Input:

$--DBT, $--DPT, $--GGA, $--GLL, $--MTW, $--RMA, $--RMB, $--RMC, $--VHW, $--VTG, $--ZDA

- Output:

$--AAM, $--APB, $--BOD, $--BWC, $--GGA, $--GLL, $--RMB, $--RMC, $--VTG, $--XTE, $--ZDA, $--WPL, $--HDG

- Output for autopilot:

$--AAM, $--APB, $--BOD, $--VTG

15. PERSPECTIVE VIEW: On/off





GPS Receiver Characteristics

1.   Receiver: 50 parallel channel GPS receiver continuously Tracks and uses up to 50 satellites to compute and update your    position

2.   Acquisition: Cold start: 27 seconds average

      Warm start: 27 seconds average

      Hot start: 1 seconds average

3. Update rate: 1/second, continuous

4.   Accuracy: Position: <2.5 meters(95%) without S/A

      Velocity: 0.1 meter/sec without S/A

      Time: ±100ns synchronized to GPS time

5.   Dynamics: Altitude: 50,000m Max

      Velocity: 500 m/s

      Acceleration: 4g Max

6.   Datum: WGS 84 & Others

7. Interface: NMEA 0183 Input , RS232 output

8. Antenna: HA-017





AIS Interface

1. Data input: NMEA 0183, RS232


2. Baud rate: 38400

Power Supply: 10.5 to 35VDC, current drain < 400mA at 24V



Physical

1. Size: 363.8mm(H) × 267.9mm(W) × 106mm(D)

2. Weight: 3.95kg

3. Display: 12.1-inches color TFT day-view LCD, 800 x 600 pixels

4. Waterproofing: Display unit: IPX5; Antenna unit: IPX6

5. Temperature: -15°C to + 55°C (Display unit); -25°C to + 70°C (GPS antenna)





AIS Characteristics

1. Transmitter x 1 ( For KP-1228A only )


2. Receiver x 2 (one time shared between AIS/CDSC)


3. Frequency : 156.025 to 162.025 MHz in 25KHz steps


4. Output power : 2 Watts typical (For HP-1228A only)


5. Channel bandwidth : 25KHz


6. Channel step: 25KHz


7. Modulation modes : 25KHz GMSK (AIS, TX AND RX)

                                         25Hz AFSK (DSC, RX, only)



      8. Bit rate:    9600 b/s ± 50 ppm (GMSK)

                           1200 b/s ± 50 ppm (FSK)



      9. RX sensitivity : Sensitivity - 107dBm 25Khz

                                   Message error rate less than 2%

                                   Co-channel 10dB

                                   IMD 62dB

                                   Bloching 84dB





Equipment List (Standard)



-   Display unit

-   Antenna unit with 10m cable

-   Operator manual

-   Installation materials and Standard spare parts
