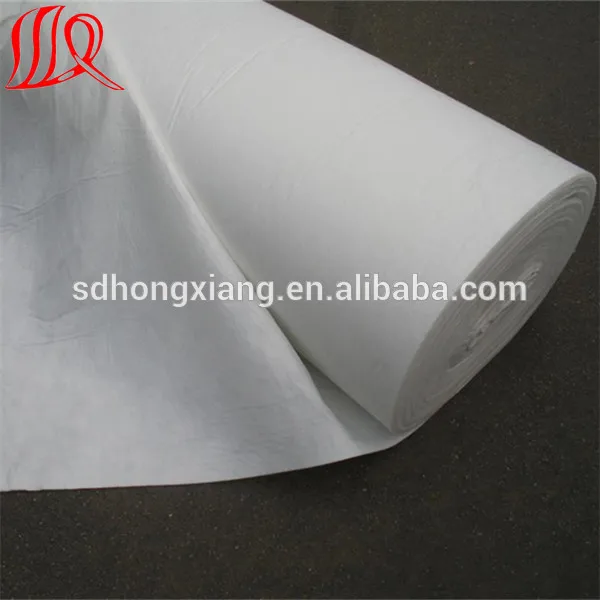

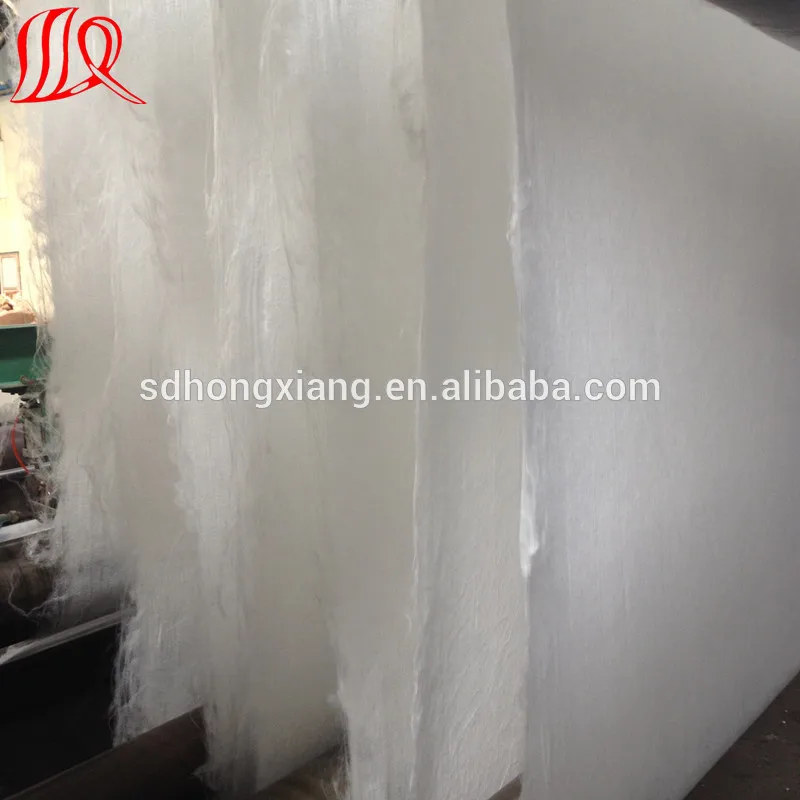

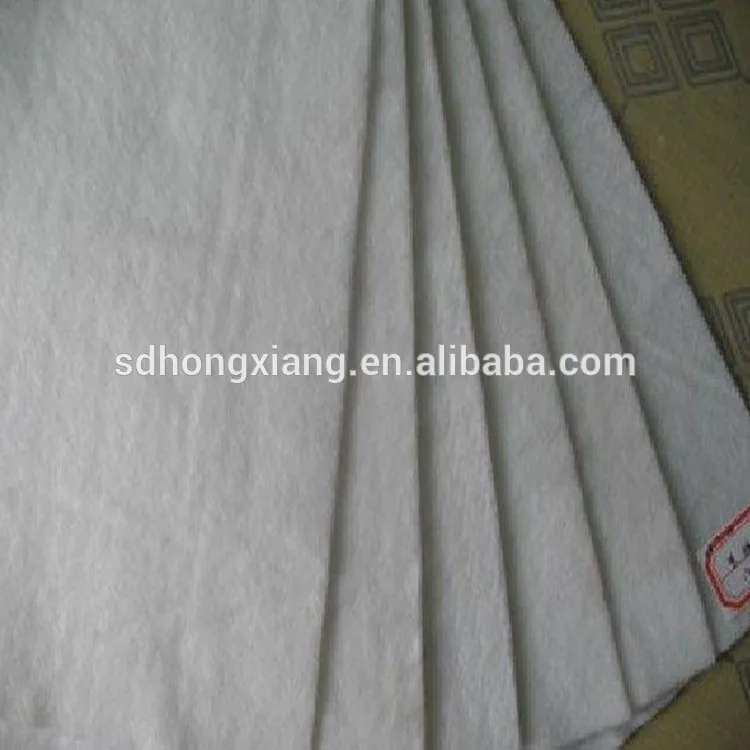

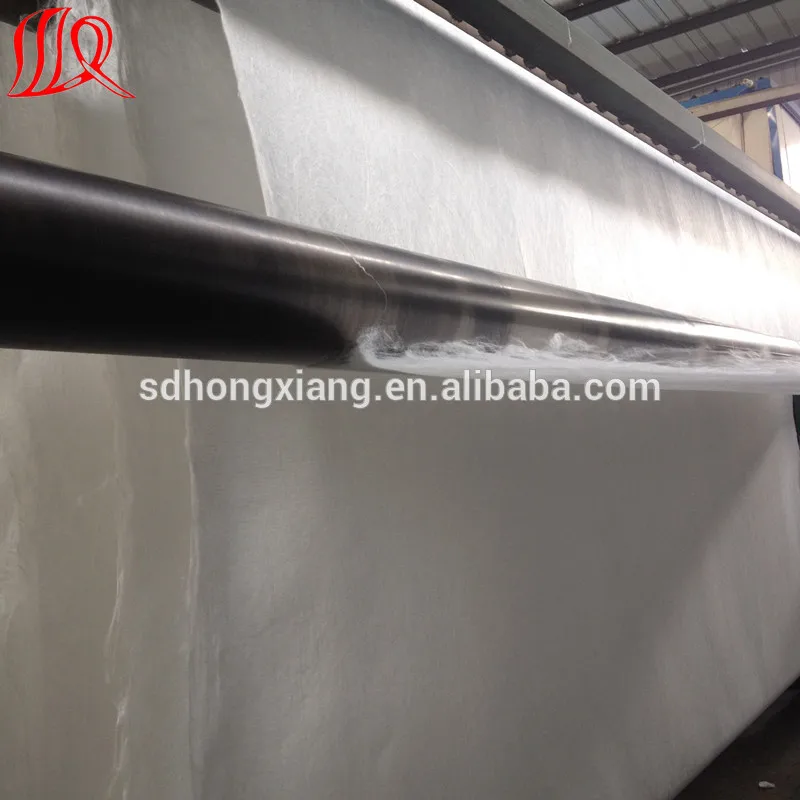

Non woven geotextile fabric can be made of polypropylene (PP), or polyester (PET), Polyvinyl or synthetic fiber on needle punch machine. The mass is available from 100gsm/m² to 1500gsm/m² and the width available from 2.0m-6.5m, monolayer or multilayer (reinforcement geotextiles), long fiber or short fiber. Color: all kinds of color are available. The annual production ability is 10 million square meters.
The fabric can also be heat treated by infrared at customer's requirements. Our geotextile are UV stabilized to give protection against aging under exposure to natural ultra-violet light.
The major functions: Separation, filtration, drainage, reinforcement, protection, and liquid barrier.

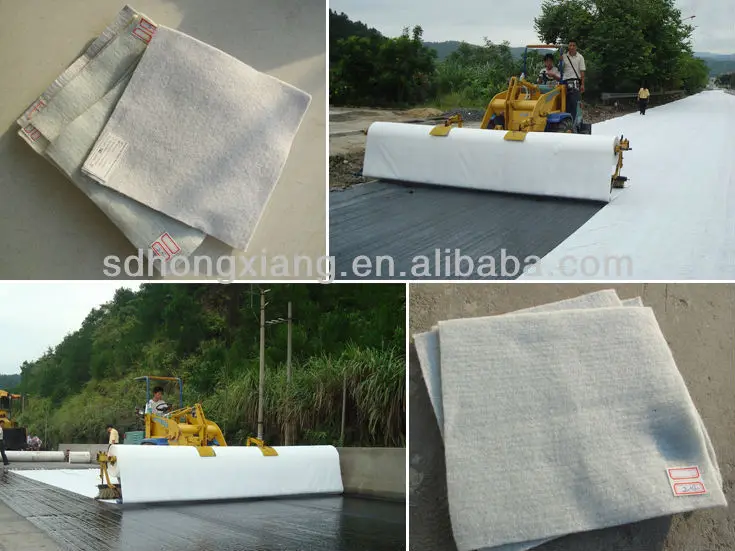

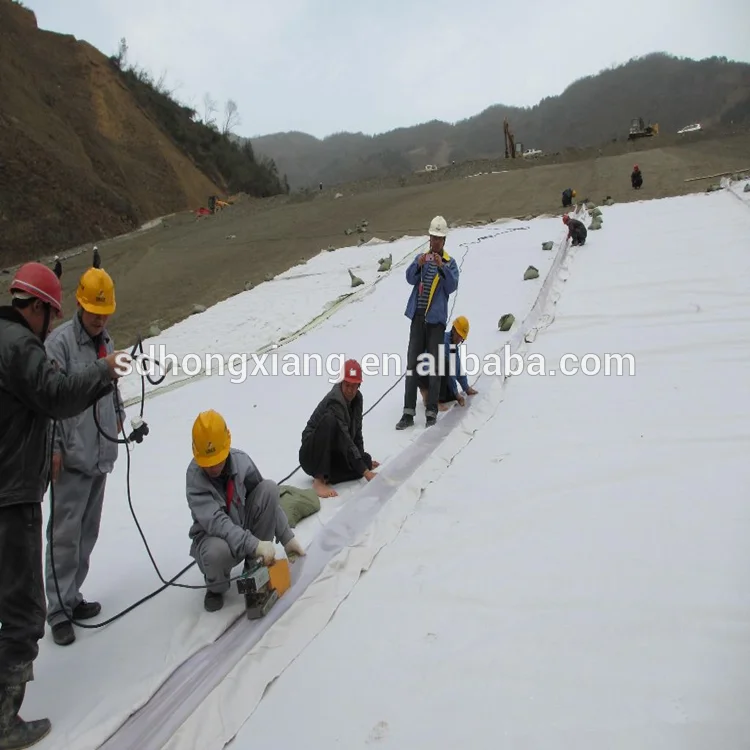

Application: It is widely used in the areas of railway, highway, water conservancy, dam, tunnel, subway, environmental protection and so on.
1.Specification
100GSM~1000GSM
2.Properties
High strength,anti-aging,anti-acid and alkali,abrasion resisting,flexibility,and easy for constructjion.
3.Usage
Used in the area of highway,railway,dam,costal beach for reinforcement,filtration,separation and drainage,especially used in salt marshes and garbage burying field.
4.Size of package
Width 1-7m,length 50-100m(or as per request)
Technical Specification
Item
Value
Specification/2
100
150
200
300
400
500
600
800
1000
1
Breaking Strength(MD/CD)(KN/m)
4.5
7.5
10
15
20
25
30
40
50
2
Elongation at break(MD/CD) (%)
40~80
3
CBR Mullen Brust Strength KN≥
0.8
1.6
1.9
2.9
3.9
5.3
6.4
7.9
8.5
4
Tear Strength(MD/CD)/KN
0.14
0.21
0.28
0.42
0.56
0.70
0.82
1.10
1.25
5
Openging Size o90 (o95)mm
0.05~0.20
6
Vertical Permeability Coefficient cm/s
K×(10-¹~10-³) K=1.0~9.9
7
Thickness/mm≥
0.8
1.2
1.6
2.2
2.8
3.4
4.2
5.5
6.8
8
Width Variation%
-0.5
9
Weight Variation/%
-5
Packaging & Shipping
Company Information
Hongxiang is a pioneer geosynthetic manufacturer who is on the way to create a world-class brand of geotechnical products and services. Safe, sound, pleasant-our corporate philosophy will be surely passed on to you. Our products come in complete varieties, including woven and non woven geotextiles, geomembranes, geogrids, geonets, geocomposites, etc. They are playing irreplaceable roles in water conservancy, transportation, waste treatment, building, mining, agriculture, and ecological greening systems. In the field, we have 15 patents of invention and utility model, as well as the experience working with customers from more than 20 countries and regions. We are looking forward to making partners with you.
Our Services
1. We have different quality products for viarious projects. 2. Only we get some futher details, we can give you professional suggestions. 3. we also manufacture it as your specification. 4. Hongxiang engineers will try their best to resovle your problem in construction.
FAQ
1.How about the delivery time?
Honestly, it depends on the order quantity, our normal delivery time is around 7-14 days after we received the deposit. 2. What kind of payment terms do you accpet ?
T/T, L/C at sight, Cash are accepted.
3. How about the MOQ?
The MOQ is different for different products, for our first cooperation we can accept your first trial order. 4. Do you charge for the samples?
Accordeing to our company policy, the samples are free, but you should pay for the freight.
5. Can you produce according to customers' design?
Sure, we are professional manufacturer, we welcome customized design.
6. Can you tell me your main customers?
That's our customers' privacy, we should protect their information. At the same time, please rest assured that your information is also safe here.
