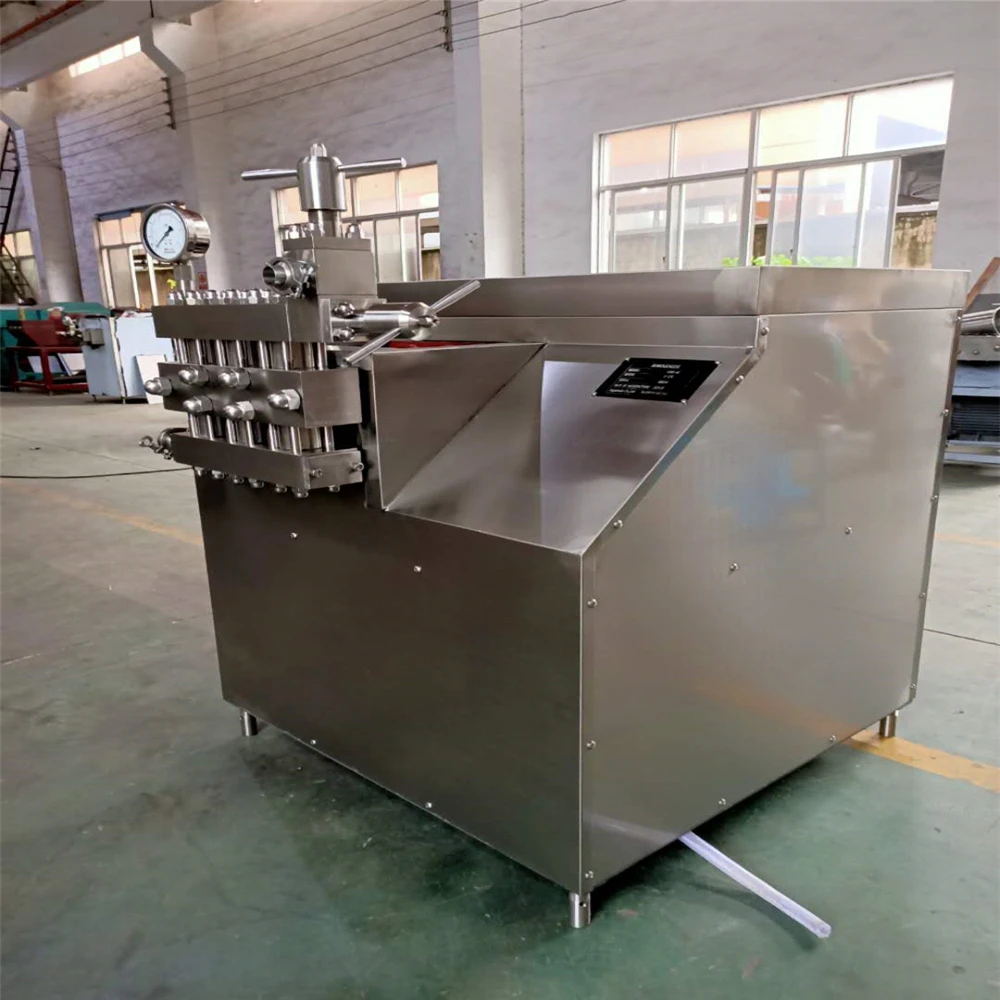

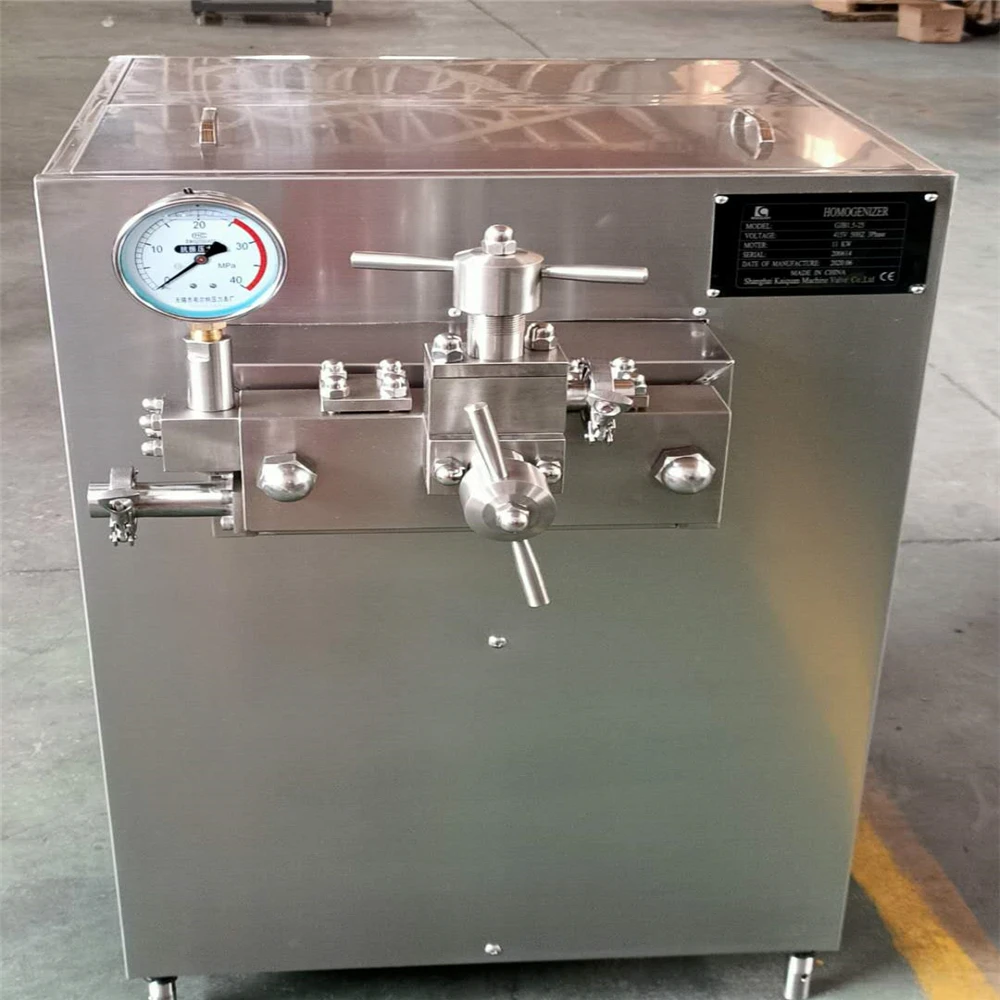

Ice Cream Dairy Homogenizer (XFY2000 25)

Product Overview

Description

   Ice Cream Dairy Homogenizer (XFY2000-25)

  high shear dispersing emulsifier homogenizer mixer

Secifications

Stainless steel high shear mixer
ss304,ss316L
CE,ISO9001:2000
Reliable quality,beatiful surface

Working Method:
High Shear Batch Emulsifier(mixer) is suitable for mixing, Dispersing, Shearing and Homogenizing all kinds of viscous liquid and pastes. The products could be applied in Food, Beverage, Chemical, Pharmaceutical, Paint& ink industry etc. The Unit consists of a centrally located shaft, connected to a flanged type motor mounted on a steel housing. We have four types of different stators to suit different working condition.

Features of Batch Emulsifier
All wetted parts are grade 304 or 316 Stainless steel
Mechanical Seal for Sanitary Operation
Quick opening for easy cleaning
Hygienic Design.
Explosion-proof ABB Motor 3 Phase



The KQ series of intermittent type high-shearing homogenization emulsion machine are high-powered stirring systems. Lower part has particular stator-rotor structure to make the material be high-shearing dispersed ,homogenized and emulsified intensively .Middle has high speed dispersed propeller-blade to assist with blending and homogenization .Upside has liquid flow under press type dispersed propeller-blade to control flow fluid effectively and process more thoroughly .
The equipment is applicable to blending, dispersing, homogenization and emulsification of fluid liquid material

Application scope:
Food industry: edible coloring matter, chocolate coating, filling food, syrup, flavoring, various additive, etc;
Medicine industry: medical ointment, ointment, lotion, cream, various vitamin, etc
Chemical industry concerned with product of daily use: shampoo, detergent, cream, tooth paste, paraffin liquor, hair dye, etc.Adhesive industry: rubber liquor, polyester sulfured, silicone,



Technical Details :

Type	Power (Kw)	Voltage	Revolution (RPM)	Length (Mm)	Processing capacity (L/H)
WRL-90	1.5	380V/50Hz	2900	430	5-50
WRL-100	2.2	380V/50Hz	2900	650	50-100
WRL-120A	3	380V/50Hz	2900	750	100-200
WRL-120	4	380V/50Hz	2900	750	100-300
WRL-140A	5.5	380V/50Hz	2900	850	200-600
WRL-140	7.5	380V/50Hz	2900	900	200-800
WRL-160	11	380V/50Hz	2900	1000	300-1000
WRL-170	15	380V/50Hz	2900	1100	400-1200
WRL-180	18.5	380V/50Hz	2900	1150	500-1500
WRL-200	22	380V/50Hz	1170	1200	800-2000
WRL-220	30	380V/50Hz	1170	1350	1000-3000
WRL-240	37	380V/50Hz	1470	1400	1500-5000
WRL-270	55	380V/50Hz	1470	1650	2000-8000























































 Ice Cream Dairy Homogenizer (XFY2000-25)
