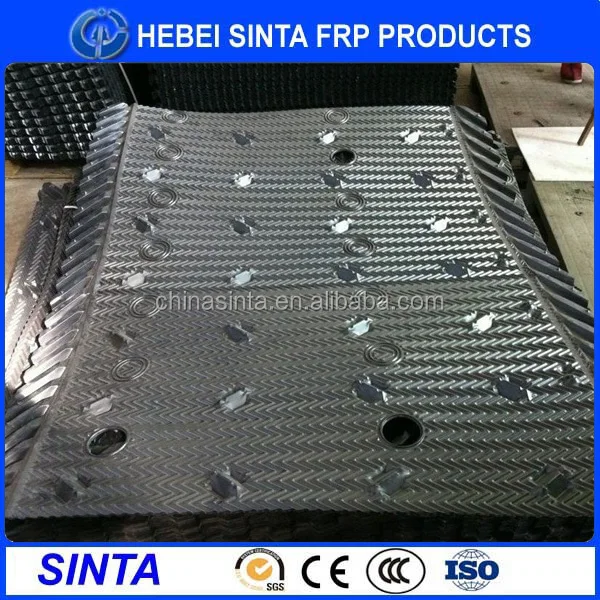

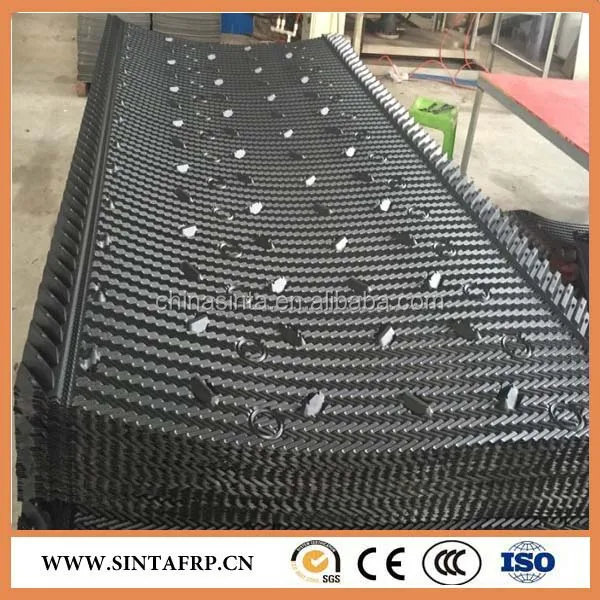

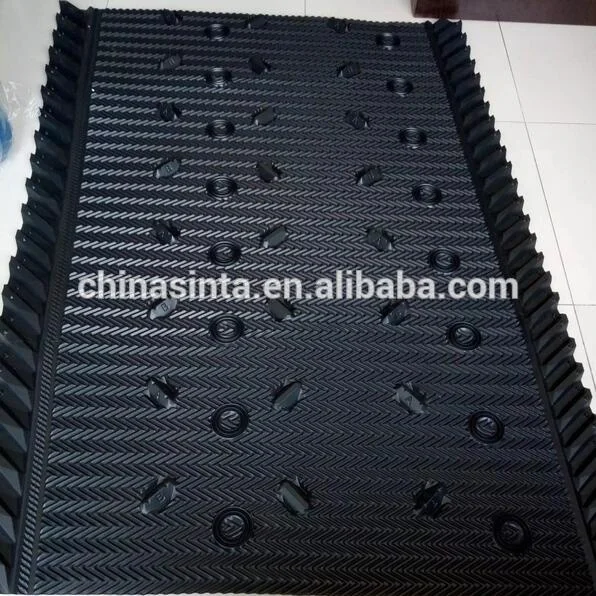

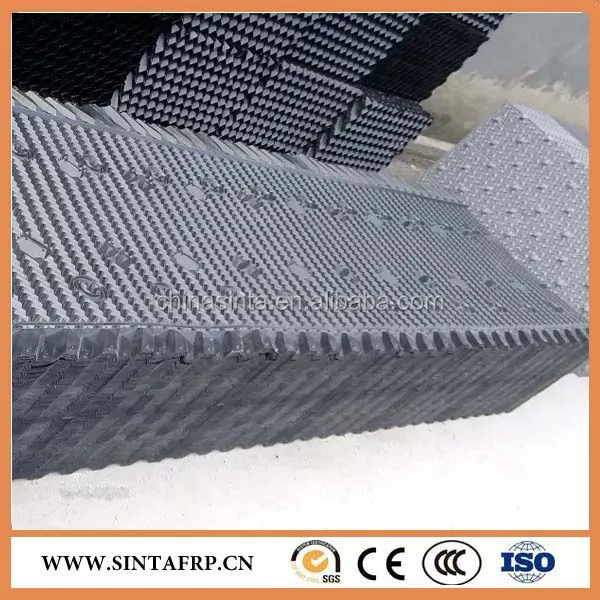

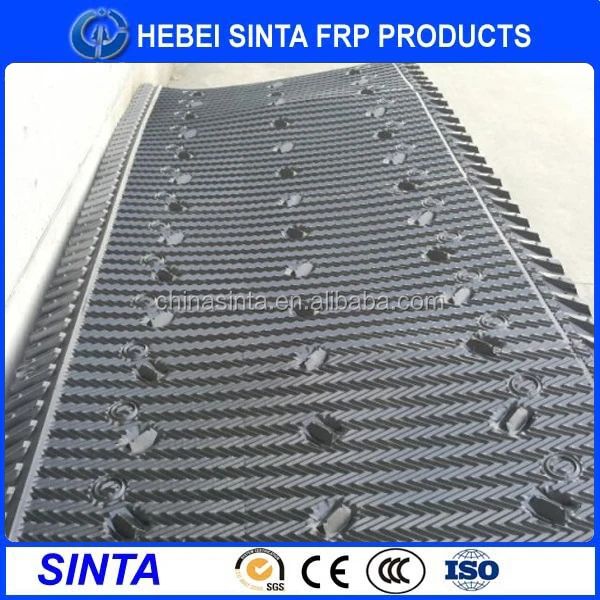

MX75 crossflow PVC film fill with integral louvers and eliminators for cooling tower fill

Product Overview

Description

High quality MX75 cooling tower fill





cooling tower material fetures:

1. Improved water distribution

2. High thermal performance

3. Material meets Cooling Tower Institute

4. Mainly apply to Counterflow fill.



Cooling Tower fill media Technical Data:

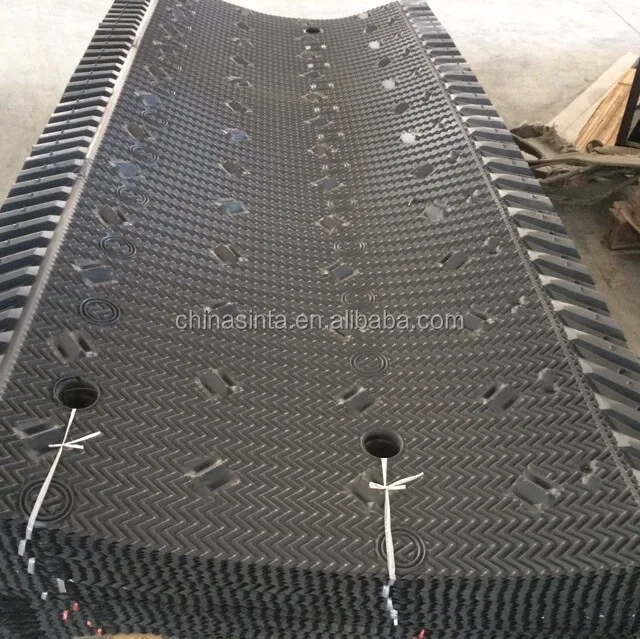

MX Fill is available in MX75 configuration and higher-performing MX625 configuration. MX is a hanging film type cooling tower fill which spreads the water into a thin film, flowing over large vertical surfaces, promoting maximum exposure to air flow. This type of fill provides much more water surface exposure per cubic foot than splash type fill.



MX fill incorporates highly efficient cellular drift eliminators, integrally molded within the fill sheets. Compared with previous designs, these eliminators reduce drift emissions from the tower by a factor of ten or more! Less drift means tower owners save water bills and water treatment chemical expenses.



This fill virtually eliminates the nuisance caused by drift spotting on adjacent buildings and property. For additional savings, the drift eliminators discharge air directly toward the fan. Discharge air, traveling in the right direction when it leaves the eliminators, translates to lower fan horsepower.



Louvers are also integrally molded within the fill sheets preventing water from escaping and assuring precise air distribution throughout wide variations in airflow. Unlike towers equipped with separate external louvers, this fill operates virtually ice-free even in extremely cold weather.

 MX fill is thermoformed from PVC with a flame spread rating less than 25 per ASTM E-84 and is considered selfextinguishing. Therefore, the risk of fire damage is minimal.



SURFACE AREA	SHEET SPACING	FLUTE ANGLE	SHEETS PER FT.	MEDIA PACK SIZES: Depth (D), Width (W), Length (L)
				Minimum	Maximum	Standard
48 ft2/ft3 (157.5 m2/m3)	19 mm	30°	16	D: 12 in (305 mm) W: 6 in (153 mm) L: 1 ft (305 mm)	D: 24 in (610 mm) W: 24 in (610 mm) L: 10 ft (3050 mm)	D: 12 in (305 mm) or  24 in (610 mm) W: 12 in (305 mm) or 24 in (610 mm)  L: 4 ft (1220 mm), 6 ft (1829 mm), 8 ft (2439 mm) or 10 ft (3048 mm)

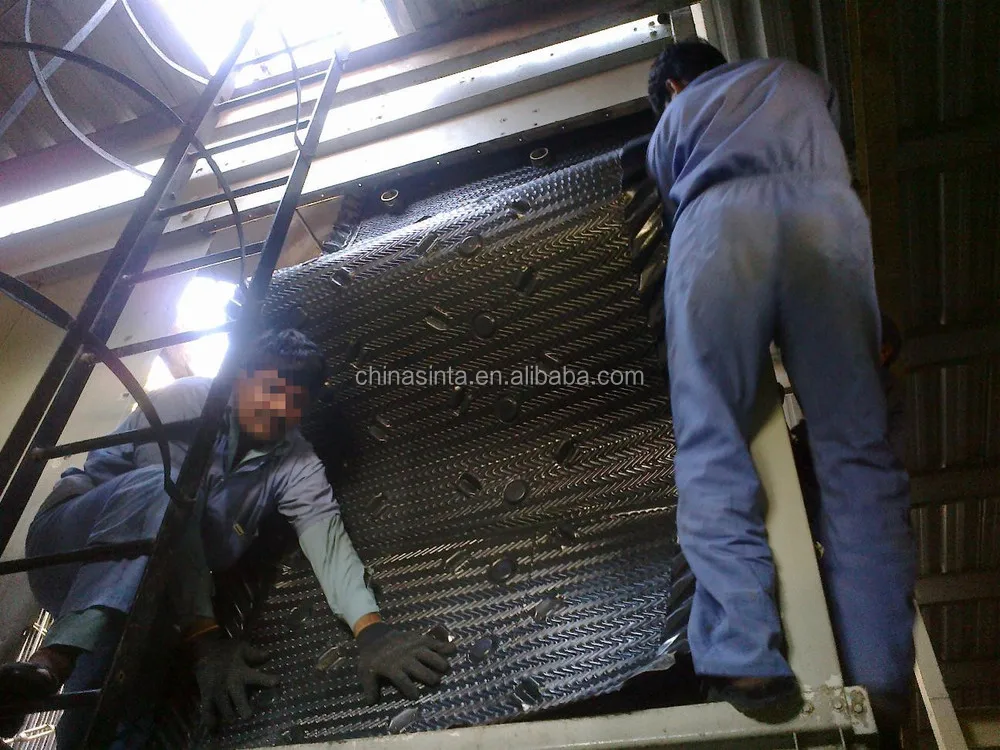

 We have many years for exported Cooling towers filling, we are professional for installation and production .



Cooling Tower Fill Weight:

NOMINAL GAUGE		DRY WEIGHT
mils	mm	lbs/ft3	kg/m3
10	0.25	1.8	28.8
15	0.38	2.6	41.6

Above Data is for PVC material .

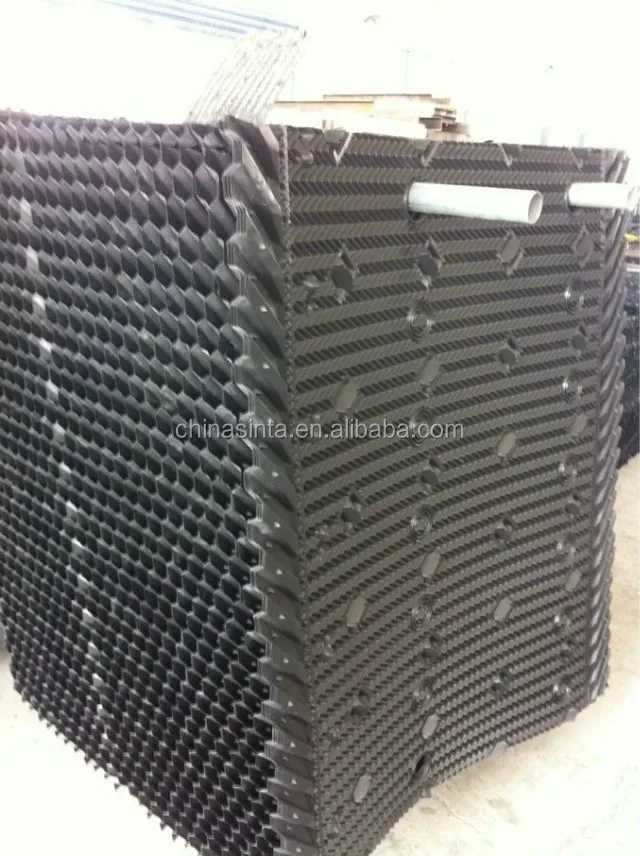

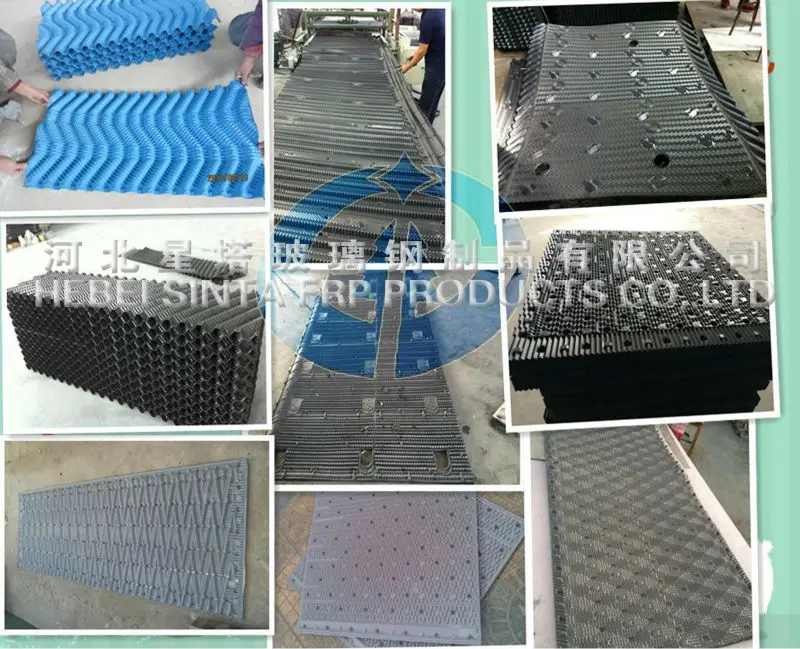

MX75 COOLING TOWER fill packages:









Hebei Sinta could support you with various of cooling tower fillers, and welcome here for inquiry! Please advise us which type of fill or the dimension of fill sheet, and the number of total sheets you are in need, best price will be offered within 24hours. Hope to be your next reliable suppier soon in near future and establish win-win relationship with your esteemed company!
