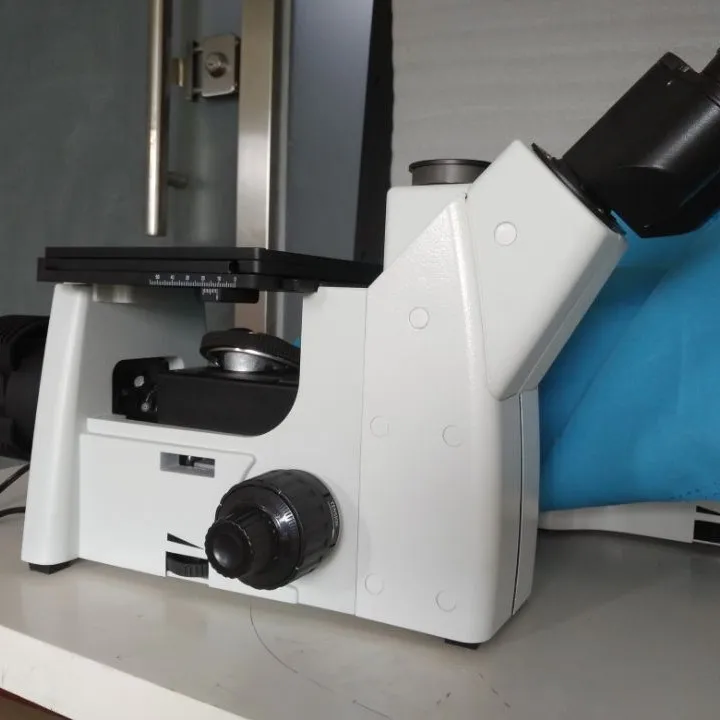

Inverted Metallographic Microscope SD100M
KEY FEATURES
1. Digital Imaging
Adopt special multi-coated eyepiece, high image quality, comfortably viewing
50% eyepiece - 50% video output, that both show a clear image.
Digital images can be acquired at the same time of observation
2. LED Light Illumination
SD-100M equipped with high-power LED Lighting, used time of light is more than 10,000 hours. Light is uniform that does not produce center spot
3. Metallurgical Objectives
International standard professional chromatic objective that significantly eliminate spherical aberration. Whole the field of vision is clear at a high multiple observation
SPECIFICATIONS |
|---|
| Optical | SADT infinity system | Nosepiece | 5 |
| Observation method | Inverted, bright field | Objective | 5X, 10X, 20X, 50X, 100X(Optional) |
| Magnification | 50X,100X,200X,500X,1000X(Optional) | Filter | Green Filter |
| Focusing Mechanism | Low position coaxial focus system, coarse: 38mm per rotation, fine precision 0.002mm | Digital Imaging System | 3 million pixels CMOS, 1/2 |
| Illuminator | Transmission Koehler illumination with alterable | Power supply | 90-240V |
| Stage | Moving rang:75mm X 40mm,precision:0.1mm | Dimension(mm) | 570X310X260 |
| Eyepiece | 10X, reticle eyepiece 10X | Net weight (kg) | 5 |
