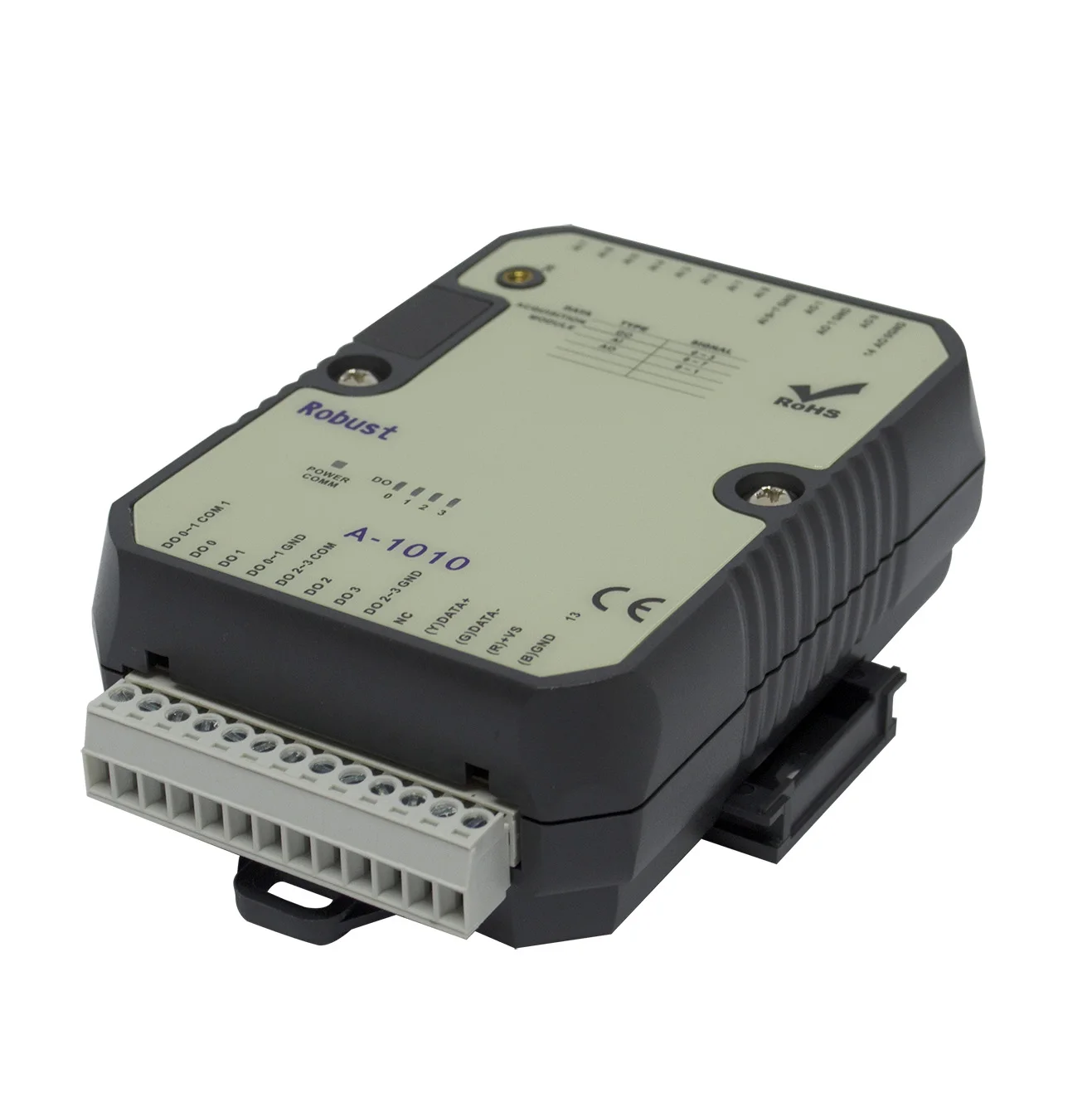

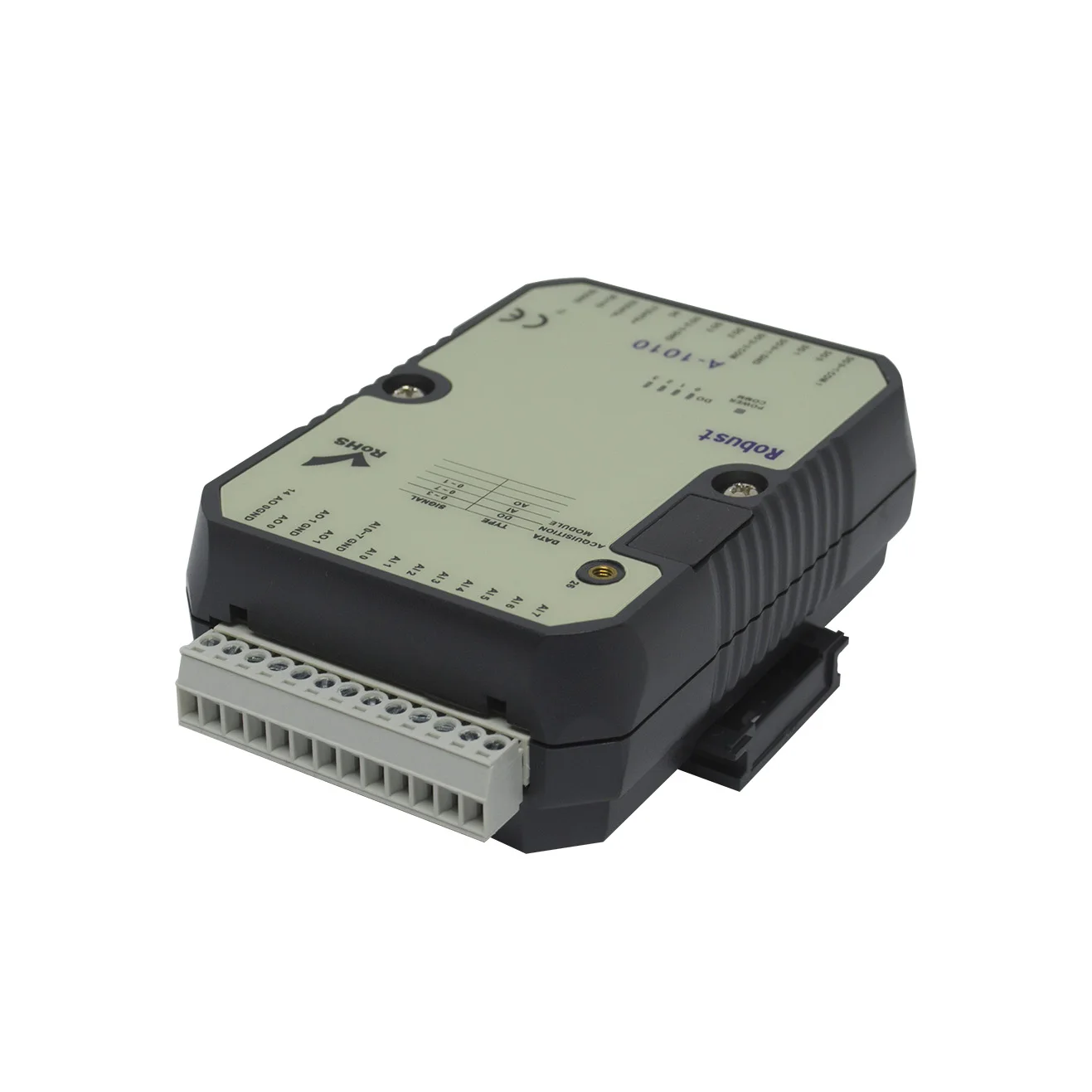

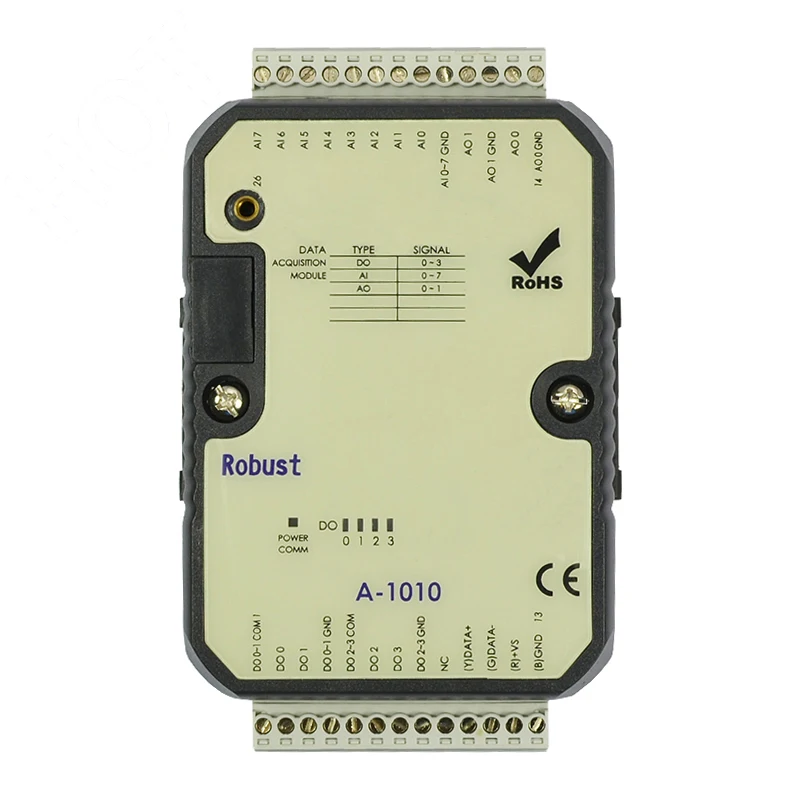

Analog I/O Module 8AI 2AO 4DO RS 485 port Modbus RTU 0 10V (A 1010)
- Category: >>>
- Supplier: Shenzhen ATC Technology Co. Ltd
Share on (60427828191):
Product Overview
Description
Product Features
RS-485 Interface
Supports Modbus RTU / ASCII
LED Indicators
Isolation voltage: 5000 V DC
Wide operation temperature : -20 ~ +75 °C
Dual watchdog timer
Surge , EFT and ESD protection
Free PC software “ATC UtilitySemi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Supports Modbus RTU / ASCII
LED Indicators
Isolation voltage: 5000 V DC
Wide operation temperature : -20 ~ +75 °C
Dual watchdog timer
Surge , EFT and ESD protection
Free PC software “ATC UtilitySemi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Specifications
Technical Specifications（A-1010） | ||||||
Inputs | 8AI(0~10V,10bit) | |||||
Outputs | 2DO(0~10V,10bit)/4DO(Sink Output) | |||||
Interface Type | RS-485 | |||||
Support Protocols | ModBus RTU / ModBus ASCII | |||||
Data Rate | 1200bps ~ 921600bps | |||||
Data Bit | 8 bits | |||||
Parity | Odd, Even, None | |||||
Stop Bits | 1,2 bits | |||||
Isolation Voltage | 5000 VDC | |||||
Common Voltage Protection | +/-15V | |||||
Software | ||||||
Configure Options | ATC Utility | |||||
OS support | Windows XP/2000/2003/Vista/7 | |||||
EMS Protection | ||||||
ESD | +/- 4 kV Contact for each Terminal | |||||
EFT | +/- 4 kV for Power | |||||
LED Indicators | ||||||
Power Supply | 10~30VDC | |||||
Power Consumption | Nearly 24VDC 1.28W | |||||
Physical Characteristics | ||||||

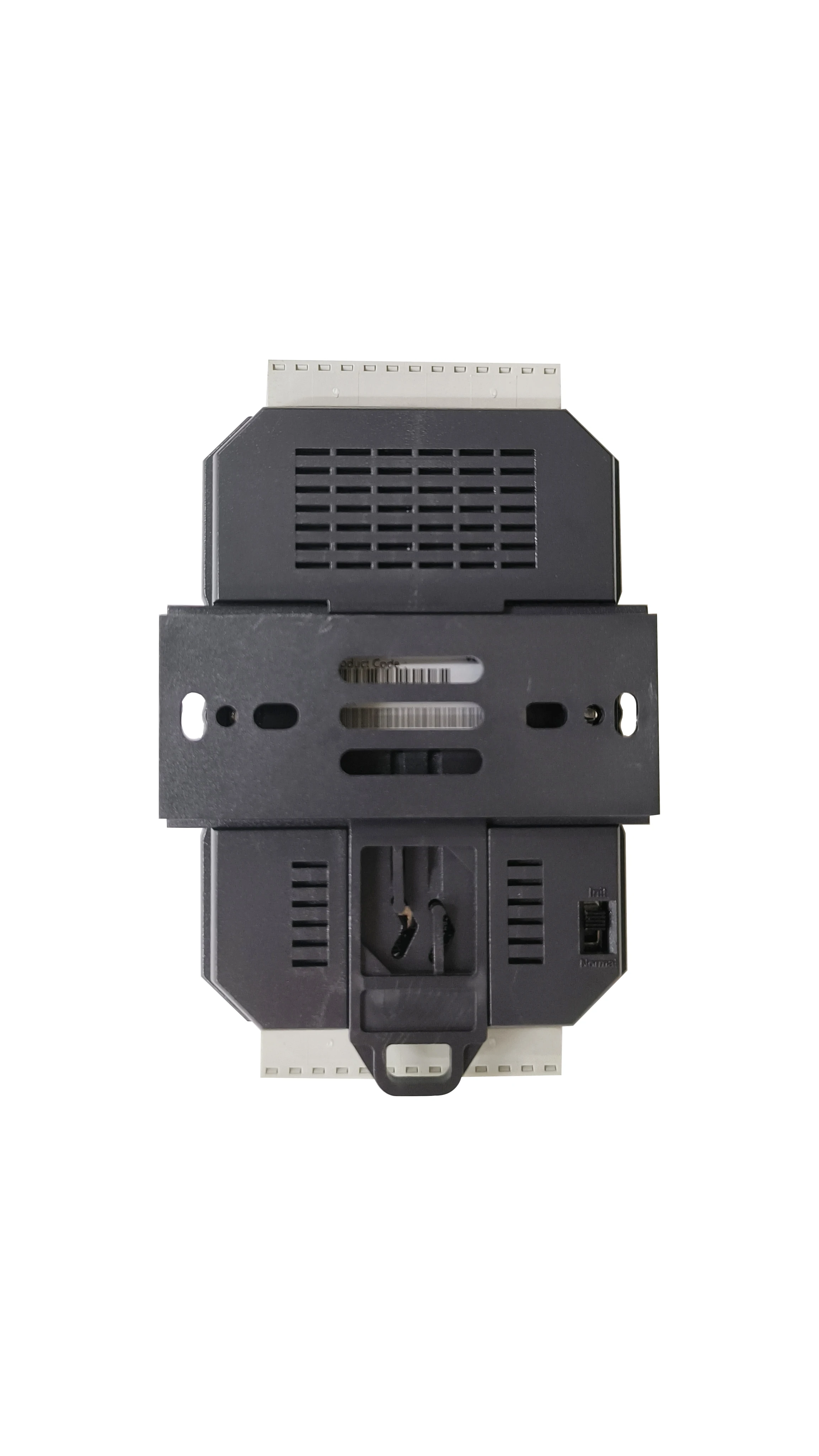

Installation | DIN-Rail Mounting | |||||
Housing | Plastic ABS | |||||
Weight | 0.2Kg | |||||

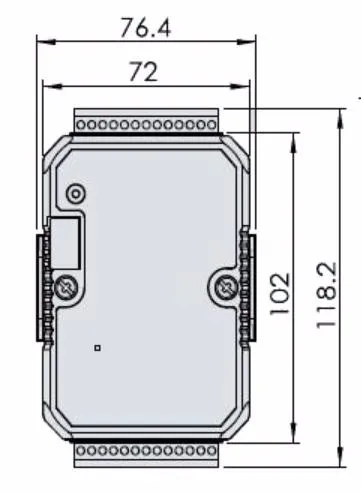

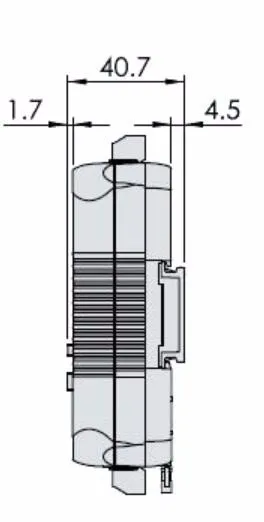

Dimensions | 118 × 76 × 40.7 mm | |||||
Operating Temperature | -20 ~ 75°C | |||||
Storage Temperature | -40 ~ 85°C | |||||
Ambient Relative Humidity | 5% to 95%(non-condensing) | |||||
Standards and Certifications | RoHS, CE | |||||
Product Details

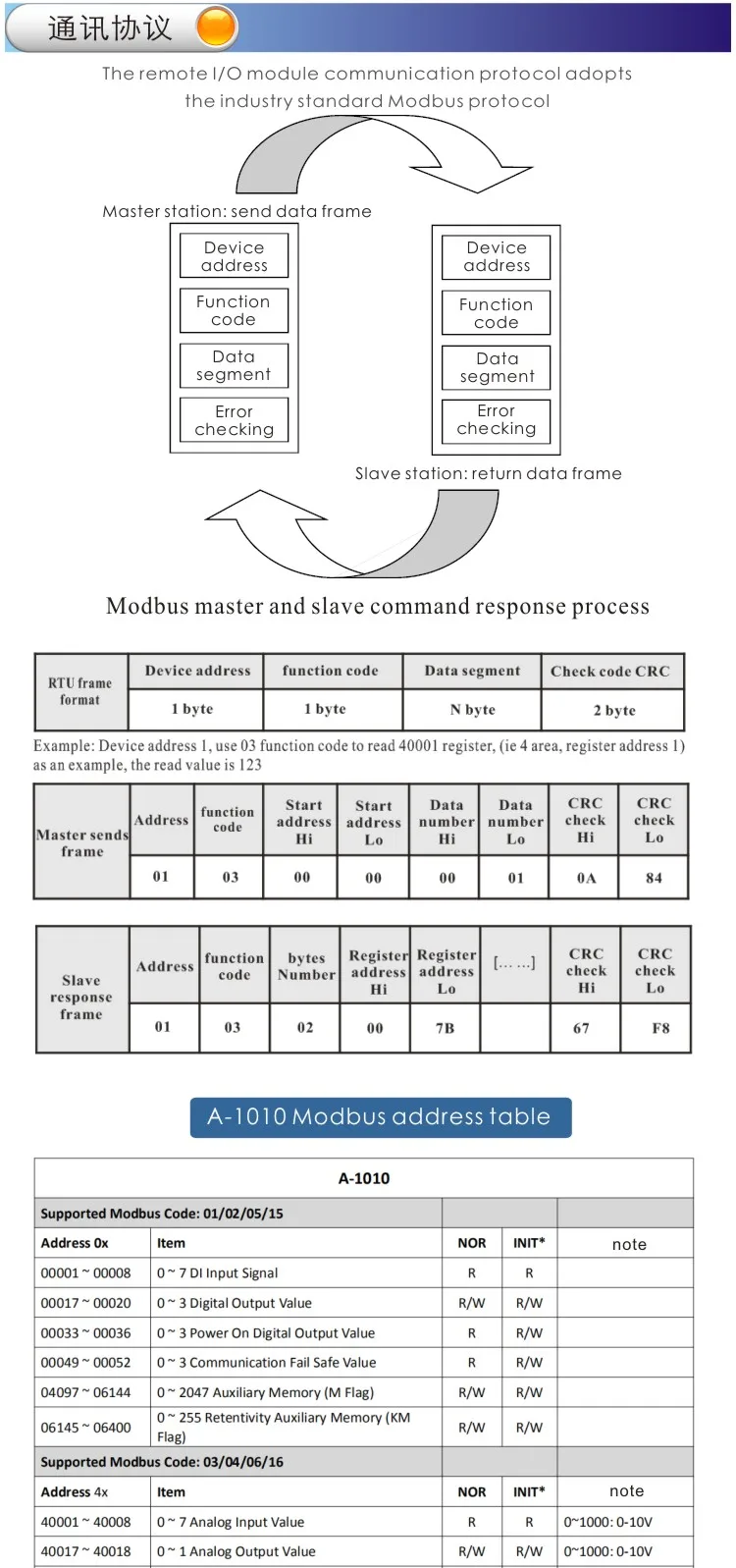

Protocol

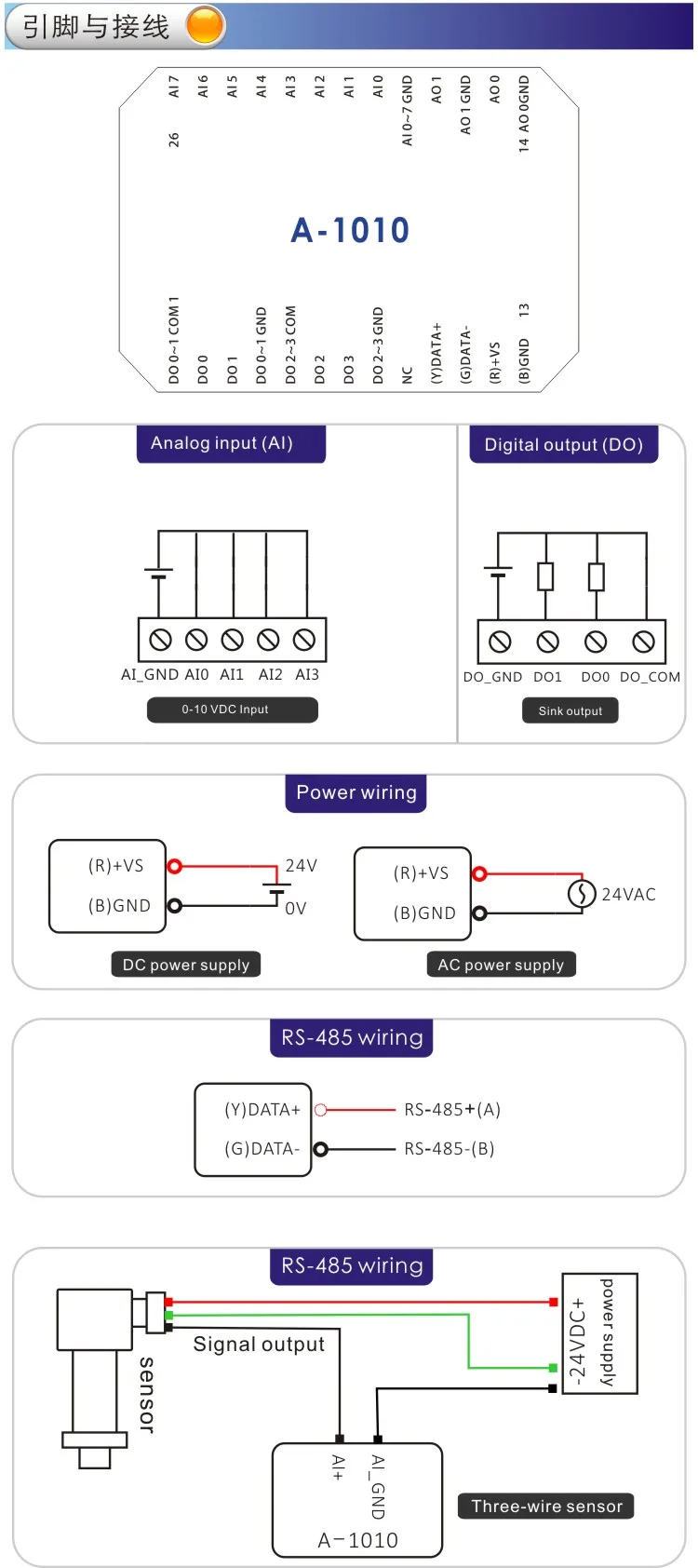

Pins and wiring
Software download

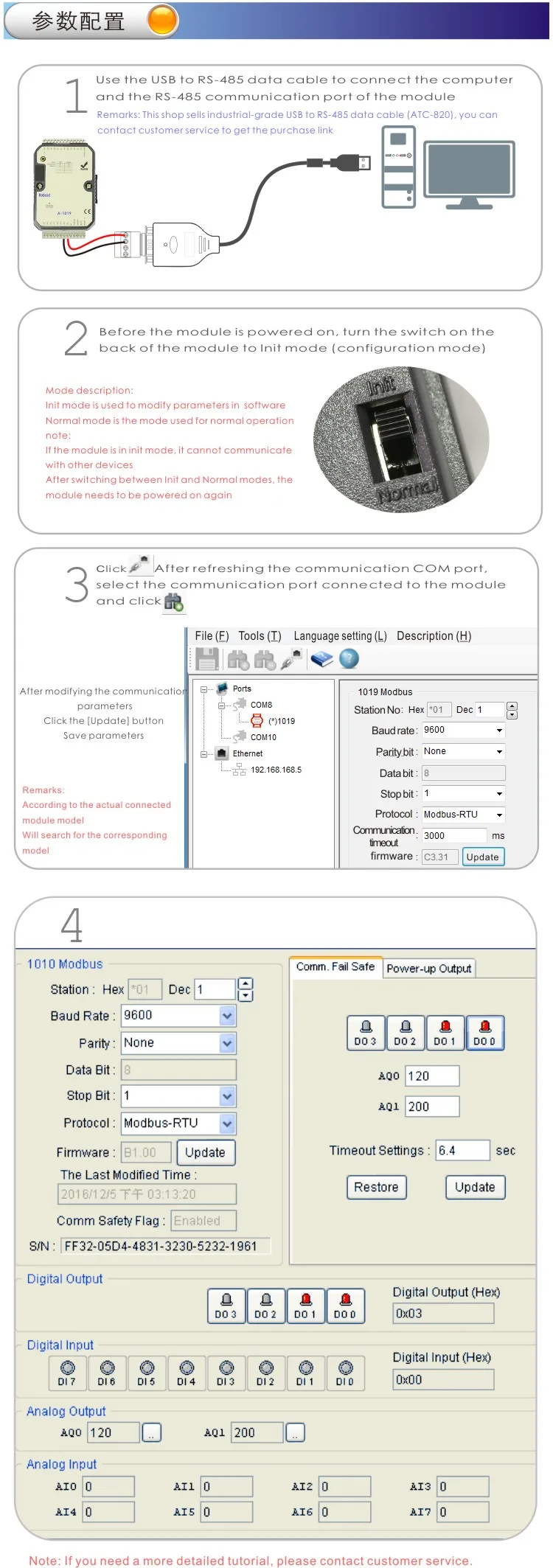

Parameter configuration
Details Images

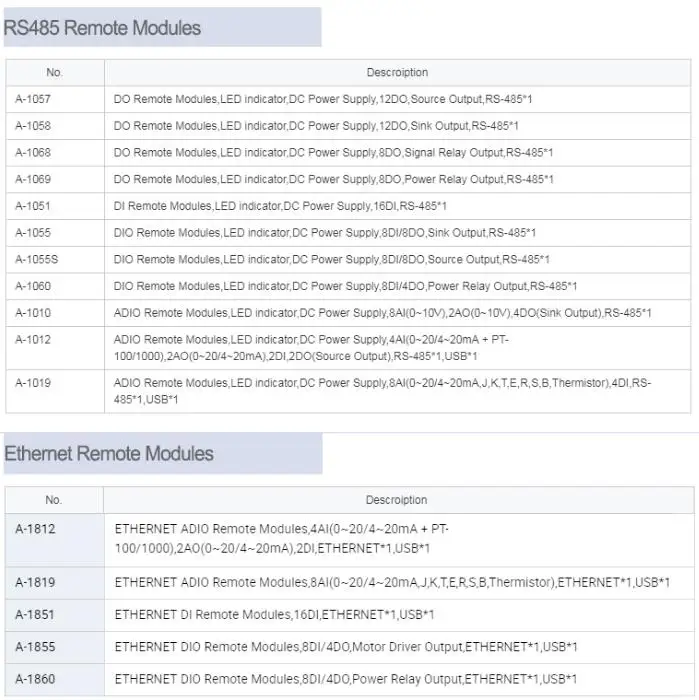

Product Category
RS485/Ethernet Remote Modules
FAQ
1.What about the delivery time?
For RTS product, we will shipping this goods to customer within 1-3 work days receive the payment.For customized products, you need to decide according to the customization requirements.
2.What is your delivery terms and payment terms?
We accept EXW, FOB,DAP, etc. You can choose the one which is the most convenient or cost effective for you.
3.After service and warranty?
We provide 2 year warranty, if you have any problems in the use of products, please contact to us.
