Conductivity 21% 30% 40% IACS CCS Copper Clad Steel Stranded Wire for Earthing Wire or Grounding Wire
CCS wire yields a composite conductivity of 21%, 30% and 40% IACS, and two status of Annealed (A) and Hard drawn (H). We can also supply products with various conductivity and tensile strength upon the requirement of customers. Furthermore, the wire can be processed to be silver plated or tinned CCS wire.
Manufacture standard: ASTM B 869-96, ASTM B 452-93
Physical property of CCS Wire
Specification | Copper in volume(%) | Copper in mass(%) | Density (g/cm³) | Max DC resistivity (Ω.mm²/m 20℃) | Min tensile Strength (MPa) | |
(A) | (H) | |||||
21%IACS | 13.6 | 15.2 | 7.99 | 0.08210 | 400 | 825 |
30%IACS | 21.3 | 23.6 | 8.02 | 0.05747 | 380 | 760 |
40%IACS | 32.6 | 35.6 | 8.15 | 0.04310 | 350 | 700 |
Copper | 100 | 100 | 8.89 | 0.017241 | 250 | 400 |
Characteristics of CCS wire
Nominal Diameter (mm) | Mass per unit length(kg/km) | DC resistance per unit length (Ω/km) 20℃ | Min breaking load (N) | |||||||||
(A) | (B) | |||||||||||
21% IACS | 30% IACS | 40% IACS | 21% IACS | 30% IACS | 40% IACS | 21% IACS | 30% IACS | 40% IACS | 21% IACS | 30% IACS | 40% IACS | |
2.00 | 25.03 | 25.18 | 25.59 | 22.9 | 18.3 | 13.73 | 1256 | 1193 | 1099 | 2591 | 2386 | 2198 |
1.81 | 20.50 | 20.63 | 20.96 | 27.9 | 22.4 | 16.76 | 1028 | 977 | 900 | 2122 | 1955 | 1800 |
1.63 | 16.62 | 16.73 | 17.00 | 34.4 | 27.6 | 20.66 | 834 | 793 | 730 | 1720 | 1585 | 1460 |
1.50 | 14.08 | 14.17 | 14.39 | 40.6 | 32.5 | 24.41 | 706 | 671 | 618 | 1457 | 1342 | 1232 |
1.20 | 9.01 | 9.07 | 9.21 | 63.5 | 50.9 | 38.14 | 452 | 426 | 396 | 932 | 859 | 791 |
1.02 | 6.51 | 6.55 | 6.66 | 87.9 | 70.4 | 52.77 | 326 | 310 | 286 | 674 | 621 | 572 |
0.90 | 5.07 | 5.10 | 5.18 | 113 | 90.4 | 67.78 | 254 | 242 | 248 | 525 | 483 | 445 |
0.81 | 4.10 | 4.13 | 4.20 | 139 | 112 | 83.68 | 206 | 196 | 180 | 425 | 391 | 361 |
0.75 | 3.52 | 3.54 | 3.60 | 163 | 130 | 97.61 | 176 | 168 | 155 | 364 | 336 | 309 |
0.63 | 2.48 | 2.50 | 2.54 | 231 | 185 | 138.3 | 124 | 118 | 109 | 257 | 237 | 218 |
0.50 | 1.56 | 1.57 | 1.60 | 366 | 293 | 219.6 | 78 | 75 | 69 | 162 | 149 | 137 |
0.40 | 1.00 | 1.00 | 1.02 | 572 | 458 | 343.2 | 50 | 48 | 44 | 104 | 95 | 88 |
0.30 | 0.56 | 0.57 | 0.58 | 1017 | 814 | 610.1 | 28 | 27 | 25 | 58 | 54 | 49 |
0.25 | 0.39 | 0.39 | 0.40 | 1464 | 1173 | 878.5 | 19 | 19 | 17 | 40 | 37 | 34 |
0.20 | 0.25 | 0.25 | 0.26 | 2288 | 1830 | 1372.6 | 12 | 12 | 11 | 26 | 24 | 22 |
0.18 | 0.20 | 0.20 | 0.21 | 2824 | 2260 | 1694.6 | 10 | 10 | 9 | 21 | 19 | 18 |
0.17 | 0.18 | 0.18 | 0.18 | 3166 | 2533 | 1899.8 | 9 | 9 | 8 | 19 | 17 | 16 |
0.16 | 0.16 | 0.16 | 0.16 | 3574 | 2860 | 2144.7 | 8 | 8 | 7 | 17 | 15 | 14 |
0.10 | 0.06 | 0.06 | 0.06 | 9150 | 7321 | 5490.5 | 3 | 3 | 3 | 6 | 6 | 5 |
Note: The breaking load of CCS wire shown above is only based on low carbon steel core.
CCS application
Inner conductor of CATV drop wire
Inner conductor of telephone drop wire
Conductor of computer LAN cable, field wire
Shield wire for Electric cable
Ground wire
Connectors for various electronic components
Trolly wire of power and signal cables
Trolly wire of electrical vehicle
1. More pictures of the production

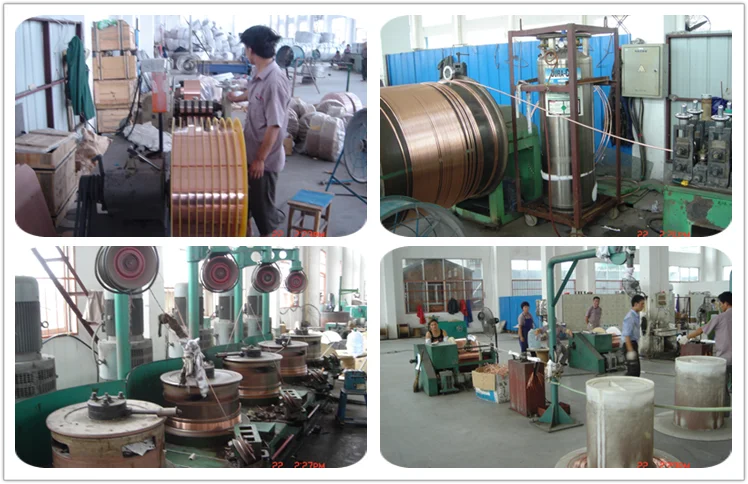

2 .Production workshop
