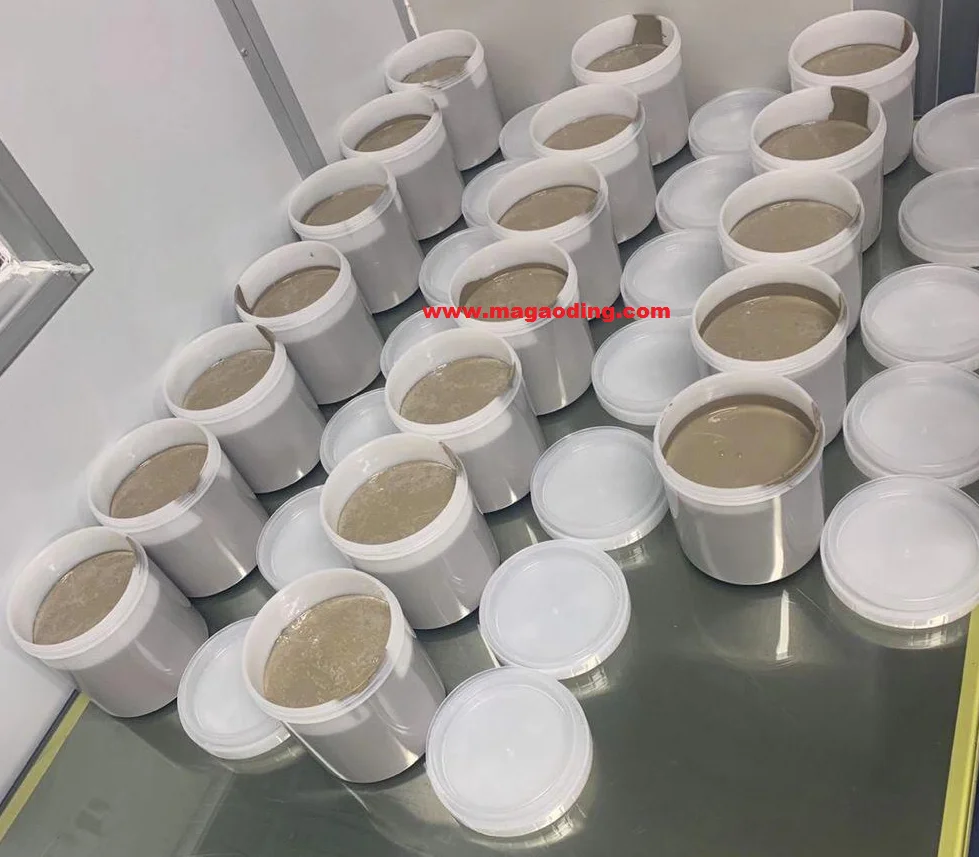

Touch panel silver conductive paste

Product Overview

Description

MAGAODING GROUP has developed advanced conductive silver paste products to offer the solutions for the printed electronics market. our conductive silver pastes provide low resistance with thin film thickness based upon our core technologies, dispersing technology, printing technology and curing technology along with new development of high conductive materials.

SANDOZ silver ink series can offer variety of ways to print conductive paste for variety of applications flat screen, rotary screen, Display Touch screen etc...

Our conductive silver pastes provide low resistance with thin film thickness based upon our core technologies, dispersing technology, printing technology and curing technology along with new development of high conductive materials.

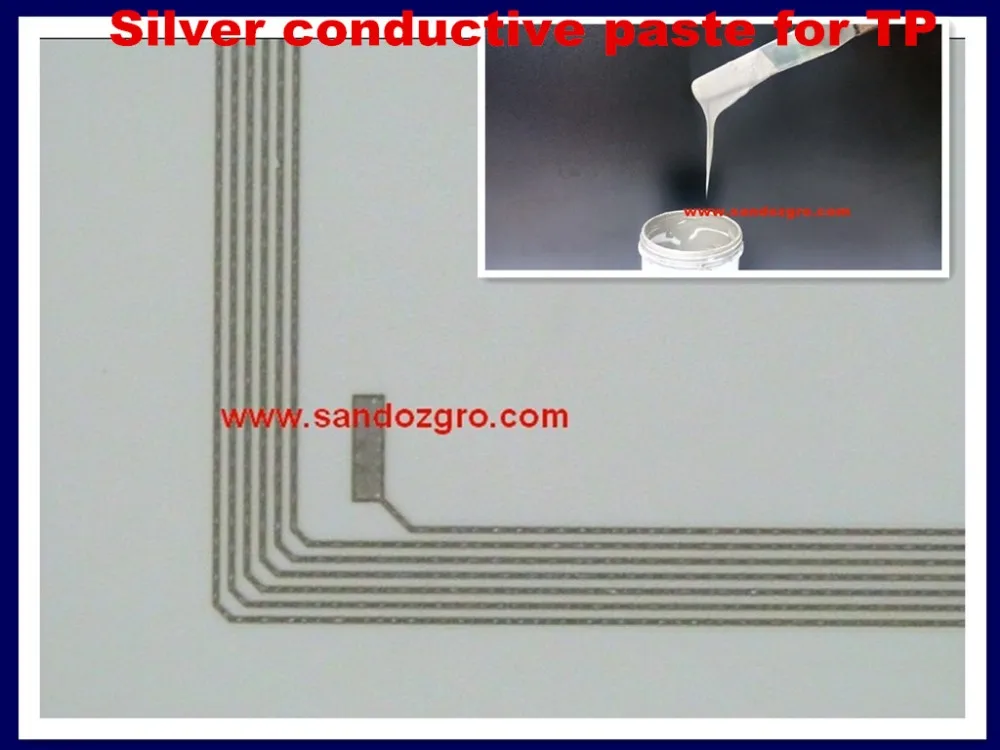

• Screen printing method has been used widely to produce electrode and electrical line of LED panel, touch panel, solar cell, etc. as one of economical and productive printing method. Silver paste for fine patterning of printed line width and high conductivity is developed to meet the requirement of high functionality and mìniaturization of device

Product Application

• TSP(touch screen panel)


• NFC(near field communication)


• FPCB(flexible printed circuits board)

Performance	Remark
Line width	60 - 70 µm
Resistivity	0.7 - 2.5 x 10-4 Ω.cm	Specific resistance
Viscosity	100,000 ~ 300,000 cps	Spinde 51, 0.4RPM
Adhesion	0	Cross - cutting test(ISO2409)
Hardness	above 3H	Pencil, 1Kg



Product name	Silver Paste-SAN-TP306	Silver Paste-SAN-307
Adhesion mechanism	Containning PbO Glass Powder	Not ContainningPbO Glass Powder
Solid contents(%)	88±2	88±2
Viscosity(cps) Brookfield-Ⅱ+(spindle No.CPE51) @25℃,0.4rpm	200,000~400,000 cps	200,000~400,000 cps
Curing temperature(℃)	400~700℃	450~700℃
Resistivity(Ω.cm)	under 6 X 10-06	under 6 X 10-06
Adhesion (ASTM))	above 5B	above 5B
Substrate	Glass, Ceramic substrate
Printing method	Screen printing(Line Resolution : above 70um)
