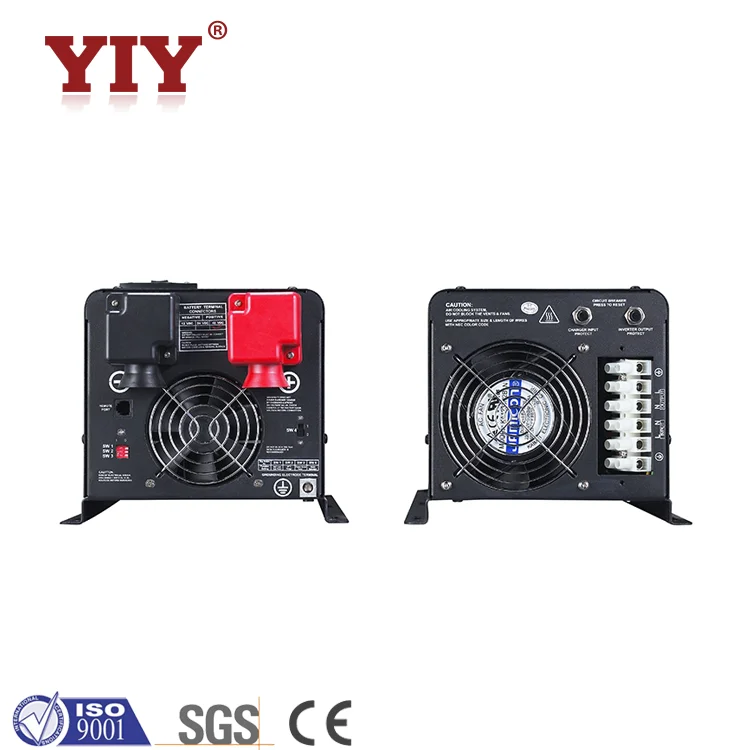

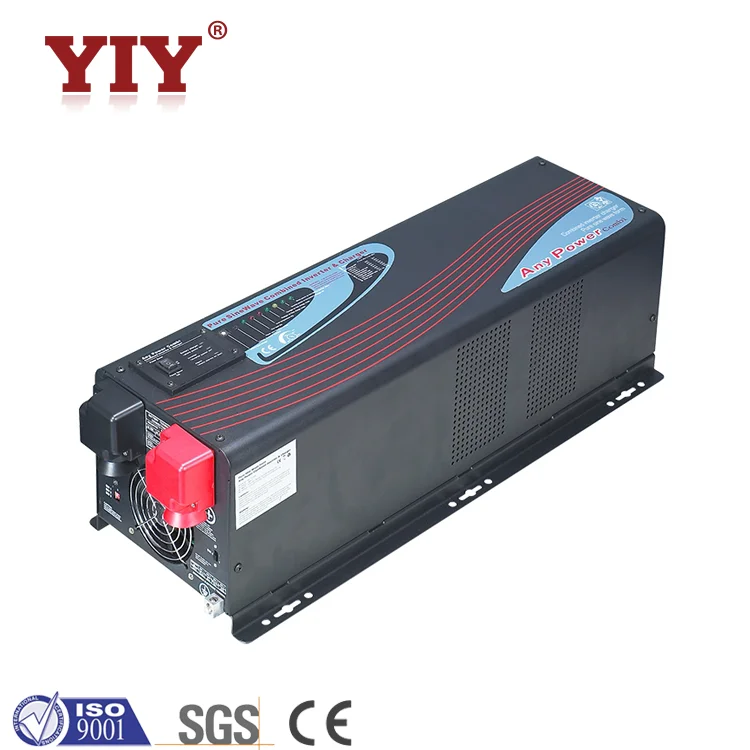

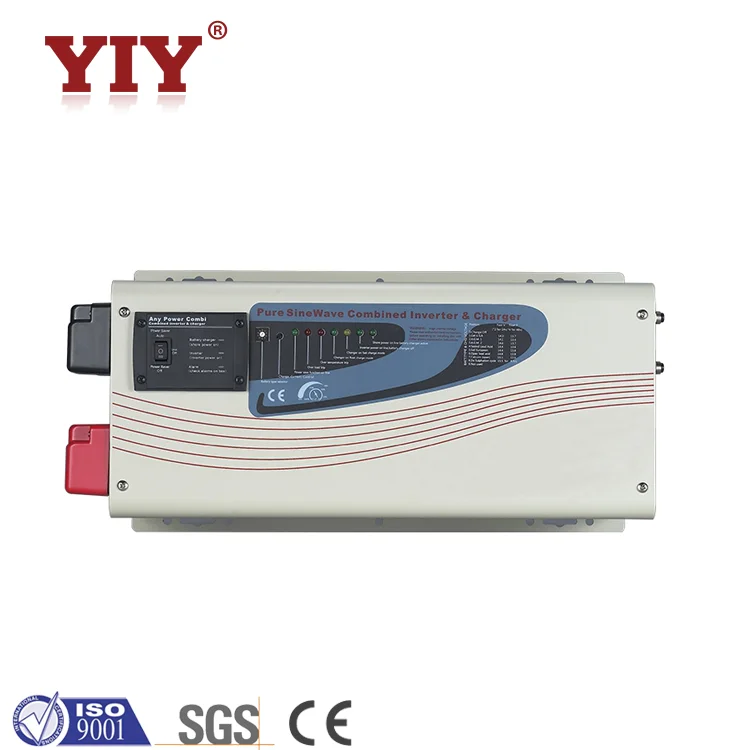

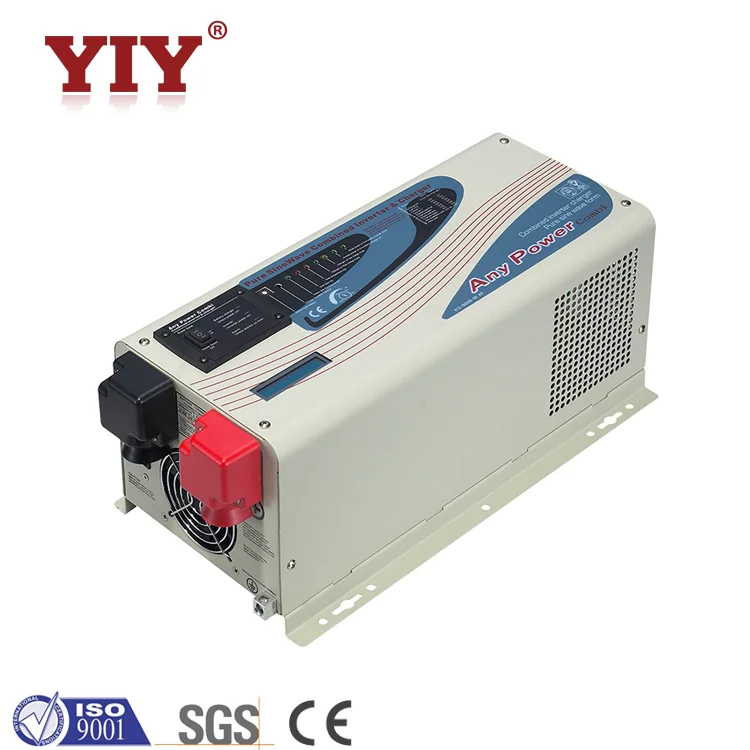

Single phase home use pure sine wave power inverter 12V to 220V with battery charger and solar charger controller 2000W with AVR
Single phase home use pure sine wave power inverter 12V to 220V with battery charger and solar charger controller 2000W with AVR
Single phase home use pure sine wave power inverter 12V to 220V with battery charger and solar charger controller 2000W with AVR
Single phase home use pure sine wave power inverter 12V to 220V with battery charger and solar charger controller 2000W with AVR
Single phase home use pure sine wave power inverter 12V to 220V with battery charger and solar charger controller 2000W with AVR
Single phase home use pure sine wave power inverter 12V to 220V with battery charger and solar charger controller 2000W with AVR
Single phase home use pure sine wave power inverter 12V to 220V with battery charger and solar charger controller 2000W with AVR

Single phase home use pure sine wave power inverter 12V to 220V with battery charger and solar charger controller 2000W with AVR

Share on (60428001762):


Price:$230.00 - $300.00

Quantity:


Product Overview

Description





We are Inverter industry leader !









Product Dominance















APS  Series Pure Sine Wave Inverter & Charger & AVR


APS  charger is a combination of APC inverter and automatic voltage regulator. While bypassing the input AC to
power the loads, the APS pure sine wave inverter also stabilizes the input AC voltage within the range of 230V
±10%. Connected with batteries, the APS inverter will run as a UPS with max. transfer time of 10ms.



  Feature of APS  Series Inverter & Charger &  Automatic Voltage Regulator



  1. High overload ability of our APS charger is up to 300% rated power(20 sec.), and low voltage trip

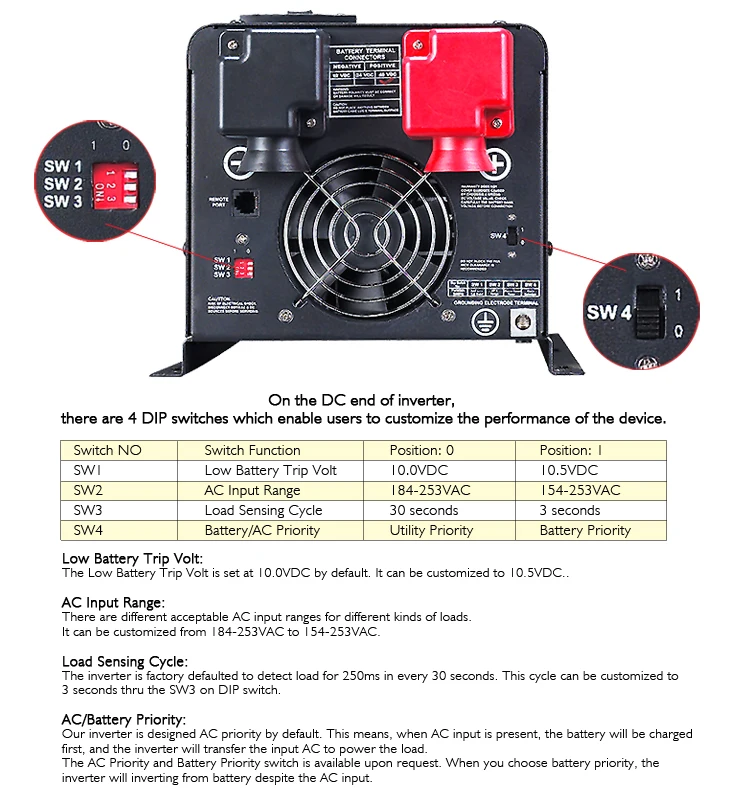

    9.5V/10V or 10V/10.5V is selectable.

  2. APS pure sine wave inverter adopts low quiescent current, and power saver mode to reduce power
    consumption to 10W(3s sensing cycle)/3W(30s sensing cycle) *. It can extract max. power from various batteries with different protections.

  3. The automatic voltage regulator supplies wide stabilizing AC range, and bucking/boosting voltage in
    10ms.

  4. Our APS pure sine wave inverter can offer 3-step intelligent battery charging, and equipped with 8 preset
    battery type selector for totally flat batteries. Its powerful charge rate up to 90Amp**. In addition,
    PFC(power factor correction) is adopted for charger, which has less power consumption than
    conventional units

  5. 10ms typical transfer time between battery and AC, which guarantees power continuity of APS pure sine
    wave inverter. Its input AC voltage is selectable (184-253V or 154-253V) for different kinds of loads.

  6. The APS charger has 15s delay before transfer when AC resumes, and the function of overload
    protection when it equips with generator. Also, it allows start up and through power with depleted
    batteries.

  7. USB communication port, LCD status display, battery/AC priority switch are available for our APS pure
    sine wave inverter, it also has 17 alarms/warnings for easier operation and trouble-shooting, and ability
    to switch the unit on/off. In addition, select/deselect power saver mode can be used too.




  • Note:*For 1KW one. **For some models.












Product Parameter






































































































































































































































































































































































 ModelAPS1000WAPS1500WAPS2000WAPS3000WAPS4000WAPS5000WAPS6000W
Inverter OutputContinuous Output Power1000W1500W2000W3000W4000W5000W6000W
Surge Rating(20s)3000W4500W6000W9000W12000W15000W18000W
Output WaveformPure Sine wave/Same as input(Bypass mode)
Nominal Efficiency>88%(Peak)
Line Mode Efficiency>95%
Power Factor0.9-1.0
Nominal Output Voltage rms100-110-120Vac / 220-230-240Vac
Output Voltage Regulation±10% RMS
Output Frequency50Hz ± 0.3Hz/60Hz ± 0.3Hz
Short Circuit ProtectionYes( 10s after fault )
Typical transfer Time10ms(Max)
THD< 10%
DC InputNominal Input Voltage12.0Vdc
( *2 for 24Vdc, *4 for 48Vdc)
Minimum Start Voltage10.0Vdc
Low Battery Alarm10.5Vdc / 11.0Vdc
Low Battery Trip10.0Vdc / 10.5Vdc
High Voltage Alarm16.0Vdc
Low Battery voltage recover15.5Vdc
Idle Consumption-Search Mode< 25 W when Power Saver On
ChargerOutput VoltageDepends on battery type
Charger Breaker Rating10A15A20A20A20A30A30A
Max Charge Rate35A / 70A
Battery Initial Voltage for Start Up10-15.7V for 12V( *2 for 24V, *4 for 48V)
Over Charge Protection Shutdown15.7V for 12V (*2 for 24V, *4 for 48V)
Charger curve(4 stage constant current)
4 step digital controlled progressive charge		Battery types ( *2 for 24Vdc, *4 for 48Vdc)
Remote Control Yes. Optional
Bypass & ProtectionInput Voltage WaveformSine wave (Grid or Generator)
Nominal Voltage110Vac120Vac220Vac230Vac240Vac
Max Input AC Voltage150VAC270VAC
Nominal Input Frequency50Hz or 60Hz (Auto detect)
Low Freq Trip47±0.3Hz for 50Hz, 57±0.3Hz for 60Hz
High Freq Trip55±0.3Hz for 50Hz, 65±0.3Hz for 60Hz
Overload protection(SMPS load)Circuit breaker
Output Short circuit protectionCircuit breaker
Bypass breaker rating10A15A20A30A30A40A40A
Transfer switch rating30amp for UL & TUV40amp for UL
Bypass without battery connectedYes
Max bypass current30amp40amp
Bypass over load current35amp: Alarm45amp: Alarm
AVR FunctionInput AC Voltage Range90-140V±4%154-253V±4%
Stabilized Output Voltage rms120VAC±10% rms230VAC±10% rms
Nominal Voltage110Vac120Vac220Vac230Vac240Vac
(A) Line Low loss N/W (On Battery)84/7292/78168/143176/150183/156
(B) Line Low comeback N/W (On Boost)89/7797/83178/153186/160193/166
(C) Line 2nd boost threshold (On Boost)**********
(D) Line 2nd boost comeback (On Boost)**********
(E) Line 1st boost threshold (On Boost)99108198207216
(F) Line 1st boost comeback (On Normal)103112205215225
(G) Line buck comeback (On Normal)118128235246256
(H) Line buck threshold (On Buck)121132242253264
(I) Line high comeback (On Buck)127139253266278
(J) Line high loss (On Battery)132144263276288
Mechanical SpecificationsMountingWall mount
Inverter Dimensions(L*W*H)382*218*179mm442*218*179mm598*218*179mm
Inverter Weight18KG18KG20KG24KG35KG45KG45KG
Shipping Dimensions(L*W*H)520*315*300mm580*315*300mm740*315*300mm
Shipping Weight20KG20KG22KG26KG37KG47KG47KG
DisplayStatus LEDs / Status LEDs+LCD
Standard Warranty1 Year







Product Description

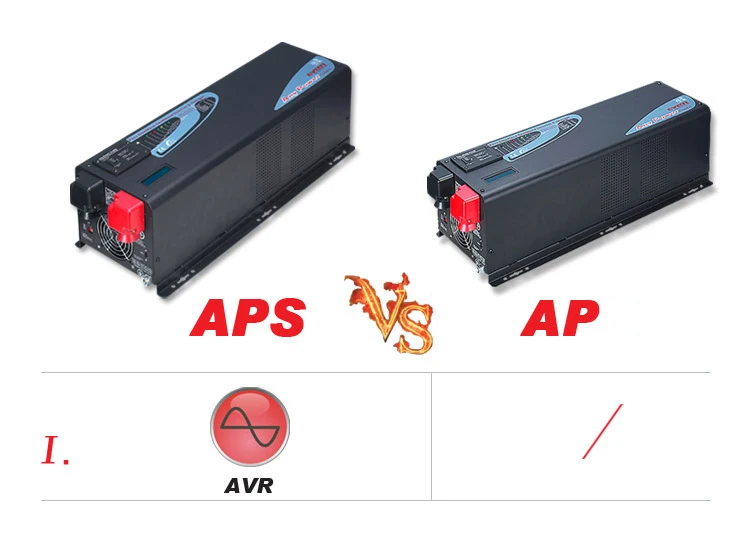

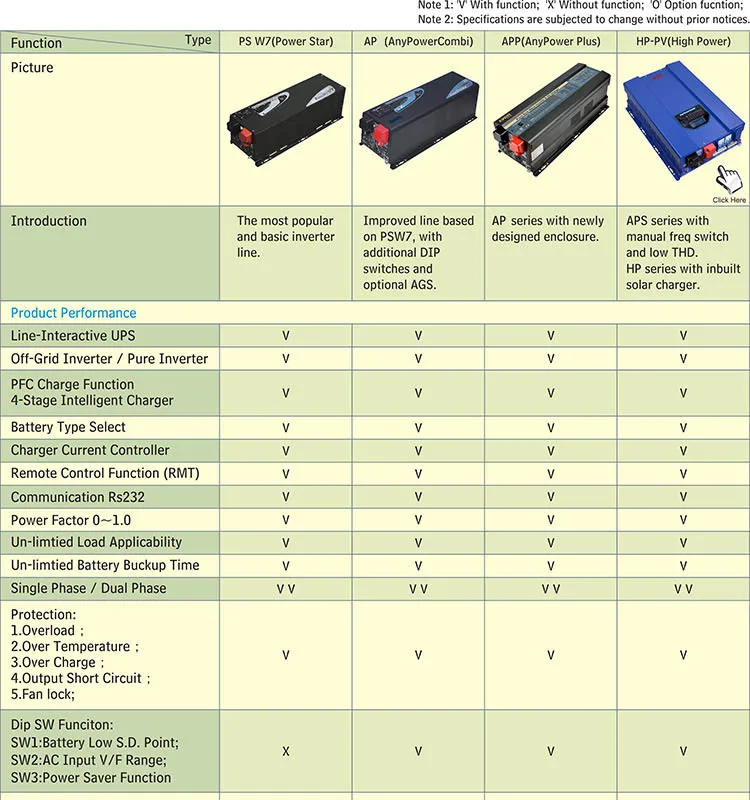

Function Contrast

















Company Information










Zhejiang Yiyuan Electric Co., Ltd.





|


|--- Headquarters: add:WenZhou produce voltage stabilizer


|


|--- Branch:add:ShenZhen produce Inverter


|


|--- Found in 2008, Sales:12 worker: 150 engineer : 10


|
|--- 10% of profit use for advancement and innovation
|
|--- Have CE, TUV, FCC, PCT and ISO9001 certificates


|
|--- Market:Russia, Southeast Asia, Africa, Mid-east regions, North America












FAQ









Q 1. what's the payment term?


A. We accept TT,30% deposit and 70% balance agaisnt copy of BL




Q 2. how's the delivery time ?


A. usually it will take about 25 days for production




Q 3. tell me the standard of package?


A. For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.




Q 4. what kind of material of transformer?


A. we have two types, one 100% copper and the other is copper with aluminum.It depends on your requirment. In fact,those two have no difference if normal work well. Only except the longlife. Copper is better and also higer price.




Q 5.Could you offer Form A or C/O ?


A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.




Q 6.Would you accept to use our logo ?


A.If you have good quantity,it absolute no problem to do OEM.




Q 7.We want to know month capacity.


A. It depends on which model.For example for relay type small capacity , month capacity can reach near 20000pcs   and big capacity near 3000pcs.




Q 8.Where is your market?


A. Our products are popular in russia, indonisia, Philippines,italy, america, pakistan and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.

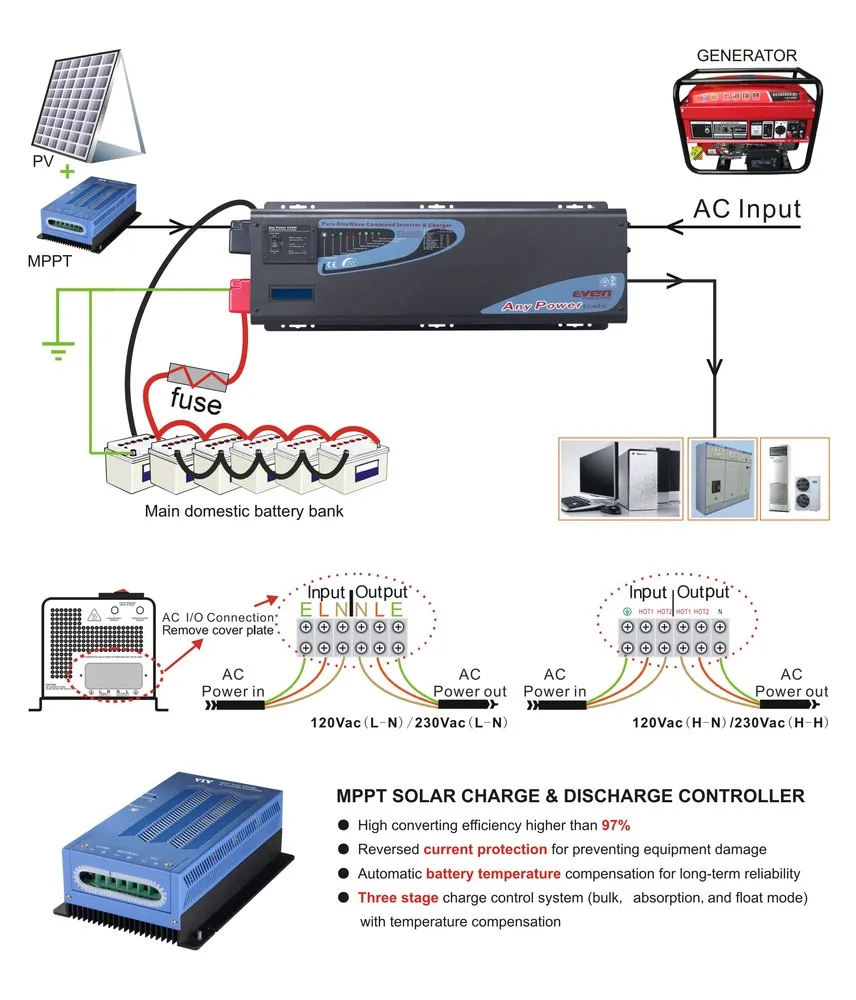

Q 9.Does the inverter connect with solar system ?


A.Yes.Because of the unique feature which combine invert,charge and AC auto-transfer switch into one complete system,made inverter not only connect with solar system,also could be used in& officer equipment,household items,power tools ans etc..




Q10. what kind of certificate you have ?


A. Our company already achieve ISO, CCC, and for products, we have CE, SONCAP, GOST, UL(pending) .
