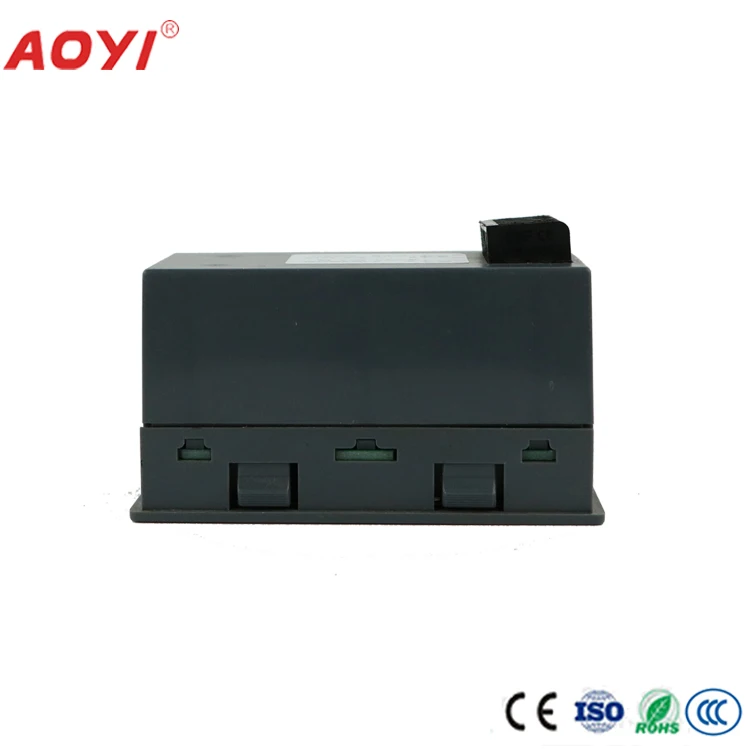

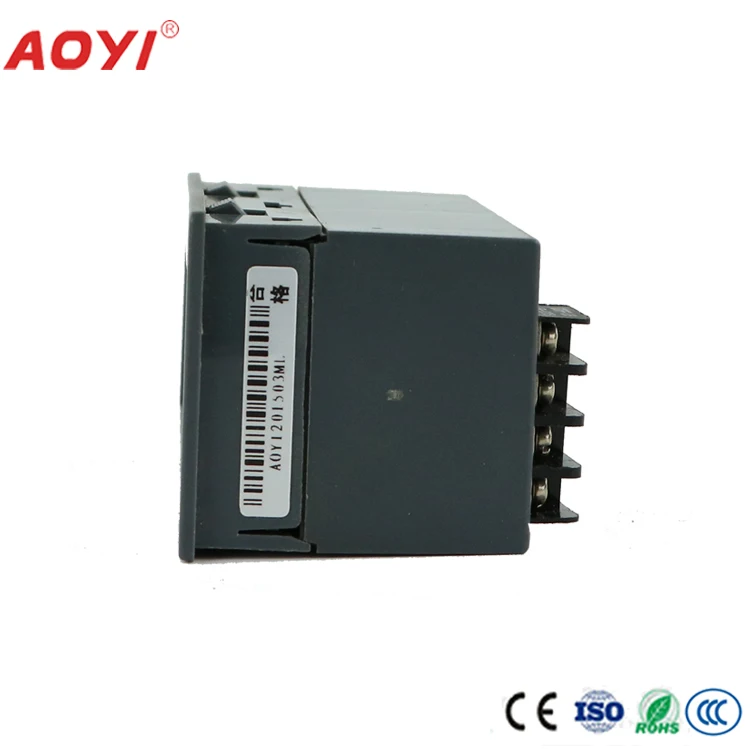

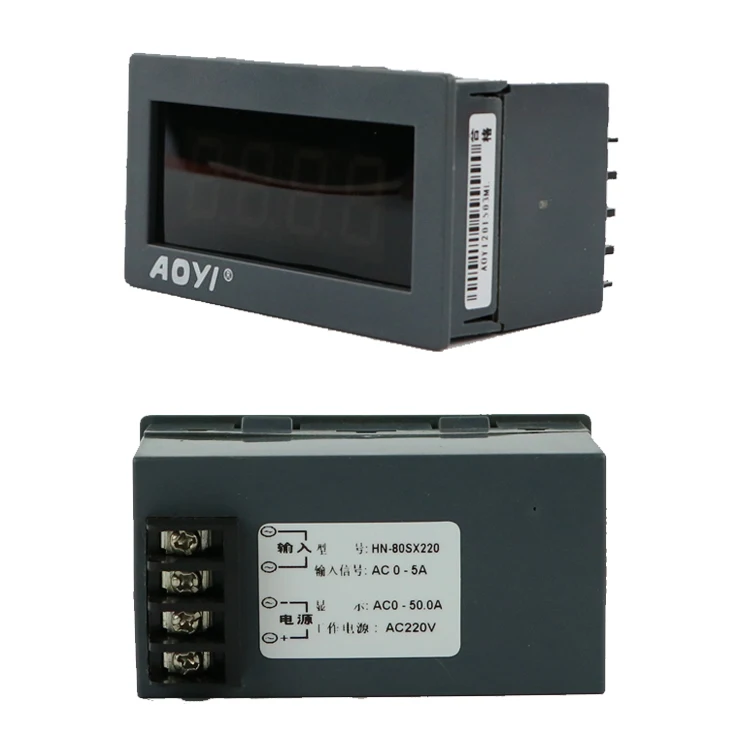

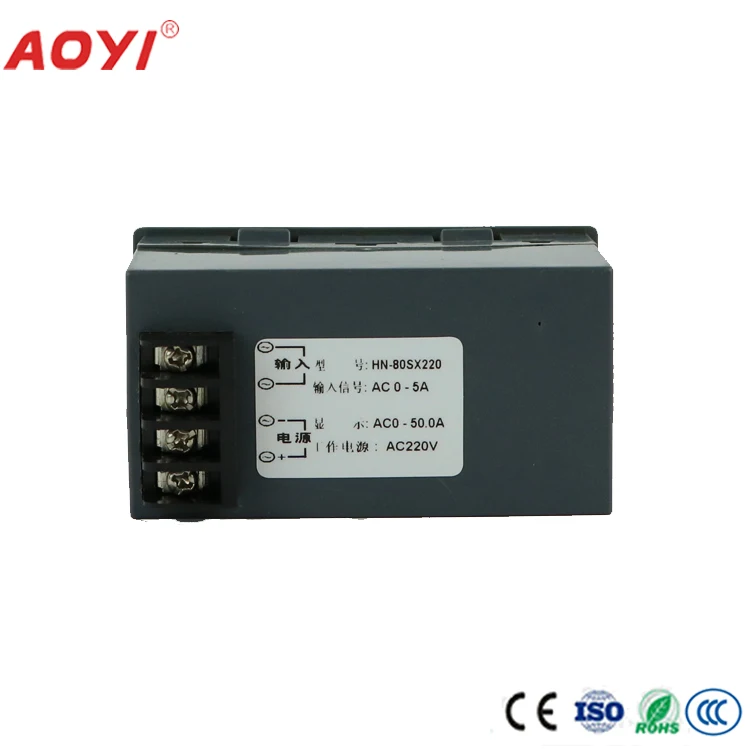

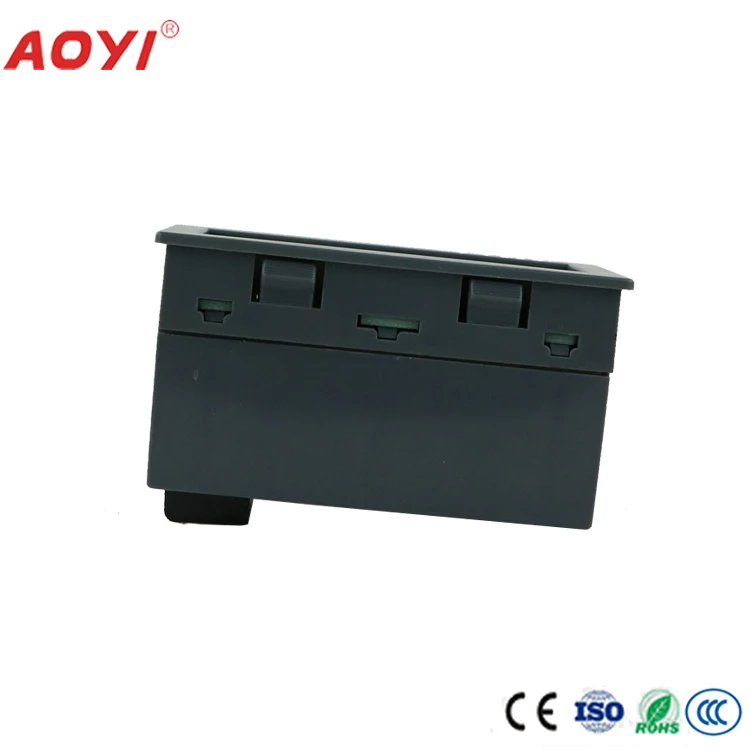

AOYI digital panel meter rpm voltmeter current meter digital display
- Category: >>>
- Supplier: Shanghai Aoyi Electric Co. Ltd.
Share on (60428404342):
Product Overview
Description
Product Description
SPECIFICATIONS
Series Name: HN-80SX-Mpa Meter
Display: signal row, 3.5 LED digital tube display (0.56inch)
Measure Precision: ±0.5% ±1Word
Working power supply: AC12V/24V or DC 12V/24V
Power Loss: <3.5W
Environment temperature: -10°C~+50°C
Relative Humidity: <85%
| Type As | Model (not label name) | Description |
| DC Ammeter | HN-80SX-DCA | ≤DC5A direct input , >5A need extra shunt connection |
| AC Ammeter | HN-80SX-ACA | ≤ AC5A direct input , > AC5A need extra current transformer 5A connection |
| DC Voltmeter | HN-80SX-DCV | ≤DC600V direct input, >DC600V need extra resistor divider connection |
| AC Voltmeter | HN-80SX-ACV | ≤AC600V direct input, >AC600V need extra voltage negative sensor connection |
| RPM Meter | HN-80SX-RPM | input signal DC0-10V, DC0-20mA, DC4-20mA ect, max display value 1999 |
| Hz Meter | HN-80SX-Hz | input signal the same as above |
| M/min Meter | HN-80SX-M/min | input signal the same as above |
| Mpa Meter | HN-80SX-Mpa | input signal the same as above |
product recommendati
Company Information
Certifications

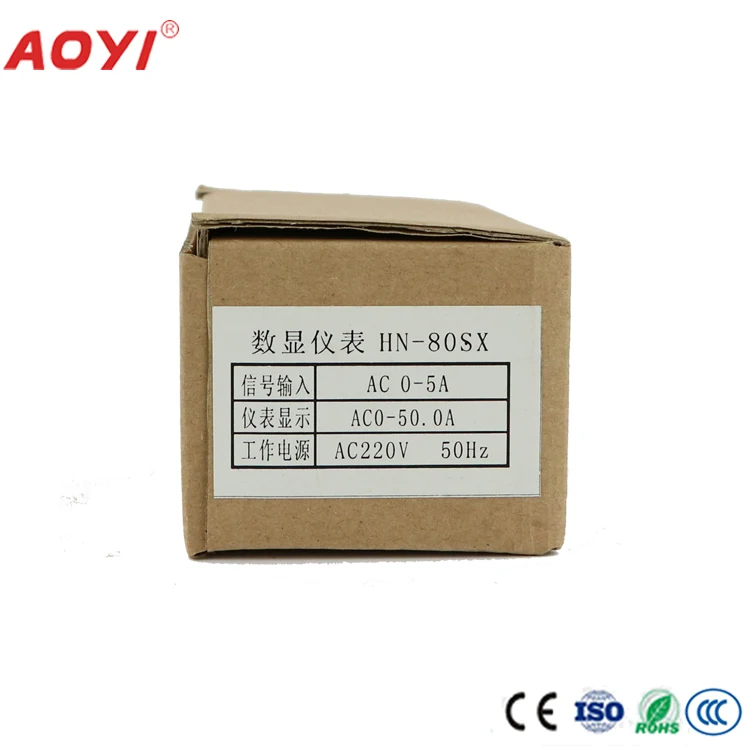

Packaging & Shipping
FAQ
1. Q: Can you provide OEM service?
A: Yes, we can.
2. Q: What's the MOQ?
A: For testing purpose, 1pc is ok.
3. Q: Can you provide trade assurance service?
A: Yes, we are member of the Alibaba trade assurance scheme.
4. Q: What's the lead time?
A: General lead time is 15 days after payment.
5. Q: What's your waranty?
A: We provide 12 months warranty against manufacturing defective.
