Hot sale! Canada Natural gas generator 250kw Generator
- Category: >>>
- Supplier: Camda New Energy Equipment Co. Ltd.
Share on (60428619279):
Product Overview
Description
Camda Natural Gas Generator 250kw for sale/Natural gas generator/Gas engine/LPG gas generator/ Power plant/Gas Cogeneration with CE&ISO certificates
Specifications of 250kw natural gas generator/biogas generator/LPG power generator/Landfill gas generator:
Gas genset data | |||
Genset model | KDGH250-G | ||
Prime Power/Continuous power (kW/KVA) | 250/312.5 | ||
Connection type | 3 Phases 4 Lines | ||
Power factor cosfi | 0.8 lagging | ||
Frequency (Hz) | 50 | ||
Rated speed (RPM) | 1500 | ||
Open type Overall Dimension (mm) | 3500x1250x2020 | ||
Soundproof type Dimension (mm) | 20 feet container | ||
Net weight without canopy(kg) | 3250 | ||
Gas Engine Data | |||
Model | HGKT19 | ||
Brand | CAMDA | ||
Type | 4 stroke, water-cooling, wet cylinder liner, electronic-control ignition system, pre-mixed perfect mixed burning | ||
Cylinders& Arrangement | 6L | ||
Bore X Stroke(mm) | 159X159 | ||
Displacement(L) | 18.9 | ||
Compression ratio | 11:1 | ||
Aspiration | Intercooled and Turbocharged | ||
Cooling Method | Radiator fan water cooling | ||
Governor type(speed regulating type) | Electronic governing | ||
Starting method | Electric, 24 V motor | ||
The lowest gas consumption(m3/kw.h) | 0.3 for natural gas/0.6 for biogas | ||
Idling speed(r/min) | 700 | ||
Oil recommended | SAE 15W-40 CF4 or above | ||
Oil consumption | ≤1.0g/kW.h | ||
Alternator Data | |||
Brand | France Leroy Somer | ||
Model | LSA46.2VL12/252KW | ||
Rated power | 252kW / 3 phase | ||
Rated Voltage (V): | 380~480 (±0.5%)(AC) | ||
Type | 3 phase/4 wire, brushless, automatic voltage regulator, drip proof, protected type. | ||
Frequency (Hz) | 50 | ||
Efficiency: | 94.4% | ||
Voltage regulation | ± 0.5 %(adjustable) | ||
Insulation class: | Class H | ||
Protection class: | IP 23 | ||
cooling method: | wind-cooling, self-heat-rejection | ||
Voltage regulating mode | Automatic voltage regulator | ||
Compliant with international standards: | IEC 60034-1, NEMA MG1.22, ISO 8528/3, CSA, UL 1446, UL 1004B on request, marine regulations, etc. | ||
Standard Scope of Supply:
Accessories list 1. Maintenance Operation manual 2. Quality certificate, Gen-sets ex-factory testing report | |||
Genset Model | Engine Model | Alternator Model | Controller | Prime Power (kVA/kW) |
KDGH24-G | HG4B | LSA42.3VS3 | DSE7320 | 30/24 |
KDGH30-G | HG4B | LSA43.2S4 | DSE7320 | 37/30 |
KDGH50-G | HG6B | LSA44.3S2 | DSE7320 | 62/50 |
KDGH80-G | HG6TB | LSA44.3S5 | DSE7320 | 100/80 |
KDGH120-G | HGN14 | LSA44.3L10 | DSE7320 | 150/120 |
KDGH160-G | HGNT14 | LSA46.2M5 | DSE7320 | 200/160 |
KDGH200-G | HGNT14 | LSA46.2L6 | DSE7320 | 250/200 |
KDGH250-G | HGKT19 | LSA46.2VL12 | DSE7320 | 312/250 |
KDGH300-G | HGKT19 | LSA47.2VS2 | DSE7320 | 375/300 |
KDGH400-G | HGKT38 | LSA47.2M7 | DSE7320 | 500/400 |
KDGH500-G | HGKT38 | LSA49.1S4 | DSE7320 | 625/500 |

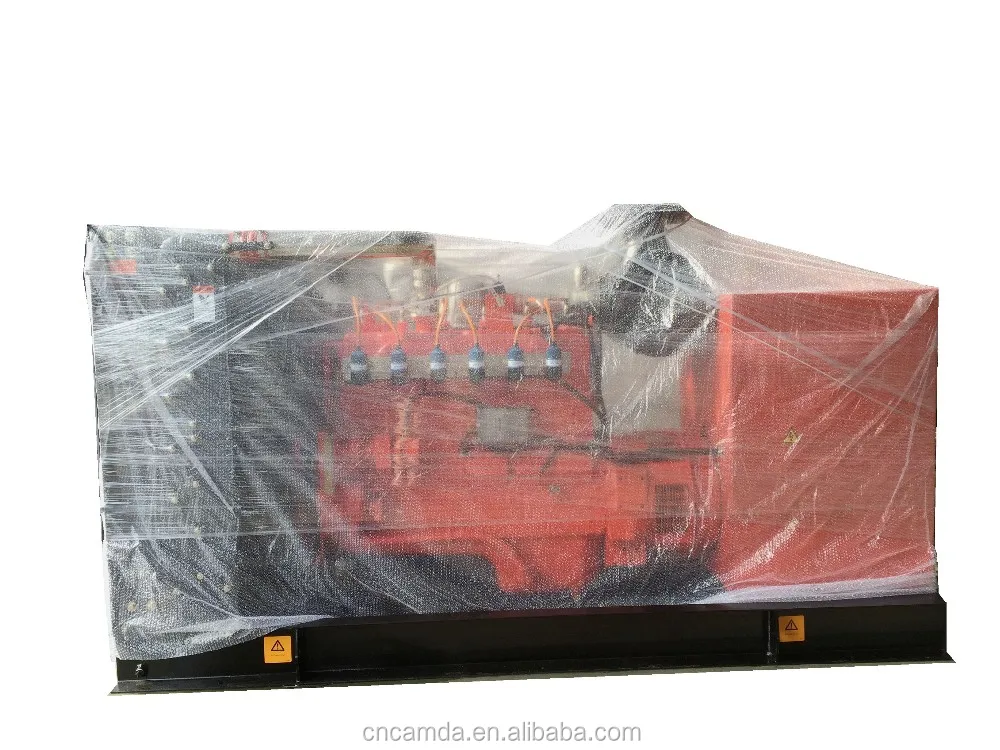

Specific photos:

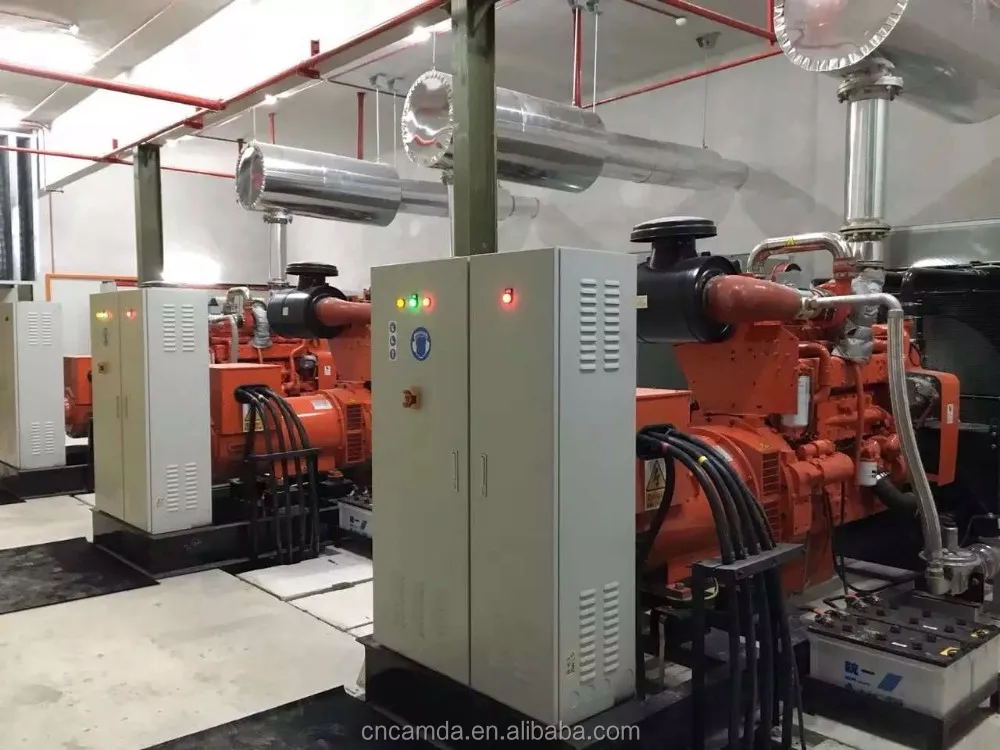

Some of our gas generators projects cases
a. 2x500kW gas generators in Nigeria, installed in October of 2012.
b. 2x500kW gas generators in Russia, installed in December of 2011.
c. 2x250kW gas generators in England, installed in May of 2011.
Genset lifetime and Warranty
LIFETIME
According to product design and end users' years experience, strictly following our operation manual and make
gen-set load under 85% of prime power, we guarantee the major overhaul terminal more than 15000 hours, and
lifetime is over 20 years.
AFTER SERVICE
12 months or 1500 running hours warranty covering all manufacturing defects (whichever comes first)since
leaving China port, our company provides free easily-damaged parts for the faults caused by the quality of products
or raw material, but exclude the damageable parts of engine due to customer's incorrect man-made operation. After expiration, our company provides spare parts with cost for maintenance forever.
