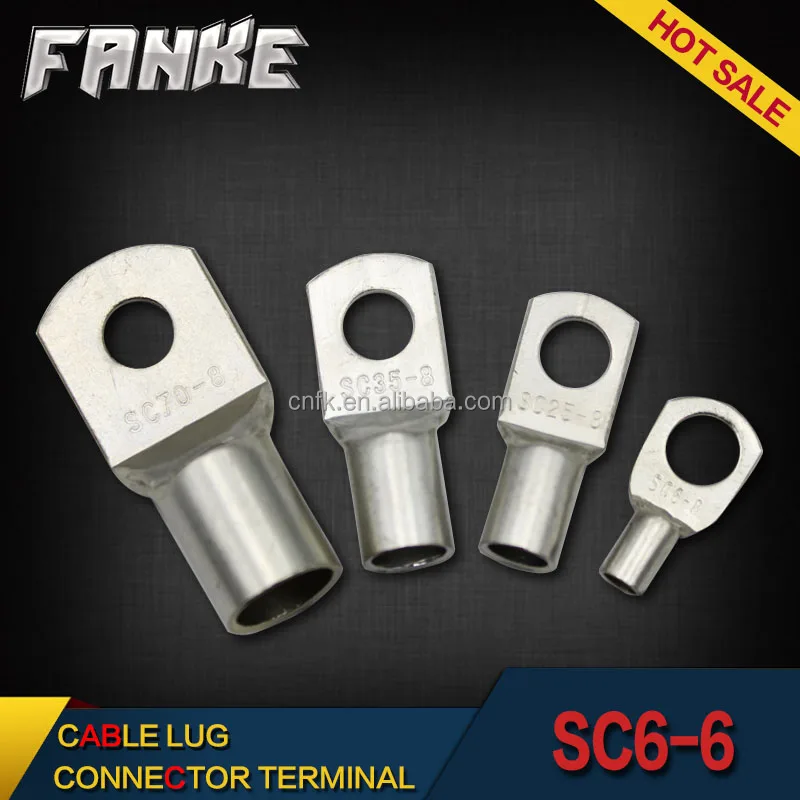

A type SC6 6 Tinned copper connector terminal sc cupper lug
- Category: >>>
- Supplier: Zhejiang Fanke Electric Co. Ltd.
Share on (60428804932):
Product Overview
Description
Banner
Product Description
(1) High quality,competitive price.
(2) Customizable some different copper connector.
(3) flexible and conductive
(4) Made by high purity copper
(5) Tin plating:Corrosion Resistance
Drawing
Please check the size of A type and B type . A type is thickness than B type.You can choose which you need.^_^ Then contact us.
| SC Tinned Cable Lug A type | |||||||
| Model | Screw Hole | Plate Width | Plate Thickness | Inner Dia. | External Dia | Threading Length | Length |
| d2Φ(mm) | (mm) | (mm) | dΦ(mm) | DΦ(mm) | L1(mm) | L(mm) | |
| SC6-6 | 6 | 9.3 | 1.1 | 4 | 5.5 | 9.2 | 24.4 |
| SC6-8 | 8.2 | 12.1 | 0.9 | 4 | 5.5 | 9.4 | 24.4 |
| SC10-6 | 6 | 9.9 | 1.7 | 5 | 6.9 | 9.7 | 25.1 |
| SC10-8 | 8.2 | 11.7 | 1.4 | 5 | 6.9 | 9.8 | 25.6 |
| SC10-10 | 10.2 | 12 | 1.4 | 5 | 7 | 9.9 | 25.6 |
| SC16-6 | 6.3 | 10.7 | 1.8 | 5.5 | 7.4 | 11.7 | 29.5 |
| SC16-8 | 8.1 | 12.6 | 1.9 | 5.5 | 8 | 13.4 | 31.5 |
| SC16-10 | 10.2 | 14.2 | 1.3 | 5.5 | 7.4 | 12 | 29.9 |
| SC25-6 | 6.1 | 14 | 2.3 | 6.9 | 9.4 | 14.7 | 34.7 |
| SC25-8 | 8.3 | 13.5 | 2.4 | 6.9 | 9.5 | 14.6 | 35.5 |
| SC25-10 | 10.1 | 14.4 | 2.3 | 6.9 | 9.5 | 14.6 | 35.5 |
| SC25-12 | 12.2 | 16.8 | 2 | 6.9 | 9.5 | 14.4 | 35.1 |
| SC35-6 | 6.2 | 15.6 | 3 | 7 | 11 | 17 | 39.8 |
| SC35-8 | 8.1 | 16.3 | 2.5 | 8.3 | 11.1 | 16.1 | 39 |
| SC35-10 | 10.2 | 16 | 2.6 | 8.3 | 11.2 | 16.2 | 39.5 |
| SC35-12 | 12.2 | 16.5 | 2.5 | 8.3 | 11.2 | 16.2 | 39.3 |
| SC50-6 | 6.1 | 18.5 | 2.8 | 9 | 13 | 19 | 46.5 |
| SC50-8 | 8.2 | 18.8 | 3 | 9.9 | 13 | 19.4 | 46.8 |
| SC50-10 | 10.2 | 18.9 | 2.8 | 10 | 13 | 19.2 | 46.5 |
| SC50-12 | 12.2 | 19.1 | 2.9 | 10 | 13 | 19.3 | 46.5 |
| SC70-8 | 8.1 | 21.6 | 3.4 | 11.3 | 14.8 | 20.3 | 52.4 |
| SC70-10 | 10.2 | 22 | 3.5 | 11.4 | 15 | 21.1 | 52.5 |
| SC70-12 | 12.2 | 22 | 3.5 | 11.2 | 15.1 | 20.5 | 52.1 |
| SC95-8 | 8.1 | 25.4 | 3.5 | 13.7 | 17.5 | 22.5 | 57 |
| SC95-10 | 10.2 | 25.3 | 3.7 | 13.7 | 17.5 | 22.5 | 57 |
| SC95-12 | 12.3 | 25.5 | 3.5 | 13.8 | 17.5 | 22.6 | 57 |
| SC120-8 | 8.3 | 27.2 | 4 | 14.7 | 19 | 21.9 | 62.6 |
| SC120-10 | 10.3 | 28 | 4.3 | 14.7 | 19.3 | 26.4 | 66.1 |
| SC120-12 | 12.3 | 28 | 4.5 | 15 | 19.5 | 27 | 66.3 |
| SC120-16 | 16.3 | 28.9 | 4.9 | 15.3 | 20.1 | 27.2 | 67.3 |
| SC150-10 | 10.2 | 29.1 | 5.2 | 15.7 | 20.4 | 27.9 | 67.8 |
| SC150-12 | 12.2 | 30.2 | 4.5 | 16.3 | 21 | 32.7 | 73 |
| SC150-16 | 16.2 | 30.2 | 4.5 | 16.3 | 21.1 | 33.1 | 73.6 |
| SC185-12 | 12.3 | 34.7 | 4.9 | 18.6 | 23.6 | 33.4 | 79.5 |
| SC185-16 | 16.3 | 34.9 | 5 | 18.8 | 23.7 | 33.6 | 79.5 |
| SC240-16 | 16.3 | 38.1 | 4.5 | 21.6 | 26.3 | 32.5 | 81 |
| SC300-16 | 16.7 | 43.7 | 5.6 | 24.4 | 30.4 | 41.2 | 100 |
