LZS Series sifting machine linear vibrating screen

Product Overview

Description

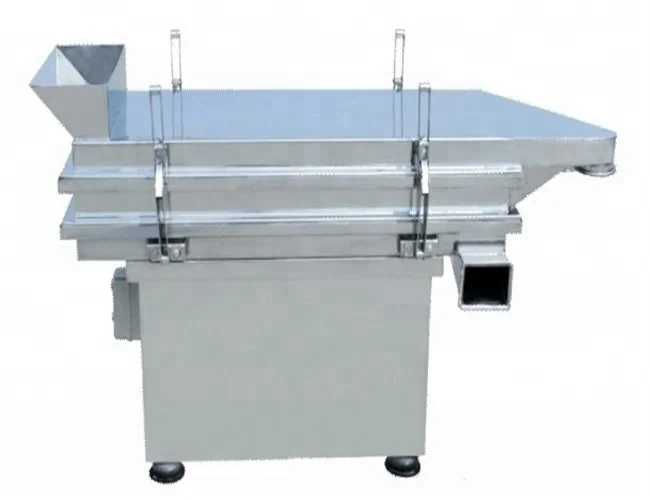

LZS Series sifting machine linear vibrating screen

Main Application:

LZS Vibrating Sifting Machine is an upgraded model of series ZS and designed with international advanced technology.It is perfectly suitable for assemble line and ideal equipment for screen granules in different sizes and guarantee the continuous discharge.

Operation Principle and Feature:

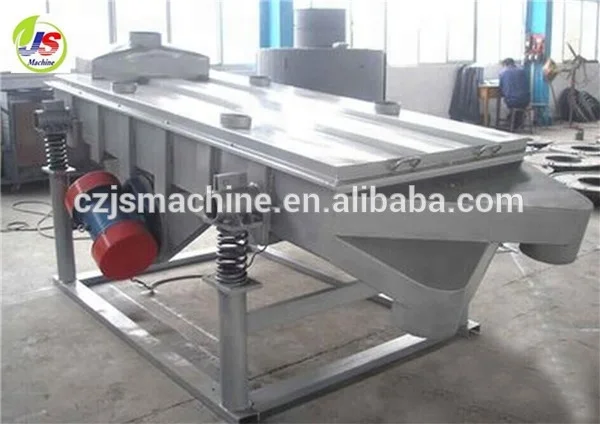

The machine consists of hopper,vibrating motor and bracket.Vibrating motor is fixed on a vibrating tray which supported by a rubbery bowl.The  vibration force is strong and even,and accepts stepless adjustment.The structure of this machine is very compact and firm with small size;other advantages are non-dust,low noise efficient ,energy saving,high mobilization and good maintenance.

Nowadays, Changzhou Jiasheng Machinery Co.,Ltd have customers both in China and abroad.Foreign customers such as Russian,East Europe,Middle East,South America,North America,East Asia,Southeast Asia, Africa,etc.

Model	LZS-350	LZS-515/515B	LZS-650
Capacity	60-1500	60-1350	180-2100
Number of Mesh	12-200	12-200	12-200
Power	0.4	0.75	1.5
Vibrating frequency	1450	1450	1450
Overall Size(L×W×H)	600×500×900	850×600×1150	1000×750×1300
Weight	100	150	200
