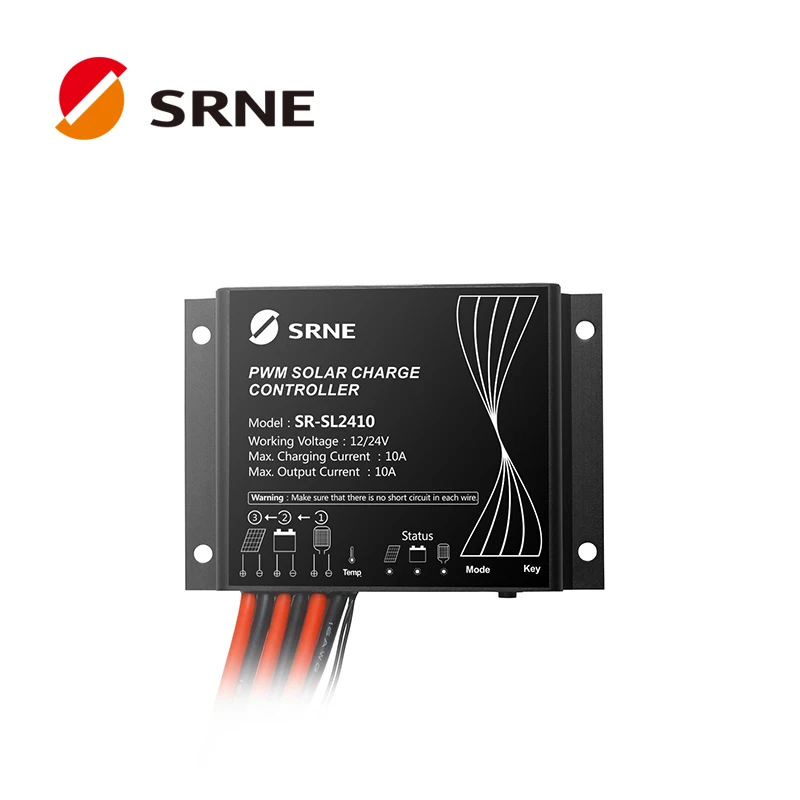

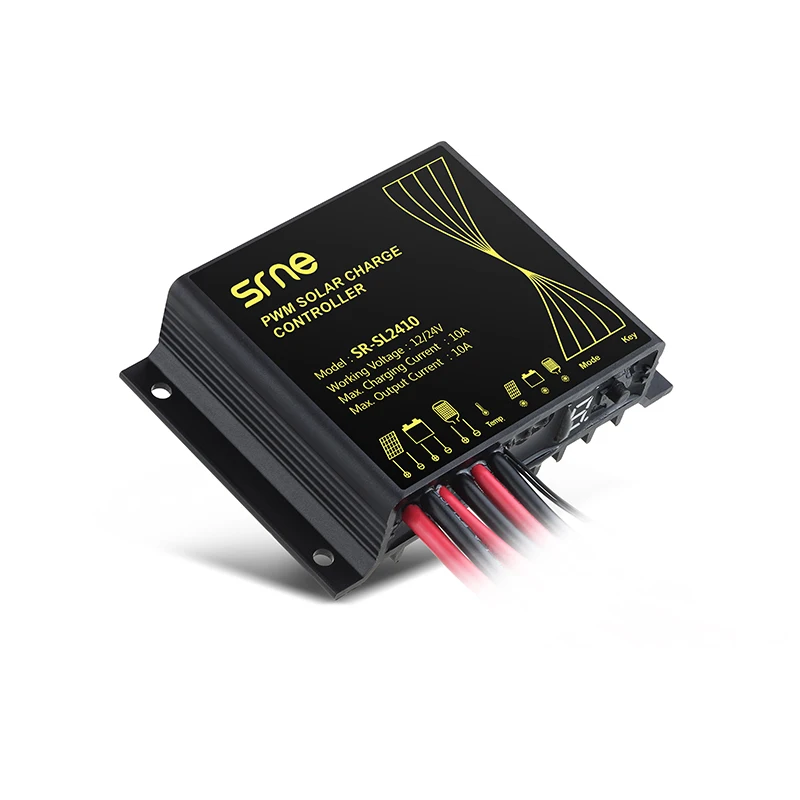

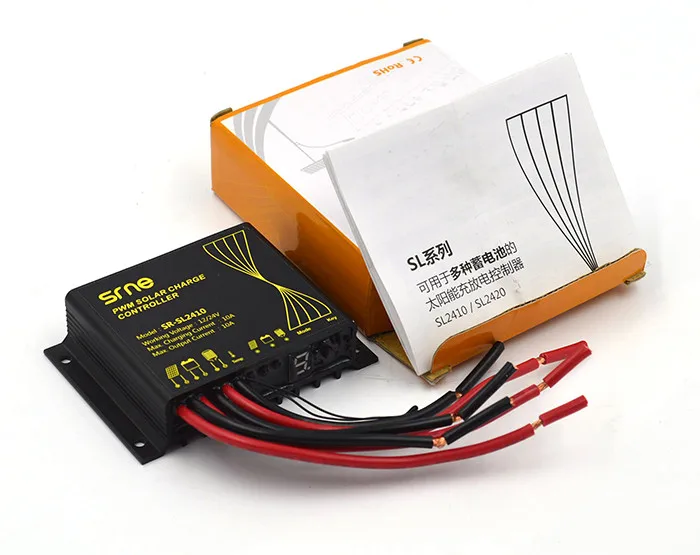

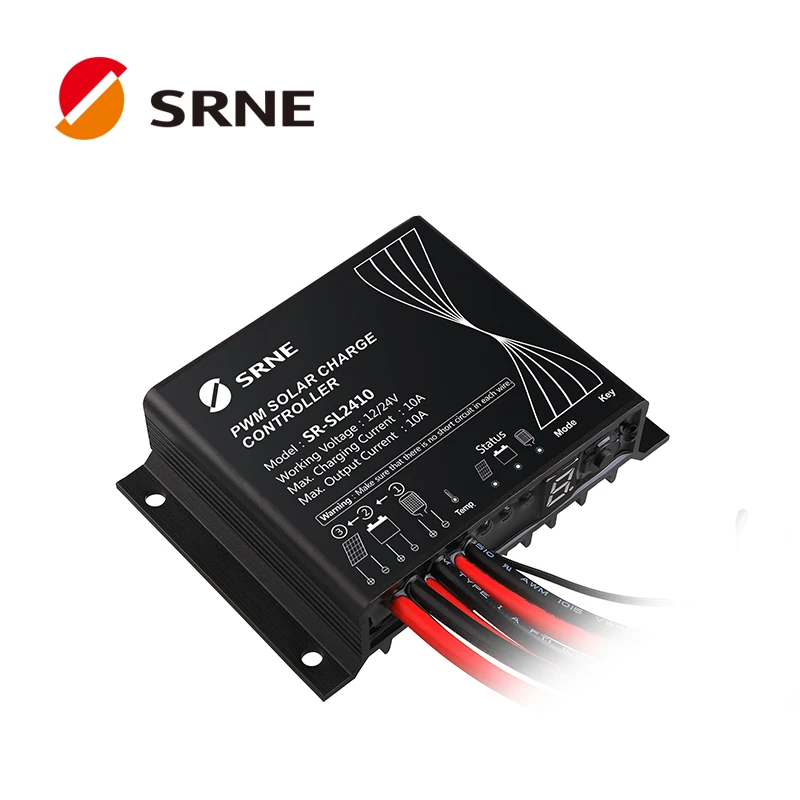

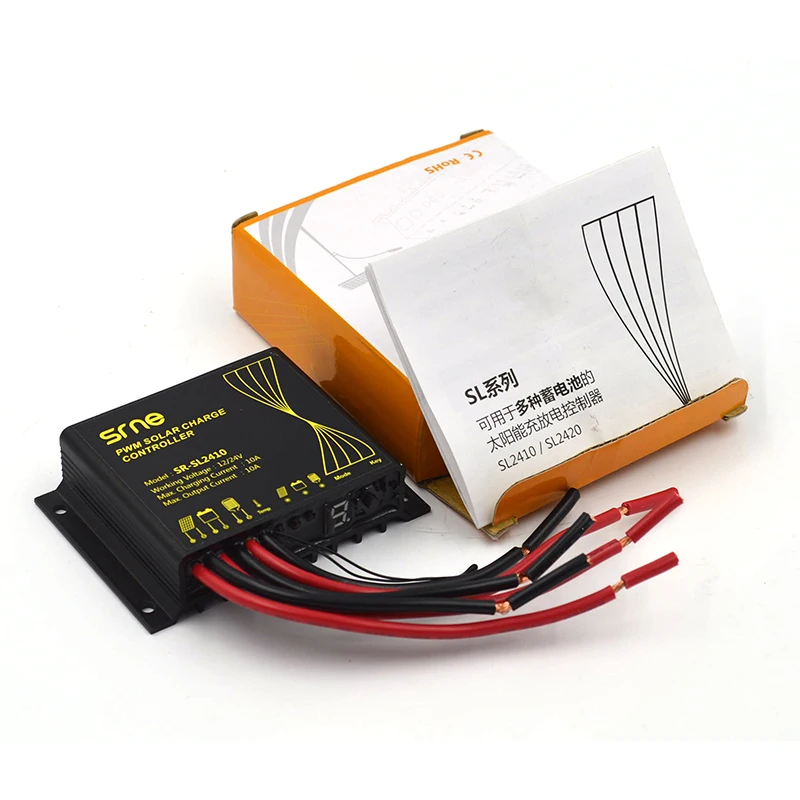

Регулятор заряда батареи SRNE Smart Solar Panel AC DC 10A SL2410

Product Overview

Description

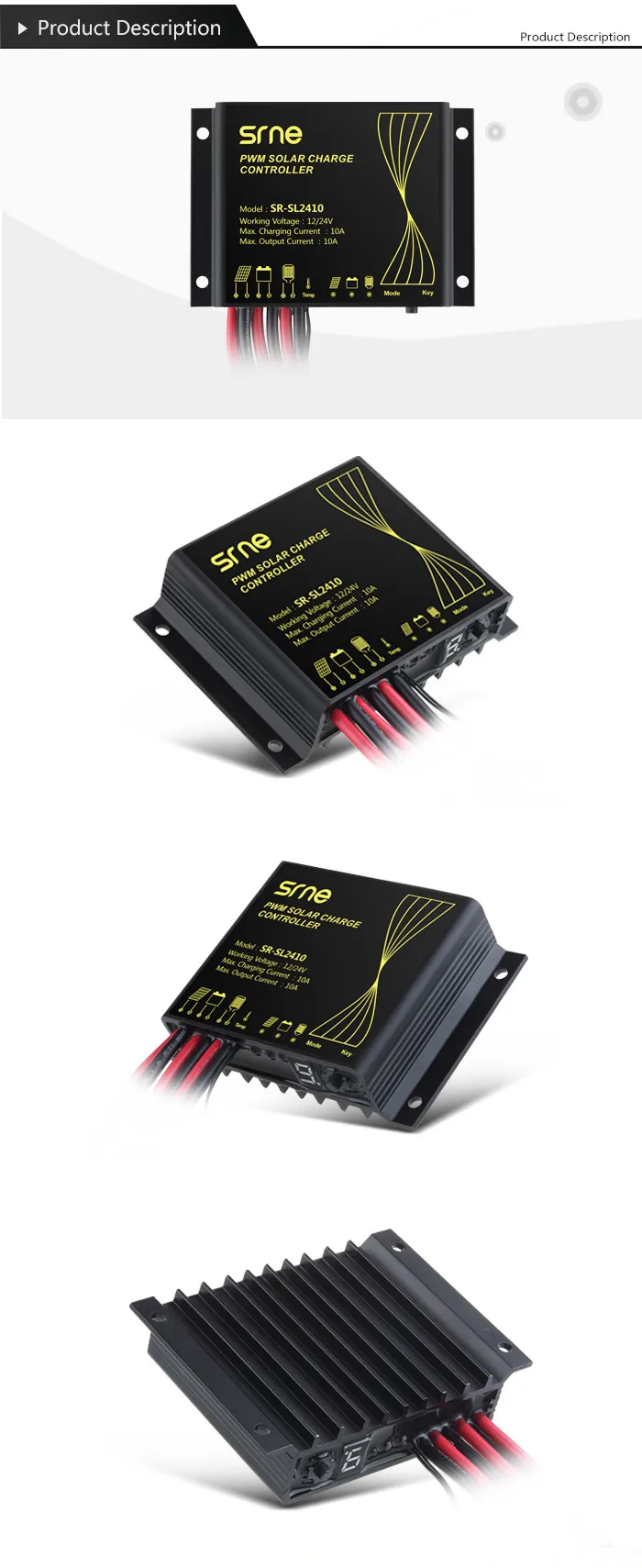

Details of SR-SL



1. IP 68 waterproof level and aluminum outer shell is able to effectively prevent various kinds of corrosion.



2. Automatic identification of 12V/24V system voltage.



3. LED digital display and waterproof key-operated operations.



4.Ternary form charging algorithm adopted. to equally charge storage battery a week at least.



5.Five load working mode, convenient for various street lamp and monitoring device.



6.External temperature sensor.



7. Parameter can be stored when the power failure. No need to set up again.



8. Values status indications.



9. Over charging, over discharging, over load, short circus and reverse polarity protections.



10. TVS lightning protection.



Five modes:

1. Pure light-controlled


2. Light + time controlled


3. Manual operation


4. Debug mode


5. Normally on mode

System voltage	12V/24V Auto
System current	5A/10A/15A
No-load loss	< 5mA
Solar energy input voltage	< 55V
Overvoltage protection	17.0V; ×2/24V
Equal charging voltage	14.6V; ×2/24V(25°C), duration:1h
Ascending charging voltage	14.4V; ×2/24V(25°C), duration:2h
Float charging voltage	13.8V; ×2/24V (25°C)
Return voltage during charging	13.2V; ×2/24V (25°C)
Return voltage for over-discharging	12.5V; ×2/24V
Undervoltage	12.0V; ×2/24V
Over-discharging voltage	11.1V; ×2/24V
Temperature compensation	-4.0mv/°C/2V;
Light-control voltage	Light-control open 5V; light-control close 6V
Light-control judgment time	10min
Overload and short circuit protection	1.25 times of rated current: 30s; 1.5 times of rated current: 5s overload protection activity; ≥3 times of rated current: short circuit protection
Working temperature	-35°C to +65°C;
Protection level	IP68
Weight	140g
Dimensions	82×58×20(mm)(L×W×H)





 Welcome your inquiy and trial order. Any question please contact us without hesitate.



OEM are available for you.
