Product Overview

Description

1, Aluminium Work Boat Hull & Yacht Hull







We could produce diffent aluminum Boat Hull & Yacht Hull, according to Clients drawing and design.



Length:3-40 meters

Materails:aluminum 5083,5052











2, Aluminium Work Boat  & Yacht



Designed to work in the Swedish maritime area, with the entire Baltic Sea as her region. The first boat in the Work 2200 series was designed as a seafloor research vessel. The vessel can accommodate 10-12 persons. Can be equipped with a derrick, when necessary. The cabin’s interior, with its toilet/shower and galley, is very comfortable. The equipment in the galley includes 2 microwave ovens, a stove, refrigerator, dishwasher and range hood. This model also comes with a bow door to facilitate loading.



Length, loa	21.6 m
Length, wl	18 m
Beam, boa	6 m
Beam, bwl	5 m
Draft, d	1.5 m
Displacement, mMOC	42.6 t
Displacement, mLDC	49.9 t
Max load, DWT	7.2 t
Speed, V	22 knots
Speed, vMAX	24
Main Engines	Scania DI 16
Engines power	2x 750kW / 750hp
Propulsion	Rolls-Royce FF500
Fuel capacity	4000L
Crew	12







3, Aluminium Official Boat   & Yacht

Length	14.88m
Waterline length	12.484m
Depth moulded	1.673m
Breadth moulded	4.16m
Load draught	0.73m
Load dainage volume	17.0t
Passenger	10p
Crew	2p
Designed speed	45Kn
Main engine	Scania









4, Aluminium Taxi Boat  & Yacht

completely new design, and is one of few aluminium-built passenger boats that is certified for sea area D in accordance with the Non-SOLAS directive (2009/45/EC). This calls for a high standard of fire safety features, and the general equipment level is considerably higher as well, compared to the existing E-class Taxis. This means that Taxi 1500D can operate on routes and in areas that existing water buses are not allowed to enter, opening up new areas of the outer archipelago and beyond for regular service routes as well as charter.

Taxi 1500D can comfortably seat up to 30 passengers, and its two 500 horsepower engines propels it to a top speed of 28 knots.





Length, loa	15 m
Beam, boa	4.25 m
Draft, d	0.9 m
Displacement, mLDC	21 t
Speed, vMAX	28 knots
Main Engines	2x Iveco 9L 500
Engines power	2x 370 kW /500 hp
Waterjets	Rolls-Royce F450S
Propulsion	Propeller
Fuel capacity	1270L
Crew	1
Passengers	30











5, Aluminium Easy Boat   & Yacht

Length, loa	8 m
Length, wl	6.8 m
Beam, boa	2.8 m
Beam, bwl	2.2 m
Draft, d	0.46 m
Displacement, mMOC	1.4 t
Displacement, mLDC	2.5 t
Max load, DWT	0.6 t
Speed, vMAX	>40 knots
Main Engines	Yamaha
Engines power	150 kW / 300 hp

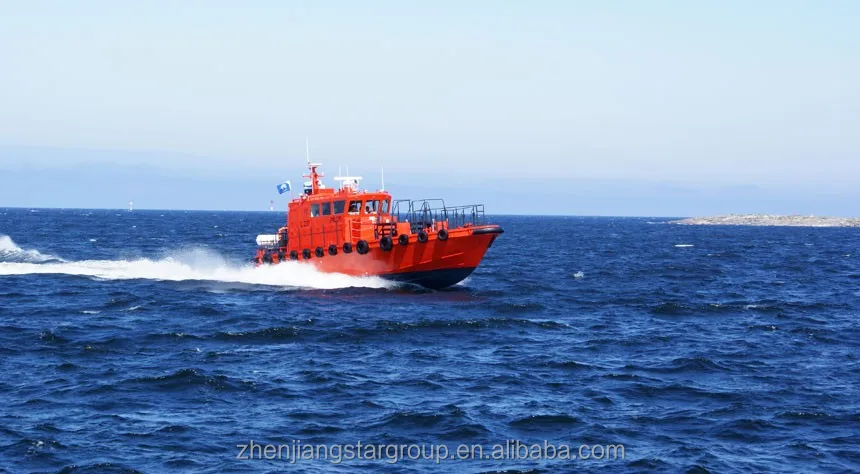

6, Aluminium Pilot Boat   & Yacht



Length, loa	15 m
Length, wl	12.8 m
Beam, boa	4.9 m
Beam, bwl	4 m
Draught	1.2 m
Displacement, mMOC	15.5 t
Displacement, mLDC	18.3 t
Max load, DWT	2.8 t
Speed, vMAX	25 knots
Main Engines	Scania
Engines power	2 x 331kW/450 hp
Propulsion	Open SS Propeller
Fuel capacity	1600 L
Crew	6
Noise level	< 70dB A









Our aluminium boat  includes pilot boat series, work boat series, taxi boat series, official boat series and leisure boat series. All boats with vast-range models, in various functions, in high speed, in combination of safety & comfort and in beautiful appearance.



Ourcompany is possessed with professional R&D and design team led by Finnish experienced boat-building engineer. Meanwhile, Finnish and Australian design team can provide full suport for us. The company has passed design qualification appraisal and quality system certificate of CCS, which has laid solid foundation for boat development and production.

Professional,  over 20 years aluminum exportation and importation

Reliable,  over 8 years certificate in alibaba

Qulified,  SGS, Bureau Veritas, ISO9001, CIQS certificates



We are now supply to Italy, USA, MEXICO, Austrilia,Dutch and Asian market.

Welcome to vist our factory to test the quality, service and reputation
