automatic flatbed paper label die cutter

Product Overview

Description

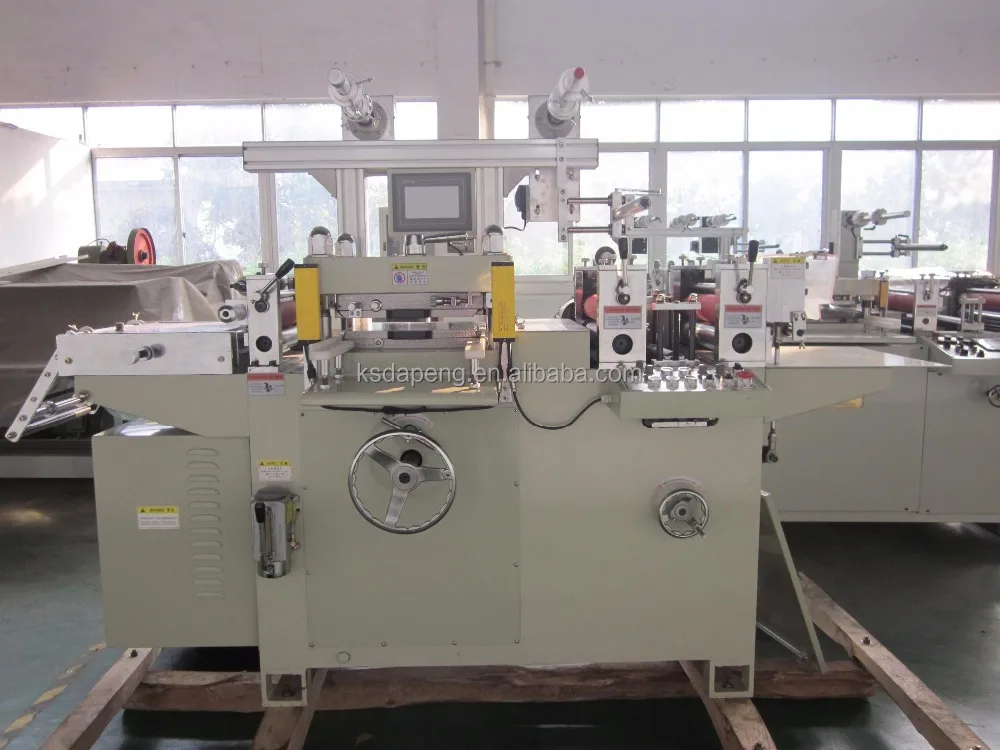

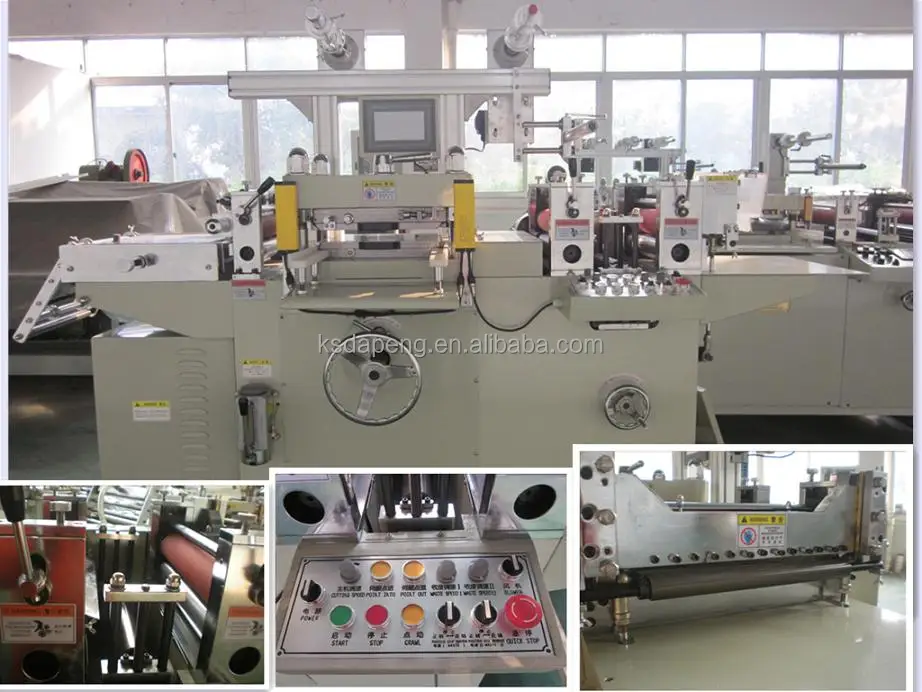

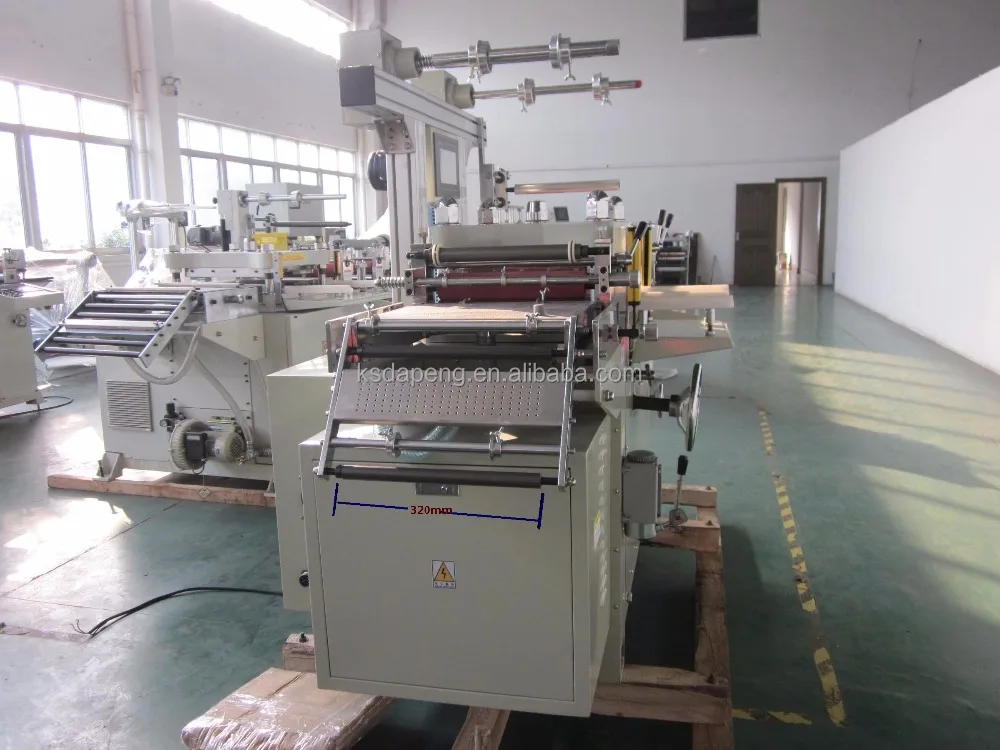

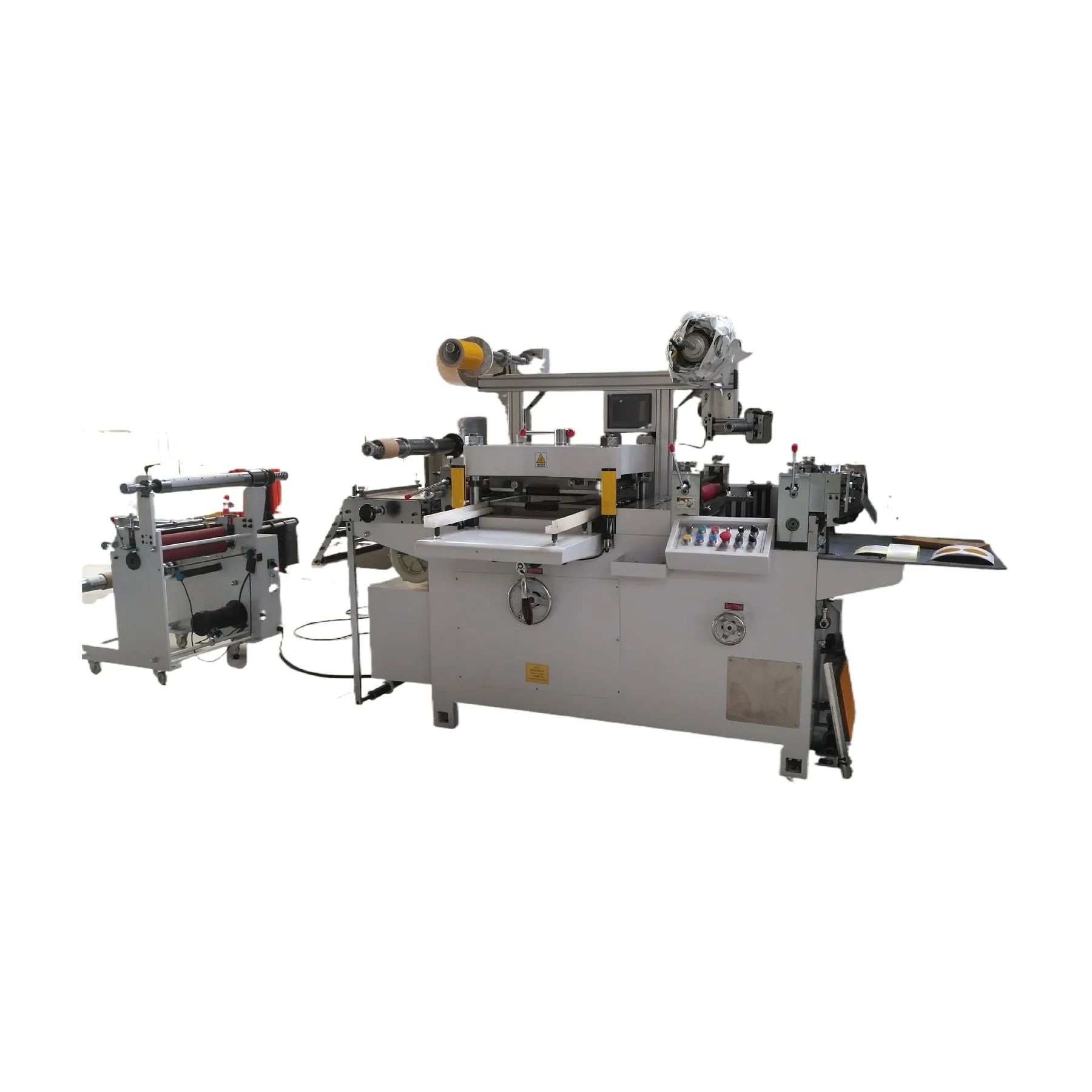

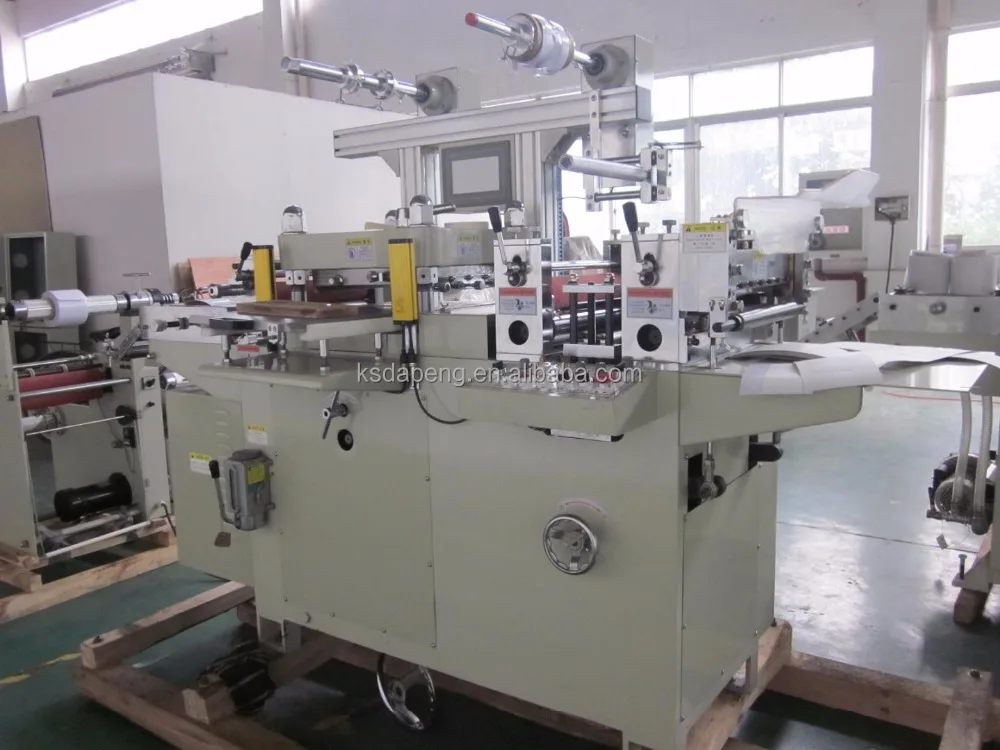

automatic flatbed paper label die cutter



The machine feeding -filming -die cutting -waste draining -cutting  -rewinding ,all af them are completed by rhe computer control by one turn.



And it can used in various insulating materials such as electric shield material ,PVC,film ,copper foil ,aluminum foil ,foam,etc.





Characteristics:



1, suitable for lamination /punching with various roll ,sheet materials .





2,Adopting computer servo for charging /feeding ,used for full cut /half cut punching ,waste discharge ,high precision ,low noise ,fast speed ,equipped with anti-scratch functiion .





3,Available for secondary cutting punching and widely used in printing industry .





4,Customized service available for secondary die -cutting function .



model	DP -320
max feeding width (mm)	320
cutting area (mm)	300*300
speed (m/min)	30-170
precision (mm)	0.10
main engine power (kw)	2.2
size (mm)	2750*1520*1400
rewinding diameter (mm)	500
voltage (v)	380



Video for this machine :



  automatic flatbed paper label die cutter
