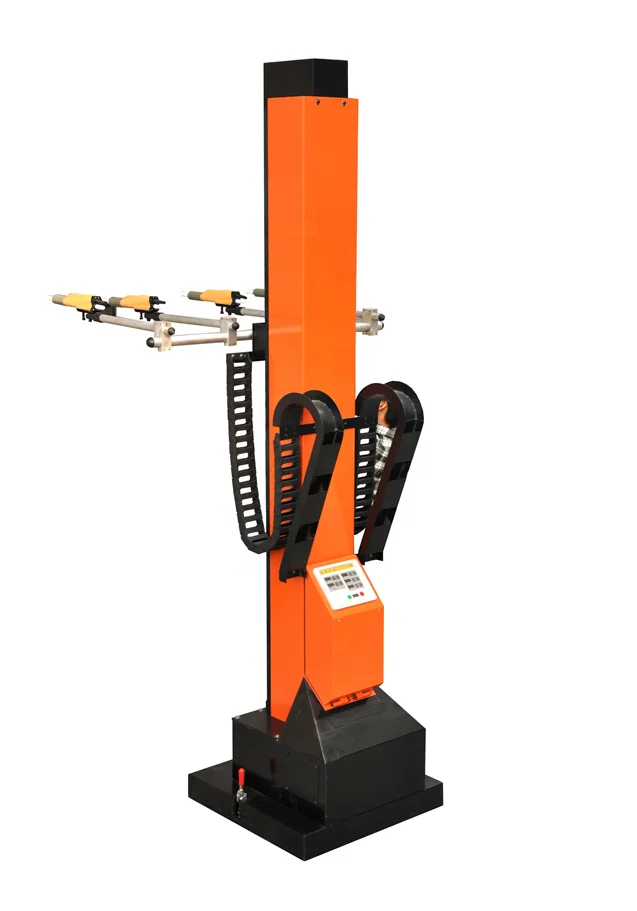

Reciprocator robot Automatic aluminium profile powder coating machine plant line
- Category: >>>
- Supplier: Hangzhou Color Powder Coating Equipment Co. Ltd.
Share on (60429328126):
Product Overview
Description
Machine Features

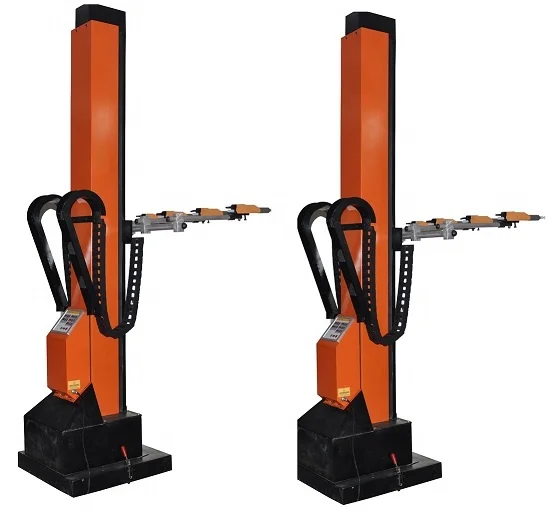

Automatic powder coating reciprocator powder coating robot has automatic powder coating gun,is especially designed for large scale production in semi-automatic or full-automatic powder coating line.
The type and the number of installed control units could make as your requirements.
- Increased Uniformity Advanced digital control.
- Smooth, Swift and Precise movement for speedy and uniform coating
- Reduce powder consumption.
- Quick Job Change Pre-programmable preset settings for automatic selection of stroke and speed.
- User-friendly touch screen control to control speed and stroke length.
- Adjustable counterbalance weights allow perfectly balanced gun movement.

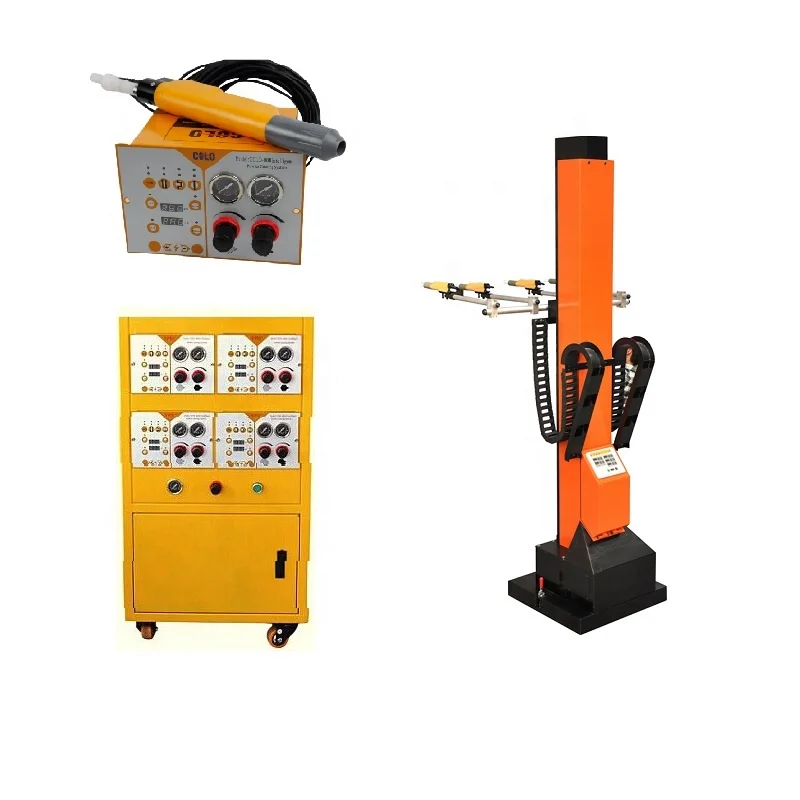

Automatic Robotic powder painting systems Reciprocating machine includes
1.Automatic powder coating gun powder spraying reciprocator
Summary of Benefits:
- The benefits of COLO-2000D
- 80 storable programs
- Frequency:Japanese Mitsubishi
Technical Characteristics
- Power supply: AC 220V/110V 50Hz-60Hz
- Power motor: 0.75KW
- Sweep speed: 0-50m/min
- Acceleration: 1m/Second
- Speed adjustable by inverter
- Low limit setting by potentiometer
- Environmental: 0-50 degree
- Star signal model: digital display
- Max load capacity: 25kgs
- Motion range: 0.3-2.5m can be setting
- Point delay time: 0-5 sec (optional)
- Maintenance: free motor
- Extremely smooth running through chain
- High loading capacity and stability
- Long-stroke and short-stroke operation
- Stroke avaialble: 1.5m/1.8m/2m/2.5m

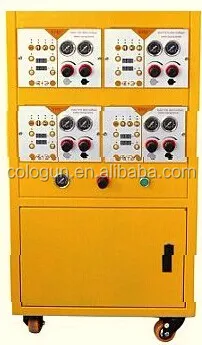

2.And the Central automatic spraying control cabinet also could avaiable for 4 ~ 10 sets electrostatic powder coating spray equipments.
Description: For 4 controllers(can be ordered ,but price will change)

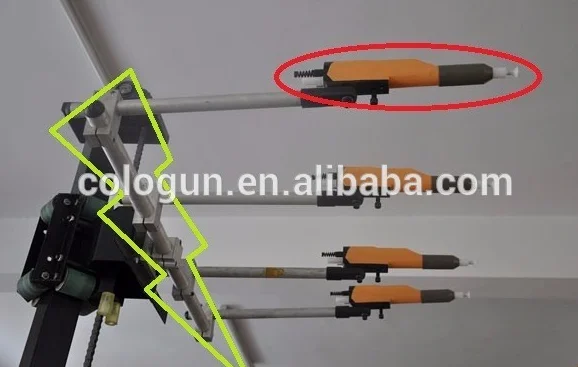

3.The automatic spray gun
COLO-800D control unit is our intelligent model Powder Coating Machine, it features includes 3 preset standard programs. In the automatic program,they are perfectly configured to coat flat parts, complicated parts,recoat parts and can be easily selected via the display pilot. In the manual program, can adjust the voltage as needs.
Gun Technical Data
manual application
Manual powder coating guns are suitable with various metal parts such as car rim, wheel, furnitures,electric box,transformer,refrigeritor,air conditions and so on. Polyester and epoxy powder are all available for gun coating.
Company Information
Company information:
Colo,10 years history, is the leading powder coating equipment manufacturer in China, which provides high quality equipments all over the world with advanced professional techniques.
Colo offers a wide range of power coating equipments, namely powder coating machine, powder coating gun, spray booth, curing oven, automatic powder coating applicator, powder coating line and replacement of spare parts for the famous brand in the world.
Welcome guests from all countries in the world to visit our factory.
24-hour service
Betty Wang:
Cell phone/Whatsapp:+86 18069798293
Skype:powdercoatinggun
