Product Overview
Description

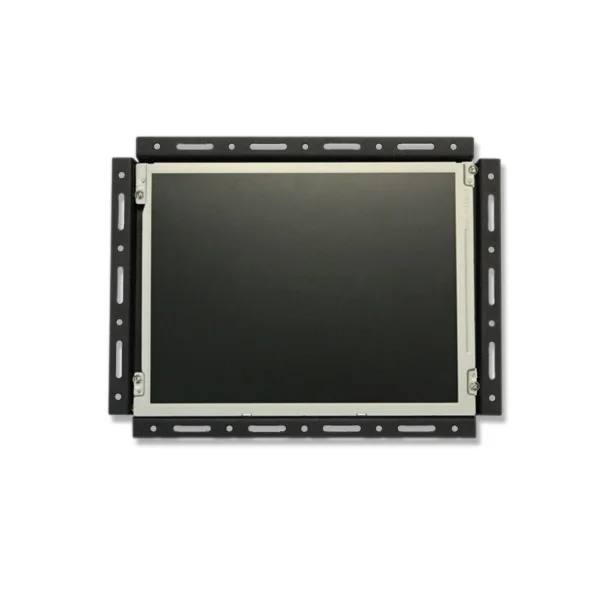

Fanuc CNC CRT Monitor Repair to LCD Display

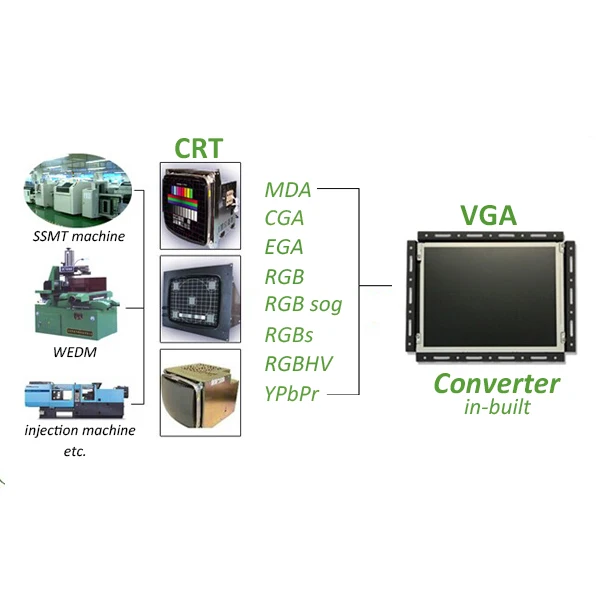

MDA / CGA / EGA / RGB to VGA converter & industrial monitor all-in-one machine
monitor all-in-one model GBS-8229:
Application: repairing & replacing CNC / Industrial CRT monitor, like Fanuc, Siemens, Mazak, Heidenhain, Hitachi, Toshiba, Mitsubishi, Sharp, Tatung, Totoku, and Magnetek, and etc.
The replacement : GBS8229 = old CNC CRT monitor

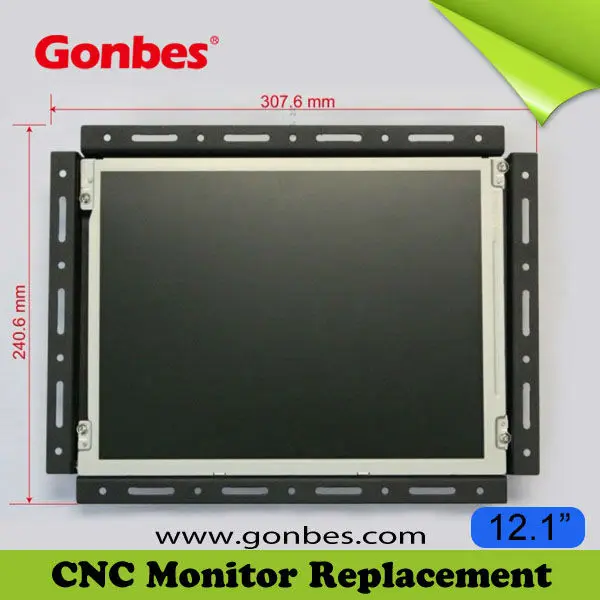

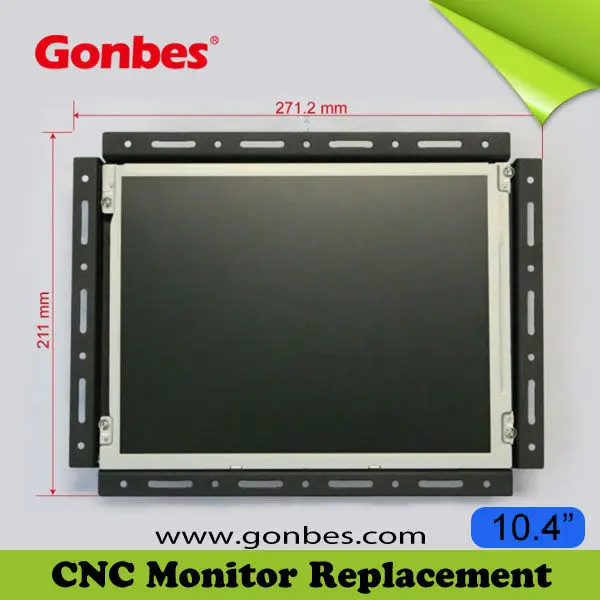

Available sizes: 8.4 inches, 10.4 inches, 12.1inches and 15 inches.
Feature specifications
Input | Signals | MDA,CGA,EGA,RGB,RGB Sog,RGBS,RGBHV,YPbPr |
Interface | 9pin,3pin,6pin,14pin,20pin,25pin | |
Horizontal Frequency Rate(H) | 12kHz to 40kHz automatically recognized | |
Output | Supports | 15pin VGA,Resolution:800*600/60HZ or custom-resolution |
Interface | D-Sub 15 PIN standard VGA port | |
Power | DC 12V 1.0A | |
Note:
1. YPbPr = YUV
2. Input Horizontal Frequency Rate 12 kHz to 40 kHz automatically recognized.
3. Support RGB and YPbPr
4. Support Interlaced Scanning and Line by Line Scanning.
5. Support Vertical Resolution from line200 to line 600 automatically recognized.
6. Support variable Horizontal Resolution automatically recognized.
7. Support RGBHV (separate sync), RGBS (composite sync), automatically recognized.
8. Output resolution: 800*600/60Hz standard VGA or custom-resolution.

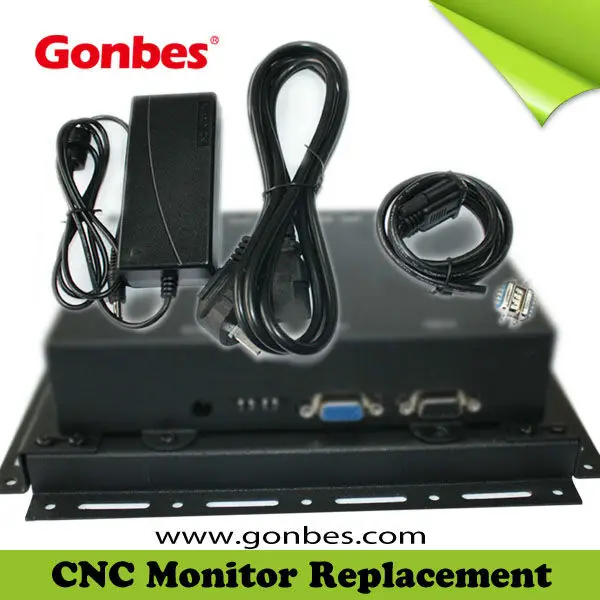

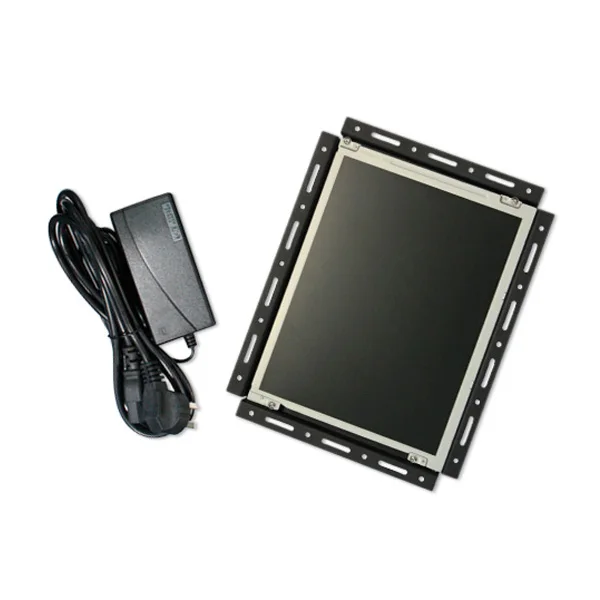

Accessories& Details
Item | QTY | Remarks |
User’s Manual | 1 | English |
Power Adaptor | 1 | DC12V,1A |
half 9pin cable | 1 |
|
9pin M-F cable | 2 | 1 Male + 1 Female |
Definition of 9 Pin cable
Name | Wire color | Signal |
A | Silver web | Shield |
B | Black wire | Ground(GND) |
C | White wire | Vertical Frequency Rate(V) |
D | Orange wire | Horizontal Frequency Rate(H) |
E | Blue wire | Blue(B) |
F | Green wire | Green(G) |
G | Red wire | Red(R) |
H | Brown wire | Undefined(null) |
......
Thank you for coming! Welcome to contact us for detailed information.
