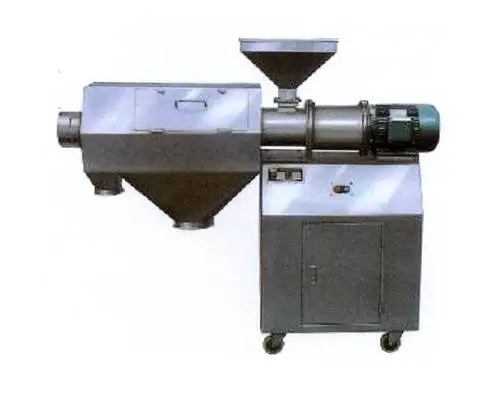

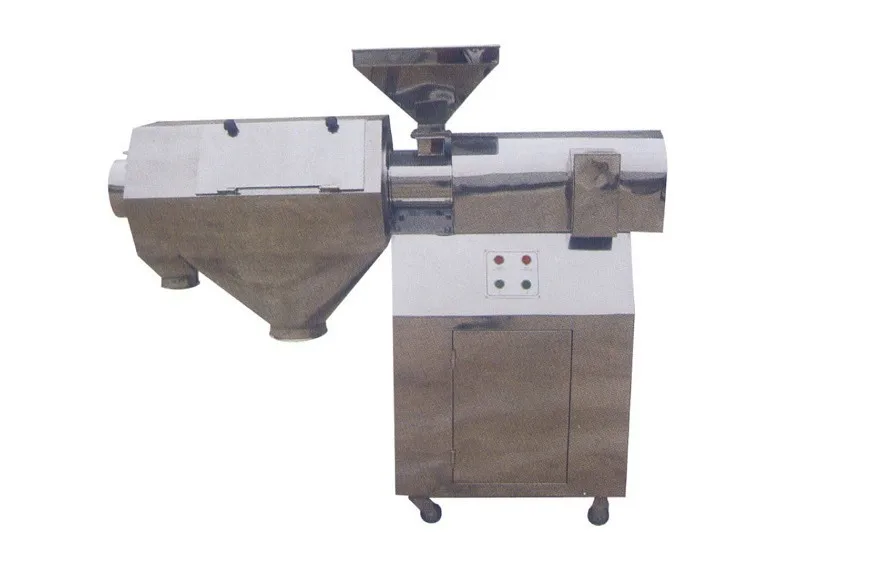

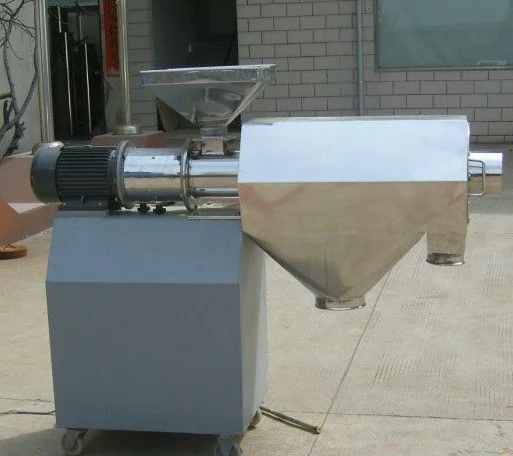

FTS 190 Series rotary screen sifter

Product Overview

Description

FTS-190 Series rotary screen filter

Main Application:

FTS Series Rotary Screener is classification screening machine for solid particles.It can be part of the powder assemble line or can operate individually.It is widely used in the industries of pharmaceutics,chemical,and foodstuff.The machine has a good performance on fibrous,highly viscous,or hydrous material.

Operation Principle and Feature:

The machine consists the machine base,propulsion unit for material input and output,motor and etc.It adopts a cylinder shaped filter,so when the raw material continuously roll up and down,the fine material drops through the mesh.This machine has the characteristics of stability and reliability in operation with low noise.

Nowadays, Changzhou Jiasheng Machinery Co.,Ltd have customers both in China and abroad.Foreign customers such as Russian,East Europe,Middle East,South America,North America,East Asia,Southeast Asia, Africa,etc.

Model	Production capacity(Kg/h)	Number of mesh	Power
FTS-190	100-1500	20-200	2.2
FTS-300	200-2000	20-250	4
Speed spindle	Overall size(mm)	Weight(kg)
940	1700×530×1430	200
620	1735×650×2470	350
