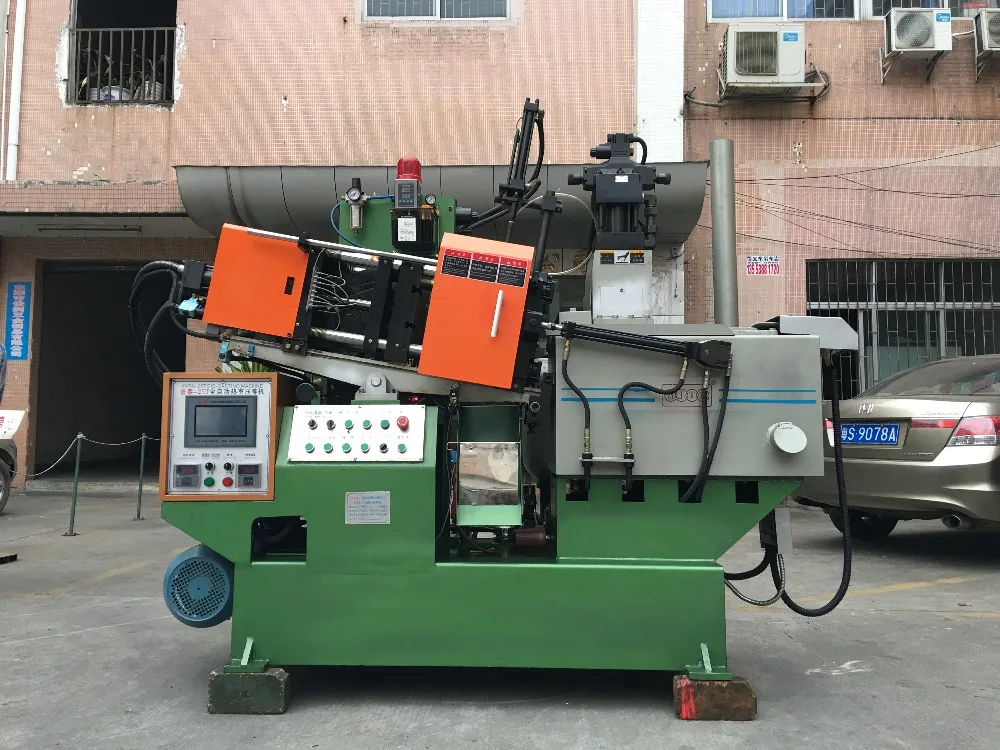

full automatic metal medal making machine for zinc die casting machine

25T hot chamber die casting machine parameter

Unit

Specification

Item

Unit

Specification

Item

Clamping Force

KN

250

Volume of Crucible(Zinc)

KG

85

Diameter of Di-Cylinder

mm

55

Oil Pump Flow

L/min

36

Tie Bar Diameter

mm

40

Accumulator Volume

L

10

Opening Stroke

mm

130

Oil Tank Volume

L

180

Space between Tie Bars (H*W)

mm

230*230

Dry Cycle Time

s

3.5

Die Thickness (Min.~max.)

mm

120~300

Heating Power of Spray Nozzle

KW

1.2

Stroke of Injection Cylinder

mm

70

Heating Power for Material Melt

KW

9~12

Diameter of Injection Plunger

mm

35~38

Fuel Oil Use for Material Melt

KG/H

1.5

Injection Force

mm

25

Motor Power

KW

7.5

Diameter of Cylinder

mm

60

Hydraulic Pressure

Mpa

6~8

Effective Shot Weight

g

150~220

Overall Dimensions

mm

2500*1000*1900

Traverse Stroke

mm

220

Machine Weight

t

1.4
