Fully automatic induction motor cooper wire winder stator coil winding machines for sale wiht 8 winding stations

Eight Working Station induction motor stator coil winding machine

1. Machine main function and characteristic

This motor stator coil winding machine has four winding heads and eight operation stations.

High efficiency is its feature.

The motor winding machine automatically put the coil into transfer former orderly, especially suitable for high production capacity requirement, high slot filling rate, small slot opening stator coil winding.

Winding mode, such as auto skip, auto cutting and auto indexing could be completed at a time successively; parameter could be set in human-machine interface.

Continuous/discontinues winding way and meets the 2 poles. 4 poles, 6 poles coils winding.

2. Technical parameter

Wire diameter: 0.19~1.2mm

Swing diameter: 220mm

Operation station: 8

Winding head: 4

Max stack height: 65mm

Max stator OD: 120mm

Max RPM: 2500RPM

Air source: ≥0.5MPa

Power supply: 380V 50/60HZ 15KW

Weight:about 5000KG

Dimension:(L)2100*(W)1350*(H)2200mm

3. Application

This winding machine is suitable for 2 poles. 4 poles, 6 poles electric motor stator coils winding.

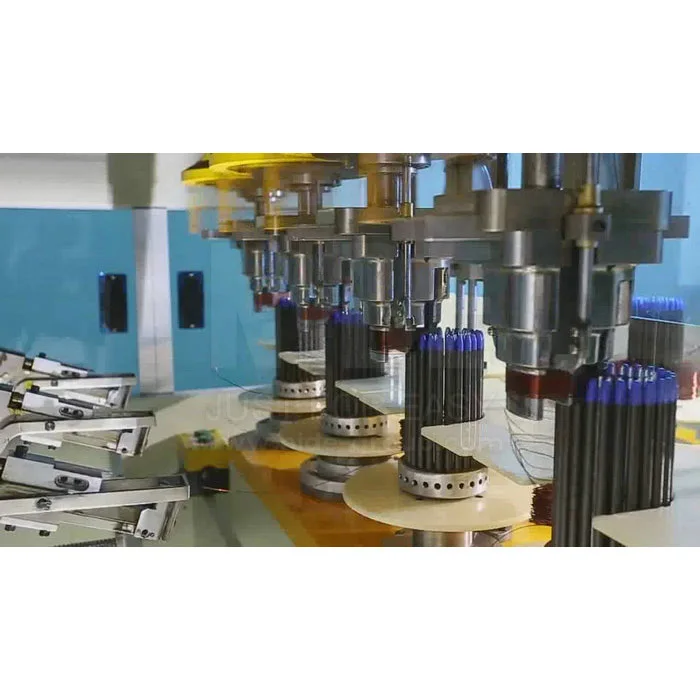

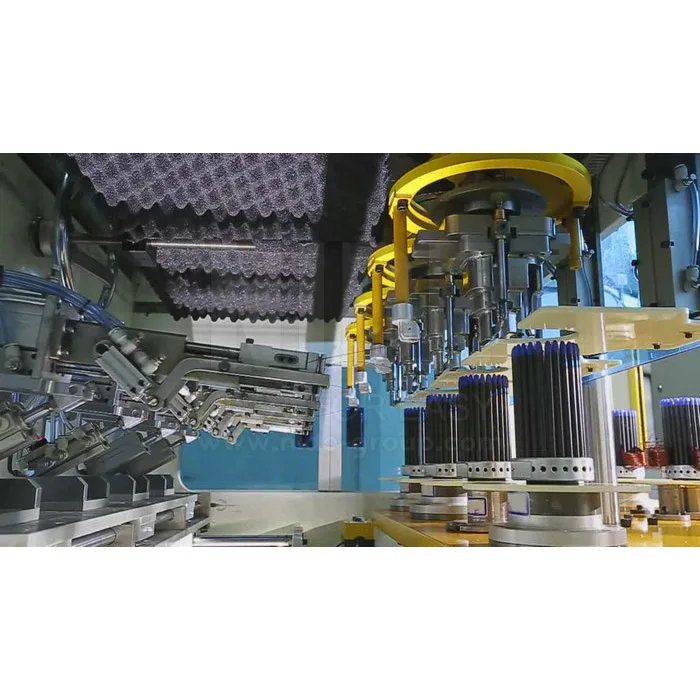

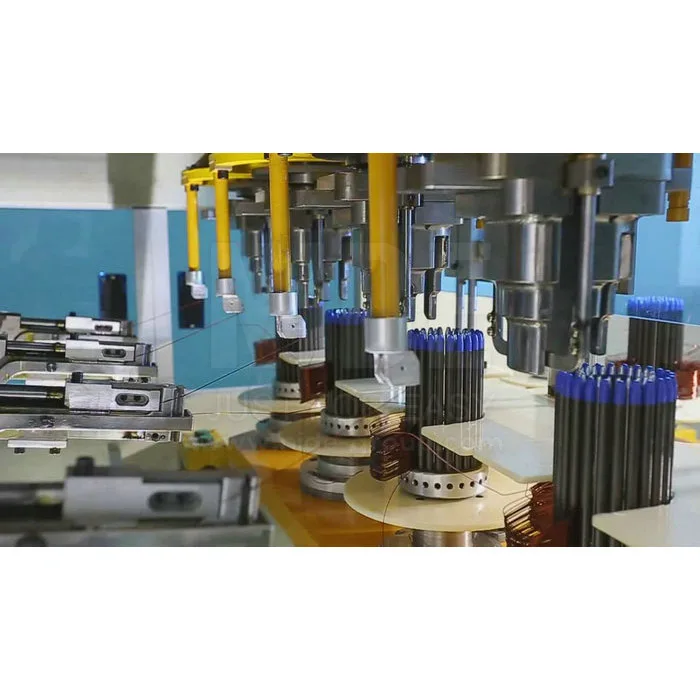

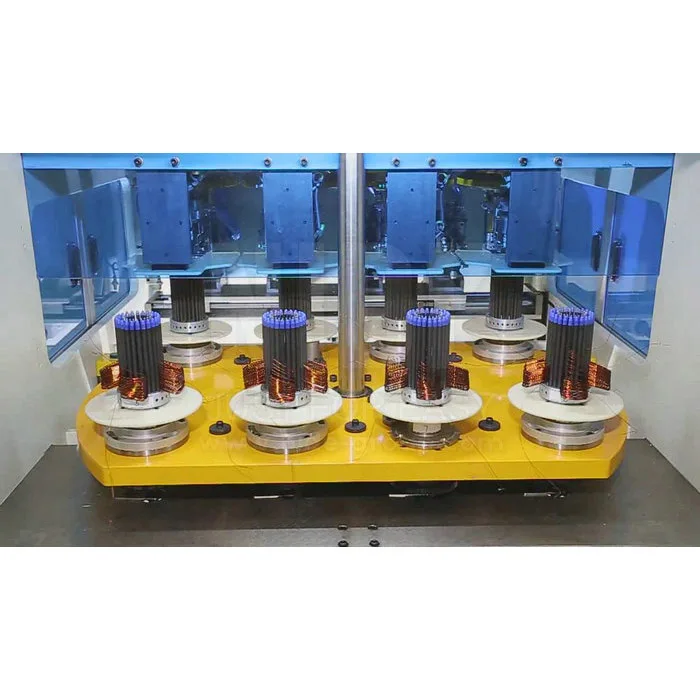

4.Picture show
