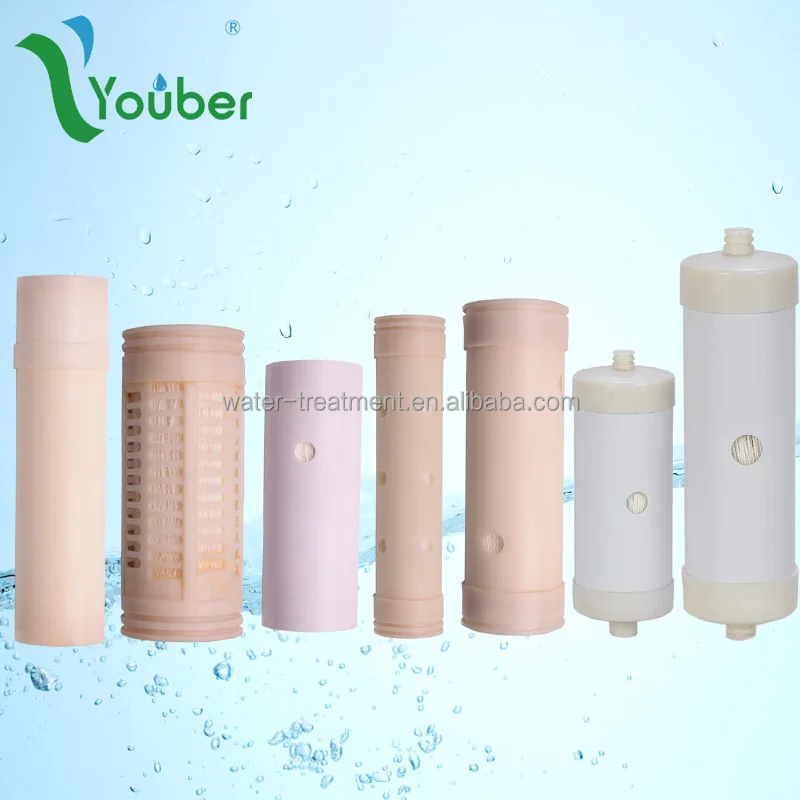

drinking water filter cartridge/household UF filter element/customized UF filter element microfiltration membrane

     Drinking water filter cartridge / household UF filter element / customized UF filter cartridge

0.002-0.1um filter cartridge for water filter:

1. Customized range is wide.

(1) Filtration precision range: 0.002-0.1micron

(2) Size range: Diameter 20-250mm, length 45-2000mm

(3) Function range: natural pressure UF membrane, UF membrane for removing virus, high temperature resistance, resistance to strong acid and strong alkali etc.

(4) Application range: portable water purifier, household water purifier, industrial water treatment UF membrane, separation and concentration for special solution

2. Professional manufacturing level, standardized production and quality control.

3. Strong design ability, we can design special UF filter cartridges for customers.

4. Large production, annual output of one million square meter hollow fibers.

Customize business process:

Technical specification:

(1) 0.01-0.1 micron filtration precision, removal rate for all bacteria can reach to 99.9999%, such as salmonella; E. coli, vibrio cholerae, salmonella typhi, and all protozoa, such as giardia and cryptosporidium;

(2) No electricity, under the conditions of nearly without pressure to get large water flow;

(3) It can be used repeatedly, while the filter is blocked and gets smaller flow rate, flow rate can be recovered by backwashing.

(4) Certification for our UF filter cartridge: Pony Testing report (Third Party Testing Organization)

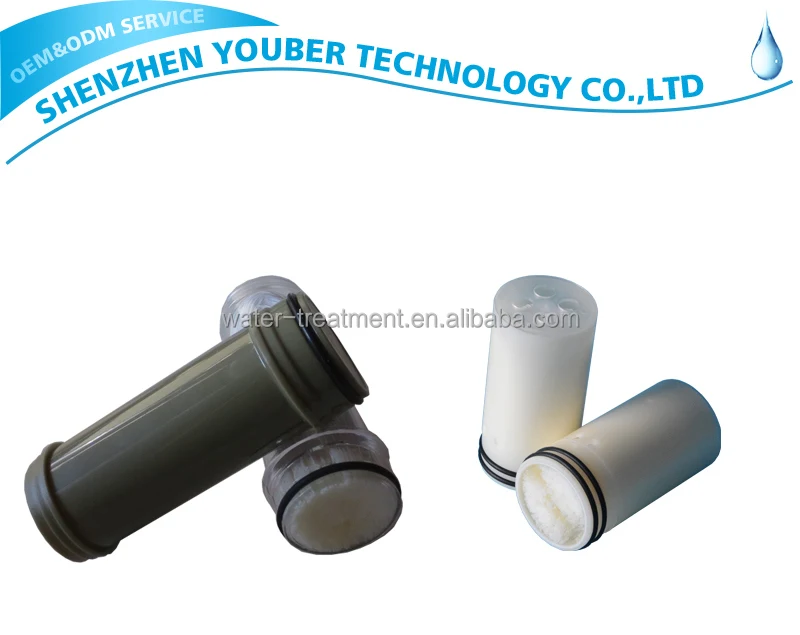

Customized UF filter cartridge application photos:

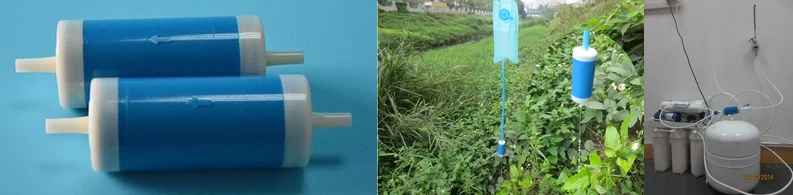

1. Portable water filter for emergency rescue, outdoor camping, hiking drinking water purification

 Quick Details:

 Filter cartridge Type: UF-ZL01

 Brand: Youber

 Fibers Material: PS (Polysulfone)

 Product dimension: 40*131mm

 ID/OD:0.22-0.42mm

 Effective membrane area: 0.22M2

 MWCO: 0.1um

 Working pressure: 0.03-3.5kg/cm2

 Filtering mode: Outside-inside

 Water flux: 800-1000ML/min

 Total filtering water flux: 1000000gallon

 Lifespan:>3 years

 Certification: SGS, Pony (Third Party Testing Organization)

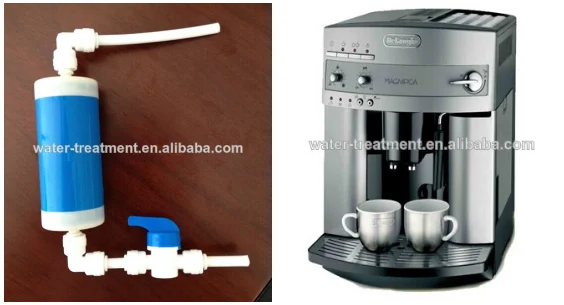

2. Household appliance purification, like coffee machine, hot-cold juice dispenser, beverage machine etc.

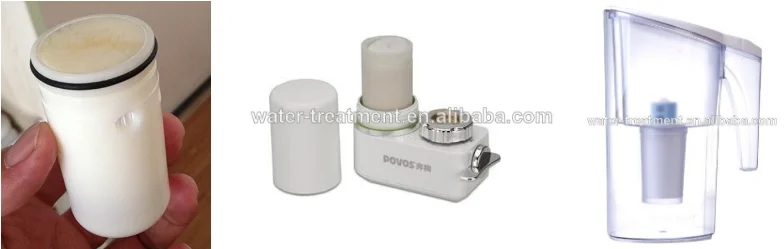

3. Tap water purifier/water purification pitcher

4. High temperature resistance UF membrane

5. Removing bacteria and virus hollow fiber UF membrane

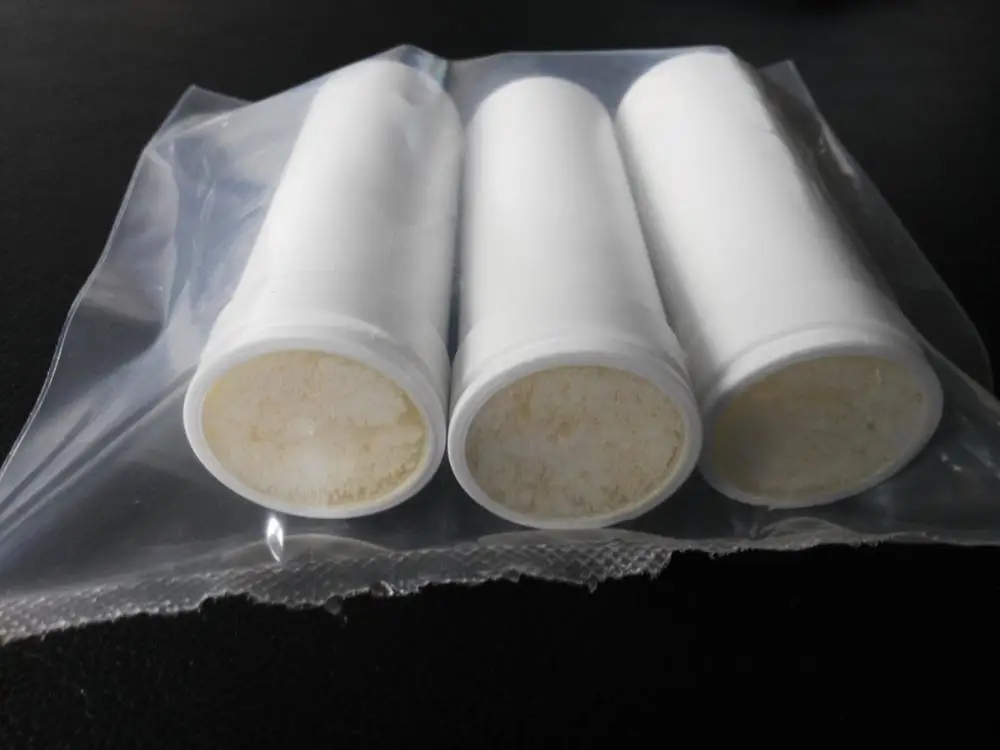

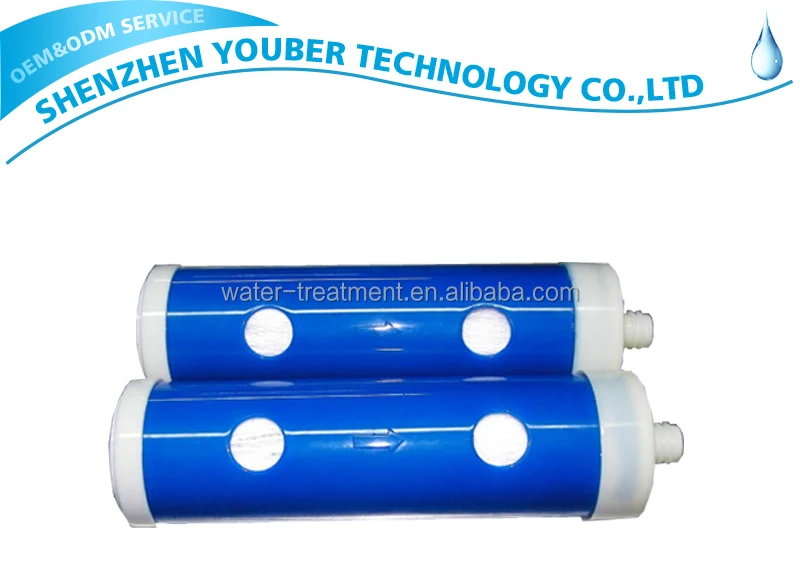

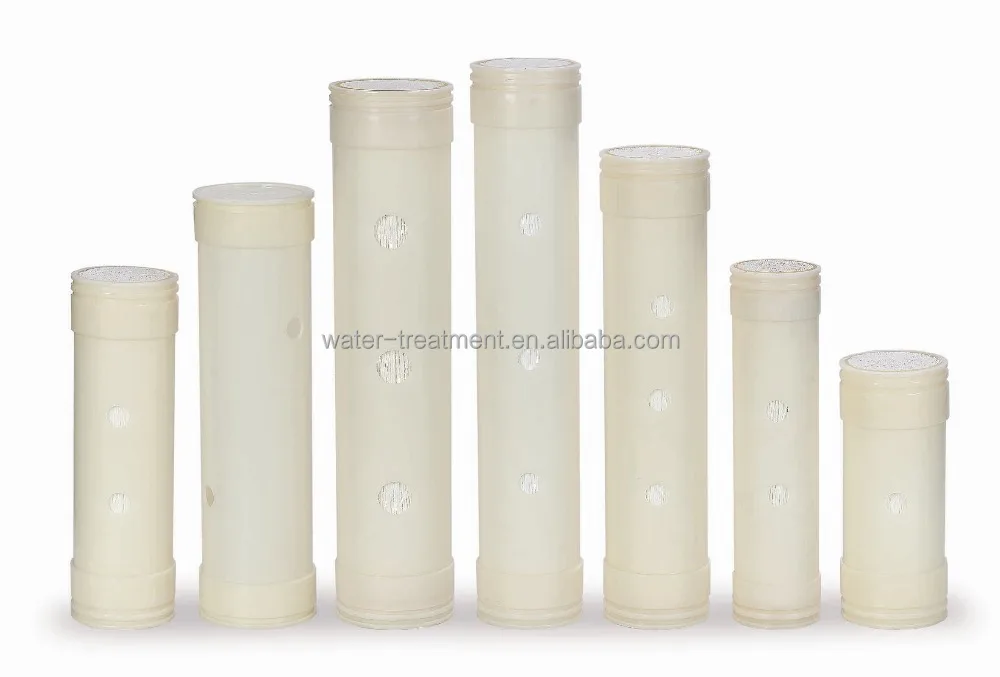

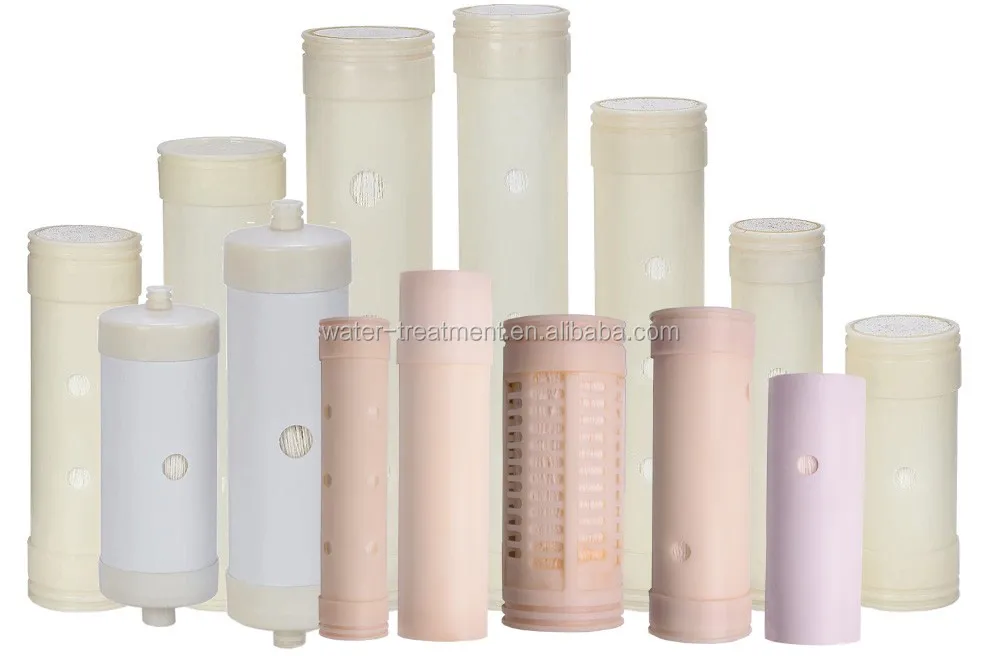

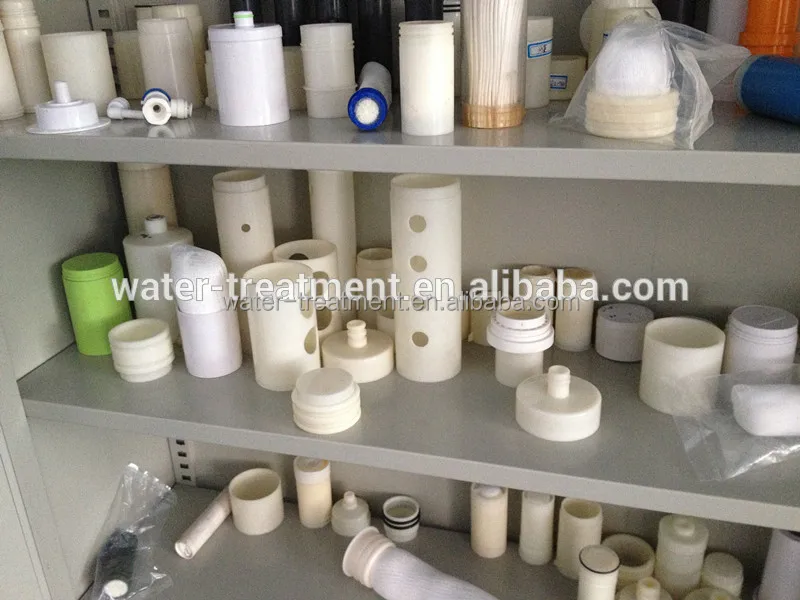

Other photos for customization of UF filter cartridges:

 Product Name: ultra-low pressure hollow fiber UF membrane filter cartridge

Product Model: UF32*90

Material: Polysulfone (PS)  fibers

Size: Dia 32* Length 90mm

Flow rate: 100-1000ml/min, can reach up tp 70ml/min under gravity

Working pressure: 0.01MPa-0.3MPa

Service life: 3.8 Ton

Product Application: Use for water purification machine, water purification buckets, water purification cups, tap water purifiers and related equipments.

Product Name: ultra-low pressure hollow fiber UF membrane filter cartridge

Product Model: UF-ZL02

Material: Polysulfone (PS)  fibers

Size: Dia 36* Length 70mm

Product Basic Introduction:

1. Product Name: For water purification made of polysulfone(PS)-bactericidal filter cartridge

2. Filtering Mode: outside to inside filtration

3. Main Material: Polysulfone(PS)

4.Product Application: Use for rescue water purification, other water purification machine, water purification buckets, water purification cups, tap water purifiers and related equipment.

5. Product Performance: 0.1um hollow fiber UF membrane, it can remove bacteria, rust, impurities, microorganisms and small fine particle in the water.

6. Filter cartridge lifespan:>1500-2000L(on the basis of municipal water as raw  water)

7. Initial outlet water flux:>1.8L/min(on the basis of municipal water with 0.2Mpa)

8.Initial outlet water flux under gravity pressure:>0.3L/min(on the basis of municipal water as raw water)

9. Product Dimension: Diameter: 36mm, Length: 70mm

10.Storage Condition: Normal temperature, dry environment, keeping out of the sun.

11. Storage time: 2 years

Technical Parameters:

Product Name: hollow fiber UF membrane filter cartridge

Product Model: UF29*80

Size: Dia 29* Length 80mm

Flow rate: 200-2000ml/min

Working pressure: 0.01MPa-0.4MPa

Product Application: Use for water purification cups, tap water purifiers etc.

Product Name: ultra-low pressure hollow fiber UF membrane filter cartridge

Product Model: UF30*80

Size: Dia 30* Length 80mm

Flow rate: 200-3500ml/min

Working pressure: 0.01MPa-0.4MPa

Product Application: Use for water purification machine, water purification buckets, water purification cups, tap water purifiers and related equipments.
