customized levels weight grader,weight sorter JZW 6FX

Product Overview

Description

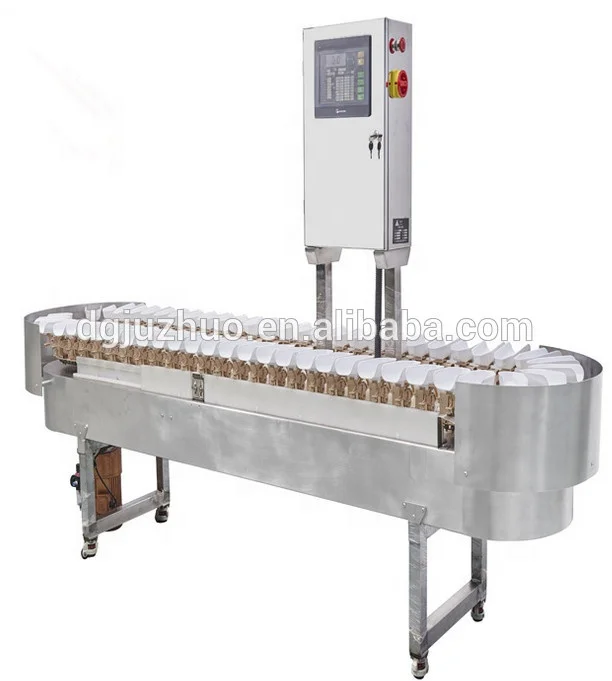

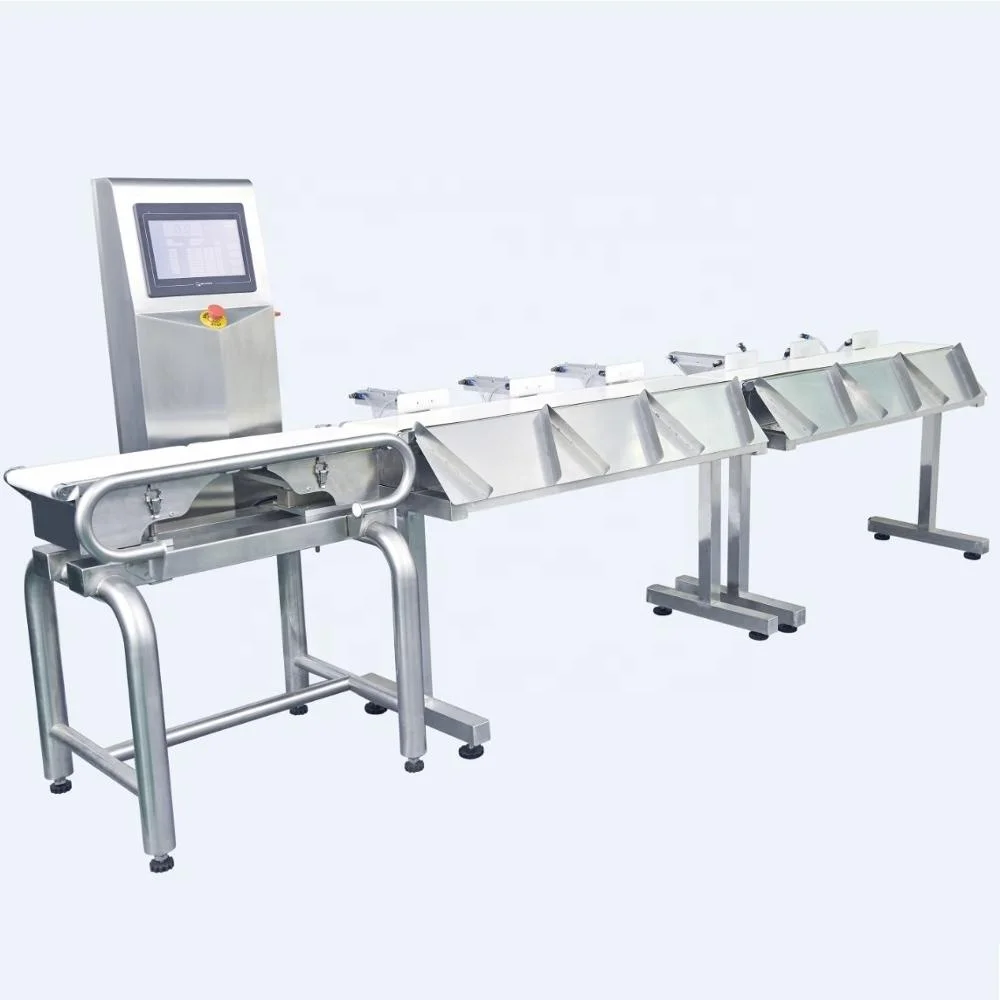

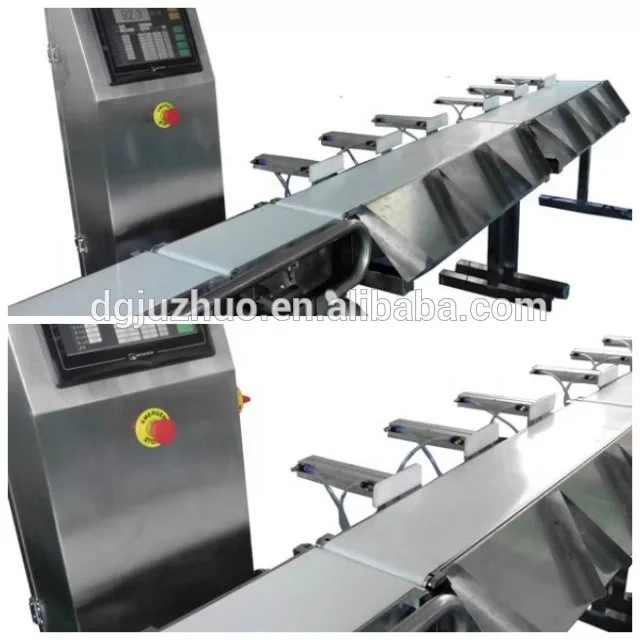

Customized levels weight grader,weight sorter  JZW-6FX



Introduction

Customized levels weight grader,weight sorter JZW-6FX can automatic feeding,automatic sorting,all stainless steel and mechanical parts don't directly touch fruit, add butter material

Scope of Application

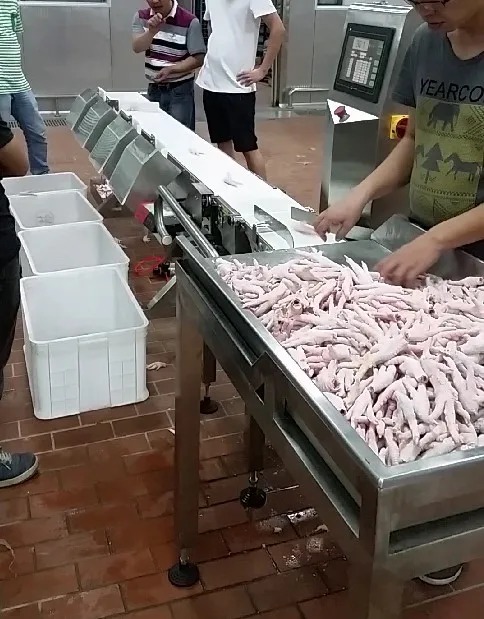

Weight sorter/grader is widely used in fish shrimp and all kinds of fresh seafood,chicken,duck,fish,meat etc raw food processing ,auto hydraulic accessories prcious classification,commodity weight sorting packing and many other fields

Features

•   Stainless steel 304 raw material,conform to variety of food and drug safety code standard
•   Easily disassembly and conveniently clean.
•   High precision imported sensor and motor with high accuracy and speed
•   variety of commonly used products preset ; easy to edit and storage capabilities.
•   Fast switching and automatically adjust is consistent with products sorting speed
•   Color touch screen,convenient for operation
•   Input and output for external equipments to realize on-line function
•   Automatic zero tracking technology
•   U disk date storage(2~4G),with multi-function,such as,histogram,sliding average value,standard deviation,convenient            end user to check and adjust production any time

Technical Parameter

Model	JZW-6FX
Weighing range	2~300 grams
Sorting speed	80-120pcs/min
conveyor belt width	158mm
Accuracy	±1g or +/-2g
Transport direction	face to the interface from left to right
Mini Scale/resolution	0.1/0.5grams
Conveyor height	750mm+/-70mm
conveyor speed	20~60m/minutes(can be adjusted in variable frequency
Grade of waterproofing	IP65
Power supply	220V  50-60Hz
front feeder length	1500mm(need manual labor )
the length of rejector(six sorting)	2000mm
OUT-SOURCE GAS	0.6-1Mpa
Pressure interface	¢ 8mm



Apply HBM load cell ensure high accuracy and stability (original from Germany);

Switzerland Habasit  conveyor belt

Weighing mode: weight sensor

Host Power: 60W
Host Weight: about 60Kg
Host Dimension: 920mm (L) * 585mm (W) * 1400 ± 70mm (H)

The total length for a full set of equipment: 1500 +975 +2000 = 4475mm

Front feeder 1500mm, checkweigher host 975mm, the end of six sorting rejector: 2000mm ,:



The packing size for a full set of equipments: 4475 * 590 * 1400 ± 70mm
