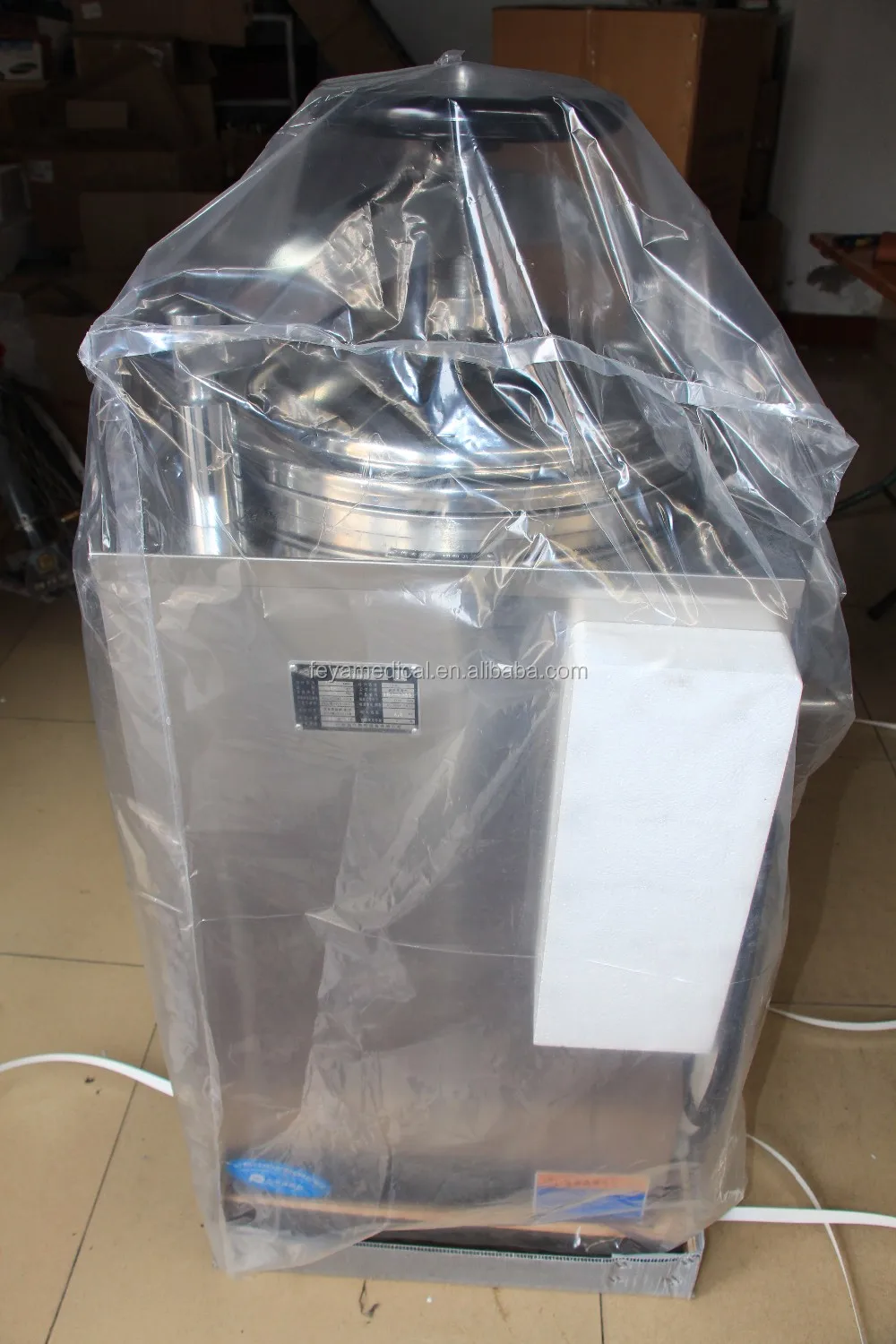

FY LS 70A 70 Liters Inner Circulation Steam Sterilizer Autoclave

FY-LS-70A 70 Liters Inner Circulation Steam Sterilizer Autoclave

APPLICABLE SCOPE:

The Autoclave is the equipment which utilizes the pressure saturated steam for sterilizing goods quickly and reliable. It is applicable to be used in medical and health work, scientific and agriculture institutes. It is a perfect equipment for sterilizing the medical equipments, dressings, glassware, liquor culture mediums, etc.

PRODUCT CHARACTERISTICS:

Self-control type

Patented technology: handwheel type quick-cover-open safety interlock device

Outer case, inner vessel and baskets are made of SUS304, resistant to acid, alkali and corrosion

Microcomputer intelligent control

Pressure safety interlock device, over temperature protection device

Self expanding type seal ring, exhaust cold air automatically

High-low water level alarm, self-control when lack of water

Self-exhaust when over pressure

Inner circulation exhaust type, with 3L steam collection bottle

Buzzer reminds and closing down automatically when sterilization ends

Equipped with test hole

Three control modes:

a. heating-sterilization-quick exhaust

b. heating-sterilization-slow exhaust

c. heating-sterilization-no exhaust

Options: printer, melting-heat preservation function

Melting temperature: 60~98℃, time range: 0~999min

Heat preservation temperature: 40~60℃, time range: 0~999min

Medical type has one more pressure protection device

TECHNICAL PARAMETERS:

Model: FY-LS-70A

Volume: 70L

Power: 3.5KW

Power Supply: 220V±10% 50Hz±2%

Max. Working/Design Temp.: 135℃/138℃

Max. Working/Design Pressure: 0.22MPa/0.25MPa

Time Range (min): 0-120

Chamber Size (mm): 400x570

Basket Size (mm): 360x280x2pcs

Overall Size (mm): 600x500x1130
