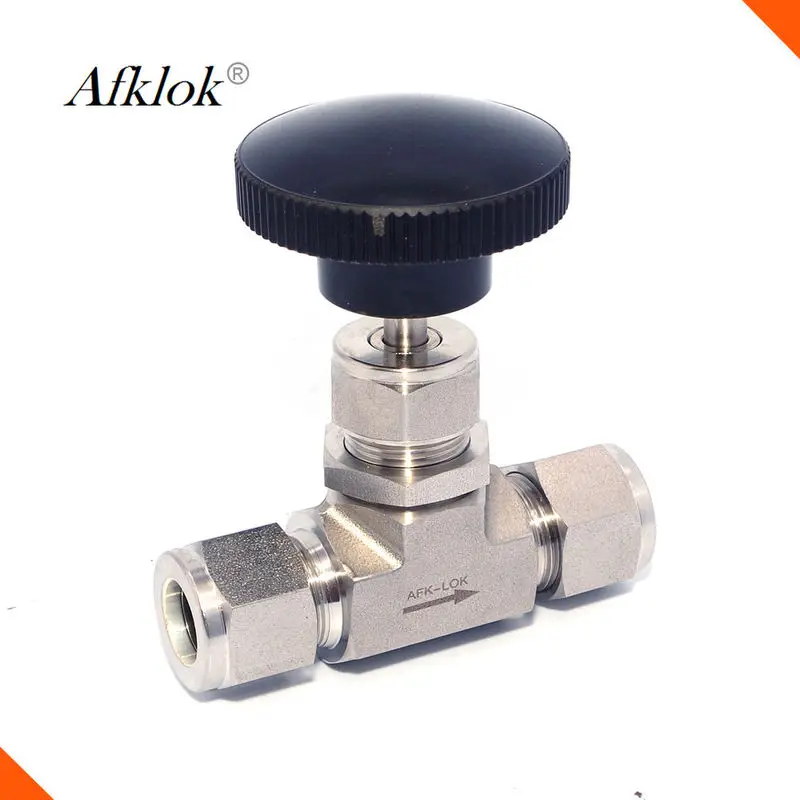

Газовый воздушный фланец, клапан, игла
Газовый воздушный фланец, клапан, игла
Газовый воздушный фланец, клапан, игла

Газовый воздушный фланец, клапан, игла

Share on (60430068438):


Price:8,99 $ - 23,33 $

Quantity:


Product Overview

Description



Product Description








Specification


Item
Part Description
Qty.
Material
1
Handle
1
Phenolic Resins
2
Locking Nut
1
SS304
3
Stem
1
SS316/316L
4
Packing Nut
1
SS316/316L
5
Upper Gland
1
SS316/316L
6
Upper Packing
1
TFM1600
7
Lower Packing
1
TFM1600
8
Lower Gland
1
SS316/316L
9
Panel Nut
1
SS304
10
Body
1
SS316/316L
11
Stem Tip
1
SS630


Ordering Information
C
NV
1
1-
S6-
02

A
T
Classification
Product Name
Valve Type
Valve
Pattern
Material
Size(Fractional)
Size(Mrtric)
Connecyion Type
Packing
C:Valve
NV:needle valve
1:forged
1：inline pattern
S6:SS316
02:1/8”
4:4mm
A:AFK tube end
T:TFM1600



2.angle pattern
S6L:SS316
04:1/4”
6:6mm
MR:male BSPT thread






06:1/8”
8:8mm
FR:female BSPT thread






08:1/2”
10:10mm
MN:male NPT thread







12:12mm
FN:female NPT thread



Company Profile




WOFLY is a leading Manufacturer, Supplier and Exporter of a wide range of gas equipements, available under the brand name AFK. Wofly's success yields from high-quality, innovative products, exceptional customer service, and unequaled technical expertise in the gas& oil industry.

WOFLY offers an extensive line of components including tube fittings, control valves, shut-off and solenoid valves, pressure relief and regulators.Through the years we have learned how to properly match the gas regulation equipment with the application. Using the proper equipment for the job eliminates problems such as contamination, pressure variances, safety issues, and equipment mismatch.


FAQ


1. who are we?
We are based in Guangdong, China, start from 2011,sell to Southeast Asia(20.00%),Africa(20.00%),Eastern Asia(10.00%),Mid East(10.00%),Domestic Market(5.00%),South Asia(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),South America(5.00%),Eastern Europe(5.00%),North America(5.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
pressure regulator,Tube fittings,solenoid valve,Needle valve,check valve

4. why should you buy from us not from other suppliers?
We have a couple of years with professional engineers and dedicated technicians.can provide security products for you

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
