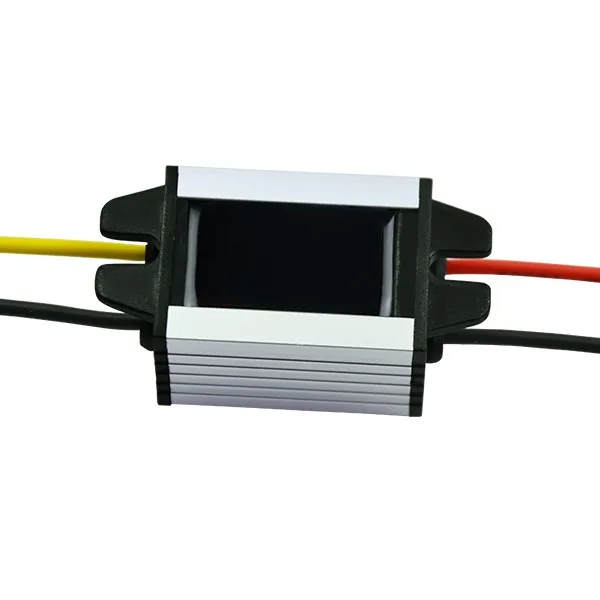

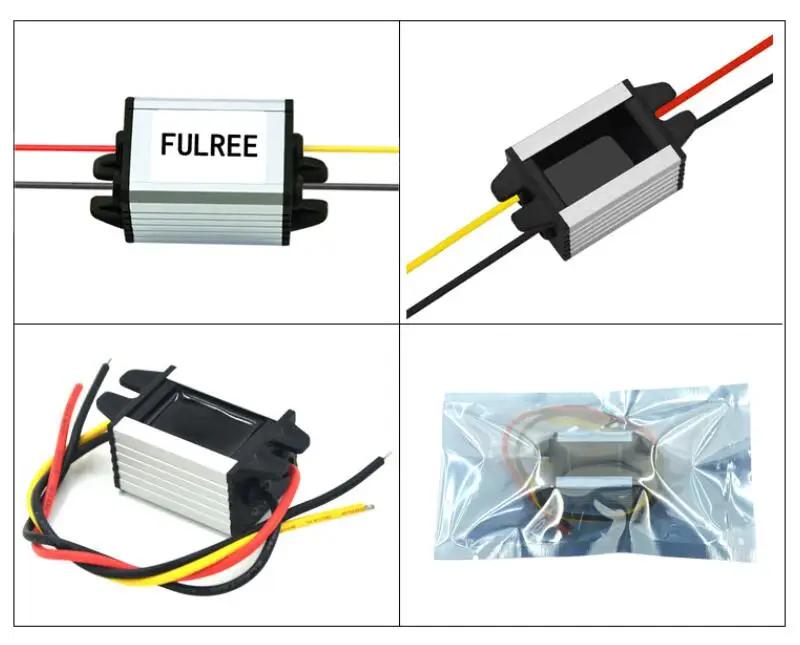

Waterproof 12V to 7.5V 3A DC DC Buck Voltage Converter 12 Volt Step Down to 7.5 Volt 3 Amps Module
- Category: >>>
- Supplier: Shenzhen Fulree Electronics Co. Ltd.
Share on (60430179674):
Product Overview
Description
Waterproof 12V to 7.5V 3A DC DC Buck Voltage Converter 12 Volt Step Down to 7.5 Volt 3 Amps Module
| Model | F23J7.75V3A1L (Old:1207503L) |
| Input rated voltage | DC 12V |
| Input voltage range | DC 10-23V |
| Efficiency | 93% (half load), 91% (full load) |
| Output voltage | DC 7.5v(minimum pressure difference:3V) |
| Output current | 3A Max |
| Output rated power | 22.5W Max |
| Voltage regulation | < 3% |
| Load regulation | < 2% |
| Working temperature | -40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) |
| Module Properties | non-isolated buck module(buck) |
| Rectification | synchronous rectification |
| Waterproof rating | IP68 |
| Full load temperature rise: | 50°c |
| Protection | Over-current, Over-temperature, Input Reverse Polarity Protection, Short-circuit protection, Auto-recovery when device is back to normal operating, waterproof IP68 design, anti-shock protection |
| NW | 32G |

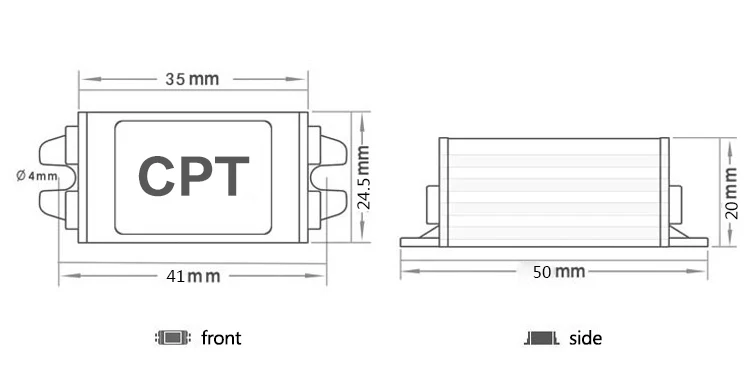

| Product size | 35*24.5*20mm |
Other output voltage available | 3.3V, 3.7V, 4.2V, 5V, 6V, 7.5V, 9V (pls contact with our sales manager if need) |
Attention: >Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged | |
