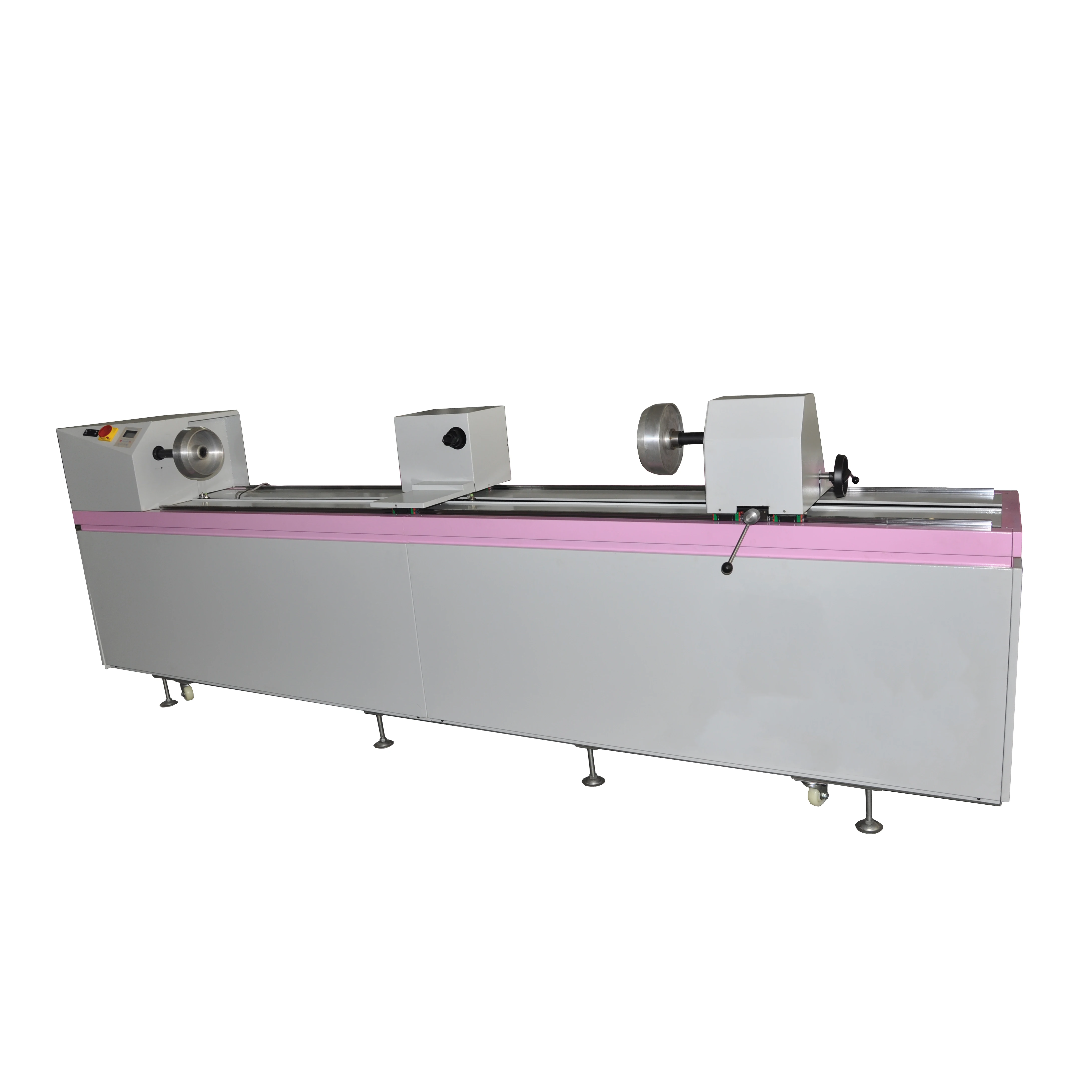

2.2m Rotary Screen Engraving Machine

Rotary Screen Engraving Machine is the latest plate making technology for rotary screen printing companies. This platemaking equipment is very similar to  SPGprints multi-beam smartLEX. The general step is as below process. Nickle screen is coated by photo-sensitive emulsion firstly. Then lacquer-coated rotary screen be put into a low temperature oven for drying. The next rotary screen engraving process can be finished around 20 minutes.This screen exposing machine adopt 16 Diodes which generate 405nm UV light to direct exposure the none-pattern area. Next followed by developing procedure to show the rotary screen design pattern and checking. Then the nickle screen is put into the high temperature oven to harden for durability use. And coming with last step to put end ring on.

Rotary Screen Engraving Machine specification
Model	GR2200
Blue ray laser	16 pieces 405nm blue-ray laser diodes
Screen width	2200mm
Screen repeat	640mm(standard), 820mm, 914mm, 1018mm optional.
Resolution(XY)	720dpi-2540dpi.
Repeatablity accuracy	Continuous exposure for two times or above on the same plate with a temperature of 23℃ and humidity of 60%
Engraving speed	6～8min./m(640mm)
Support file format	Bmp，tif，pdf
Power supply	220v-50hz-2kv
Emulsion	Photo-sensitive emulsion
Data transfer interface	Universal USB
Ambient condition	Recommended:21-25℃ ，18-26℃，relative humidity 40-70%
Size/Weight	3700*1000*1500mm/1200kg（with package ）

Main Features

1) Similar technology to SPGprints multi-beam smartLEX.

2) Adopting advanced world famous brand components like Panasonic servo motor, Mitsubishi inverter, Hiwin rail etc.

3) Unique design to keep constant temperature when working.

4) Double screw nut design ensure more accuracy running.

5) Separated diode design for easy trouble shooting, increase efficiency. One minute to finish 16 diodes testing and calibration

6) No consumption material like wax, ink, or film. Cost saving.

7) Using ordinary emulsion, perfect match to rotary screen printing companies previous technology.

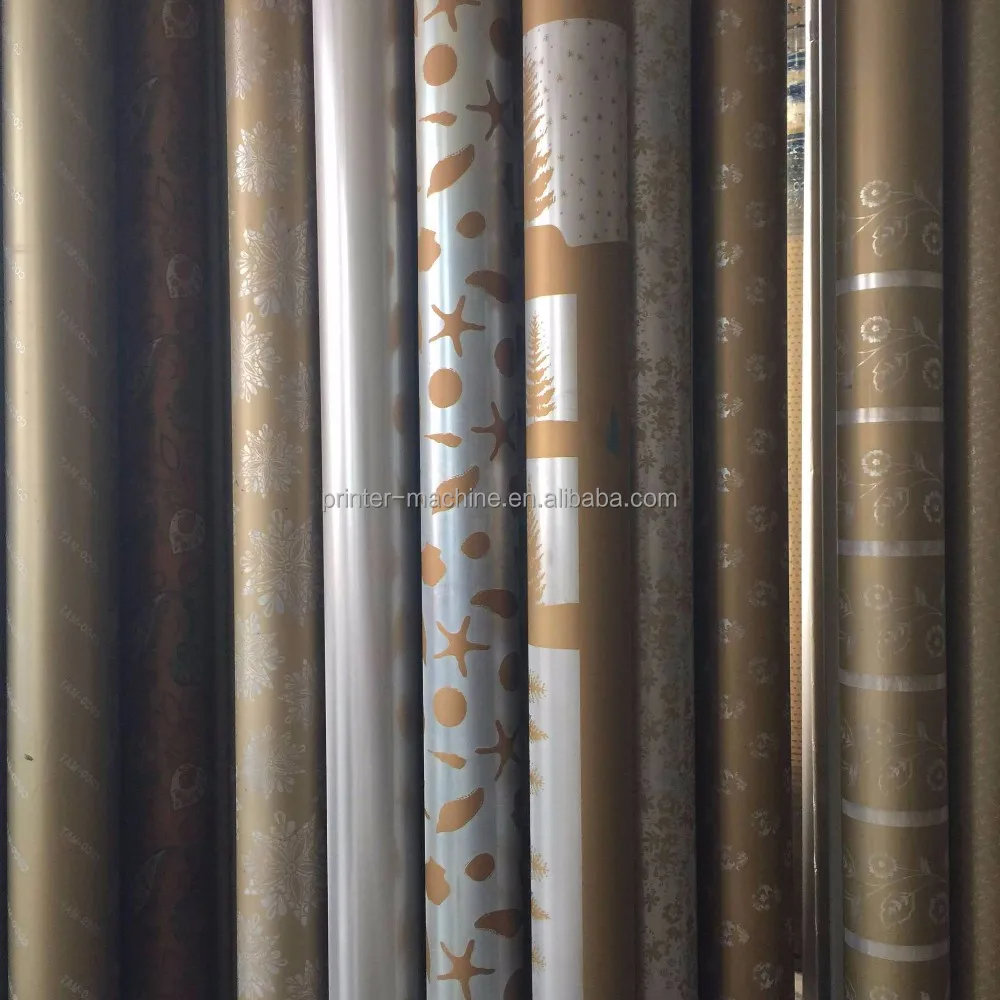

8) Direct exposure technology perfectly reappear fine design.

Certifications

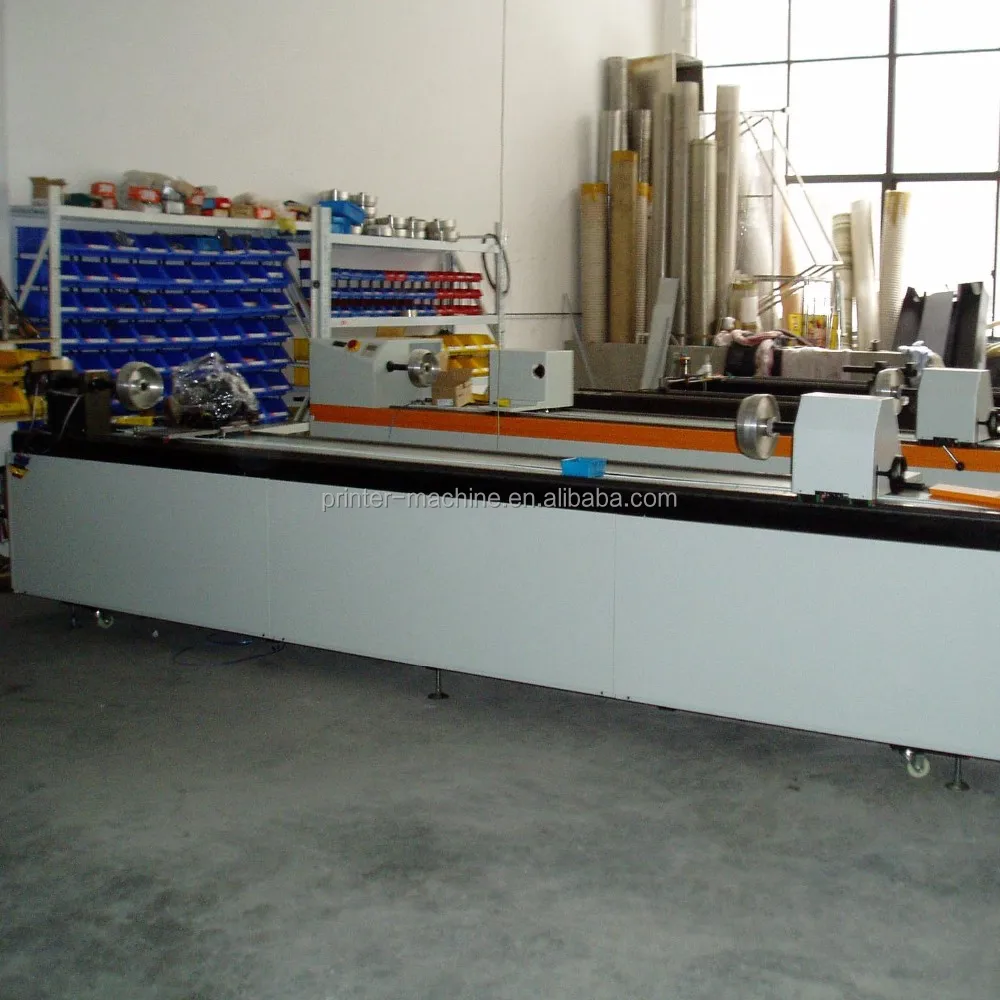

Detailed Images

Best conditioned 16 pieces laser diodes

Unique design to keep constant temperature when working

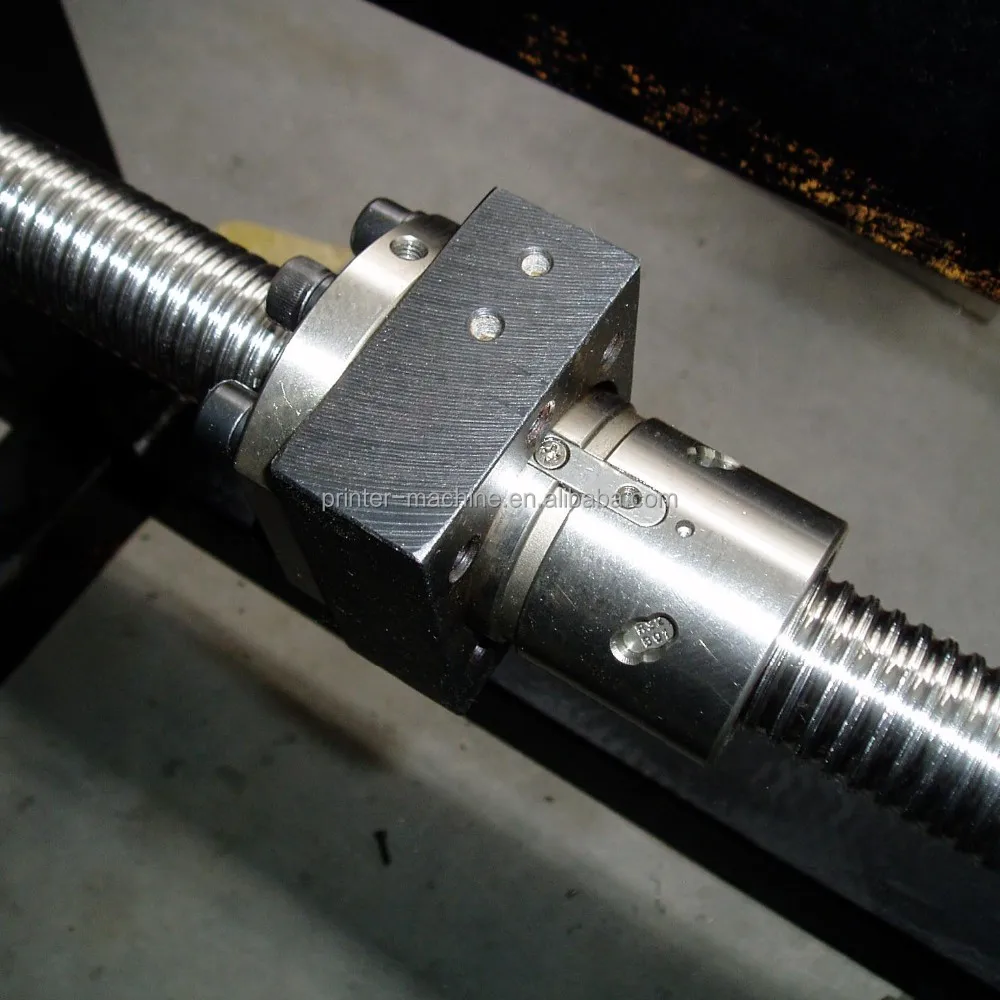

Double screw nut design

Double screw nut design ensure more accuracy running

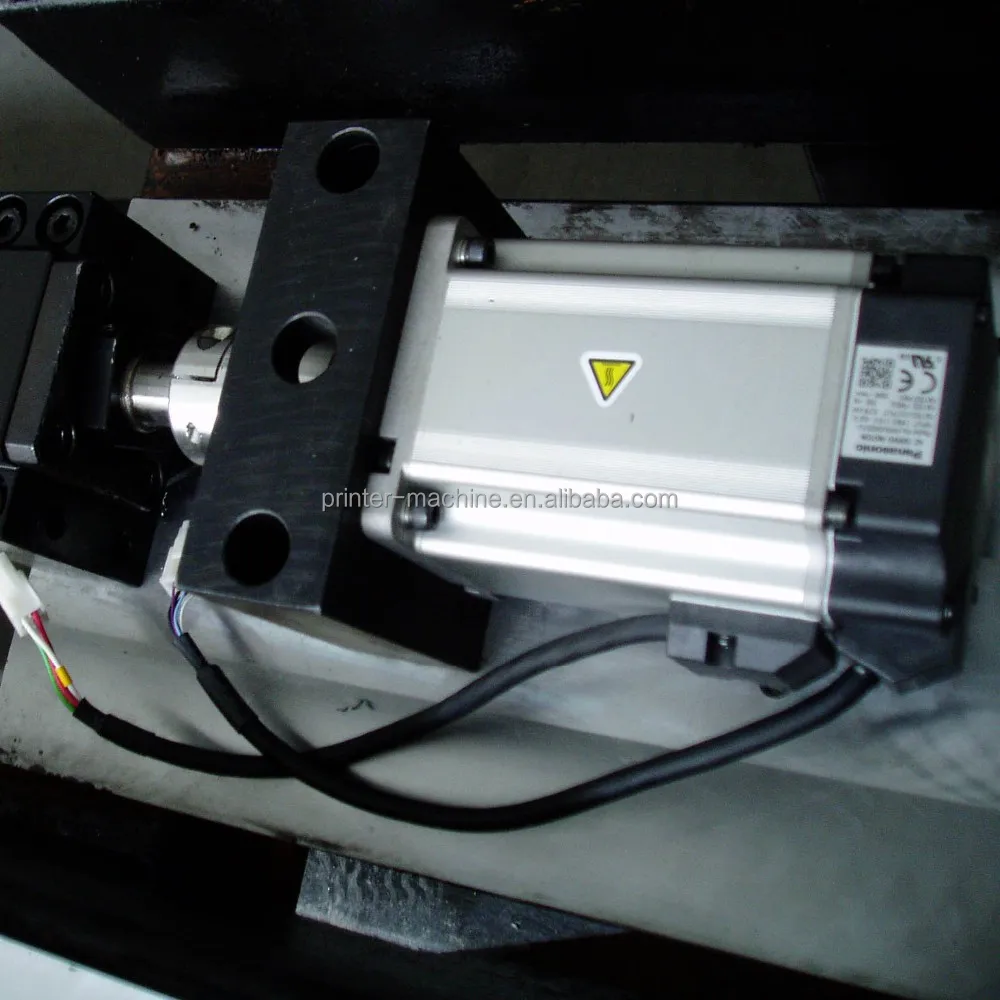

Panasonic servo motor, Mitsubishi inverter

Adopting advanced world famous brand components.

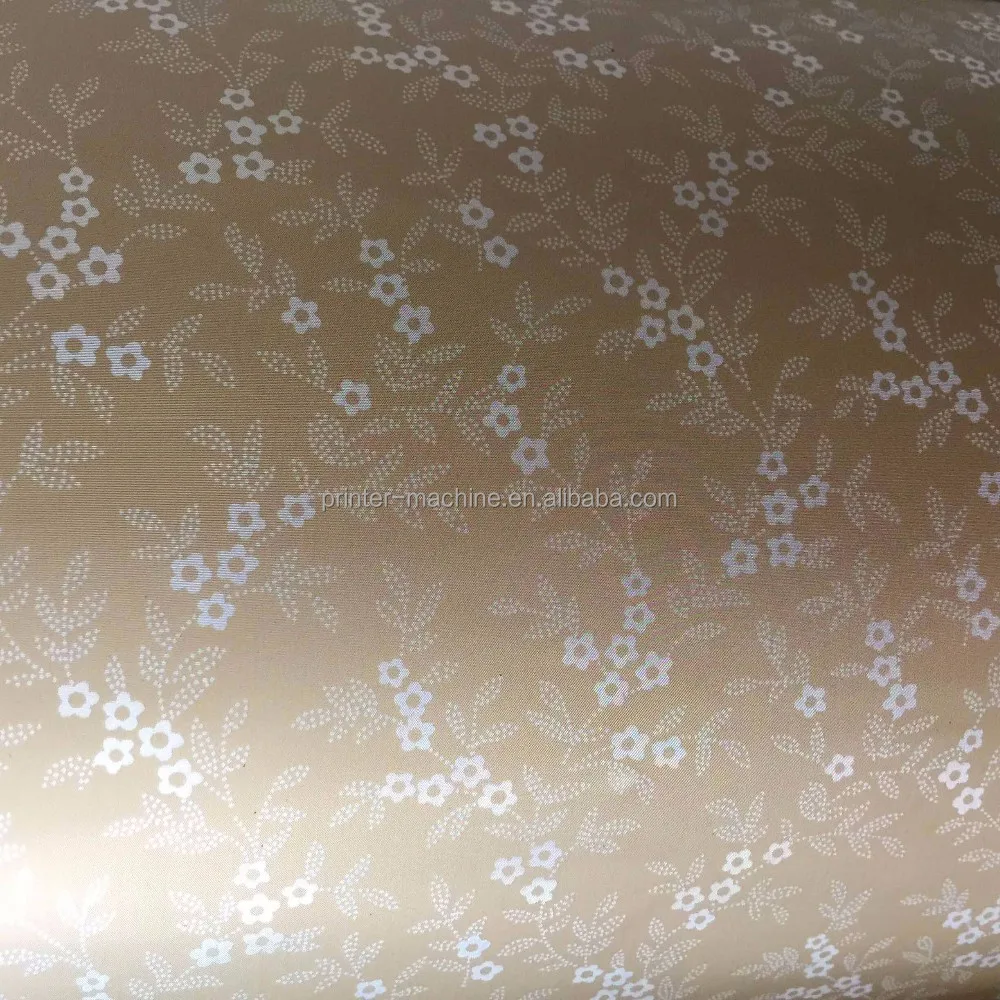

Direct exposure technology

It not only perfectly reappear fine design, but also got no consumption material like wax, ink, or film. Cost saving
