B.JG I one Layer plastic tube extruder and cutting Machine
- Category: >>>
- Supplier: Shanghai Sunway International Trade Co. Ltd.
Share on (60430307141):
Product Overview
Description
Product Description
THE FEATURES OF CO-EXTRUSION TUBE
Plastic material has its own characters .In co-extrusion system, we use and combine several kinds of materials. Therefore, the
characters of single layer tube can’t compete with the complex characters of co-extrusion tube.
1. Glossy surface ( using :EVOH/RESIN/PE)
2. Extensive colour combination ( using :PE+PEARL/PE+PLGMENT)
3. Excellent barrier property (using : PE/TIE RESIN/EVOH/TIE RESIN/PE)
4. Scratch and dust free (using :LDPE/LDPE/LLDPE)

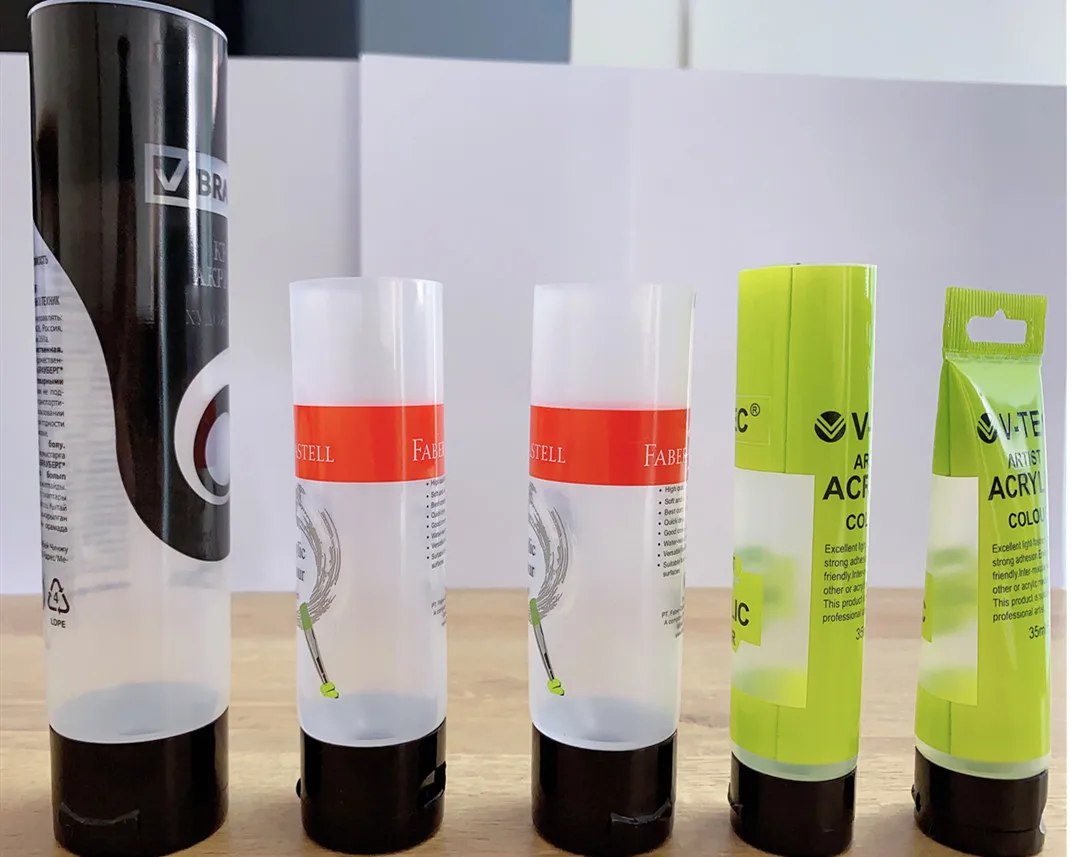

Co-extrusion is used on pesticide container, toothpaste, side window, multicolour, long preservative cosmetic…etc.
MAIN SPECIFICATIONS
1. Screw Dia(inner) : φ50mm,L/D:30/1
2. Screw Dia(resin) : φ40mm,L/D:28/1
3. Screw Dia(EVOH) : φ35mm,L/D:26/1
4. Screw Dia(outer) : φ45mm,L/D:32/1
5. Screw Type :Full Flight
6. Motor :7.5HP×1pcs, 5P×2cs, 10×1pcs
7. Water Consumption:60L/min
8. Power Consumption:95.5kw
9. Extrusion Linear Speed:8m/min(φ50mm)
10.Cutting Speed:100pcs/min
11.Tube Dia Range: φ19~60mm
12.Machine Size:6800×3500×2300mm
13.Total New Weight: approx 5200kg
Plastic material has its own characters .In co-extrusion system, we use and combine several kinds of materials. Therefore, the
characters of single layer tube can’t compete with the complex characters of co-extrusion tube.
1. Glossy surface ( using :EVOH/RESIN/PE)
2. Extensive colour combination ( using :PE+PEARL/PE+PLGMENT)
3. Excellent barrier property (using : PE/TIE RESIN/EVOH/TIE RESIN/PE)
4. Scratch and dust free (using :LDPE/LDPE/LLDPE)
Co-extrusion is used on pesticide container, toothpaste, side window, multicolour, long preservative cosmetic…etc.
MAIN SPECIFICATIONS
1. Screw Dia(inner) : φ50mm,L/D:30/1
2. Screw Dia(resin) : φ40mm,L/D:28/1
3. Screw Dia(EVOH) : φ35mm,L/D:26/1
4. Screw Dia(outer) : φ45mm,L/D:32/1
5. Screw Type :Full Flight
6. Motor :7.5HP×1pcs, 5P×2cs, 10×1pcs
7. Water Consumption:60L/min
8. Power Consumption:95.5kw
9. Extrusion Linear Speed:8m/min(φ50mm)
10.Cutting Speed:100pcs/min
11.Tube Dia Range: φ19~60mm
12.Machine Size:6800×3500×2300mm
13.Total New Weight: approx 5200kg
Company Profie
With more than 10 years of development history, Sunway Enterprise is a trans-regional and trans-industry enterprise
integratingresearch, development, manufacturing and trade. It owns Shanghai Sunway International Trade Co., Ltd., Jiangsu Tongzhou Sunway Machinery Manufacturing Co., Ltd., Guangzhou Sunway Industrial Co., Ltd., and Hewang Packaging & Printing Co., Ltd. in Nigeria Ogun Guangdong Free Trade Zone.With Jiangsu Tongzhou Sunway Machinery Manufacturing Co., Ltd. as the manufacturing base of machinery products, Sunway Enterprise is devoted to researching, developing and manufacturing various types of machinery products,which mainly include daily chemical machinery, pharmaceutical machinery, packaging machinery, food machinery and various stainlesssteel products.
Main products:
Automatic aluminum-plastic composite packaging tube and automatic plastic packaging tube production lines, packaging
tubeprinters,packaging tube drilling, sealing and capping machines, various types of packaging tube filling and sealing
machines,color ribbon filling and sealing machines and other ointment production equipment; vacuum ointment makers, vacuum homogenizing emulsifiers,mixers, reaction kettles and other production equipment for ointments, washing products and condiments.
Product research and development:
During the long-time manufacturing practice, we have successfully developed and manufactured many series of packaging machines and auxiliary machinery with several tens of varieties. Now we have formed professional packaging system engineering technologies that enable us to carry out design and manufacturing of packaging machinery according to customers’ enterprise status, practical production situations and special requirements, as well as provide installation commissioning, technical training, etc. for customers.
Technical cooperation:
We have always been bearing the responsibility of “integrating world’s advanced technologies and creating the brilliance of national industry”, and devoting ourselves to digestion, absorption and mastery of internationally advanced processing techniques and cutting-edge technologies of packaging machinery. We have cooperated with many foreign companies and acquired profound
understanding of the internationally advanced packaging technologies.
integratingresearch, development, manufacturing and trade. It owns Shanghai Sunway International Trade Co., Ltd., Jiangsu Tongzhou Sunway Machinery Manufacturing Co., Ltd., Guangzhou Sunway Industrial Co., Ltd., and Hewang Packaging & Printing Co., Ltd. in Nigeria Ogun Guangdong Free Trade Zone.With Jiangsu Tongzhou Sunway Machinery Manufacturing Co., Ltd. as the manufacturing base of machinery products, Sunway Enterprise is devoted to researching, developing and manufacturing various types of machinery products,which mainly include daily chemical machinery, pharmaceutical machinery, packaging machinery, food machinery and various stainlesssteel products.
Main products:
Automatic aluminum-plastic composite packaging tube and automatic plastic packaging tube production lines, packaging
tubeprinters,packaging tube drilling, sealing and capping machines, various types of packaging tube filling and sealing
machines,color ribbon filling and sealing machines and other ointment production equipment; vacuum ointment makers, vacuum homogenizing emulsifiers,mixers, reaction kettles and other production equipment for ointments, washing products and condiments.
Product research and development:
During the long-time manufacturing practice, we have successfully developed and manufactured many series of packaging machines and auxiliary machinery with several tens of varieties. Now we have formed professional packaging system engineering technologies that enable us to carry out design and manufacturing of packaging machinery according to customers’ enterprise status, practical production situations and special requirements, as well as provide installation commissioning, technical training, etc. for customers.
Technical cooperation:
We have always been bearing the responsibility of “integrating world’s advanced technologies and creating the brilliance of national industry”, and devoting ourselves to digestion, absorption and mastery of internationally advanced processing techniques and cutting-edge technologies of packaging machinery. We have cooperated with many foreign companies and acquired profound
understanding of the internationally advanced packaging technologies.
