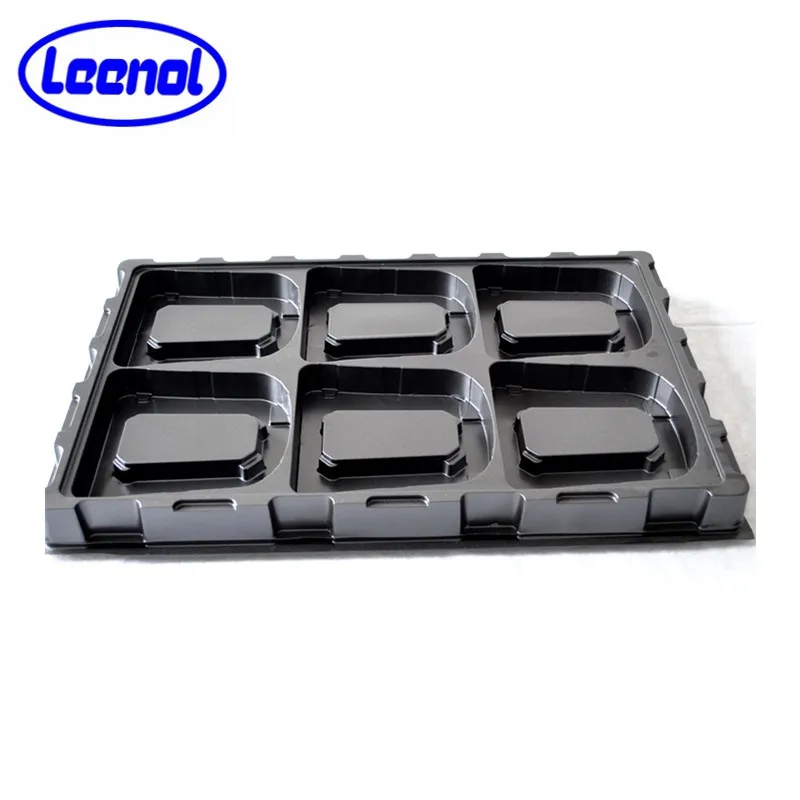

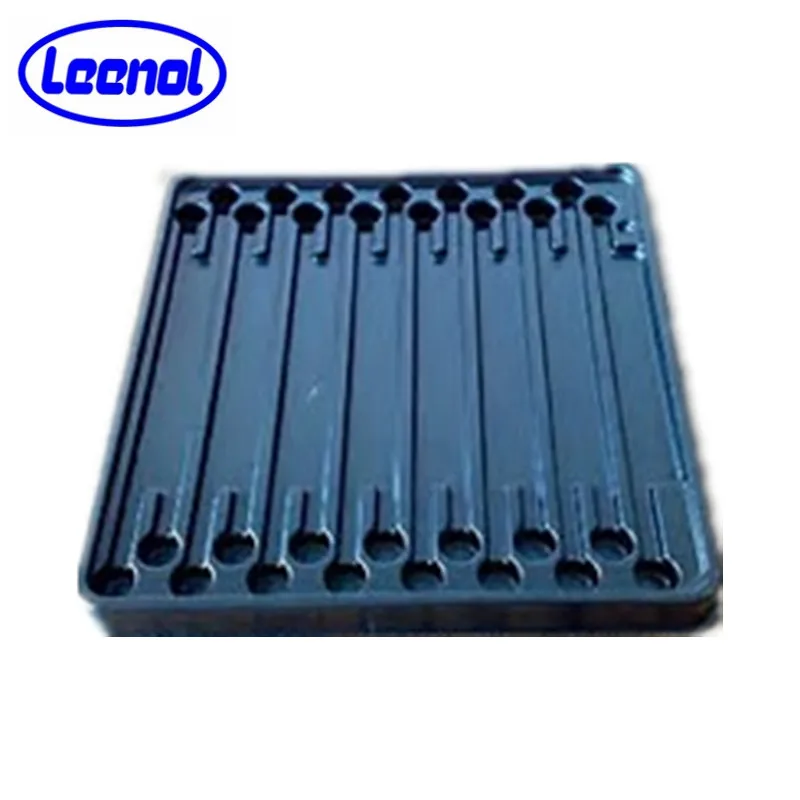

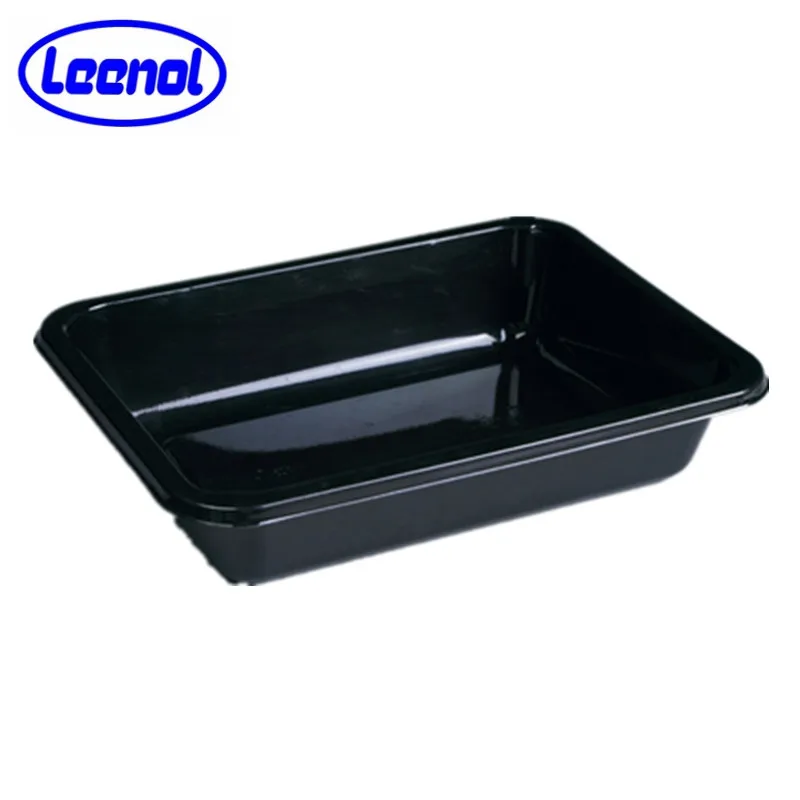

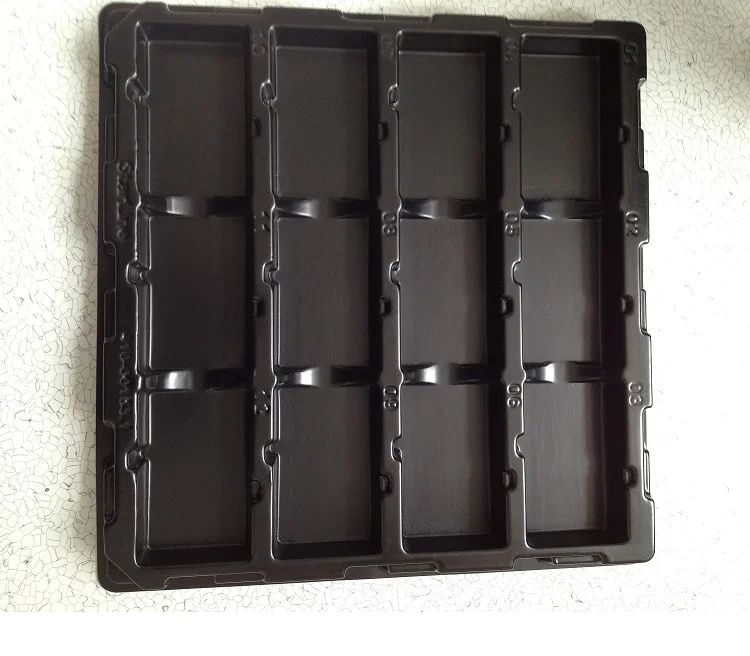

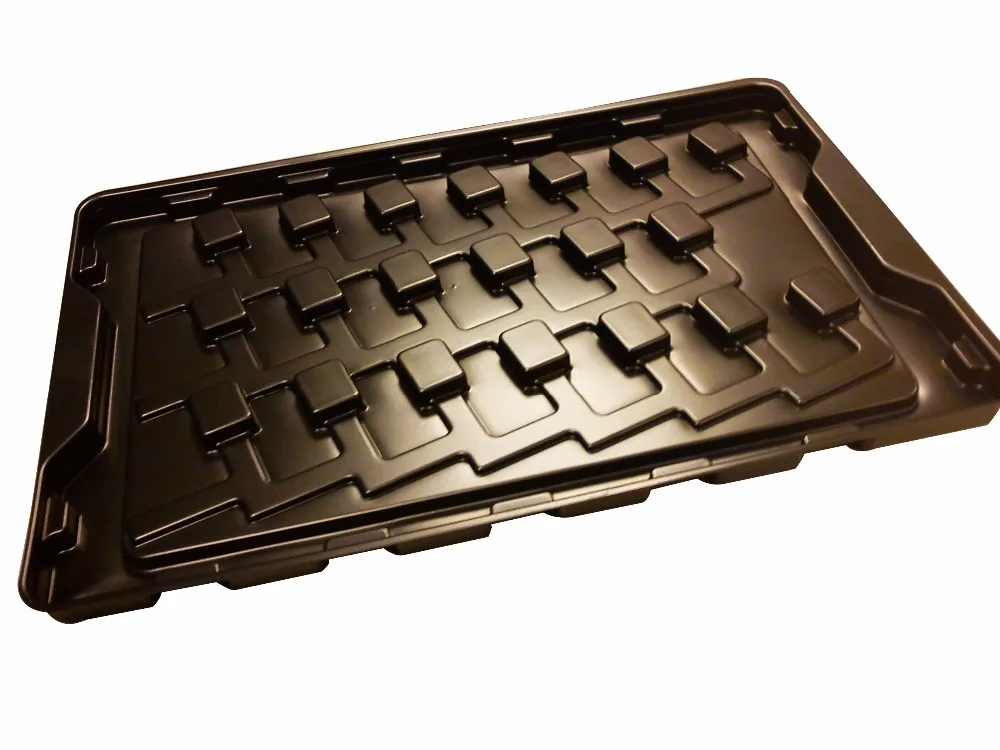

Customized ESD PS blister PCB storage Tray PCB tray blister packaging tray
Customized ESD PS blister PCB storage Tray PCB tray blister packaging tray
Customized ESD PS blister PCB storage Tray PCB tray blister packaging tray
Customized ESD PS blister PCB storage Tray PCB tray blister packaging tray
Customized ESD PS blister PCB storage Tray PCB tray blister packaging tray
Customized ESD PS blister PCB storage Tray PCB tray blister packaging tray
Customized ESD PS blister PCB storage Tray PCB tray blister packaging tray

Customized ESD PS blister PCB storage Tray PCB tray blister packaging tray

Share on (60430377032):


Price:

Quantity:


Product Overview

Description



Product Description


Customized ESD blister packaging Tray. square PCB packing blister thermo forming tray
Other name: antistatic blister tray, ESD packing tray. conductive ps blister, anti-static ther
ESD thermo forming tray

Specifications:
Plastic Blister Packing
- Vacuum formed Tray
- PVC, PS material
- Logo or name customized
- CAD drawing and 3D modelin

General Information:
Plastic blister packing tray is made of PVC or PS as basic material. It can nomal or be made with antistatic or ESD properties with black color. It has very good property and the conductive property will not be influenced by any humidity and temperature
factors. It is permanent conductive.





Specification






Material
PS, HIPS
Thickness
0.3-8.0mm
Appearance
Transparent or black
Conductive
10e4-10e6 ohms
Anti-static
10e6-10e9 ohms / 10e9-10e11 ohms
Model
LN-3400
Product
Customized according to your PCB size and storage box inner size


Property
Test Method
British System
Value Unit
Intl. System
Value Unit
Metric System
Value Unit
Basic Physical Property
Melt flow rate
ASTM D 1238
2.8 g/10 min
2.8 g/10 min
2.8 g/10 min
Proportion
ASTM D 792
1.05
1.05
1.05
Extrusion molding data
Mechanical Property
Tensile Strength
ASTM D 638
2600 psi
18 Mpa
183 kg/cm2
Breaking Strength
ASTM D 638
2400 psi
17 Mpa
169 kg/cm2
Breaking Elongation
ASTM D 638
40 %
40 %
40 %
Tensile Modulus
ASTM D 790
230000 psi
1600 Mpa
16200 kg/cm2
Notch Impact Strength @23 oC
ASTM D 256
1.4 ft-lb/in
75 J/m
8 kg-cm/cm
Thermal Property
Vicat Softening Point
ASTM D 1238
212 oF
100 oC
100 oC
Heat Distortion Temperature @1.8MPa
ASTM D 648
198 oF
92 oC
92 oC
