300bar high pressure air compressor, 300bar scuba diving gasoline Air Compressor
- Category: >>>
- Supplier: Zhengzhou Qugong Machinery Equipment Co. Ltd.
Share on (60430434149):
Product Overview
Description
300bar high pressure air compressor, 300bar scuba diving gasoline Air Compressor
Product Description

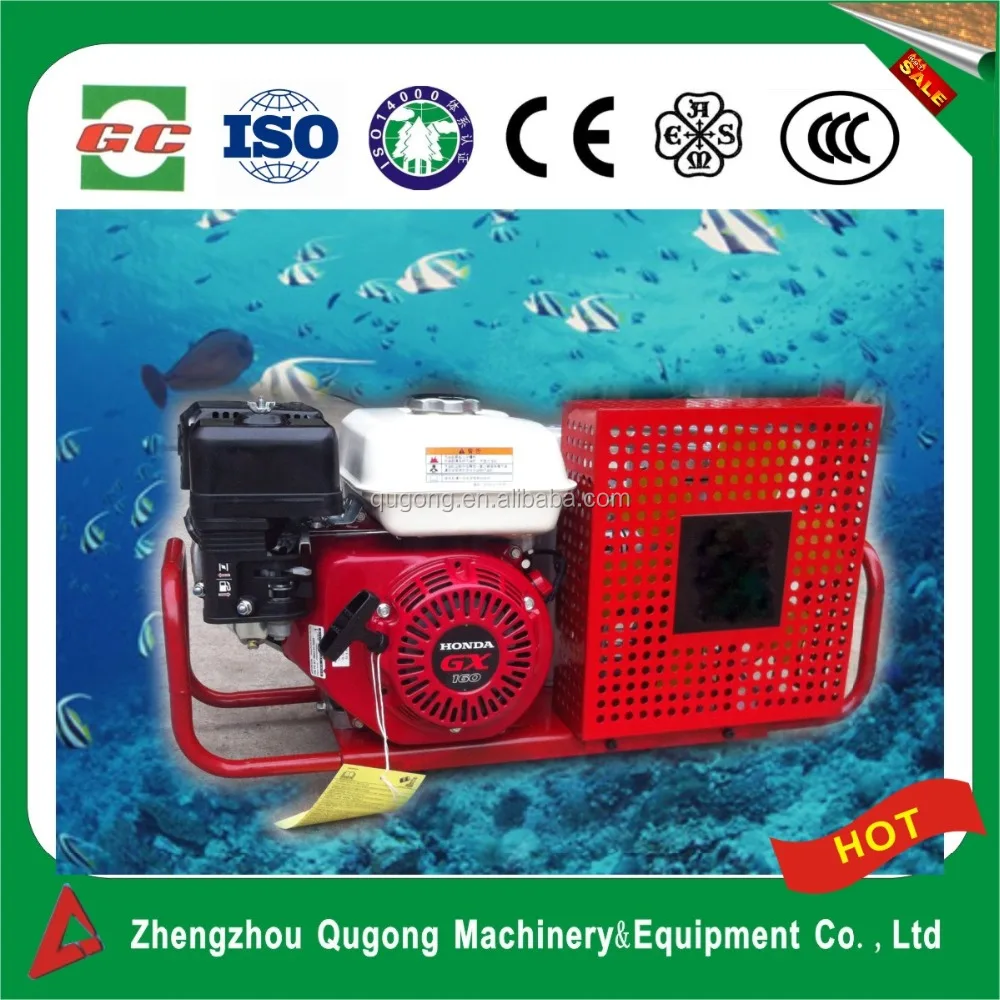

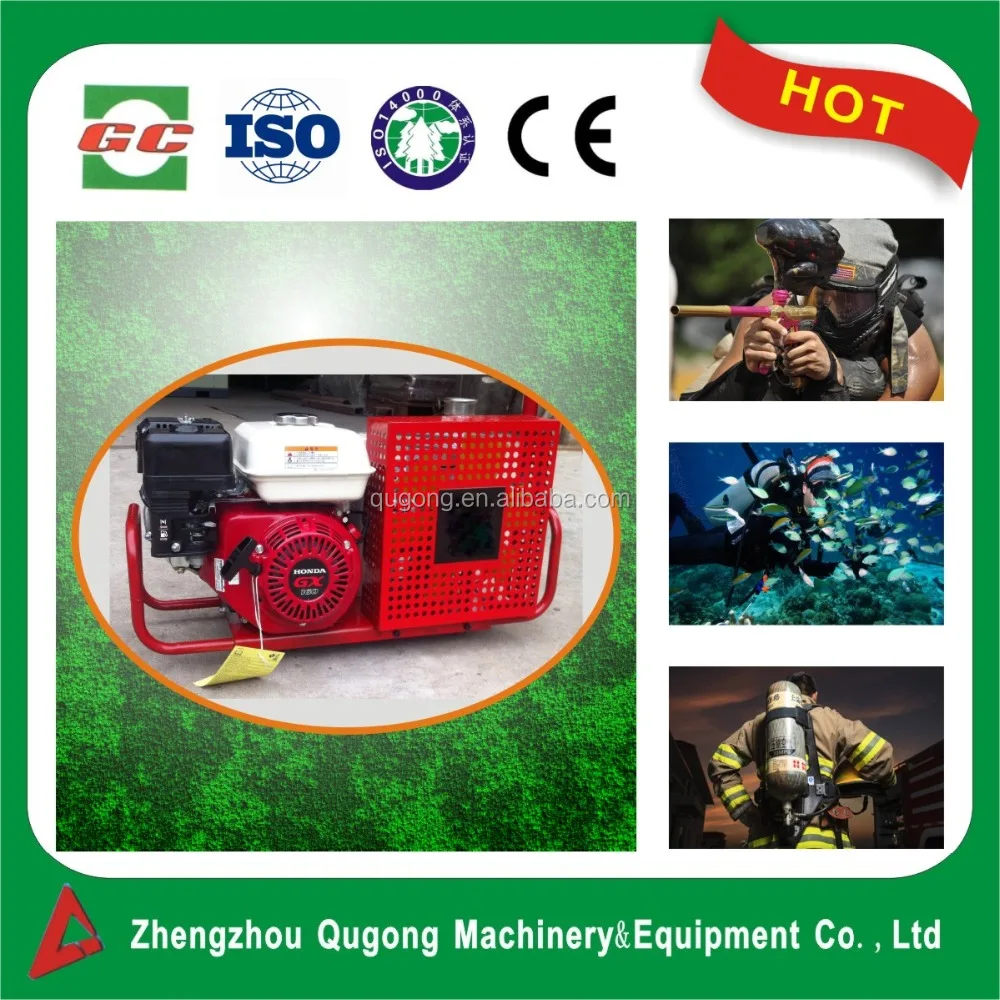

Our QG100 series high-pressure air filling pump is driven by Honda gasoline engine without power supply. It is small in size, light in weight and portable inflated. The compressed air meets Chinese GB18435-2001 diving breathing air standard and the EU EN12021 breathing standard. Mainly used in diving, fire fighting, paintball, aerospace, petrochemical, air tightness testing, blasting, precision instruments and other fields. It can also provide clean, safe and reliable gas sources for other industries. It is composed of reliable and high-life components, featuring compact structure, simple maintenance, easy to use and pure export gas. The air-filling pump acts as a machine for increasing gas pressure or conveying gas, and can directly compress the free air to a compressed air with a gauge pressure of 225 bar/330 bar, which flows through the separator, filter and After cooling, the oil and impurities contained in the high-pressure air are removed, and the discharged clean and odorless gas is compressed into a high-pressure gas cylinder or a high-pressure vessel, which is a reliable high-pressure gas supply device.
Production Details
4-stage air-cooled reciprocating piston air compression
oil splash lubrication
stainless inter-cooler and after-cooler
specially treated alloy cylinder and pistons
high-strength nylon cooling fan assembly
Manual condensate drain system
Terminal safety valve pressure stepless adjustment
2 stage filters
precision air-intake filter
Manual stopping device
high pressure safety valve for overload protection
anti-vibration pressure gauge
High temperature resistance plastic blowing steel frame
Filter is made by seamless aluminum alloy, outer can endure 550bar pressure
Technical Parameter
Model | Delivery rate | Filling speed | Pressure | Rotary speed | Drive | Power | Noise | Weight | Dimension |
L/min | L/min | Mpa | rpm | V | kW | dB | kg | cm | |
QG100A | 100 | 6/12 | 20 | 2800 | 380 | 2.2 | <78 | 42 | 68*37*40 |
6/19 | 30 | ||||||||
QG100B | 100 | 6/15 | 20 | 2300 | 220 | 2.2 | <78 | 42 | 68*37*40 |
6/22 | 30 | ||||||||
QG100C | 100 | 6/15 | 20 | 2200 | Honda engine | 5.5HP | <79 | 43 | 74*37*40 |
6/22 | 30 |

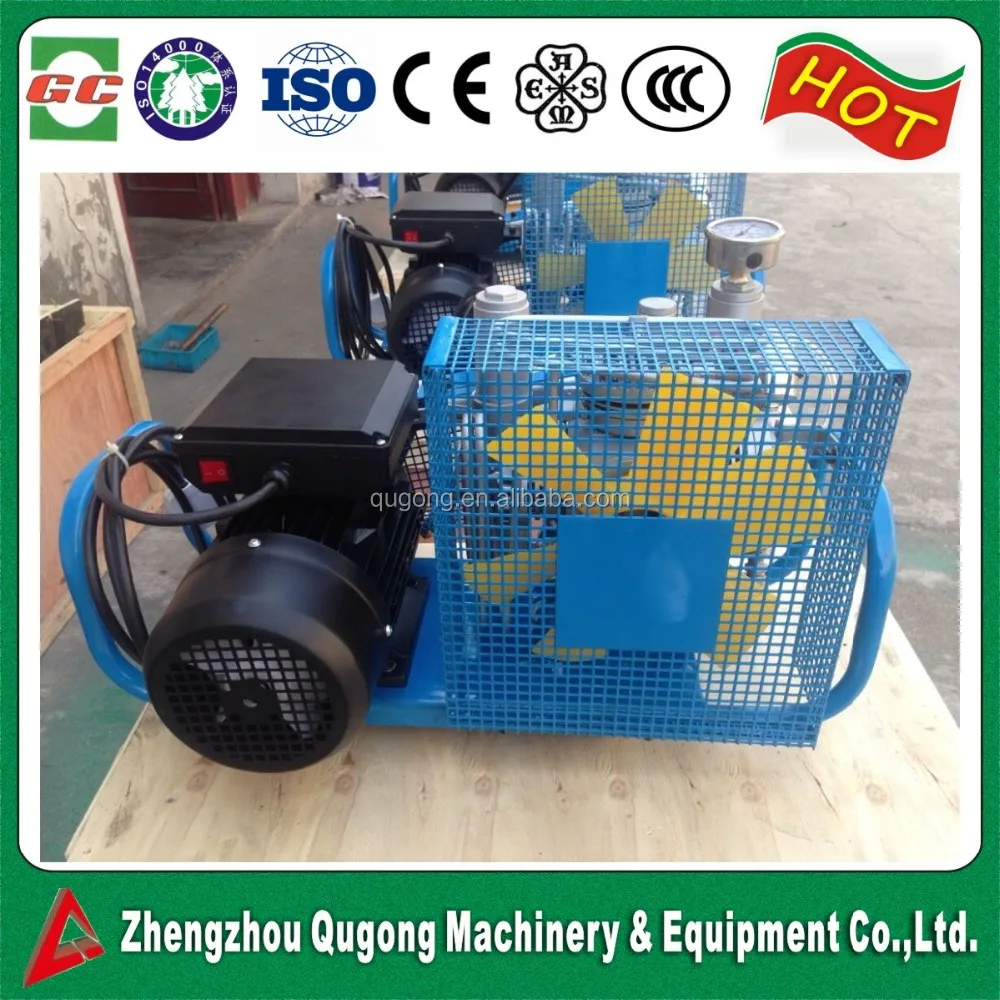

QG100A /B(QG100A-220V,QG100B-380V)
QG100C gasoline type
More pictures --
Company Information
1.We established Development Center in Jersey North America, and the top international compressor expert Dr. Tangyan designed the world-class SKY rotor ."Design in North American, Made in China."
1) Screw Type Air Compressors ( Air delivery:0.8m3/min -72m3/min;Work pressure: 8-13Bar;Power: 7.5Kw-400kw)
2) Diesel Driven Portable Screw Air Compressors (Air delivery:6m3/min-39m3/min ,Work pressure:7-35Bar,diesel engine:58kw-630kw )
3) Motor Powered Portable Screw Air Compressors( 350CFM – 910CFM)
4) Mining Piston air compressor(Air delivery:1.35m3/min -13m3/min;Work pressure:5-7Bar;Power: 11Kw-75kw)
5) Industrial piston air compressor(Air delivery:0.08m3/min -4.8m3/min;Work pressure:8-40Bar;Power: 0.75Kw-75kw)
6) Drill rig (Include Water well drill rig)
7) Rock Drill(YO18-Y19-YT23D-YT24-Y26-YT28)
8)Other products etc...
