LED strip v cut Pcb cutting separating machine with Double Knife

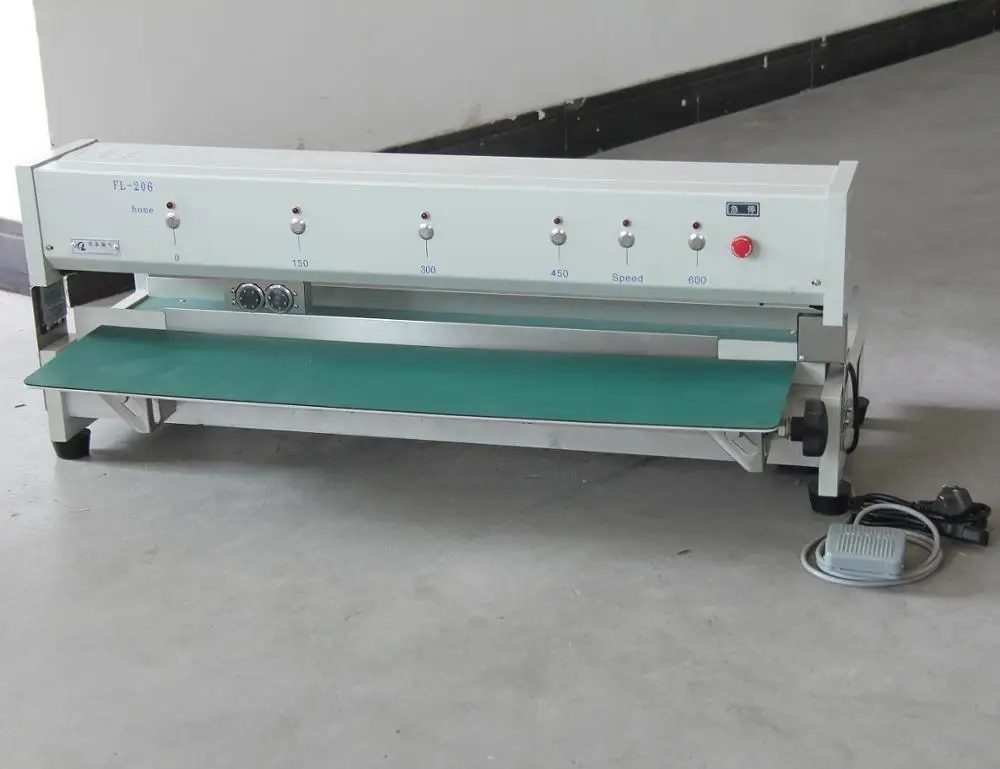

LED strip v-cut Pcb cutting separating machine with Double Knife
LED strip v-cut Pcb cutting separating machine with Double Knife

LED strip v cut Pcb cutting separating machine with Double Knife

Share on (60430624224):


Price:RUB 193,250.46 - RUB 222,981.30

Quantity:


Product Overview

Description

Product Description

 Features:

1.Any S.M.T.D.PC board (base board)with V-CUT is appropriate for this machine. especially  Aluminum base board and FR-4(e.g. light bar and so on).

2.Keep the board stable when cutting. The upper circular knife moves from side to side, which guarantees high quality.

4.Reduce stress and avoids soldered dot crack.

5.Install photoelectric induction device. When the operator puts his hand into the cutting board area, the machine will stop operation automatically.

 parameter:

separation velocity 300/500mm/SEC
V slot depth minimum 0.25mm
added external dimension after separating 0.1mm-0.2mm
PCB thickness 0.5mm-3.2mm
Residual PCB thickness standard 1/3PC board thick, min 0.2mm,max 0.8mm
cutting length over 600mm can be customized
