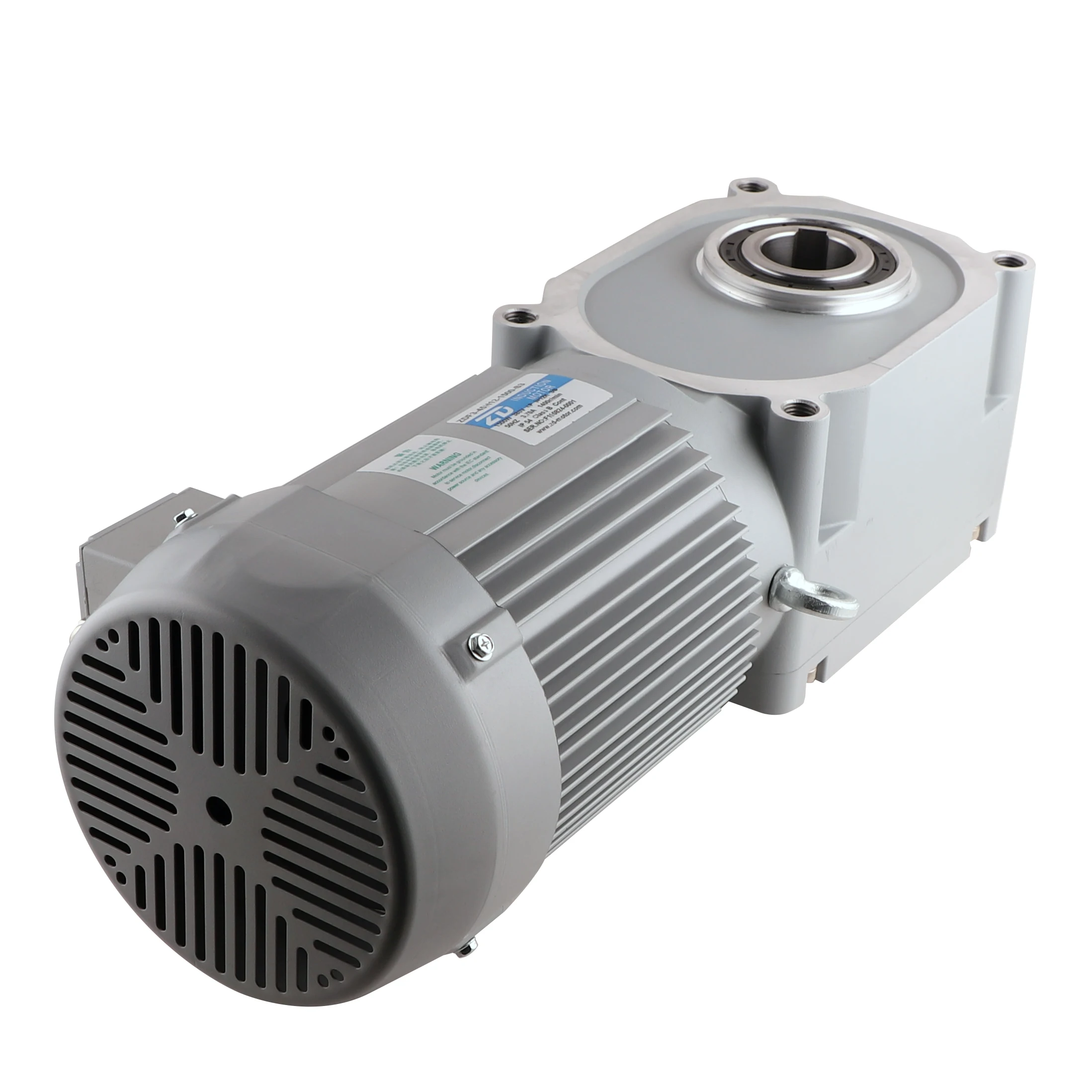

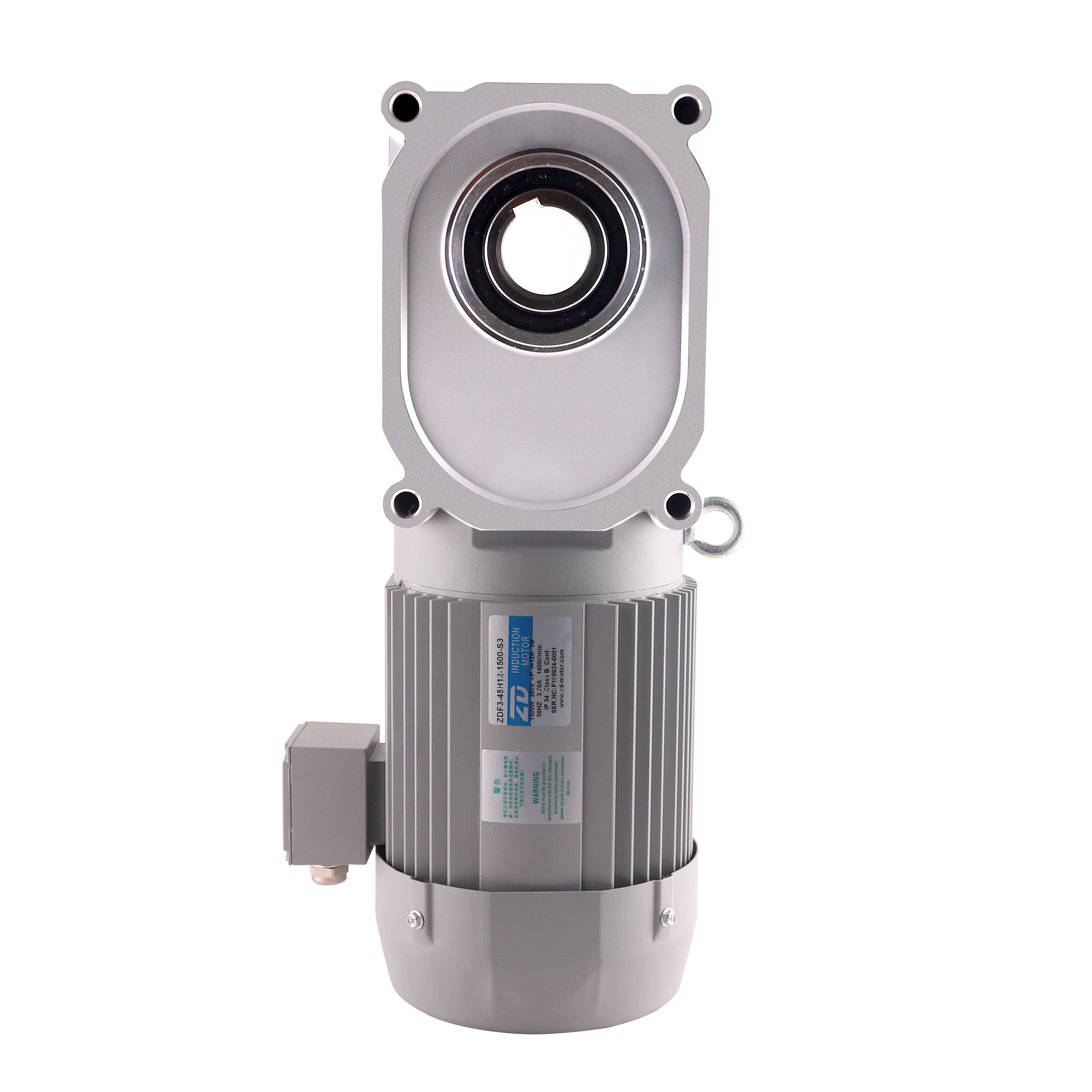

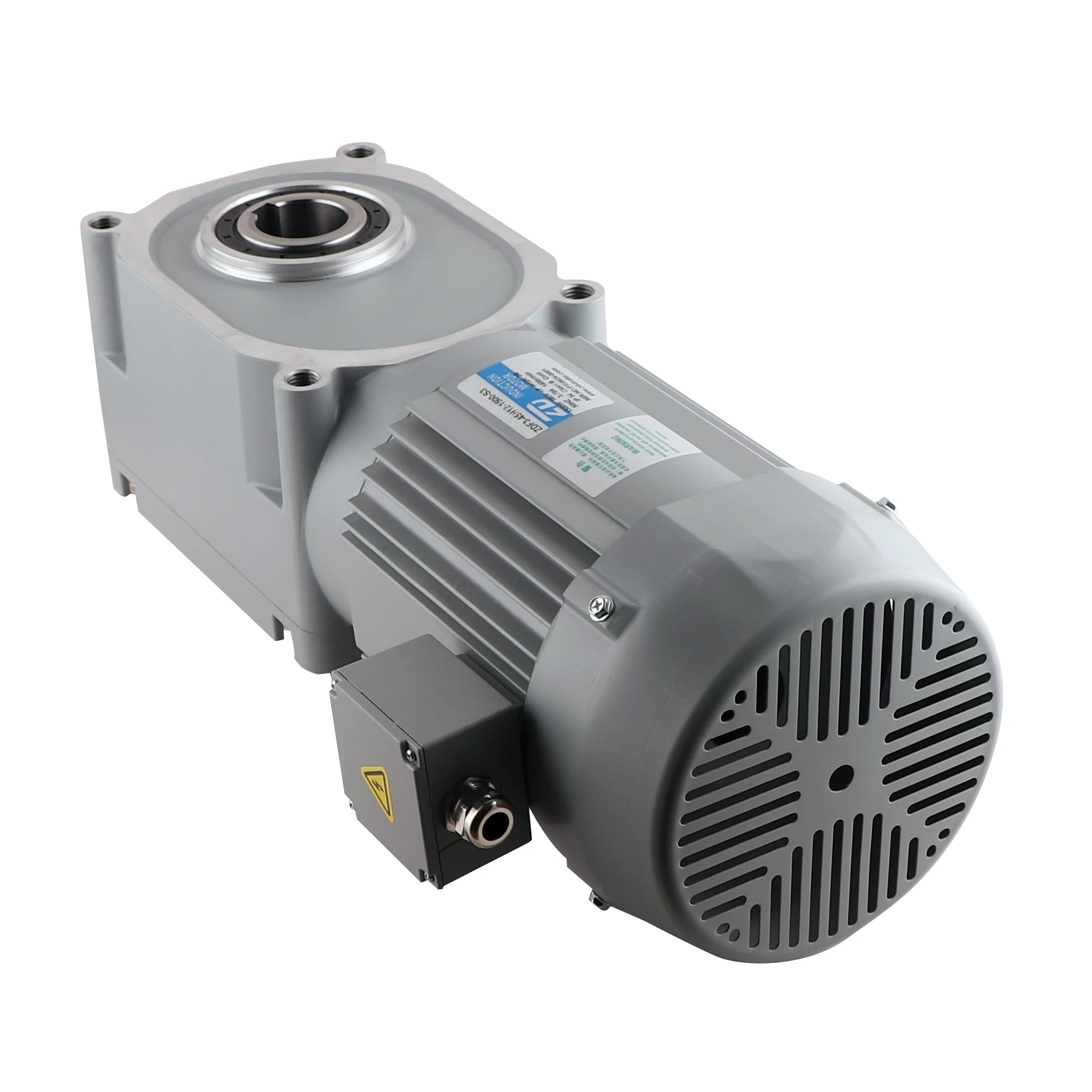

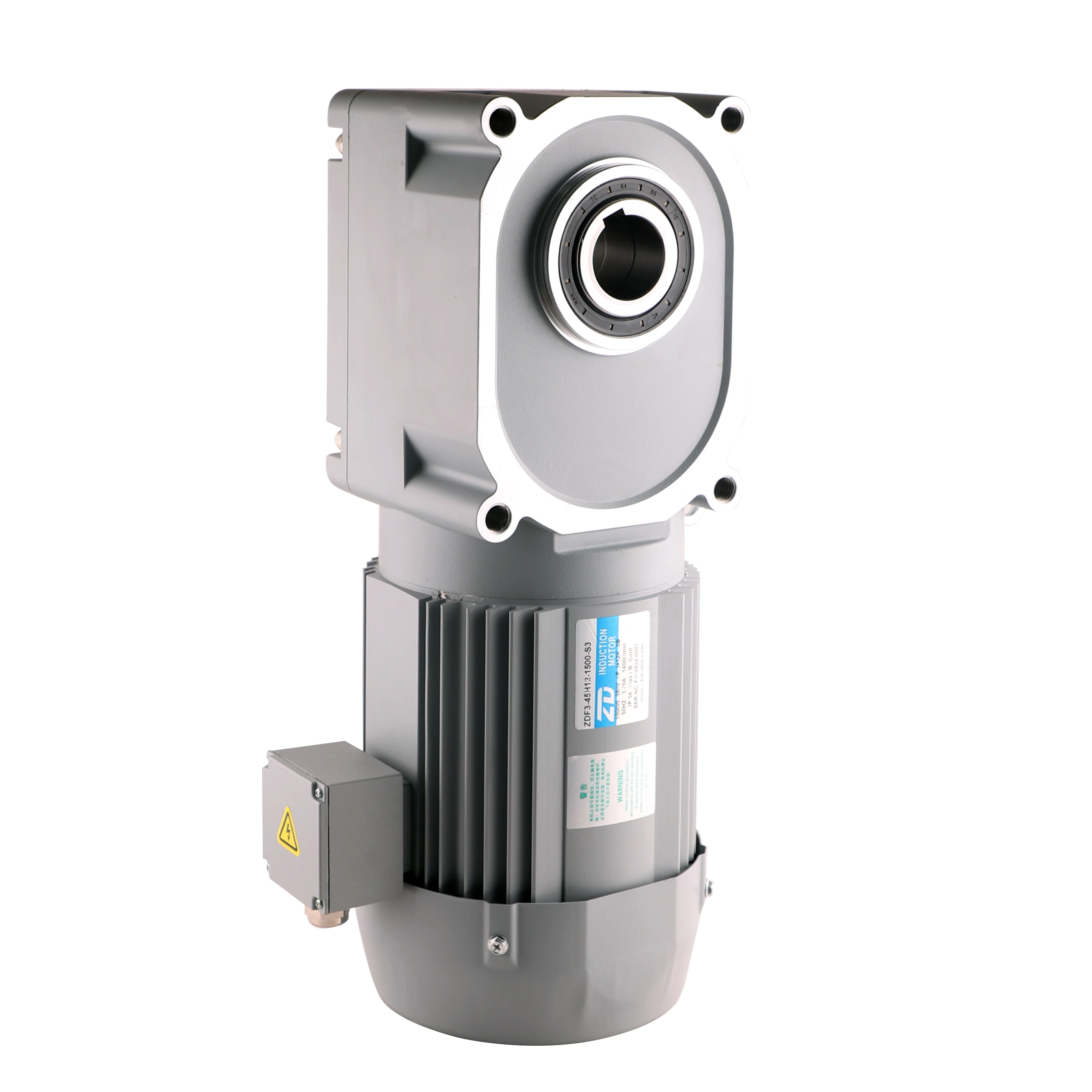

ZD Leader 3phase 200V 220V 380V 1.5kw AC Hypoid Gearmotor with Right Angle Hollow Shaft
- Category: >>>
- Supplier: Ningbo Zhongda Leader Intelligent Transmission Co. Ltd.
Share on (60430699129):
Product Overview
Description
Product Description
ZDF3 Hypoid gear motor uses three-phase AC power as the input power, which is a combination of a high-power motor and a high-strength off-axis bevel gear motor. It has advantages of small size, low noise, high efficiency, long life, diversified output shafts and installation space-saving, widely used in food packaging machine, CNC Machine tool, large security inspection machines, meat grinders, chip conveyors, assembly lines, etc.
The Features of ZDF3 Hypoid Gear Motor:
1. Space-saving
2. Stable speed control
3. The output shaft of the gear motor is positioned in the center of mounting surface, therefore when it is installed in the conveyor and other devices, whether the installation direction is left or right, it does not need to change the location of the installation hole.

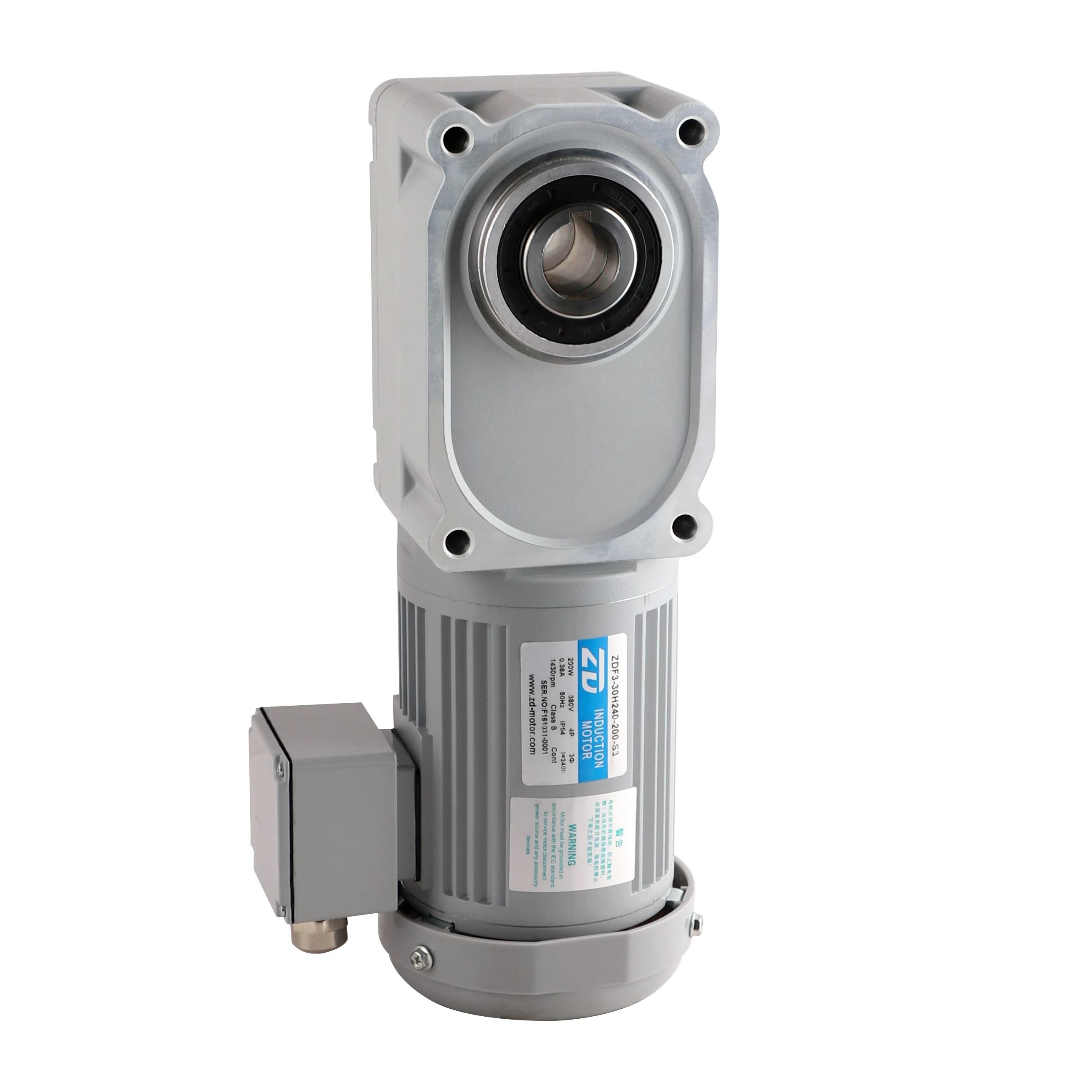

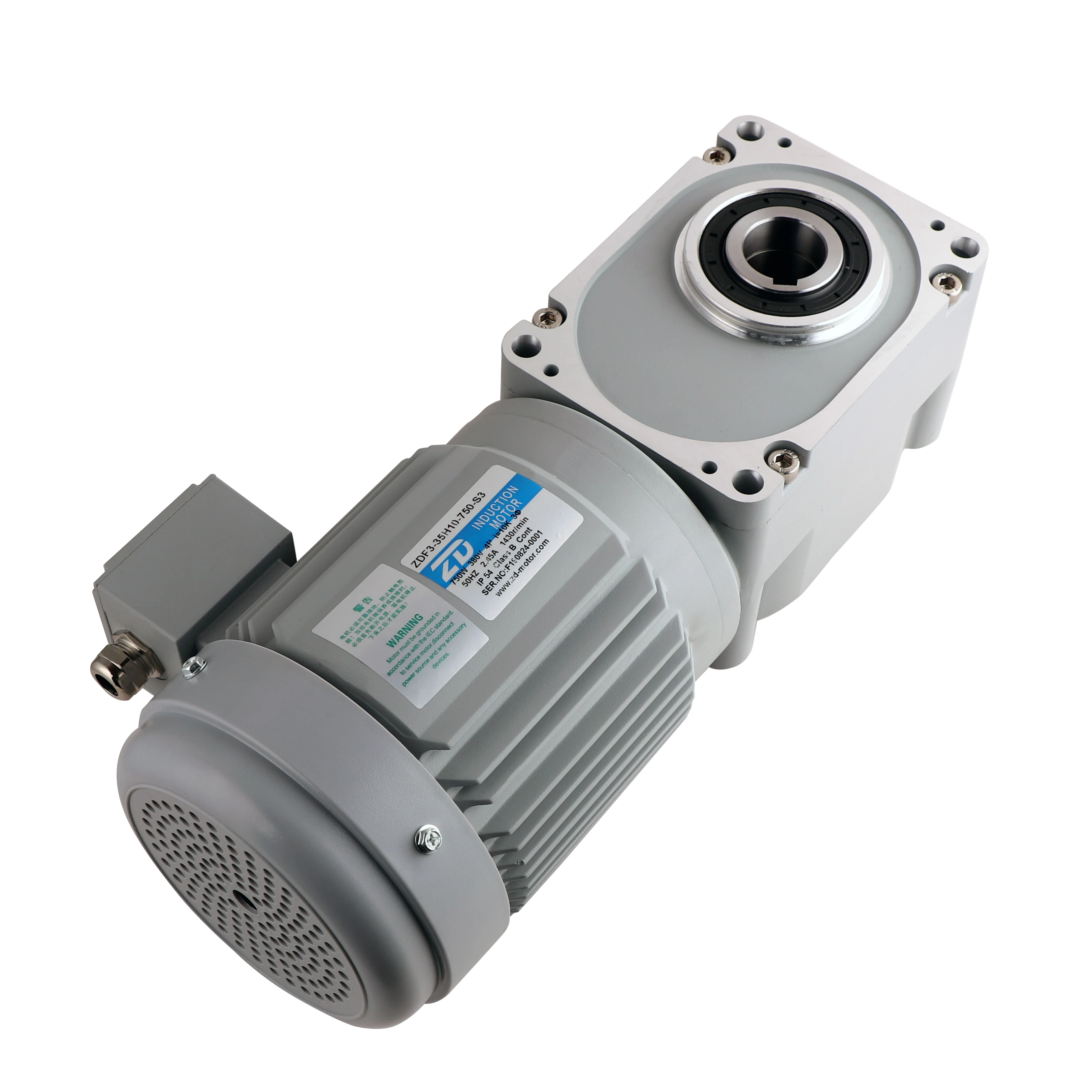

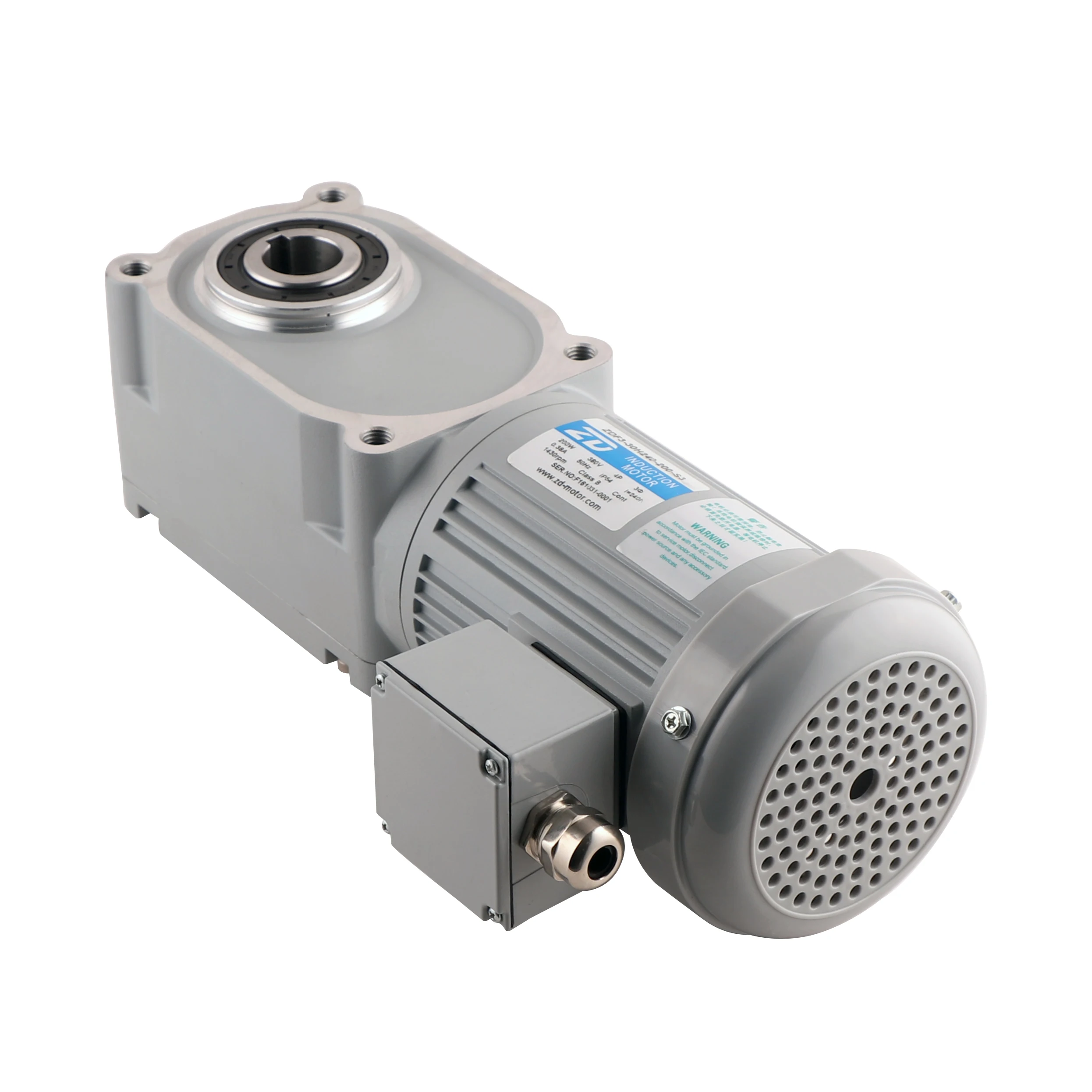

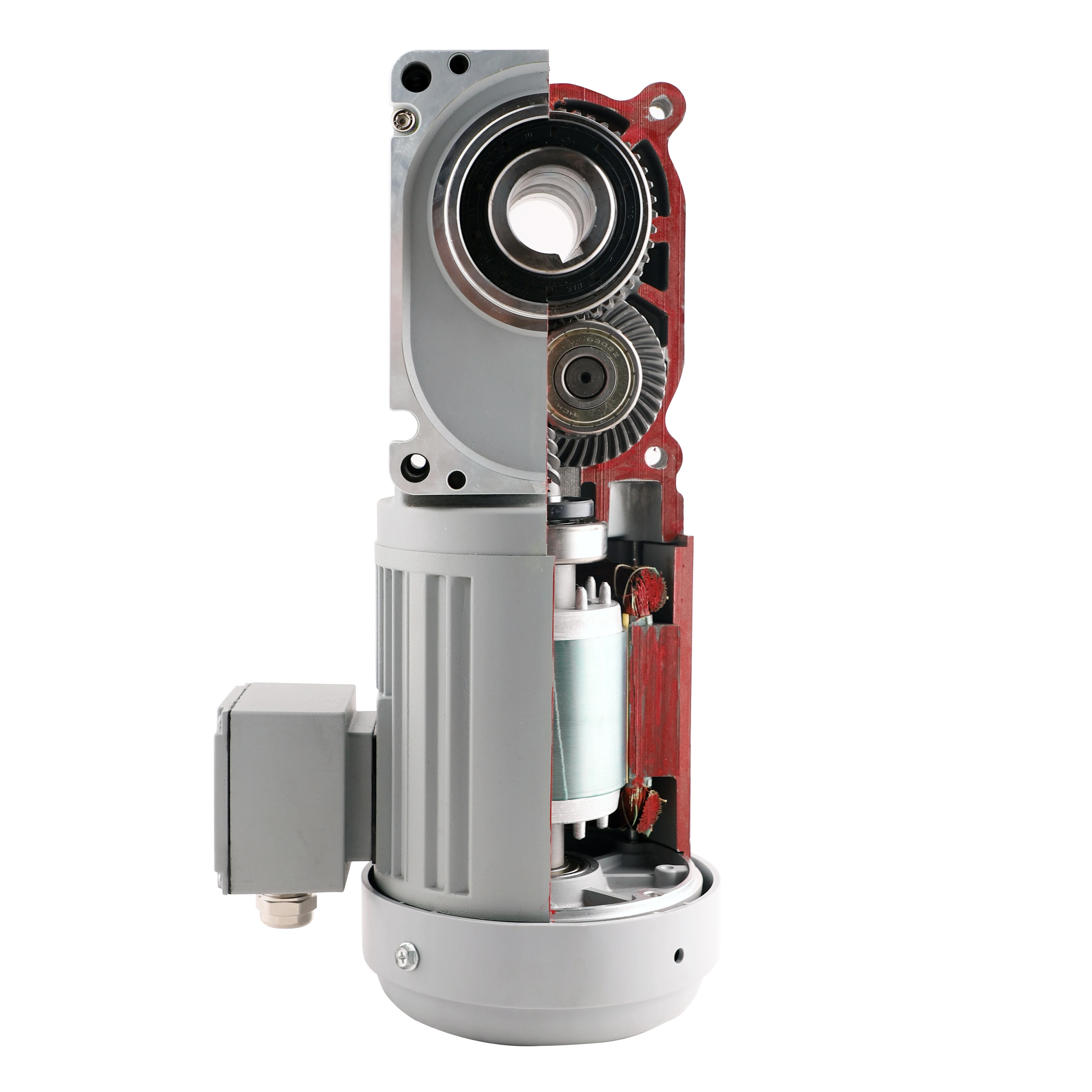

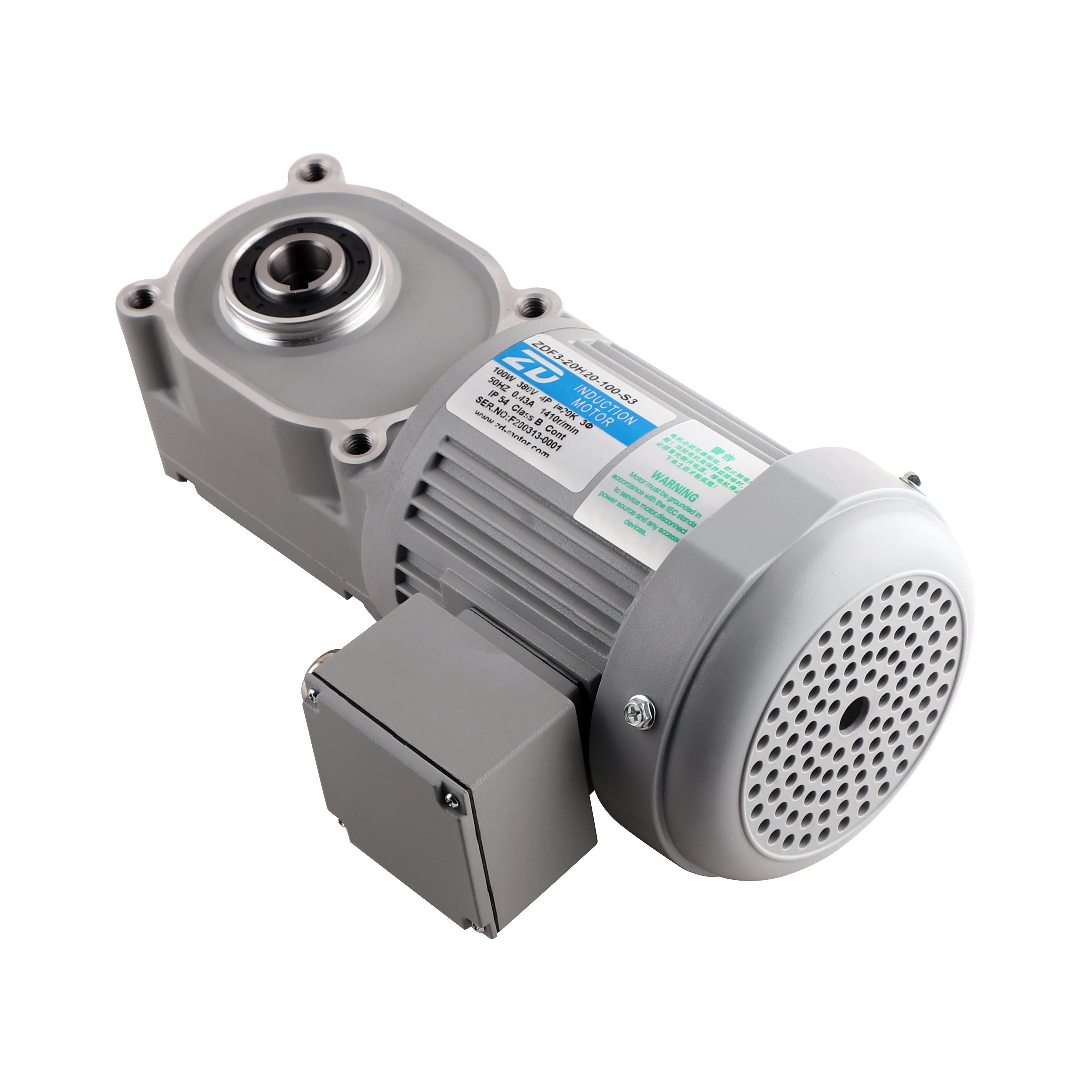

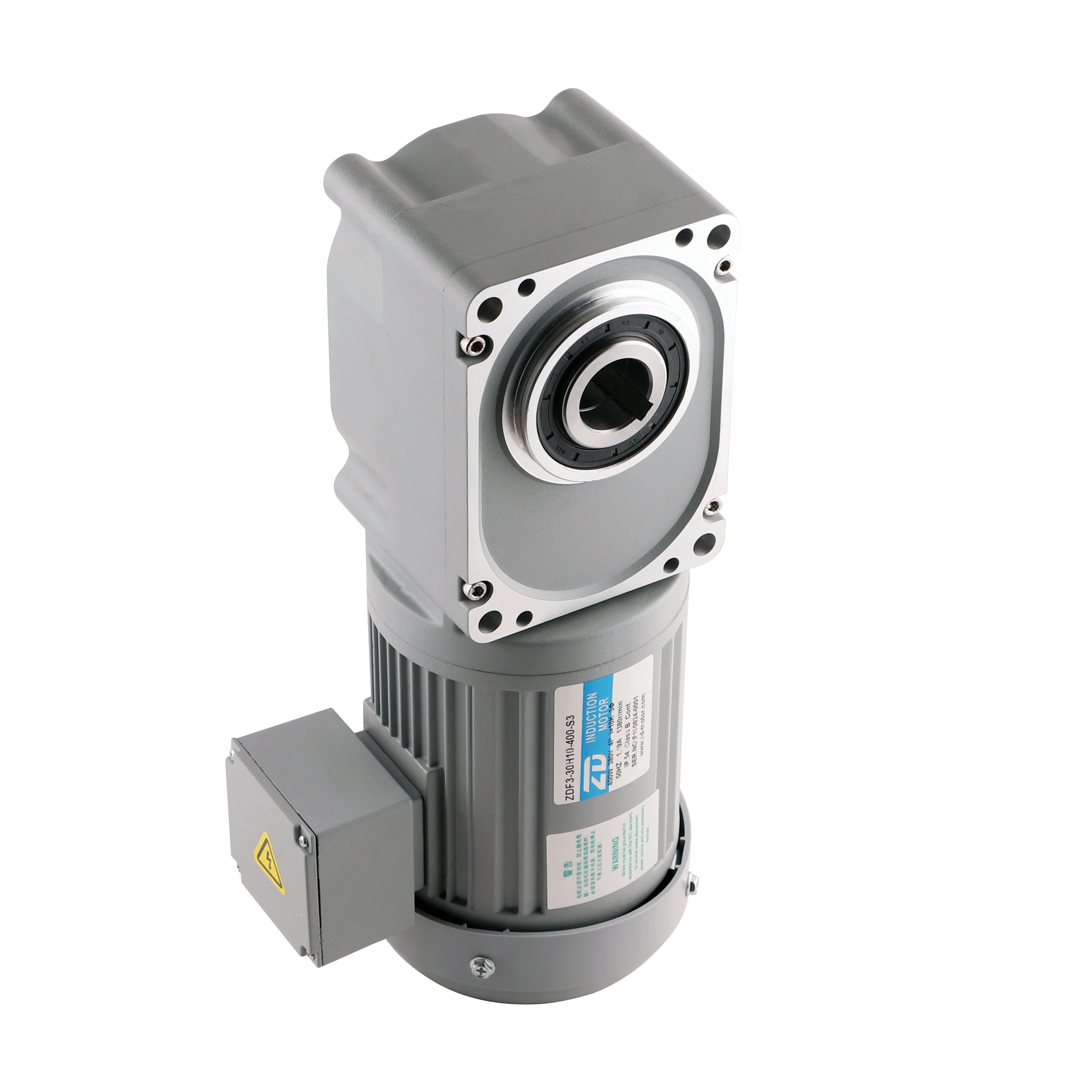

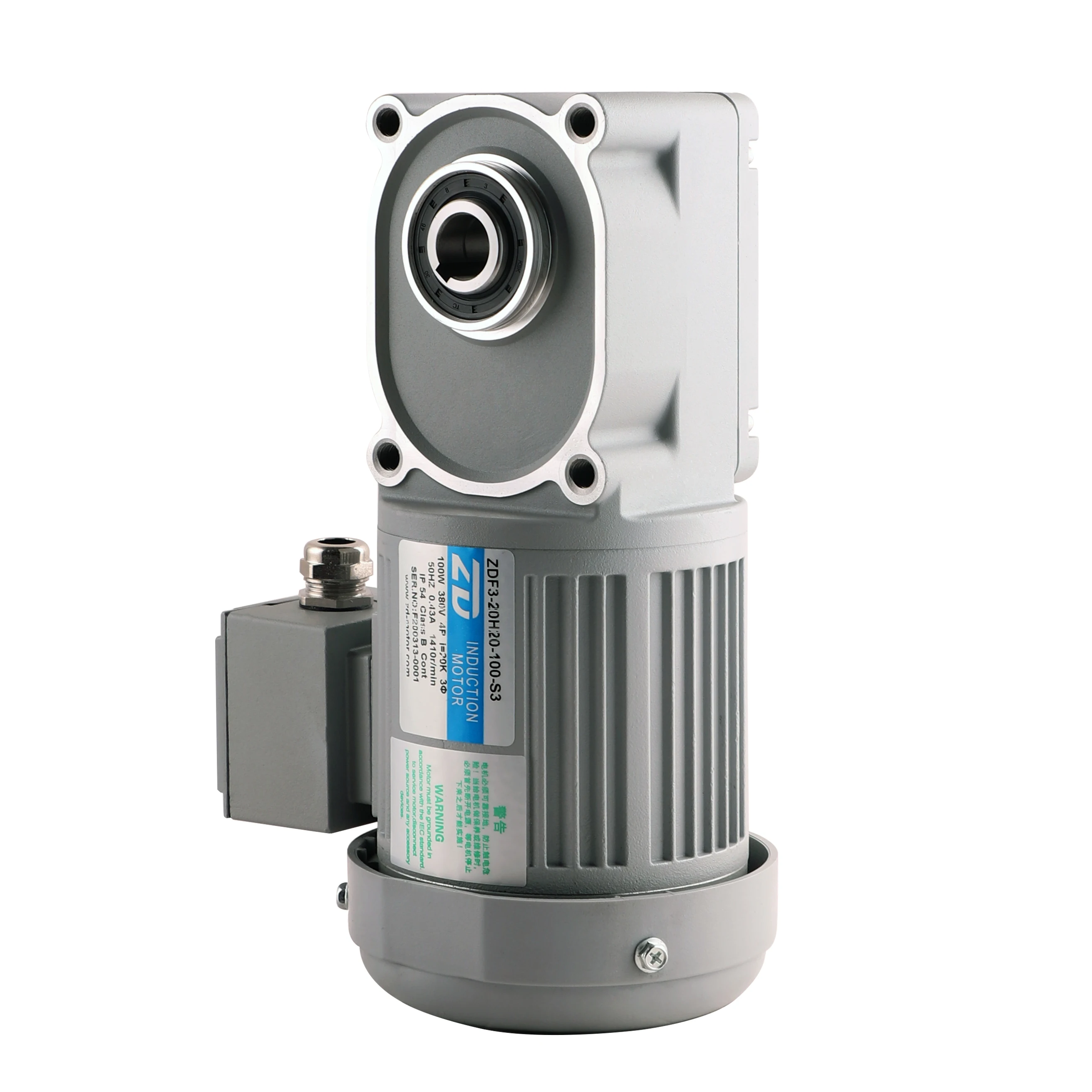

Detailed Images
Product Parameters
Motor Part (Engine part) | Phase | Three-Phase | ||||
Rated Power | 0.1kw, 0.2kw, 0.4kw, 0.75kw, 1.5kw, 2.2kw | |||||
Supply Voltage | 3 phase 220V(50/60HZ), 3 phase 380V(50/60HZ) | |||||
Insulation Grade | F stage | |||||
Start Mode | Direct start | |||||
Cooling Method | Out fan full close | |||||
Number of Poles | 4 | |||||
Rated | Cont | |||||
Protection Grade | IP 54 | |||||
Reducer Part | Reduction Mode | Straight shaft: hypoid gear, helical gear | ||||
Lubrication Mode | Lubricating grease( Maintenance-free) | |||||
Output Shaft | Key-way shaft | |||||
Output Shaft Materials | 40 Cr | |||||
Housing Materials | Aluminum die casting | |||||
Ambient conditions | Tolerance Temperature | -10℃ -40 ℃ | ||||
Tolerance Humidity | 80% below | |||||
Altitude | Below 1000m | |||||
Environmental Condition | No corrosive gas,explosive gas,No dust,Draughty | |||||
Installation | Indoor | |||||
Installation Direction | Horizontal,Vertical,Slant,Opposite angel. | |||||

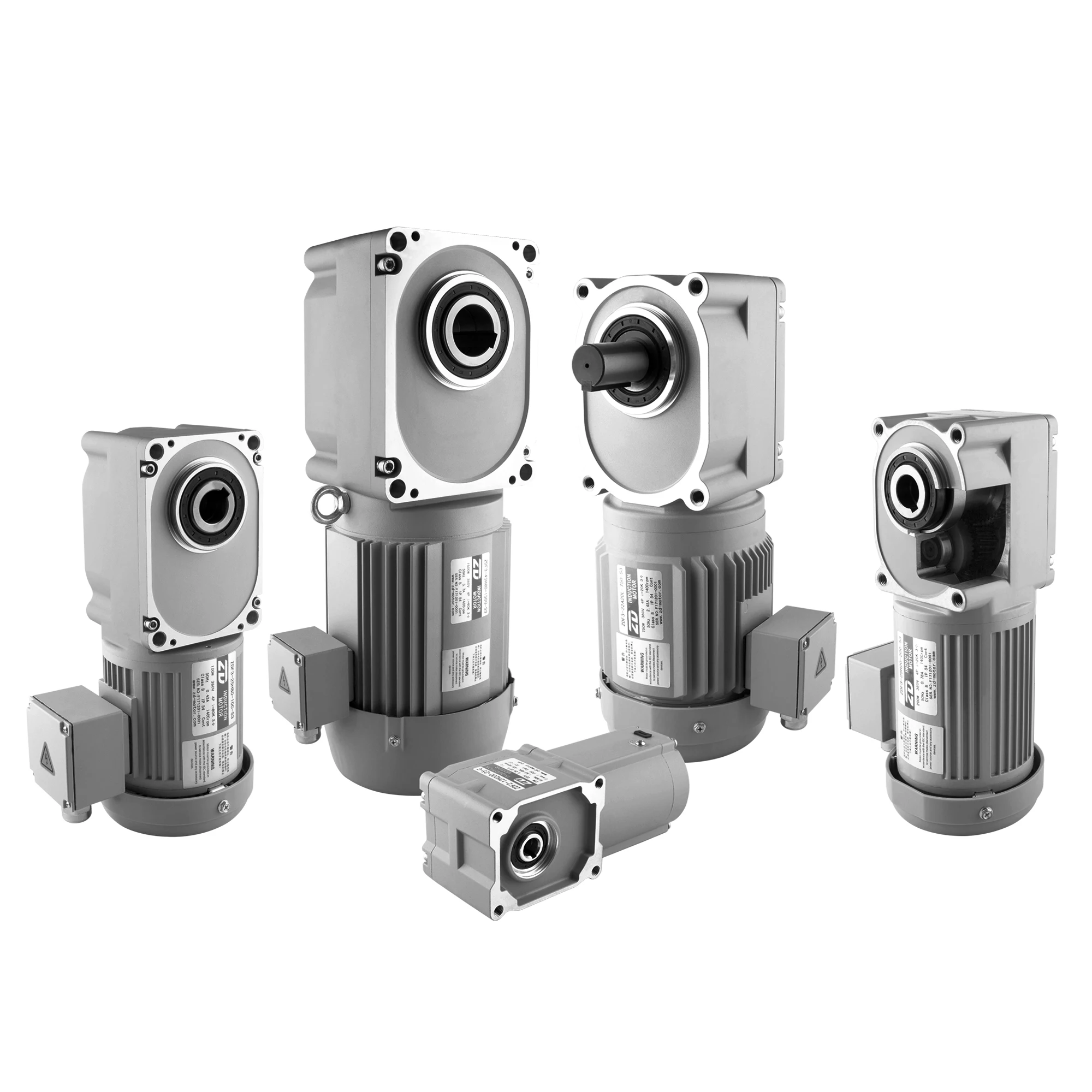

Other Type Of AC/DC Motor
Recommend Products
Click and check out more products you're looking for.
333
Customized Product Service
Why Choose Us
FAQ
Q: What're your main products?
A: We currently produce Brushed Dc Motors, Brushed Dc Gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors, Ac Motors and High Precision Planetary Gear Box etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.
Q: How to select a suitable motor?
A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q: Do you have a customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q: Do you have an individual design service for motors?
A: Yes, we would like to design motors individually for our customers, but it may need some mold developing cost.
Q: What's your lead time?
A: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
A: We currently produce Brushed Dc Motors, Brushed Dc Gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors, Ac Motors and High Precision Planetary Gear Box etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.
Q: How to select a suitable motor?
A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q: Do you have a customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q: Do you have an individual design service for motors?
A: Yes, we would like to design motors individually for our customers, but it may need some mold developing cost.
Q: What's your lead time?
A: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
Stock In Hand | Standard Type | Non-Standard Type | Customized Type | ||
After Payment | In 10 Days | 15-30 Days | Depend on the condition | ||
