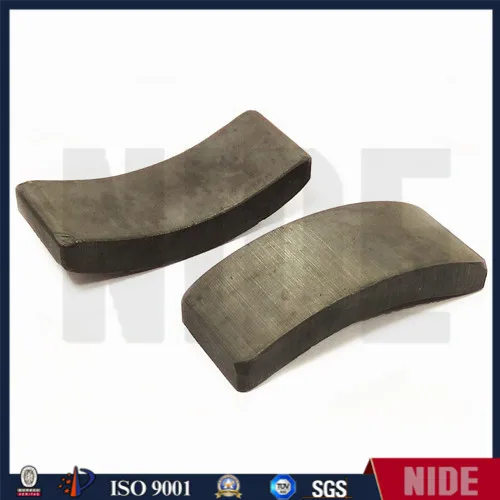

Customized Industrial Field generators Arc permanent Ferrite magnet For Motor Wholesale
- Category: >>>
- Supplier: Ningbo Nide Mechanical Equipment Co. Ltd.
Share on (60430788595):
Product Overview
Description
Product Description
Customized ferrite magnet manufacturing process
Nide team could manufacturemagnet as per customer’s drawing and samples. If customer only has samples, we could also design drawing for our customer. We also provide customized service.
According to the automobile features, we researched and designed various magnet to meet the demand, among them magnet for stater motor and window rolling motors are the leading magnet in China.
Magnets for lawn mower and electric saw
Magnets for lawn mower and electric saw are based on Y33H, Y30H-2 materials and applicable for 25cc, 26cc, 38cc, 40cc, 42cc series motors.

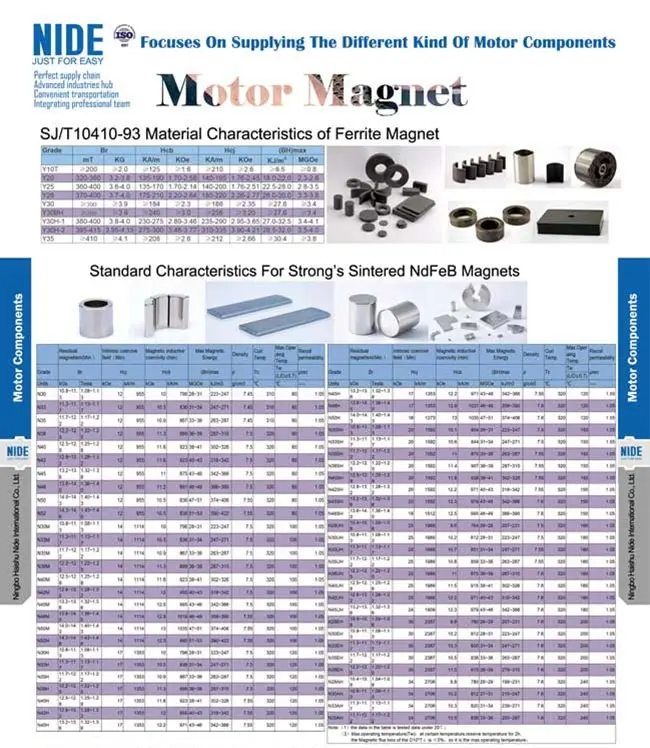

Ferrite Magnet Grade Equivalent
Item | Grade | Br T(GS) | HCB kA/m(kOe) | HCJ kA/m(kOe) | (BH) max kJ/m³(MGOe) |
IEC standard
IEC60404-8-1: 2001
| Hard ferrite 32/25 SI-1-9 | ≥0.41 | ≥240 | ≥250 | ≥32.00 |
≥4100 | ≥3016 | ≥3142 | ≥4.02 | ||
Hard ferrite 24/35 SI-1-10 | ≥0.36 | ≥260 | ≥350 | ≥24.00 | |
≥3600 | ≥3267 | ≥4398 | ≥3.02 | ||
Hard ferrite 25/38 SI-1-12 | ≥0.38 | ≥275 | ≥380 | ≥25.00 | |
≥3800 | ≥3456 | ≥4775 | ≥3.14 | ||
Hard ferrite 31/30 SI-1-13 | ≥0.41 | ≥295 | ≥300 | ≥31.00 | |
≥4100 | ≥3707 | ≥3770 | ≥3.896 | ||
NIDE Standard
Q/74690217-4.1-2004
| JC-Y3932 | 0.380-0.400 | 230-275 | 235-290 | 27.8-32.5 |
(3800-4000) | (2890-3456) | (2953-3644) | (3.49-4.10) | ||
JC-Y3939 | 0.385-0.4000 | 270-290 | 280-320 | 28.5-31.8 | |
(3800-4000) | (3391-3644) | (3518-4021) | (3.58-4.00) | ||
JC-Y4041 | 0.395-0.415 | 275-295 | 310-340 | 28.2-32.0 | |
(3950-4150) | (3456-3707) | (3895-4272) | (3.54-4.02) | ||
JC-Y4127 | 0.400-0.424 | 200-225 | 205-228 | 30.0-33.6 | |
(4000-4240) | (2514-2827) | (2577-2865) | (3.77-4.22) | ||
JC-Y4231 | 0.410-0.430 | 220-260 | 255-270 | 31.8-35.5 | |
(4100-4300) | (2765-3267) | (2827-3391) | (4.00-4.46) | ||
JC-Y3744 | 0.360-0.380 | 265-288 | 330-360 | 24.0-28.0 | |
(3600-3800) | (3330-3620) | (4147-4524) | (3.02-3.53) | ||
JC-Y3849 | 0.370-0.390 | 271-305 | 370-400 | 26.0-30.2 | |
(3700-3900) | (3405-3833) | (4649-5026) | (3.27-3.80) | ||
JC-Y4240 | 0.410-0.430 | 291-314 | 306.1-330 | 32.0-35.4 | |
(4100-4300) | (3657-3946) | (3846-4147) | (4.02-4.45) |
Information needed for magnet inquiry
It will be better if customer could send us detailed drawing including below information.
1. Magnet dimension
2. Magnet material
3. Magnet application
5. Required quantity
6. Other technical requirement.
Customized ferrite magnet manufacturing process,ferrite magnet manufacturing process,ferrite magnet suppliers in mumbai,permanent magnet generators

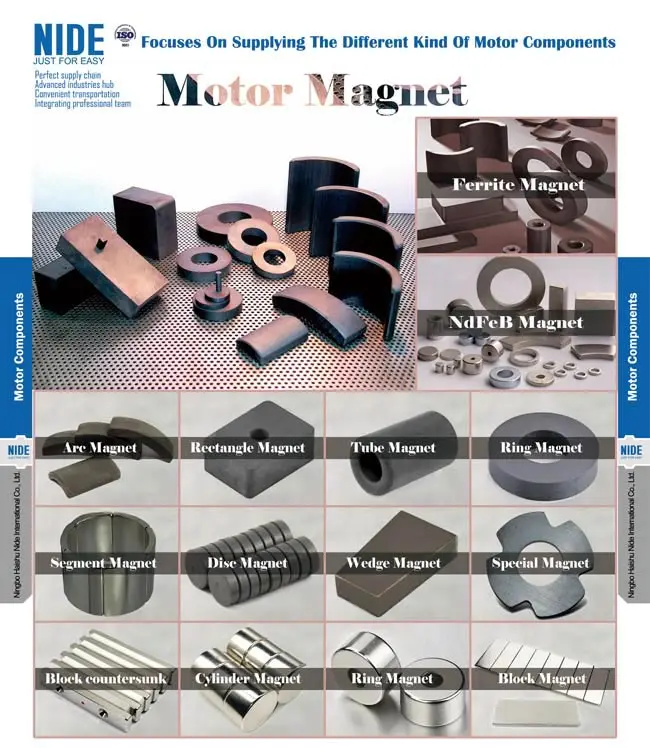

Motor Magnet
We can offer a variety of NdFeB Magnet and Ferrite Magnet, If you need special magnetic tiles, we can also customize according to your needs.

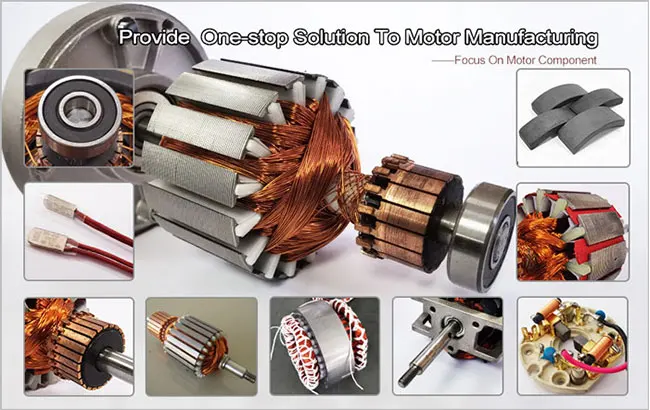

NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
Our Products are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor, series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
