Solid Silicone Rubber Injection Molding Machine
- Category: >>>
- Supplier: HENGYANG HUAYI MACHINERY CO. LTD.
Share on (60430962527):
Product Overview
Description

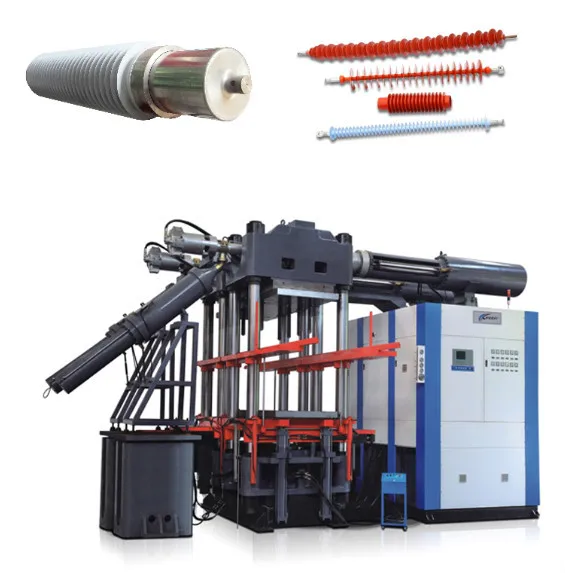

500ton rubber injection rubber machine making for 66-220kv isulators
1. Angel design structure and super-large injection volume, equipped with stuffing device.
2. It is suitable for making solid silicone rubber products, such as insulators, arrester and bushings.
Main Technical Parameters
Parameters/models | HYZ-300B | HYZ-500B | HYZ-1200B | HYZ-2400B |
Max. injection volume(cm3) | 4000 | 10000 | 30800 | 80000 |
Max. clamping force(KN) | 3000 | 5000 | 12000 | 24000 |
Platen size(mm) | 550X1300 | 630X1500 | 850X3500 | 850X3500 |
Clamping stroke(mm) | 600 | 700 | 650 | 650 |
Min. mould thickness(mm) | 190 | 250 | 210 | 360 |
Total power(kw) | 50 | 85 | 110 | 280 |
Dimension Btwn tiebar(mm) | 680×500 | 780×560 |
|
|
Space of platens(mm) | 780 | 940 | 850 | 1000 |
Machine size(mm) | 4500×1600×3200 | 5300×2500×3500 | 7100×5500×3800 | 9000×5500×4500 |
Reference weight(ton) | 15 | 21 | 65 | 120 |
Equipment Configuration
No. | Component Name | Supplier/Model/Material |
01 | MCU | Siemens |
02 | LCD display | Siemens |
03 | Thermocouple module | Siemens |
04 | Digital module | Siemens |
05 | Analoge module | Siemens |
06 | Light curtain | Sick |
07 | Auto air switch | Schneider |
08 | AC contactor | Schneider |
09 | Motor | DongGuan Motor |
10 | Proportional flux valve | YUKEN |
11 | Proportional pressure valve | YUKEN |
12 | Direction control valve | NORTHMAN |
13 | Oil pump | YUKEN |
14 | Seal | SEALTECH |
15 | Bearing | NSK |
16 | Screw/chamber | Zhejiang Huaye (38CrMoAlA) |
17 | Column | 40Cr |
18 | Clamping cylinder/plate | QT600-3 |

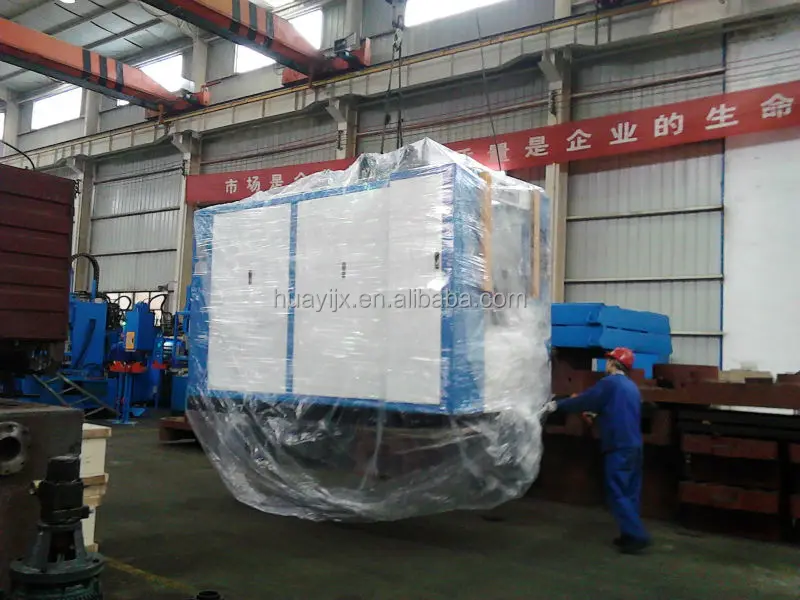

Packing & Delivery
