25W 2400 lm 60 80W CFL light fixture replacing LED PCB board AC230V directly without external LED driver for led lighting panel

Product Overview

Description

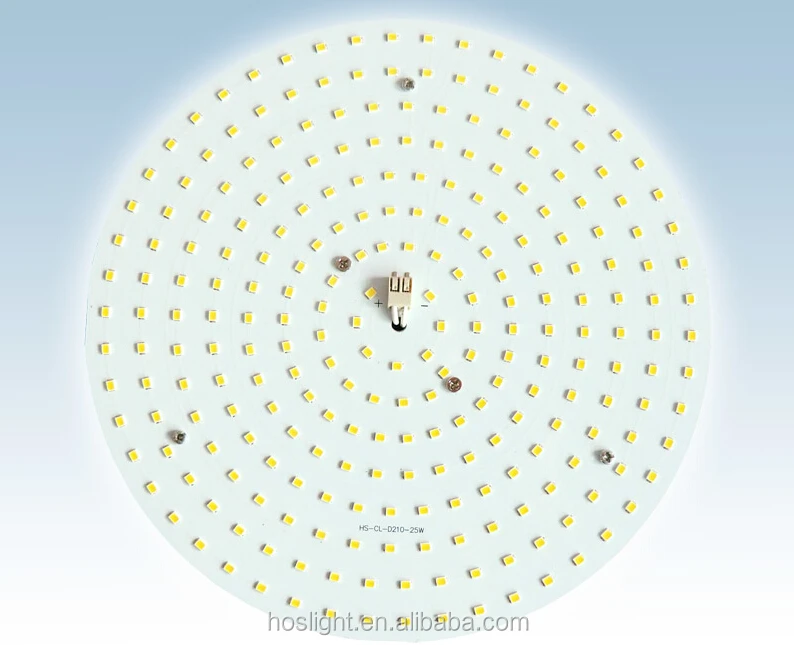

25W 2400 lm 60-80W CFL light fixture replacing LED PCB board  AC230V directly without external LED driver for led lighting panel

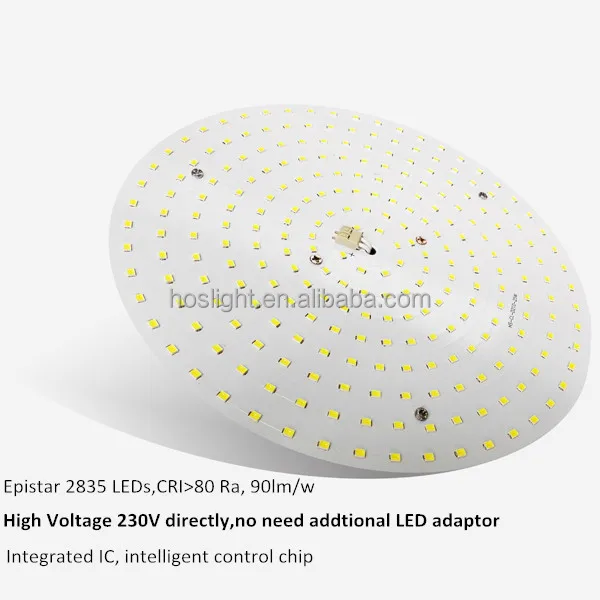

1. Features of the ceiling light LED module

No UV or RF interference, no Mercury or Lead.

Ultra thin PCB panel design, only1.3mm.

Taiwan Imported original Epistar chip.

Life-span:50000 hours.

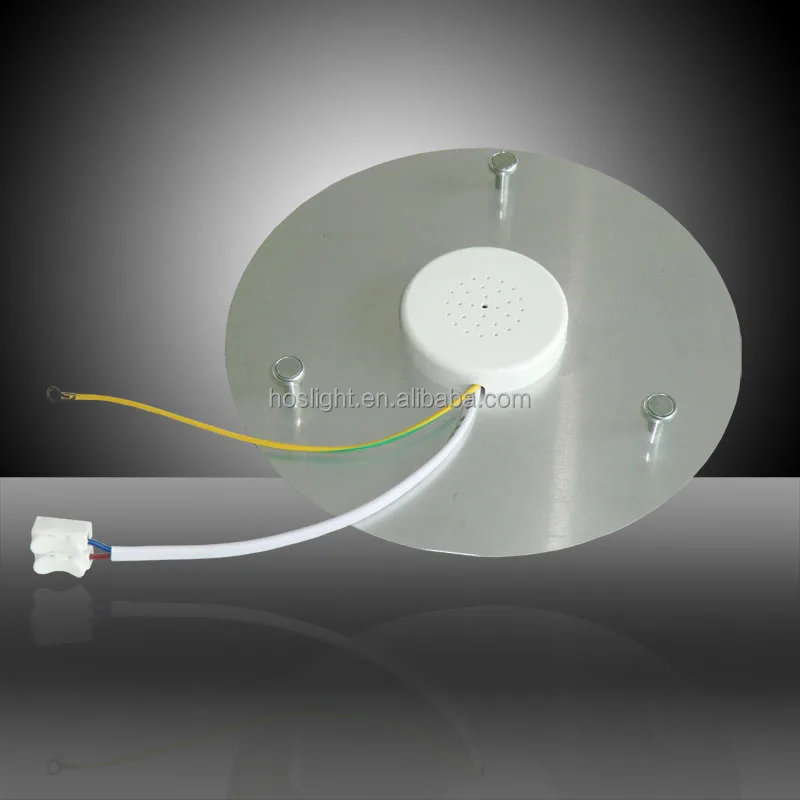

Industrial powerful magnet,Firm installation,Easy installation

3 years warranty

With CE, RoHS approval.

Φ110mm, Φ142mm, Φ180mm, Φ210mm are available.





2. Specification of ceiling light LED module





Power:	25W
Size:	Φ210*1.3mm
LED:	252pcs Epistar LED 2835
CRI:	80 Ra
Lumen efficiency:	85 lm/w
Lumen output:	2125 lm
Power factor:	>90%
Power efficiency:	>85%
Lumen depreciation:	3‰
CCT:	3000K/4000K/6000K
Voltage:	200-240V
Material:	Aluminum, magnet
Bean angle:	120°
Weight:	90g
Certificate:	CE, RoHS
Application:	Replace old ceiling light source





3. Advantages of ceiling light LED module







4. How to Choose the ceiling light LED module to replace the light source

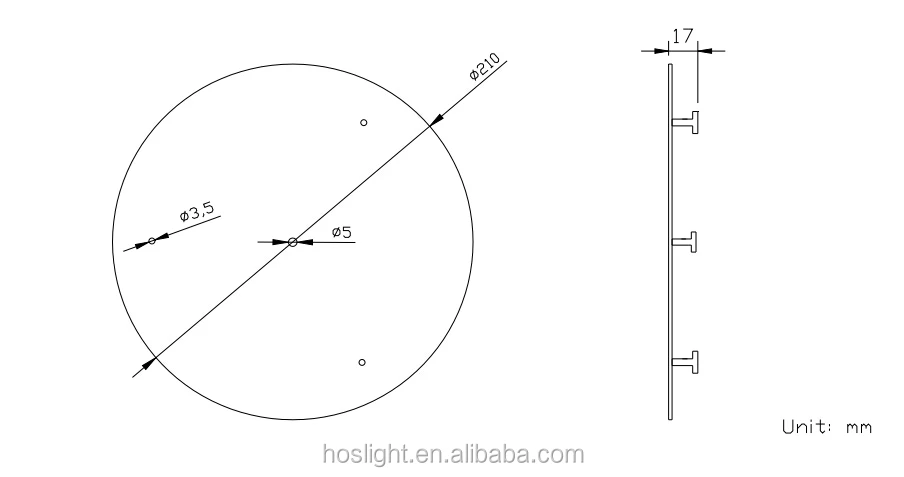

5. Outline dimension of ceiling light LED module

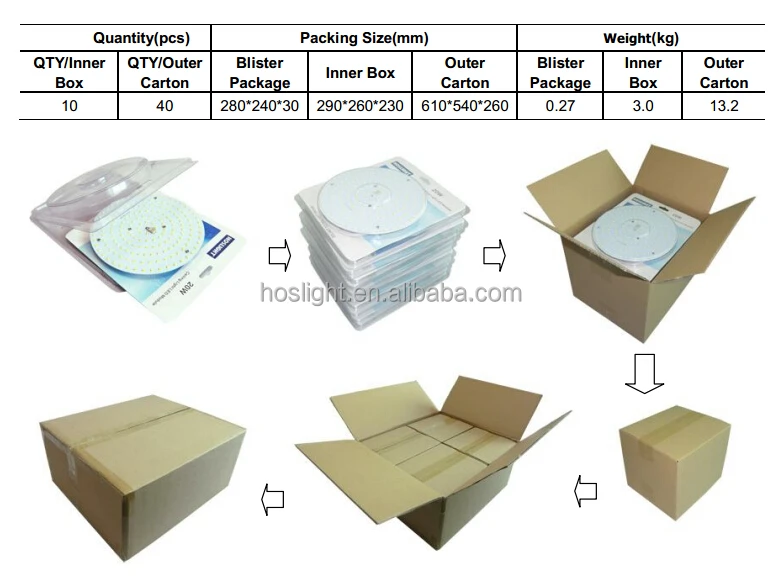

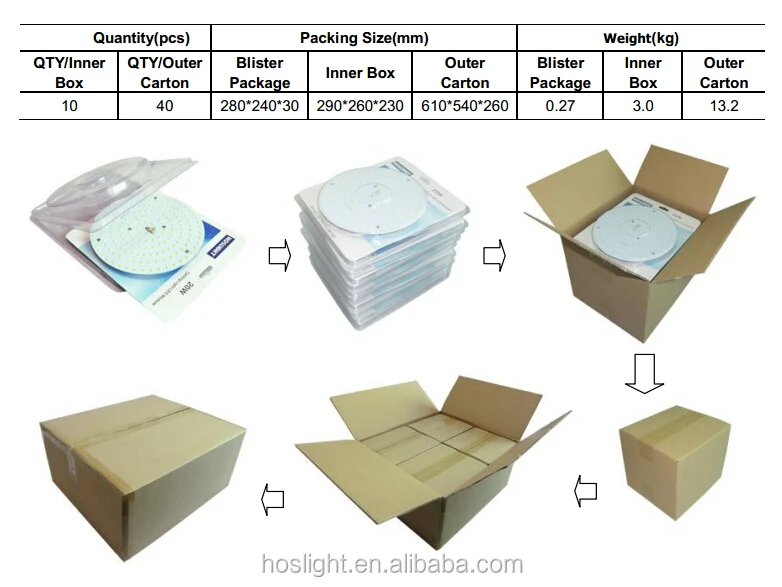

6. Package of ceiling light LED module

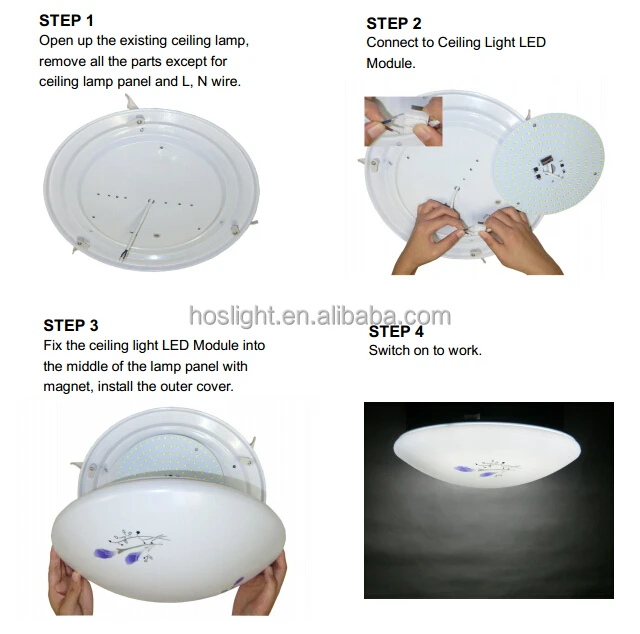

7. Installation of ceiling light LED module

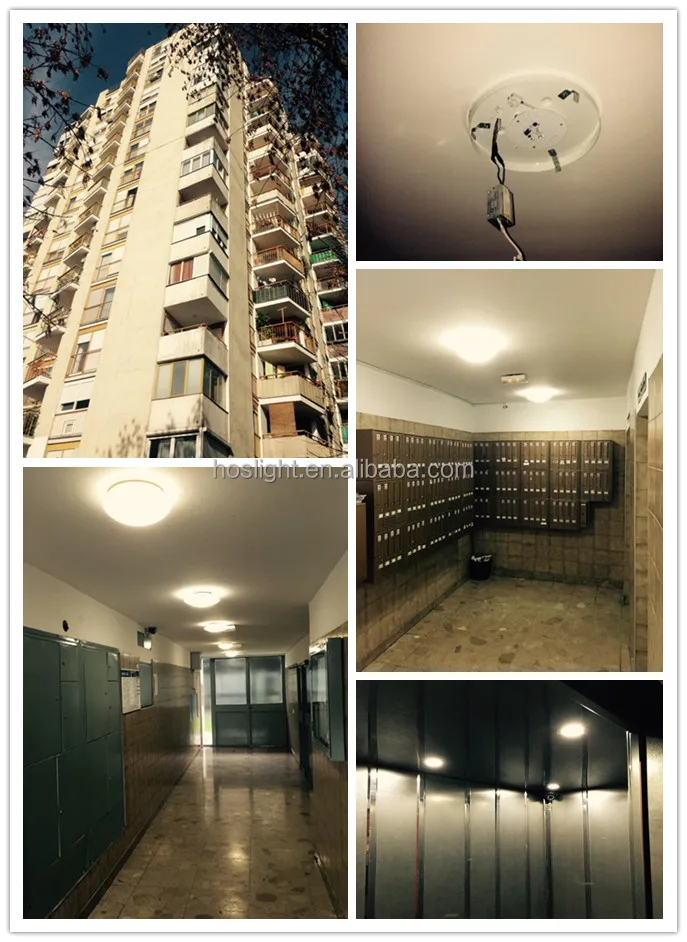

8. Application of ceiling light LED module

Remarks:

1. Please install the lamp by professionals.

2. Please make sure the right voltage before working.

3. For indoor use only, please stay away from heat and vibration source.

4. Switch OFF the power before installing the Ceiling light LED round PCB Board.



9. Certificates of ceiling light LED module
