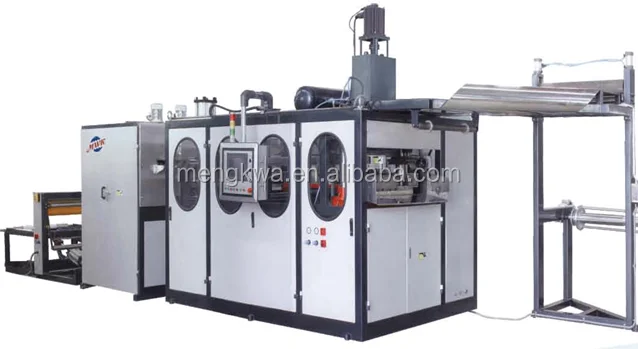

Automatic Plastic Thermoforming Machine for Cup

Product Overview

Description

PP, PS, HIPS, PVC, PET Sheet Thermoforming Machine

Specifications

1.PP, PS, HIPS, PVC, PET Sheet Thermoforming Machine

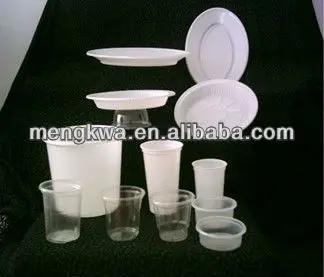

2. widely used to produce various kinds of plastic cups, boxes etc.

Application & Features:

1. The thermoforming machine is designed with most advanced thermoforming technology,a combination of mechanical, electrical and pneumatic components.

2. The whole system was controlled by PLC.

3. The machine has man-interface operation, preheating by heat conduction oil roller, send sheet by chain, running by cam, press by servo-motor, forming by air pressure.

4. It combines the preheating, material feeding, heating, drawing, forming, cutting, rewinding into one process.



Applicable materials	PP/PE/PS/PET/PVC
Sheet thickness	0.3-2.0mm
Sheet width	500-720mm
Mold installation size	750×350mm
Oven heating zone	Zone 9, 10 rows
Oven lower heating zone	Zone 9, 10 rows
stroke	5-35 punch/min
Work Efficiency	50 kW
Total heating power	11 kW
Main motor power	380V three-phase four-wire
Voltage requirements	0.6-0.8 MPa
Air pressure	2500~3500L/min
Air flow	40~45 L/min
Machine weight	5500kgs
